GE WNXR2100T3WW washer Parts
Here are the diagrams and repair parts for GE WNXR2100T3WW washer, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for WNXR2100T3WW Washer

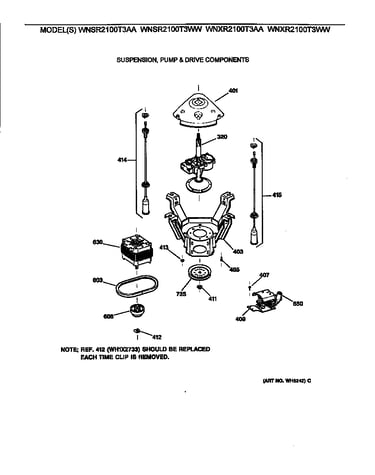

Suspension, pump & drive components diagram
Leg&pltfrm
Part #WH17X96
The manufacturer no longer makes this part, and there's no substitute part

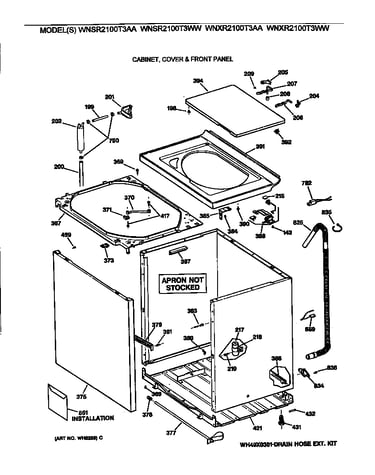

Cabinet, cover & front panel diagram
Lid
Part #WH44X1181
The manufacturer no longer makes this part, and there's no substitute part

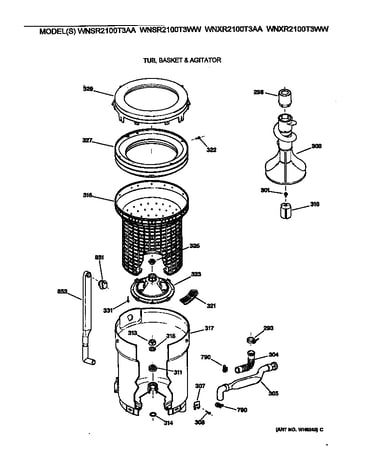

Tub, basket & agitator diagram
Hub
Part #WH45X154
The manufacturer no longer makes this part, and there's no substitute part

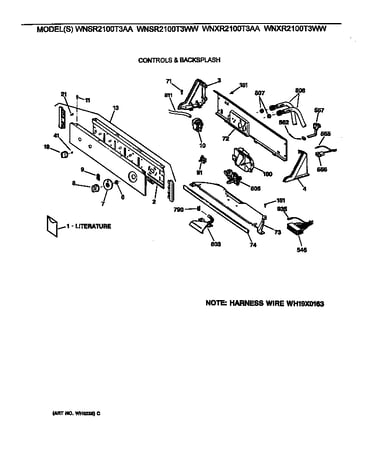

Controls & backsplash diagram
Control Panel
Part #WH42X2422
The manufacturer no longer makes this part, and there's no substitute part
Cabinet, cover & front panel diagram
Panel
Part #WH46X345
The manufacturer no longer makes this part, and there's no substitute part
Suspension, pump & drive components diagram
Trans&brkasm
Part #WH38X55
The manufacturer no longer makes this part, and there's no substitute part
Cabinet, cover & front panel diagram
Washer Lid Switch Assembly
Part #WH12X1043
The manufacturer no longer makes this part, and there's no substitute part
Controls & backsplash diagram
Scr 8-18
Part #WE1X1270
The manufacturer no longer makes this part, and there's no substitute part
Tub, basket & agitator diagram
Hub Extra Large Basket
Part #WH45X157
The manufacturer no longer makes this part, and there's no substitute part
Controls & backsplash diagram
Washer Timer Dial Compression Ring
Part #WH2X650
The manufacturer no longer makes this part, and there's no substitute part
