Kenmore 2784228591 electric built-in oven Parts
Here are the diagrams and repair parts for Kenmore 2784228591 electric built-in oven, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part

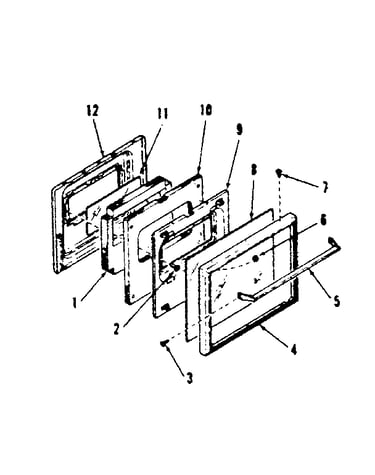

SELECT DIAGRAM
Browse Parts for 2784228591 Ranges
Screw
Part #311484Replaced by #WB1X1130
Manufacturer substitutionThis part replaces 311484. Substitute parts can look different from the original.In Stock$9.869% OFF Phone Price : $10.86
Qty

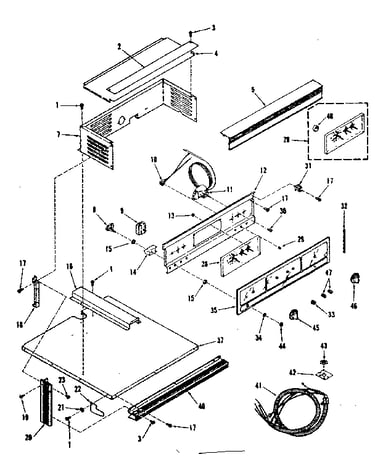

Control panel section diagram
Hex Screw
Part #102429Replaced by #WB1X1297

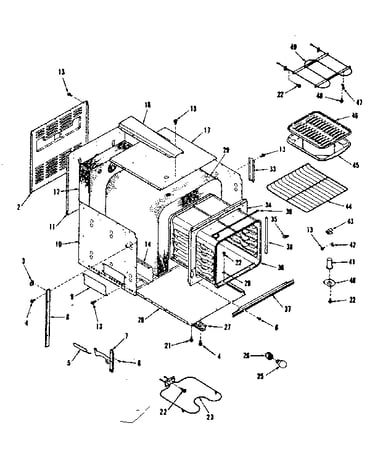

Manufacturer substitutionThis part replaces 102429. Substitute parts can look different from the original.In Stock$7.6312% OFF Phone Price : $8.63QtyBody section diagram
Vent Box
Part #328052
The manufacturer no longer makes this part, and there's no substitute part
Control panel section diagram
Harness Conduit
Part #329372
The manufacturer no longer makes this part, and there's no substitute part
Control panel section diagram
60 Cycle
Part #328794
The manufacturer no longer makes this part, and there's no substitute part
Body section diagram
Left
Part #328025
The manufacturer no longer makes this part, and there's no substitute part
Control panel section diagram
Thermostat Knob
Part #325737
The manufacturer no longer makes this part, and there's no substitute part
Control panel section diagram
50 Cycle (optional)
Part #328795
The manufacturer no longer makes this part, and there's no substitute part
Body section diagram
Lower Trim
Part #328000
The manufacturer no longer makes this part, and there's no substitute part
Body section diagram
208 Volt (optional)
Part #328116
The manufacturer no longer makes this part, and there's no substitute part
