KitchenAid
Wall Oven/Microwave Combo

Model # KEMC308KSS0 Official KitchenAid electric built-in oven with microwave

Here are the diagrams and repair parts for Official KitchenAid KEMC308KSS0 electric built-in oven with microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

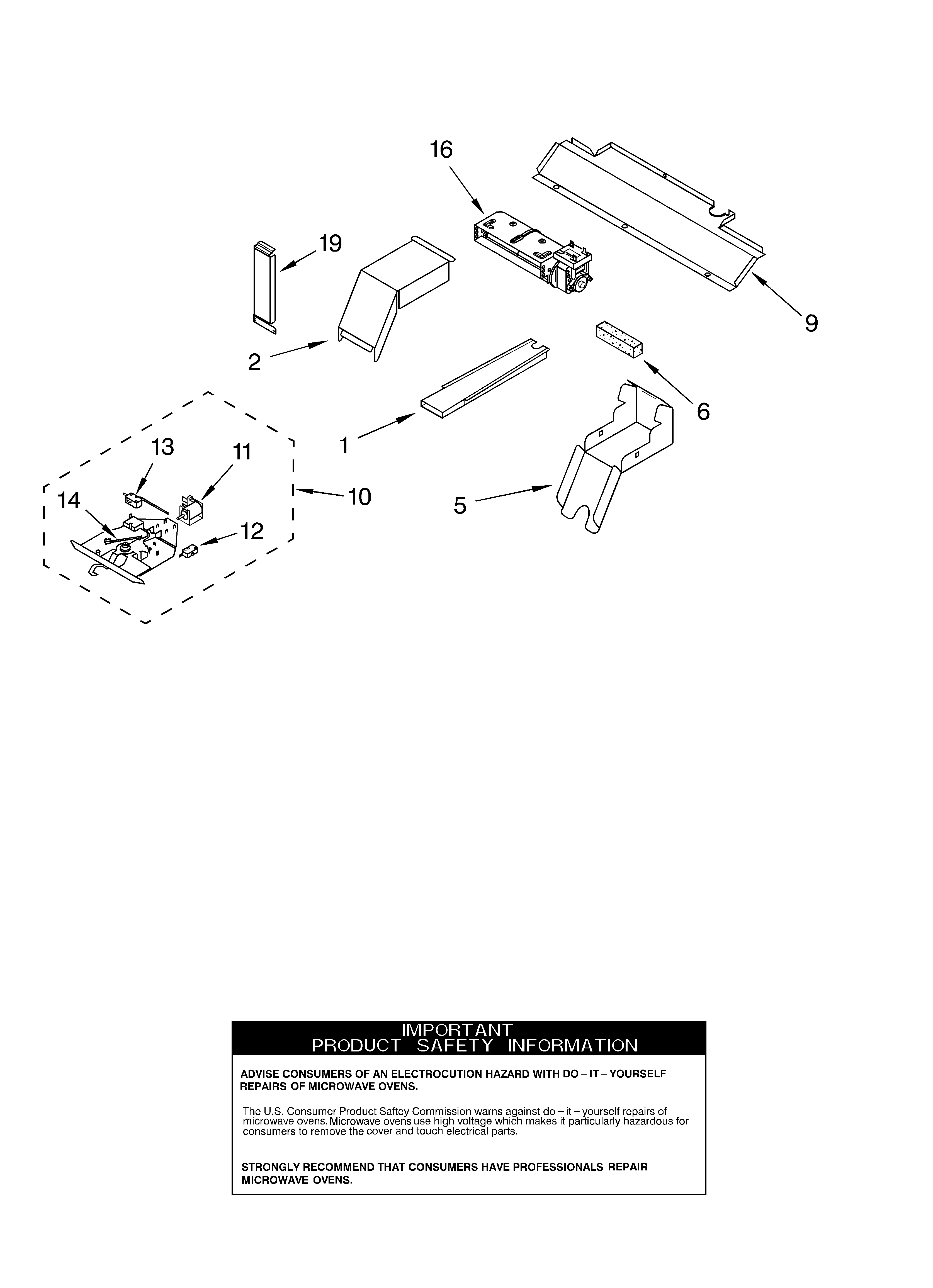

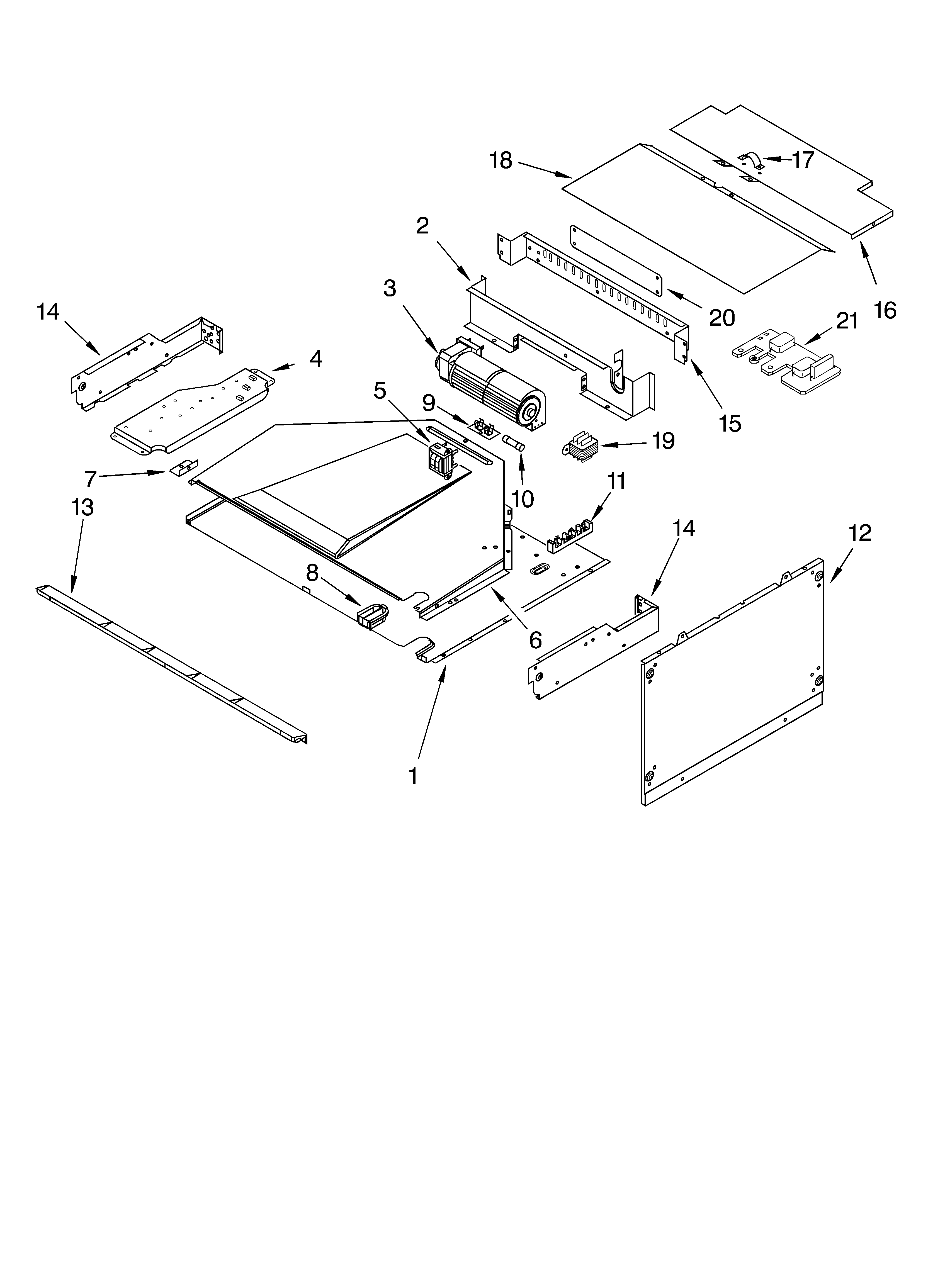

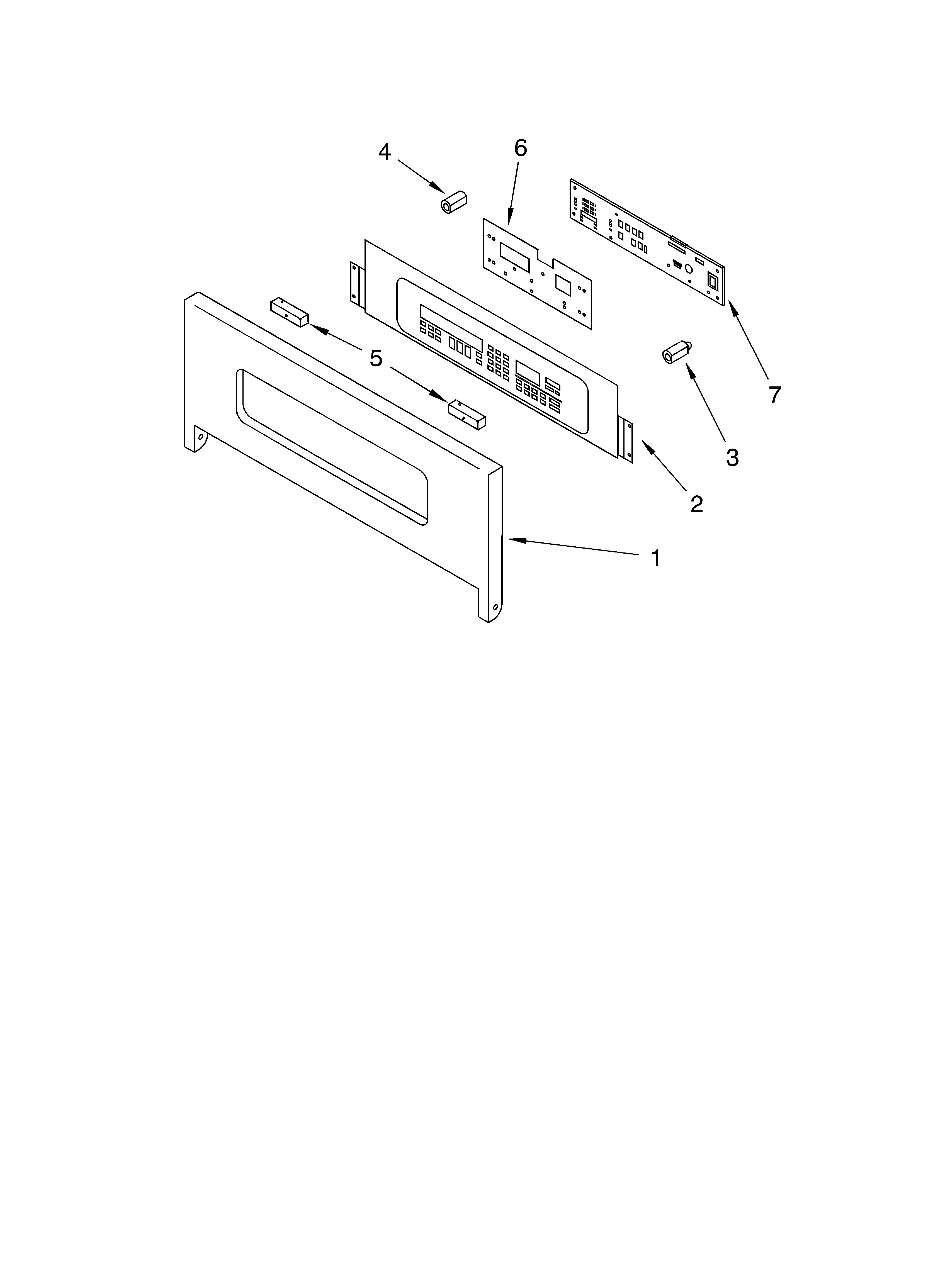

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 289 parts  |
Microwave Door Interlock Switch 4375346
#73

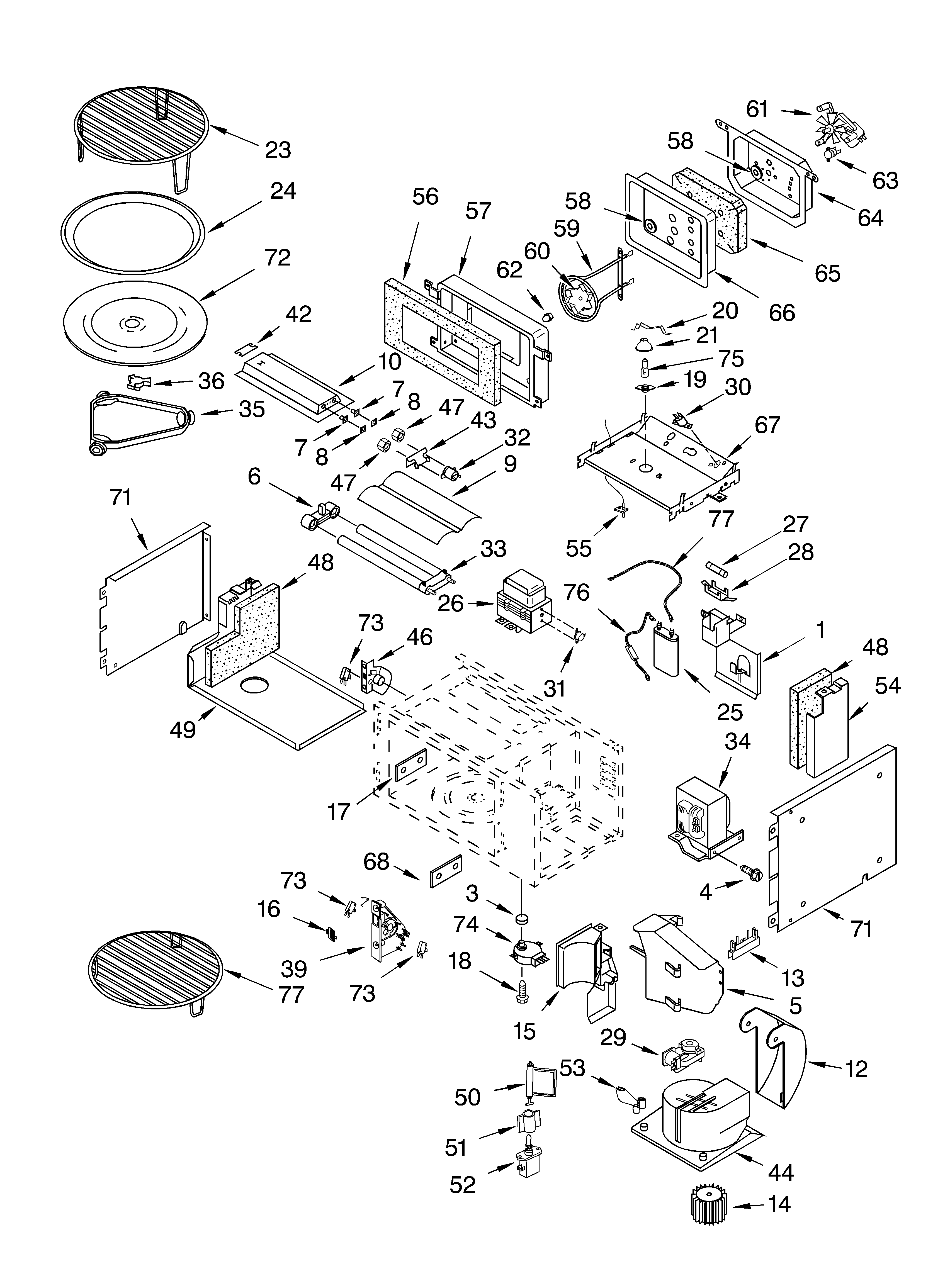

Cabinet and stirrer diagram

Microwave door interlock switch

Part #4375346

Replaced by #W10211972

?
Manufacturer substitution
This part replaces 4375346. Substitute parts can look different from the original.
BEST SELLER
$33.83 |
15% OFF Phone Price : $39.83
In Stock
Wall Oven Temperature Sensor 4455636
#29

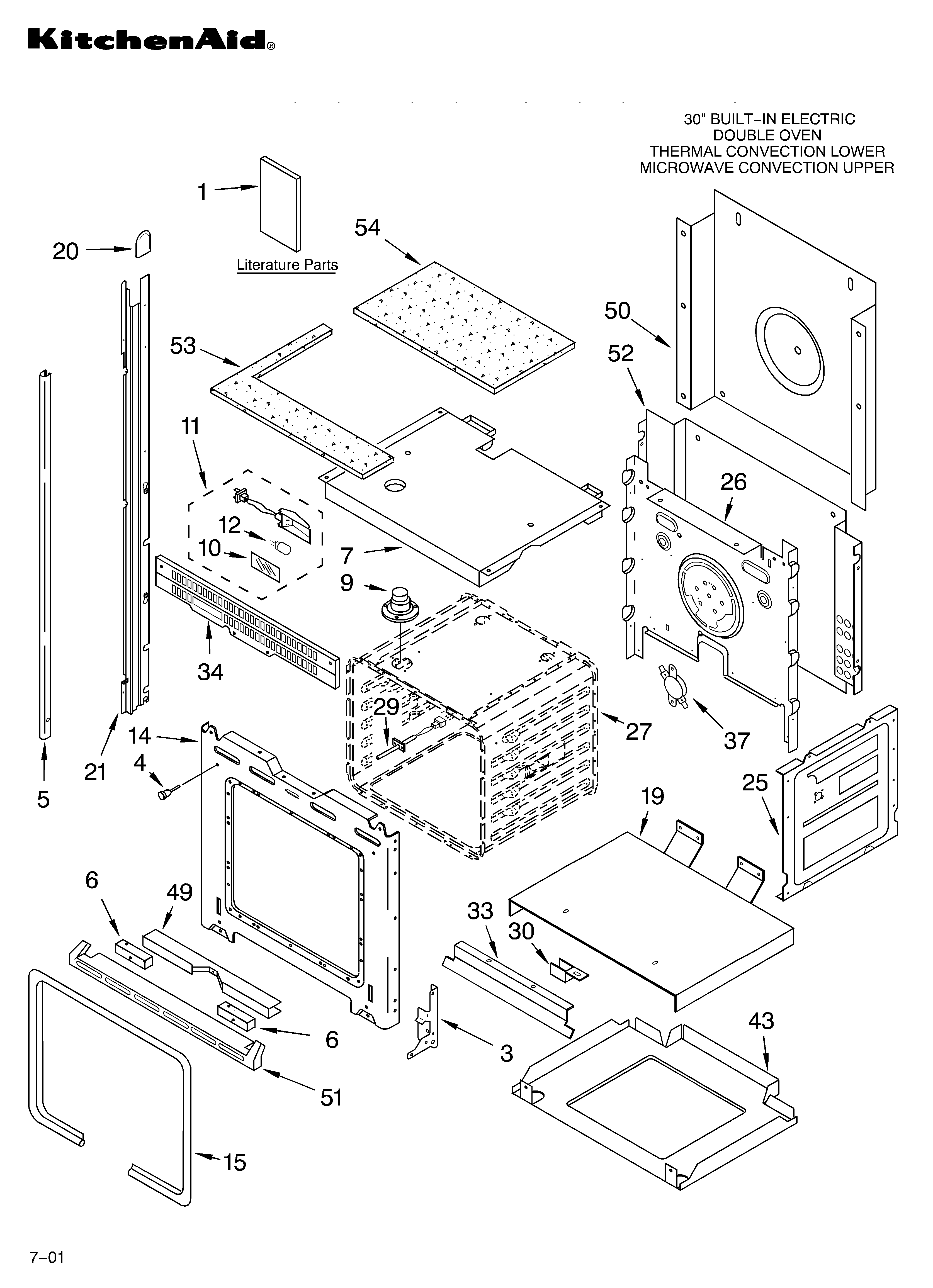

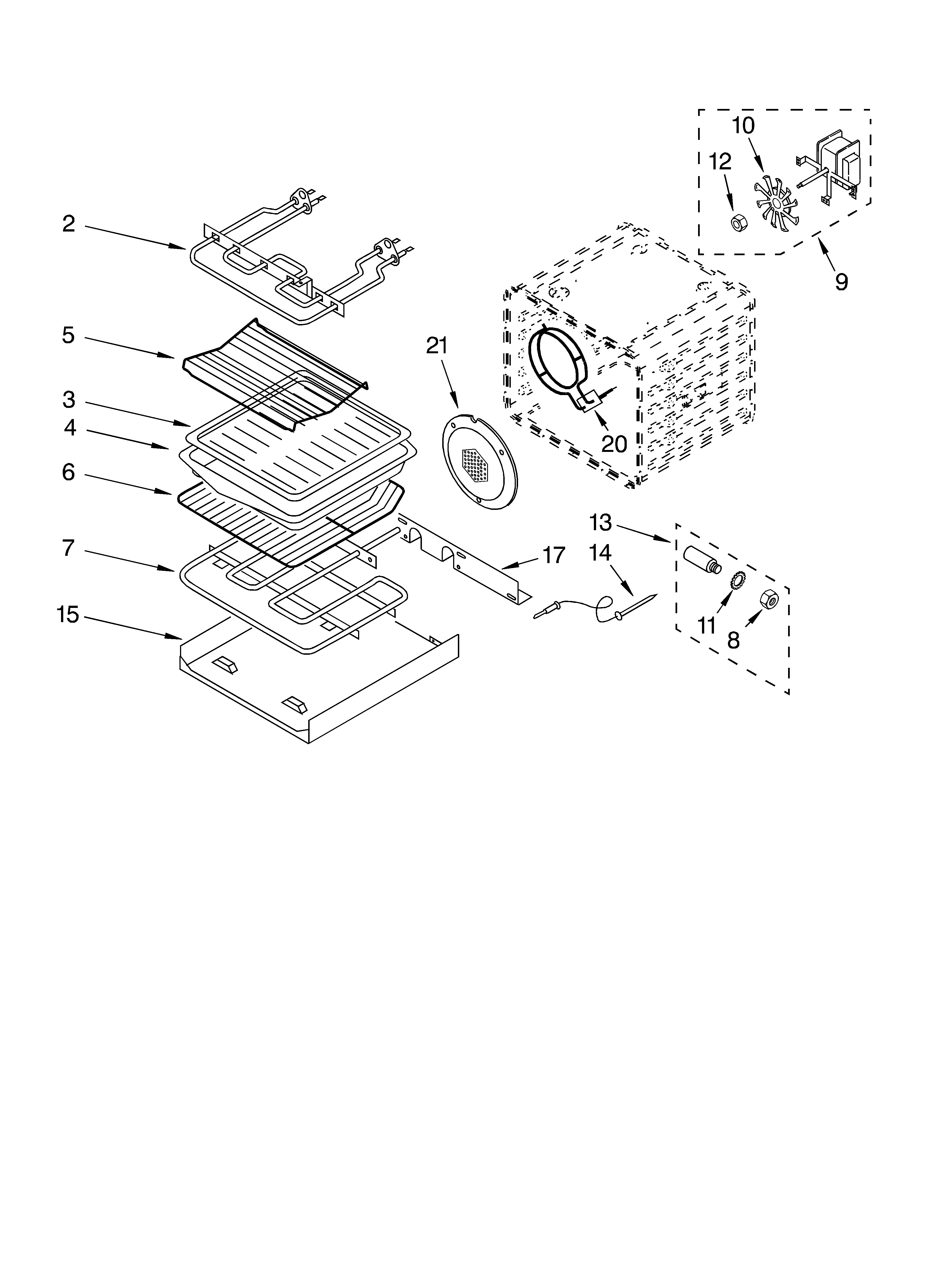

Oven/literature diagram

Wall oven temperature sensor

Part #4455636

Replaced by #WPW10131825

?
Manufacturer substitution
This part replaces 4455636. Substitute parts can look different from the original.
BEST SELLER
$66.86 |
8% OFF Phone Price : $72.86
In Stock
Appliance Touch-up Paint 72017
#NI

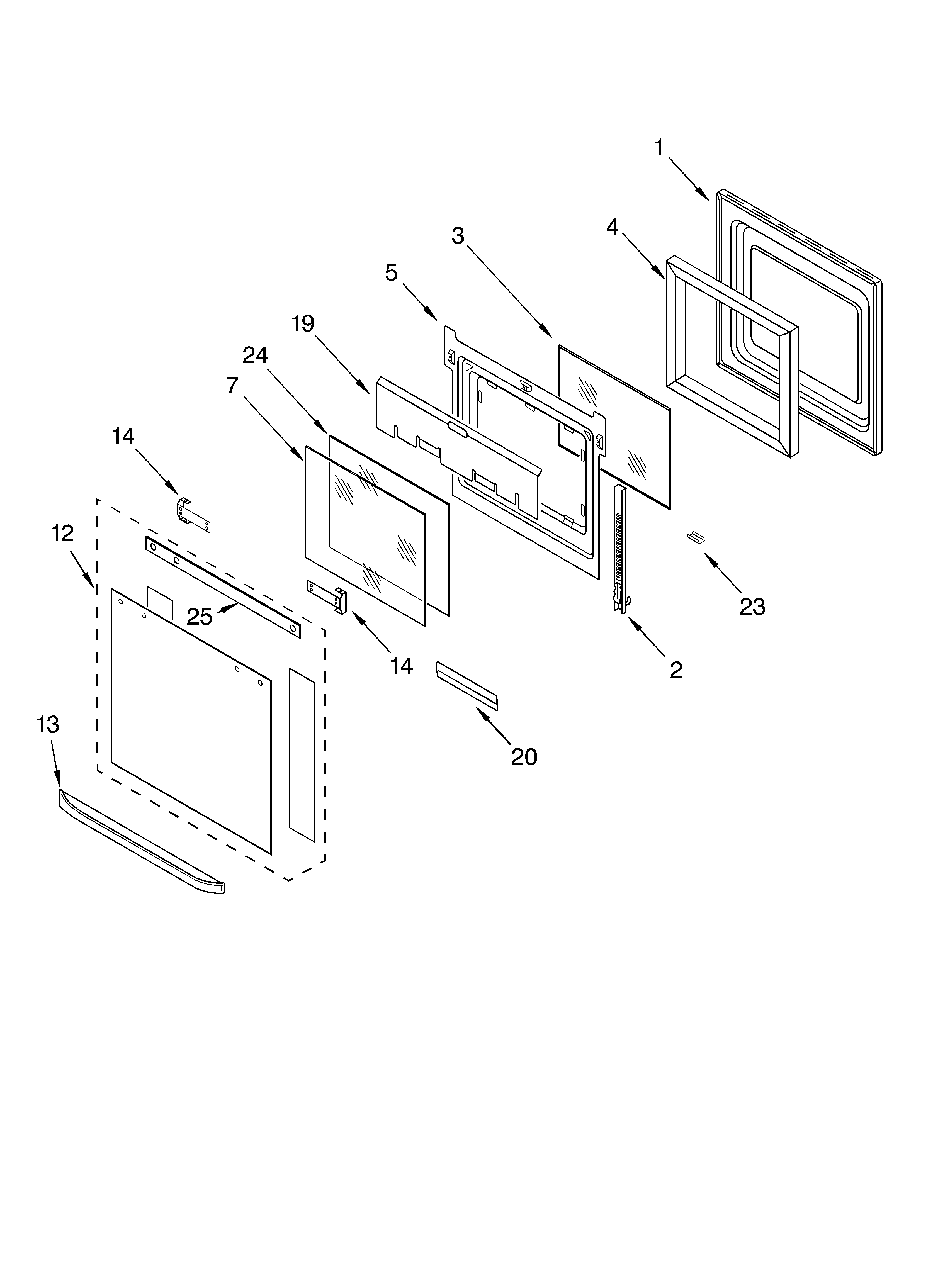

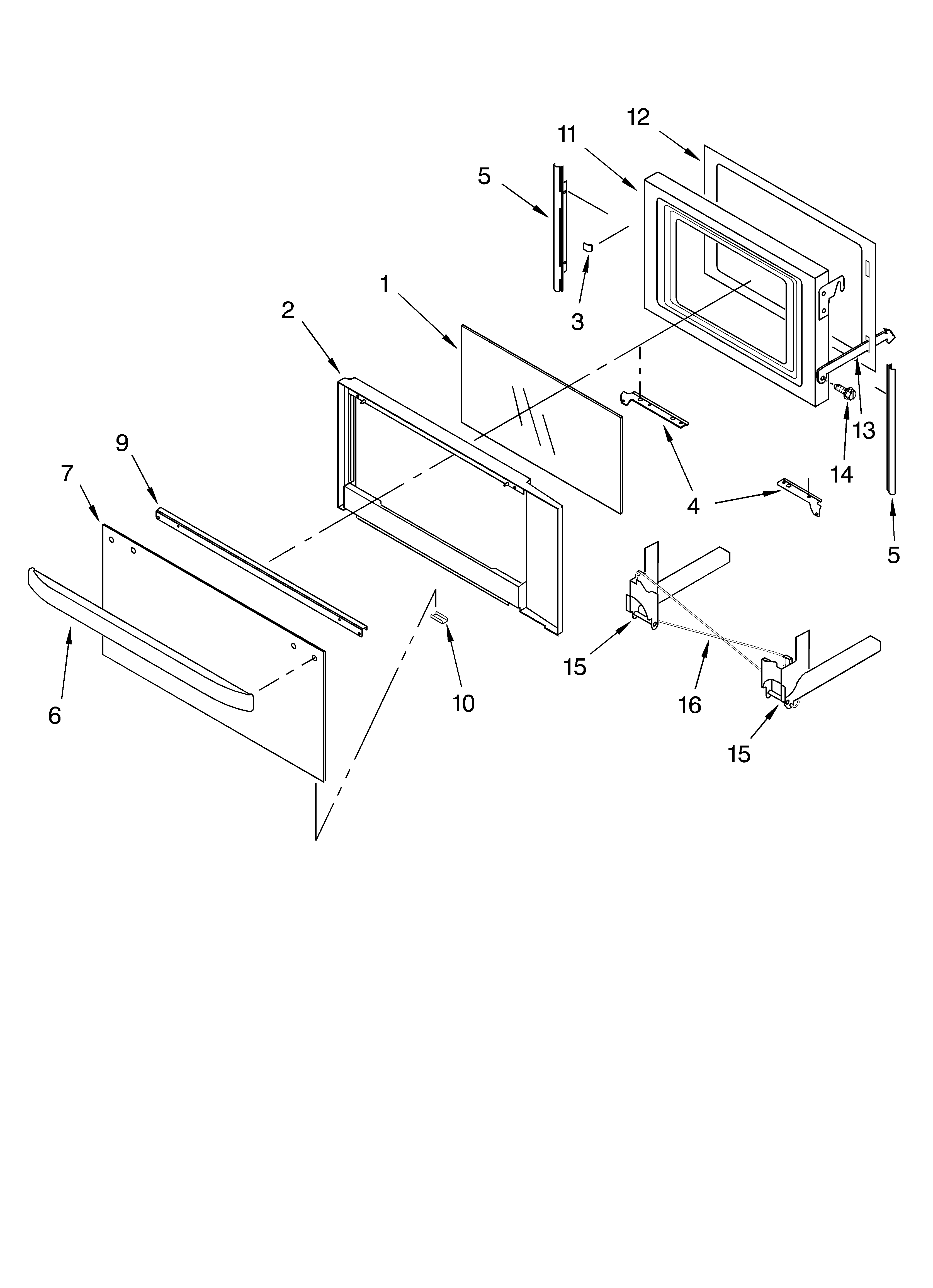

Microwave door diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Mounting Bracket 4375412
Mounting bracket

Part #4375412

Replaced by #W10727408

?
Manufacturer substitution
This part replaces 4375412. Substitute parts can look different from the original.
BEST SELLER
$88.84 |
6% OFF Phone Price : $94.84
In Stock
Mounting Bracket 4375413
Mounting bracket

Part #4375413

Replaced by #W10727408

?
Manufacturer substitution
This part replaces 4375413. Substitute parts can look different from the original.
BEST SELLER
$88.84 |
6% OFF Phone Price : $94.84
In Stock
Oven Baseless Lamp 4375348
#75

Cabinet and stirrer diagram

Oven baseless lamp

Part #4375348

Replaced by #WPW10440740

?
Manufacturer substitution
This part replaces 4375348. Substitute parts can look different from the original.
BEST SELLER
$22.69 |
21% OFF Phone Price : $28.69
In Stock
Range High-limit Thermostat 4451442
#37

Oven/literature diagram

Range high-limit thermostat

Part #4451442

Replaced by #WP9759243

?
Manufacturer substitution
This part replaces 4451442. Substitute parts can look different from the original.
BEST SELLER
$45.89 |
12% OFF Phone Price : $51.89
In Stock
Capacitor 4375436
#25

Cabinet and stirrer diagram

Capacitor

Part #4375436

Replaced by #WP4375020

?
Manufacturer substitution
This part replaces 4375436. Substitute parts can look different from the original.
BEST SELLER
$108.39 |
10% OFF Phone Price : $120.39
In Stock
Microwave Magnetron 4375424
#26

Cabinet and stirrer diagram

Microwave magnetron

Part #4375424

The manufacturer no longer makes this part, and there's no substitute part

Touch-up Paint (black) 72032
#NI

Microwave door diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
