Model # GDE25ESKLRSS Official GE bottom-mount refrigerator

Here are the diagrams and repair parts for Official GE GDE25ESKLRSS bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

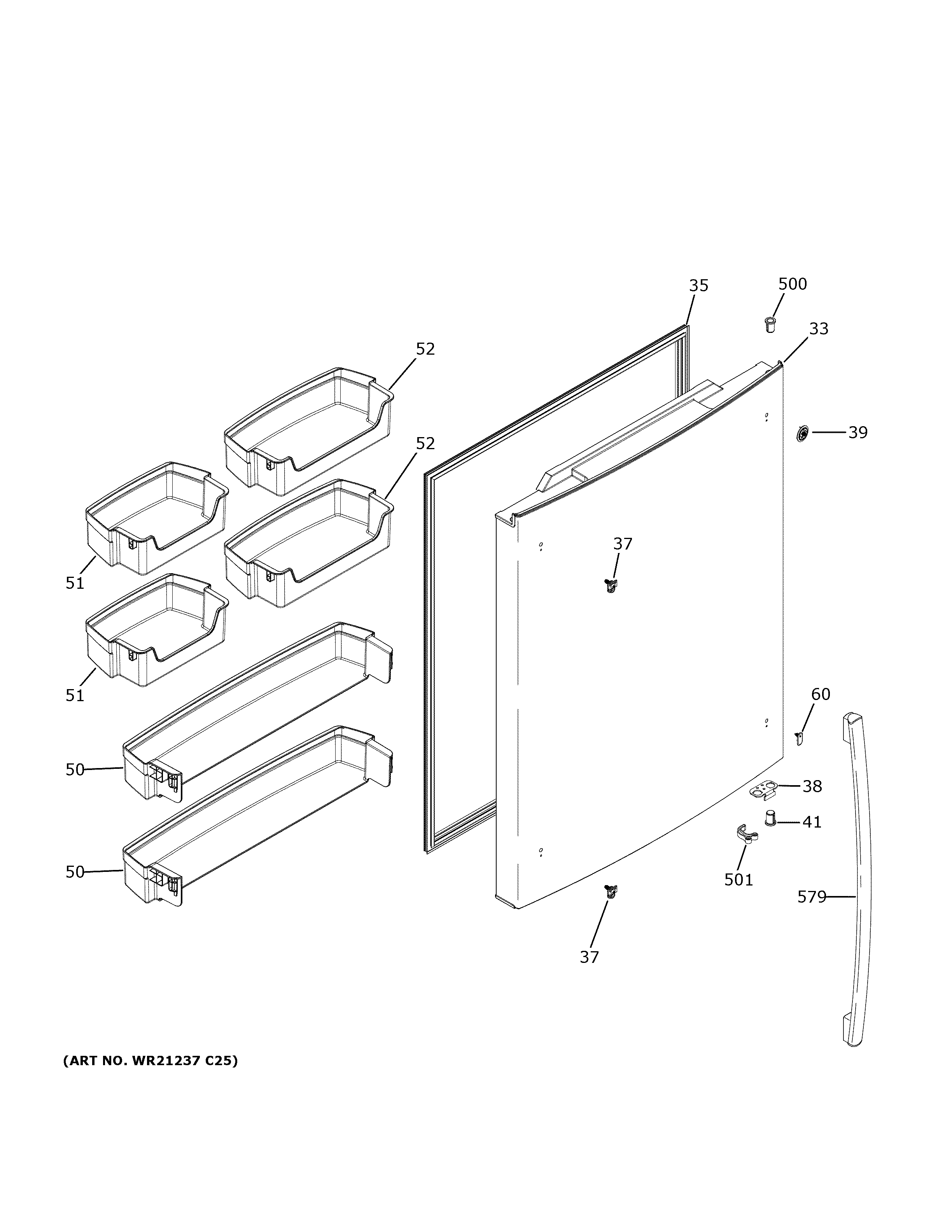

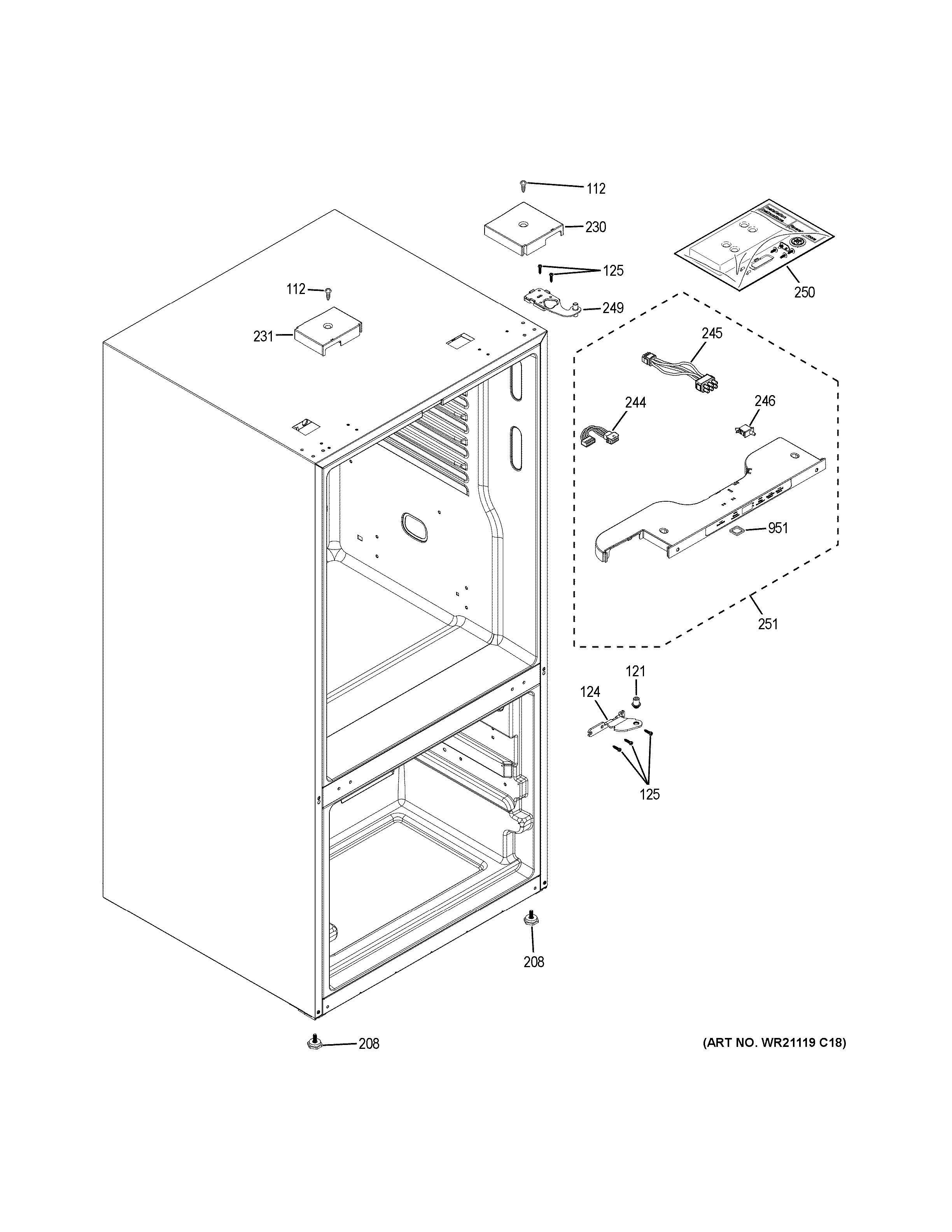

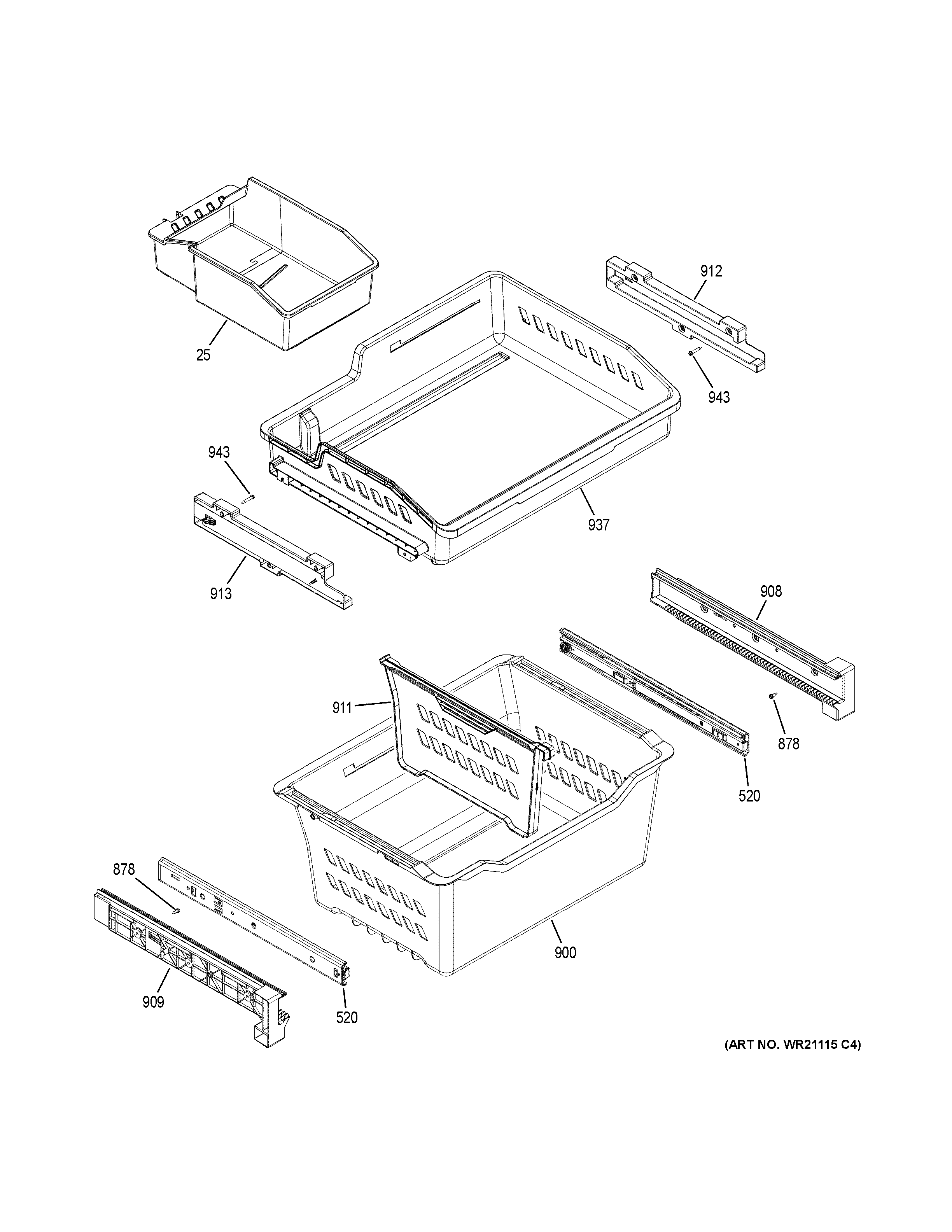

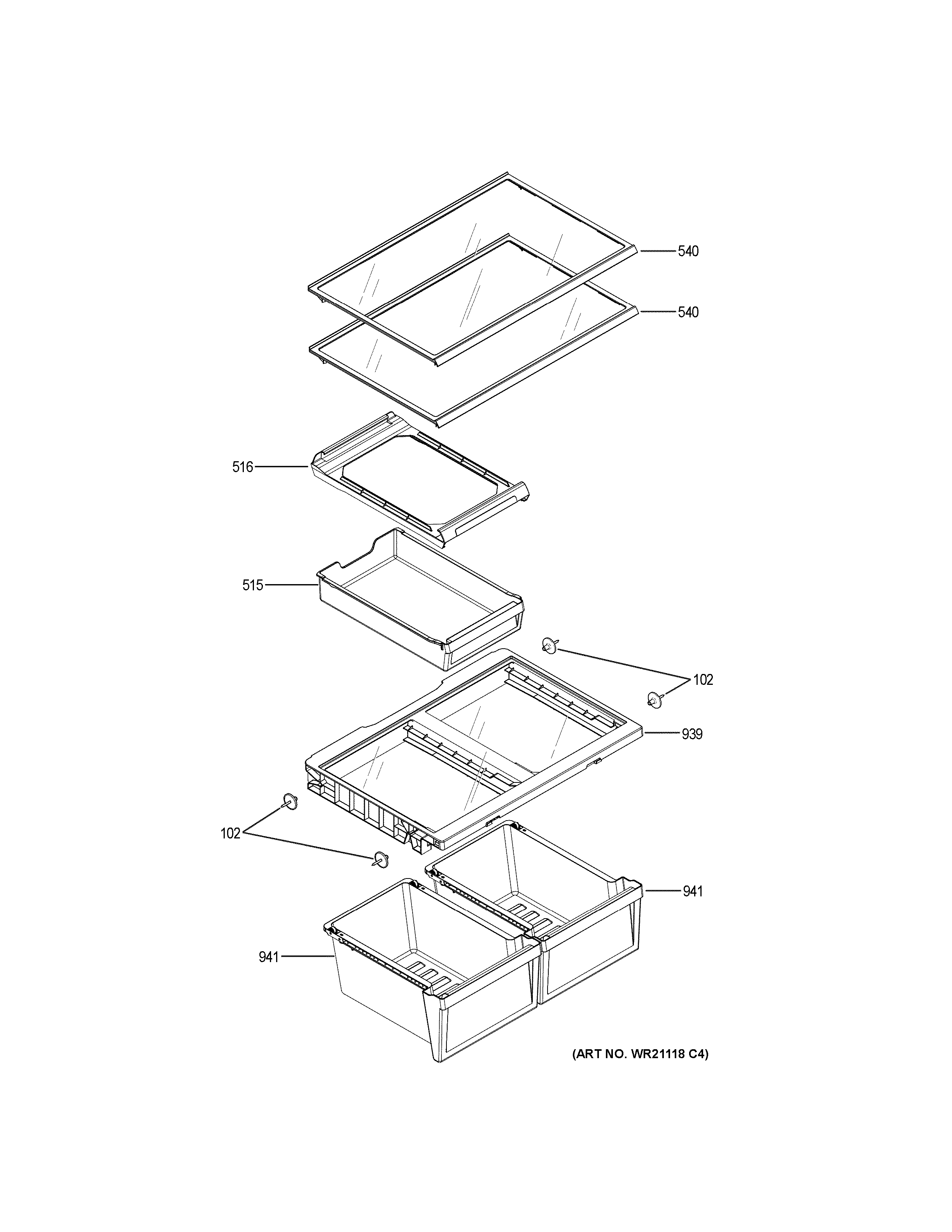

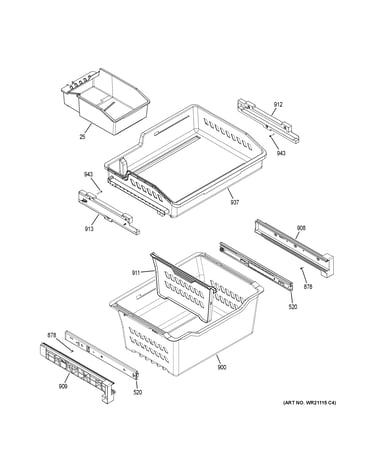

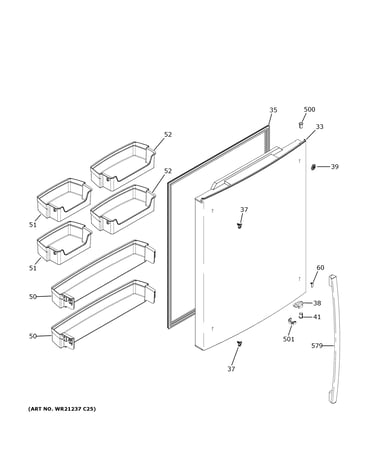

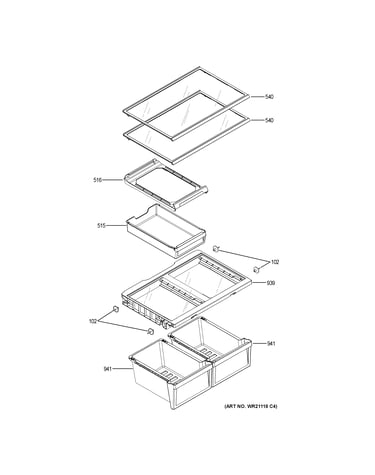

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
Ge Profile Refrigerator Temperature Sensor WR55X10025
Ge profile refrigerator temperature sensor

Part #WR55X10025

BEST SELLER
$17.18 |
10% OFF Was : $19.08
In Stock
Dryer Filter WR86X0096
#740

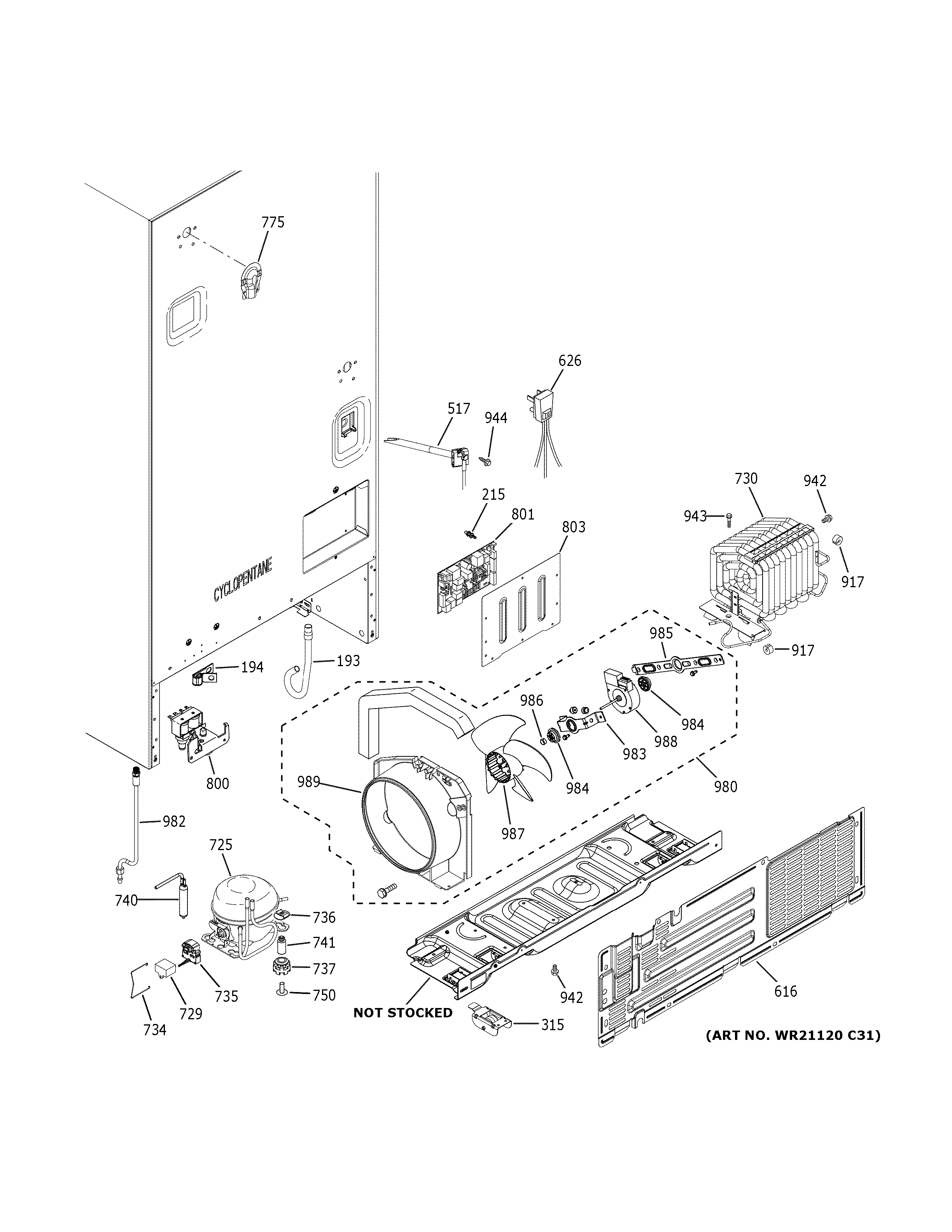

Machine compartment diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Run Capacitor WR55X23731
#729

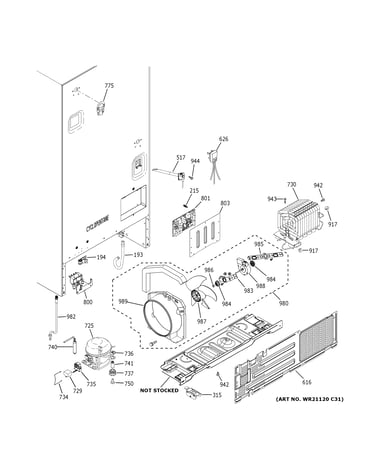

Machine compartment diagram

Refrigerator run capacitor

Part #WR55X23731

Replaced by #WR55X24064

?
Manufacturer substitution
This part replaces WR55X23731. Substitute parts can look different from the original.
BEST SELLER
$43.21 |
12% OFF Phone Price : $49.21
In Stock
Refrigerator Evaporator Fan Blade WR60X10208
#229

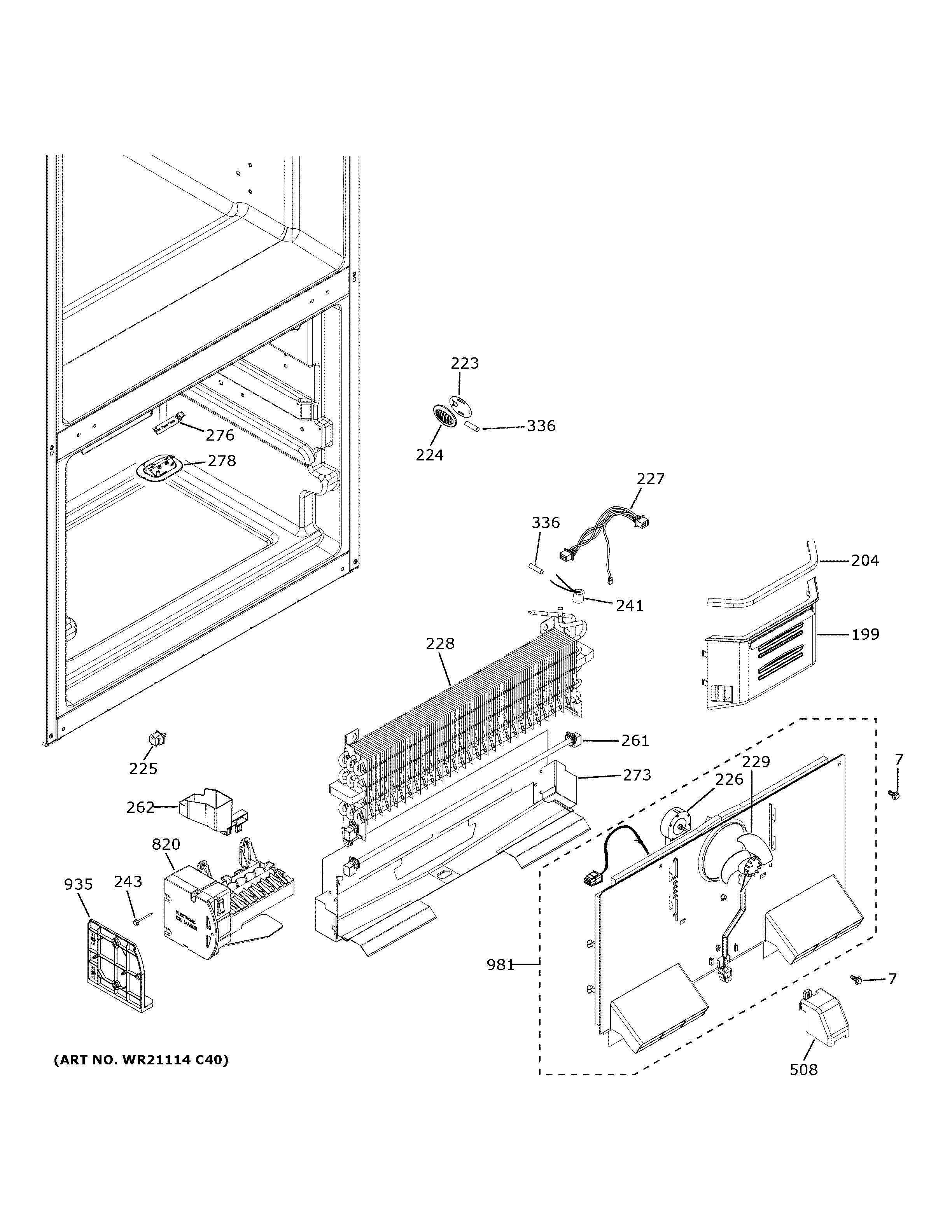

Freezer section diagram

Refrigerator evaporator fan blade

Part #WR60X10208

Replaced by #WR60X30922

?
Manufacturer substitution
This part replaces WR60X10208. Substitute parts can look different from the original.
BEST SELLER
$85.08 |
7% OFF Phone Price : $91.08
In Stock
Compressor Assembly WR87X27951
#725

Machine compartment diagram

Compressor assembly

Part #WR87X27951

Replaced by #WR87X10224

?
Manufacturer substitution
This part replaces WR87X27951. Substitute parts can look different from the original.
BEST SELLER
$583.23 |
$12.00 OFF Phone Price : $595.23
In Stock
Refrigerator Water Filter Bypass WR17X30044
#264

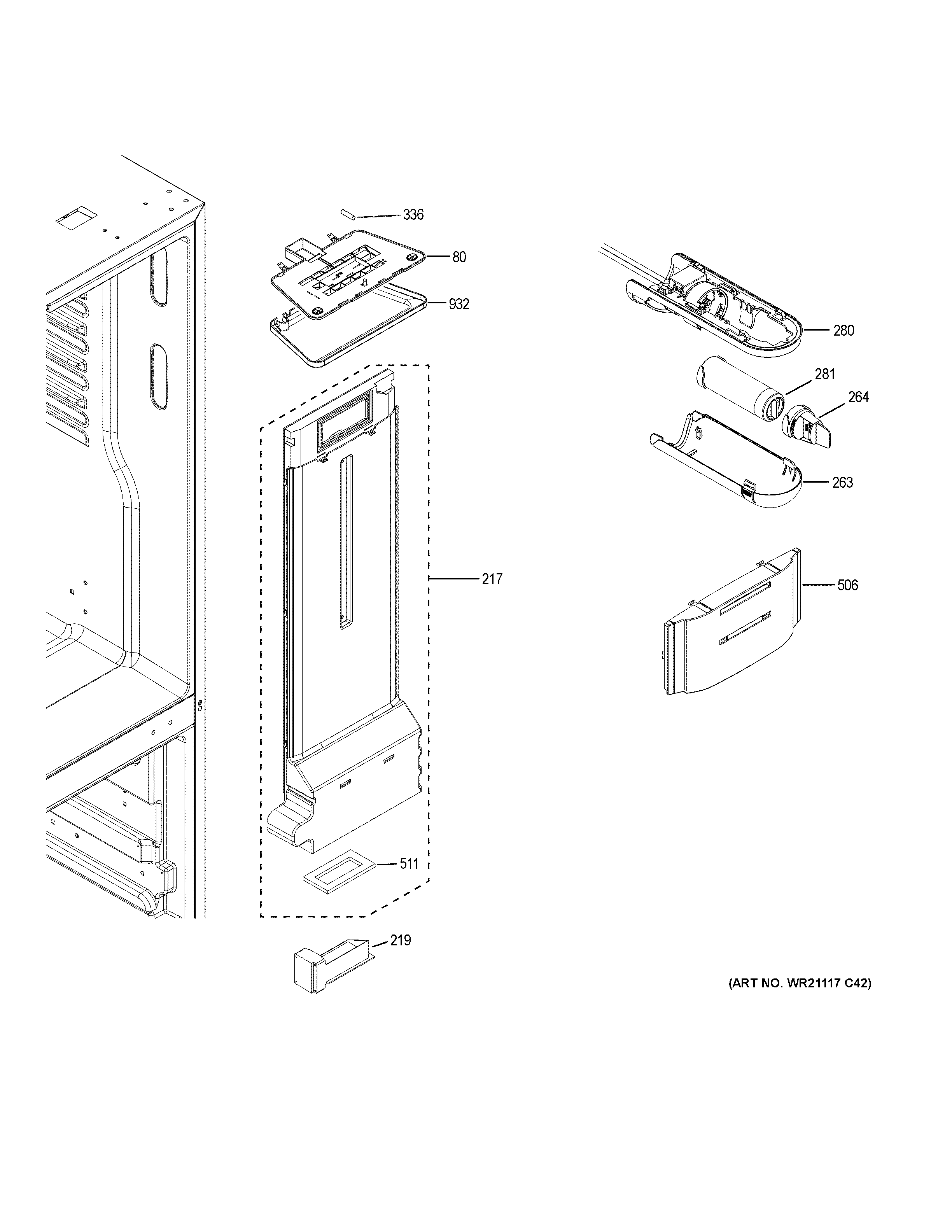

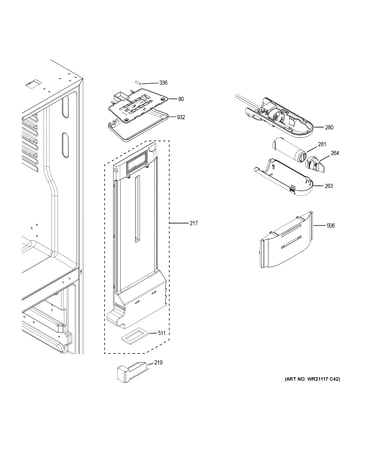

Fresh food section diagram

Refrigerator water filter bypass

Part #WR17X30044

Replaced by #WR17X33825

?
Manufacturer substitution
This part replaces WR17X30044. Substitute parts can look different from the original.
BEST SELLER
$32.57 |
16% OFF Phone Price : $38.57
In Stock
Icemaker WR30X30099
#820

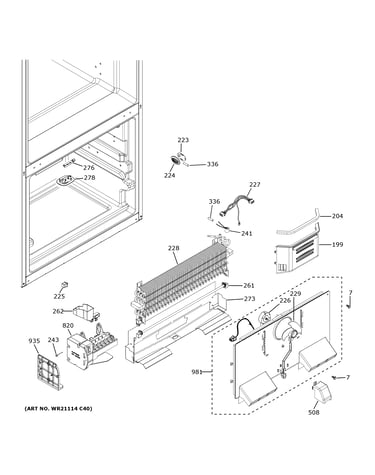

Freezer section diagram

Icemaker

Part #WR30X30099

Replaced by #WR30X35285

?
Manufacturer substitution
This part replaces WR30X30099. Substitute parts can look different from the original.
BEST SELLER
$107.59 |
10% OFF Phone Price : $119.59
In Stock
Refrigerator Evaporator Fan Motor WR60X31698
#226

Freezer section diagram

Refrigerator evaporator fan motor

Part #WR60X31698

Replaced by #WR60X32614

?
Manufacturer substitution
This part replaces WR60X31698. Substitute parts can look different from the original.
BEST SELLER
$123.00 |
9% OFF Phone Price : $135.00
In Stock
Refrigerator Defrost Heater WR51X10108
#261

Freezer section diagram

Refrigerator defrost heater

Part #WR51X10108

BEST SELLER
$63.33 |
9% OFF Phone Price : $69.33
In Stock
Refrigerator Freezer Door Gasket WR14X25030
#12

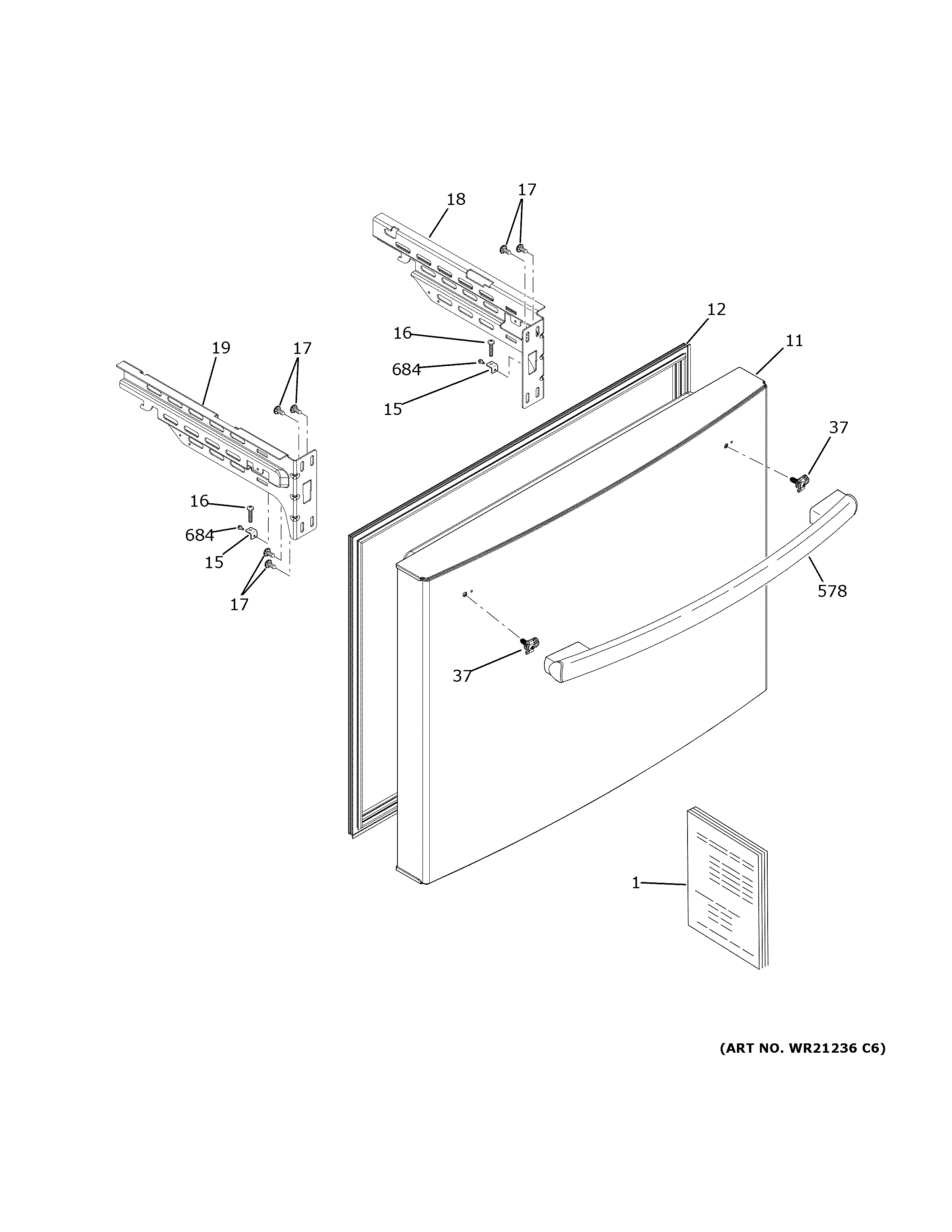

Freezer door diagram

Refrigerator freezer door gasket

Part #WR14X25030

Replaced by #WR14X40076

?
Manufacturer substitution
This part replaces WR14X25030. Substitute parts can look different from the original.
BEST SELLER
$193.22
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Most common symptoms to help you fix your refrigerators

Choose a symptom to see related refrigerator repairs.

View all

Why won't my refrigerator run?

Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost tim…

Read more

Why won't my refrigerator ice maker make ice?

Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freeze…

Read more

Why is water dripping from my refrigerator onto the floor?

Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubin…

Read more

Why is frost building up in my refrigerator's freezer?

Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer o…

Read more

Why isn't my refrigerator cooling well?

Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condens…

Read more

Why won't my refrigerator cool at all?

Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, se…

Read more

Why is my freezer not cold enough?

Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan…

Read more

What routine maintenance does my refrigerator need?

Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, cl…
