Jenn-Air
Gas Cooktop

Model # CCG2520B Official Jenn-Air cooktop

Here are the diagrams and repair parts for Official Jenn-Air CCG2520B cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Pan Seal 71001670
#11

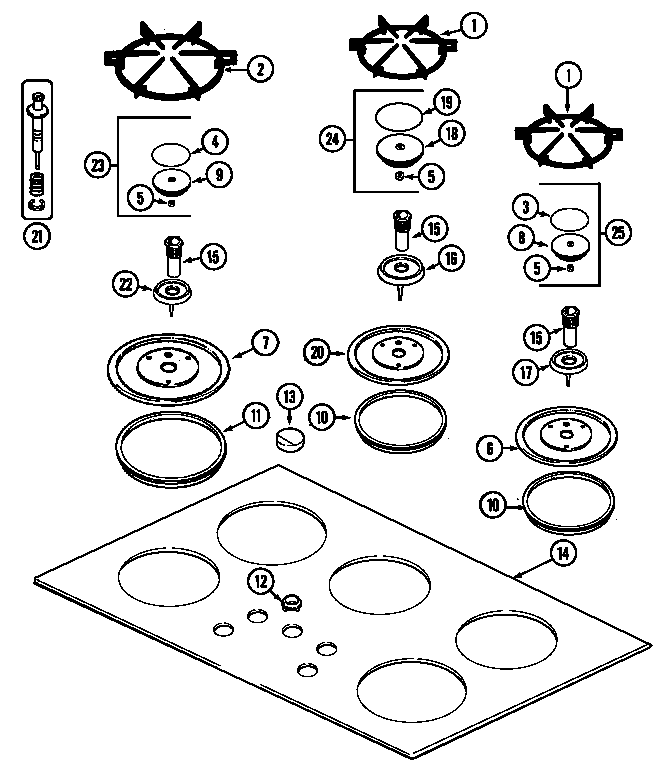

Top assembly diagram

Pan seal

Part #71001670

Replaced by #WP71001670

?
Manufacturer substitution
This part replaces 71001670. Substitute parts can look different from the original.
$44.19 |
10% OFF Phone Price : $49.19
In Stock
Nut 71001092
#5

Top assembly diagram

Nut

Part #71001092

Replaced by #W10244602

?
Manufacturer substitution
This part replaces 71001092. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Pressure Regulator 704545
#17

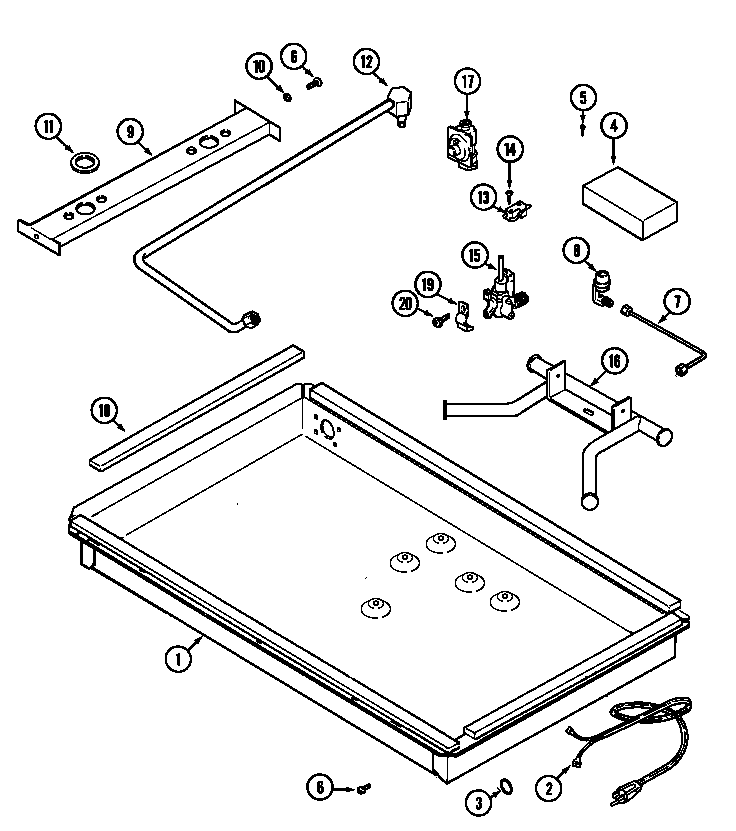

Body diagram

Pressure regulator

Part #704545

Replaced by #W11106948

?
Manufacturer substitution
This part replaces 704545. Substitute parts can look different from the original.
$104.54 |
13% OFF MSRP : $120.00
In Stock
Cooktop Burner Seal 71001669
#10

Top assembly diagram

Cooktop burner seal

Part #71001669

Replaced by #WP71001669

?
Manufacturer substitution
This part replaces 71001669. Substitute parts can look different from the original.
$46.60 |
10% OFF MSRP : $52.00
In Stock
Orifice Kit 71001742
#25B

Top assembly diagram

Orifice kit

Part #71001742

The manufacturer no longer makes this part, and there's no substitute part

Grate (sm/bl 71001681
#1A

Top assembly diagram

Grate (sm/bl

Part #71001681

The manufacturer no longer makes this part, and there's no substitute part

Pan Burner 71001686
#20

Top assembly diagram

Pan burner

Part #71001686

The manufacturer no longer makes this part, and there's no substitute part

Burner Tube 71001743
#7D

Body diagram

Burner tube

Part #71001743

The manufacturer no longer makes this part, and there's no substitute part

Grommet, Spi 71001691
#12A

Top assembly diagram

Grommet, spi

Part #71001691

The manufacturer no longer makes this part, and there's no substitute part

Orifice (6.5 71001091
#8F

Body diagram

Orifice (6.5

Part #71001091

The manufacturer no longer makes this part, and there's no substitute part
