Epson FX-86E computer printer

Epson FX-86E computer printer Parts

Here are the diagrams and repair parts for Epson FX-86E computer printer, as well as links to manuals and error code tables, if available.

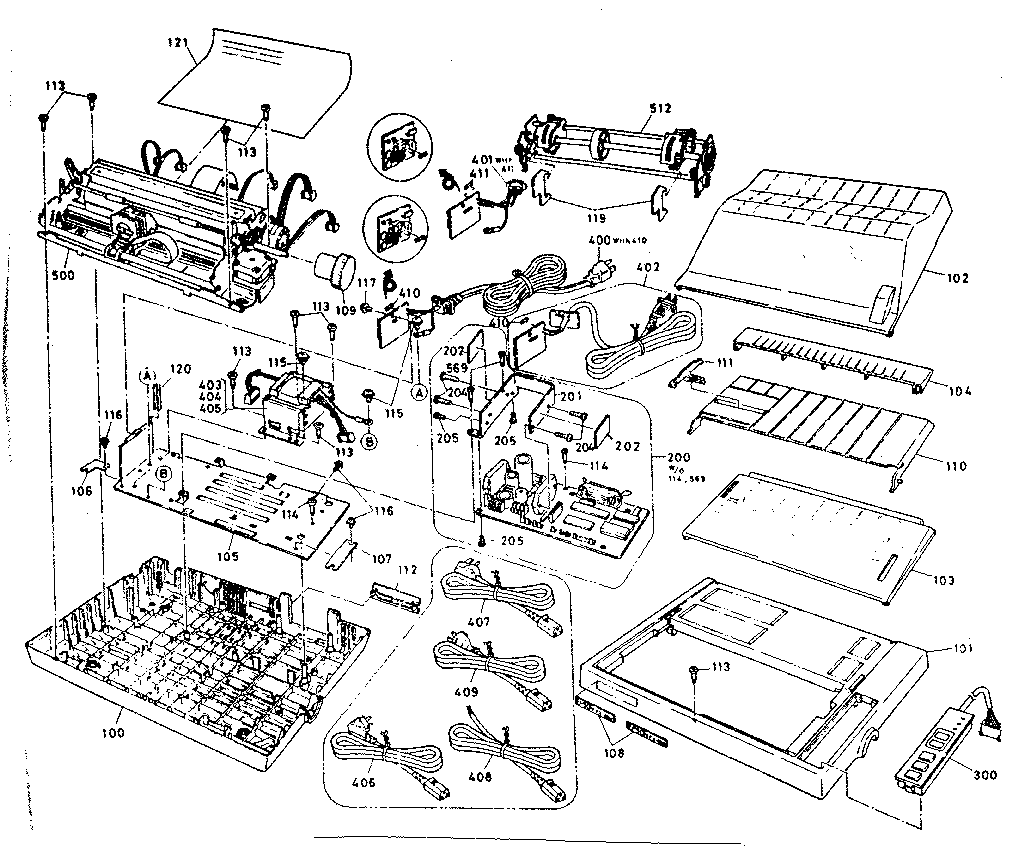

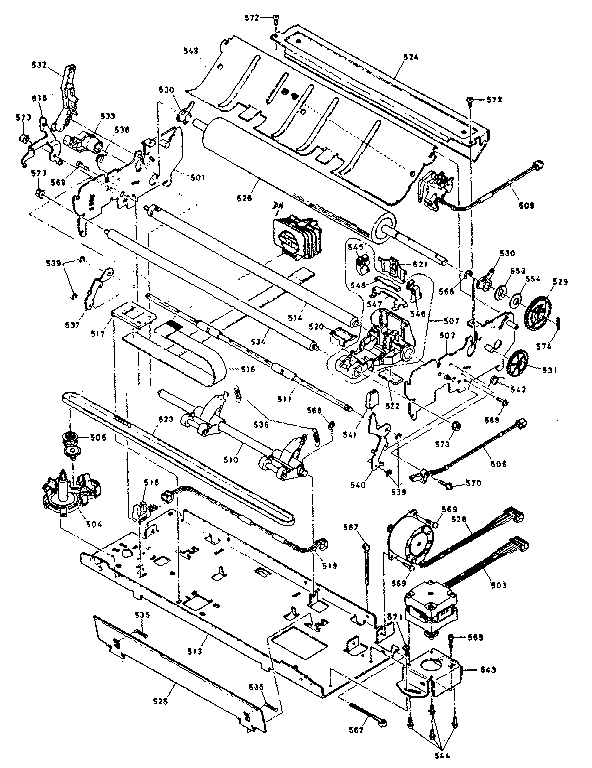

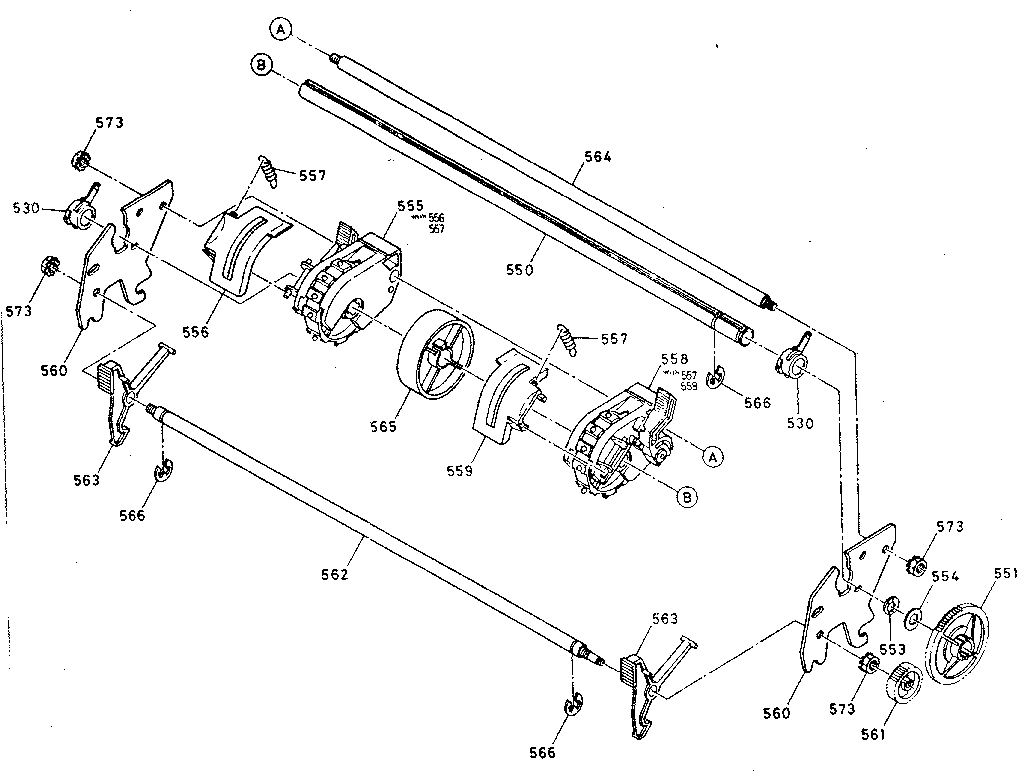

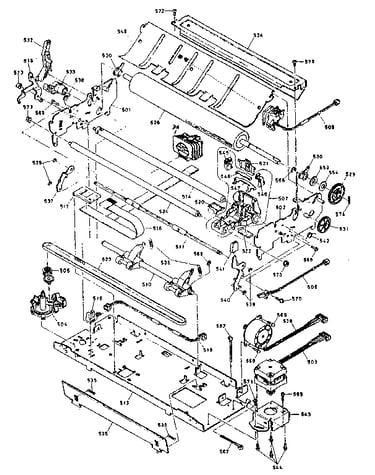

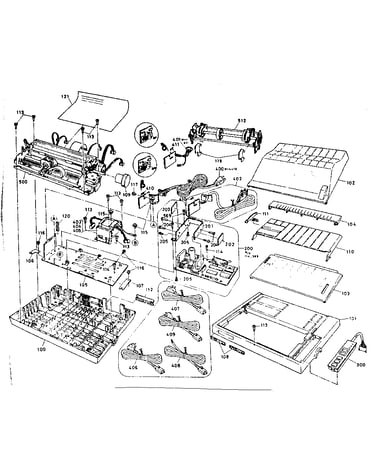

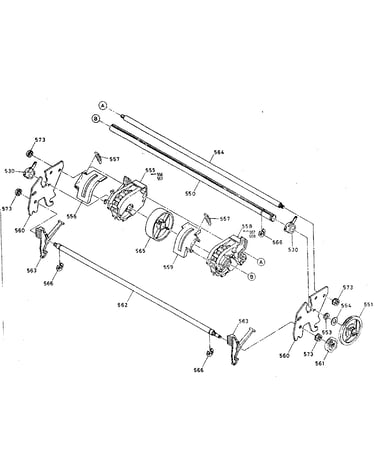

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for FX-86E Computer Printer

  • Paper Loading Switch for Epson FX-86E - Part F331151000

    #506

    All parts diagram

    Paper Loading Switch

    Part #F331151000

    The manufacturer no longer makes this part, and there's no substitute part

  • (b12) Hexagon Nut With Ow (4) for Epson FX-86E - Part B080450111

    #573

    All parts diagram

    (b12) Hexagon Nut With Ow (4)

    Part #B080450111

    The manufacturer no longer makes this part, and there's no substitute part

  • Shield Plate for Epson FX-86E - Part F330553060

    #112

    All parts diagram

    Shield Plate

    Part #F330553060

    The manufacturer no longer makes this part, and there's no substitute part

  • Fuse (125v 2a) for Epson FX-86E - Part X502061Q11

    #410

    All parts diagram

    Fuse (125v 2a)

    Part #X502061Q11

    The manufacturer no longer makes this part, and there's no substitute part

  • Head Lock Lever (left) for Epson FX-86E - Part F331201010

    #545

    All parts diagram

    Head Lock Lever (left)

    Part #F331201010

    The manufacturer no longer makes this part, and there's no substitute part

  • Wire Band for Epson FX-86E - Part X522000010

    #567

    All parts diagram

    Wire Band

    Part #X522000010

    The manufacturer no longer makes this part, and there's no substitute part

  • (dh) Dot Head Unit (8731) for Epson FX-86E - Part F413100000

    #575

    All parts diagram

    (dh) Dot Head Unit (8731)

    Part #F413100000

    The manufacturer no longer makes this part, and there's no substitute part

  • Sheet Guide Frame for Epson FX-86E - Part F331552040

    #104

    All parts diagram

    Sheet Guide Frame

    Part #F331552040

    The manufacturer no longer makes this part, and there's no substitute part

  • (6-25) Paper Guide Plate Spring for Epson FX-86E - Part F315062020

    #535

    All parts diagram

    (6-25) Paper Guide Plate Spring

    Part #F315062020

    The manufacturer no longer makes this part, and there's no substitute part

  • Cup Screw for Epson FX-86E - Part B040302511

    #117

    All parts diagram

    Cup Screw

    Part #B040302511

    The manufacturer no longer makes this part, and there's no substitute part
