Model # MER6550AAQ Official Maytag electric range
Here are the diagrams and repair parts for Official Maytag MER6550AAQ electric range, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part

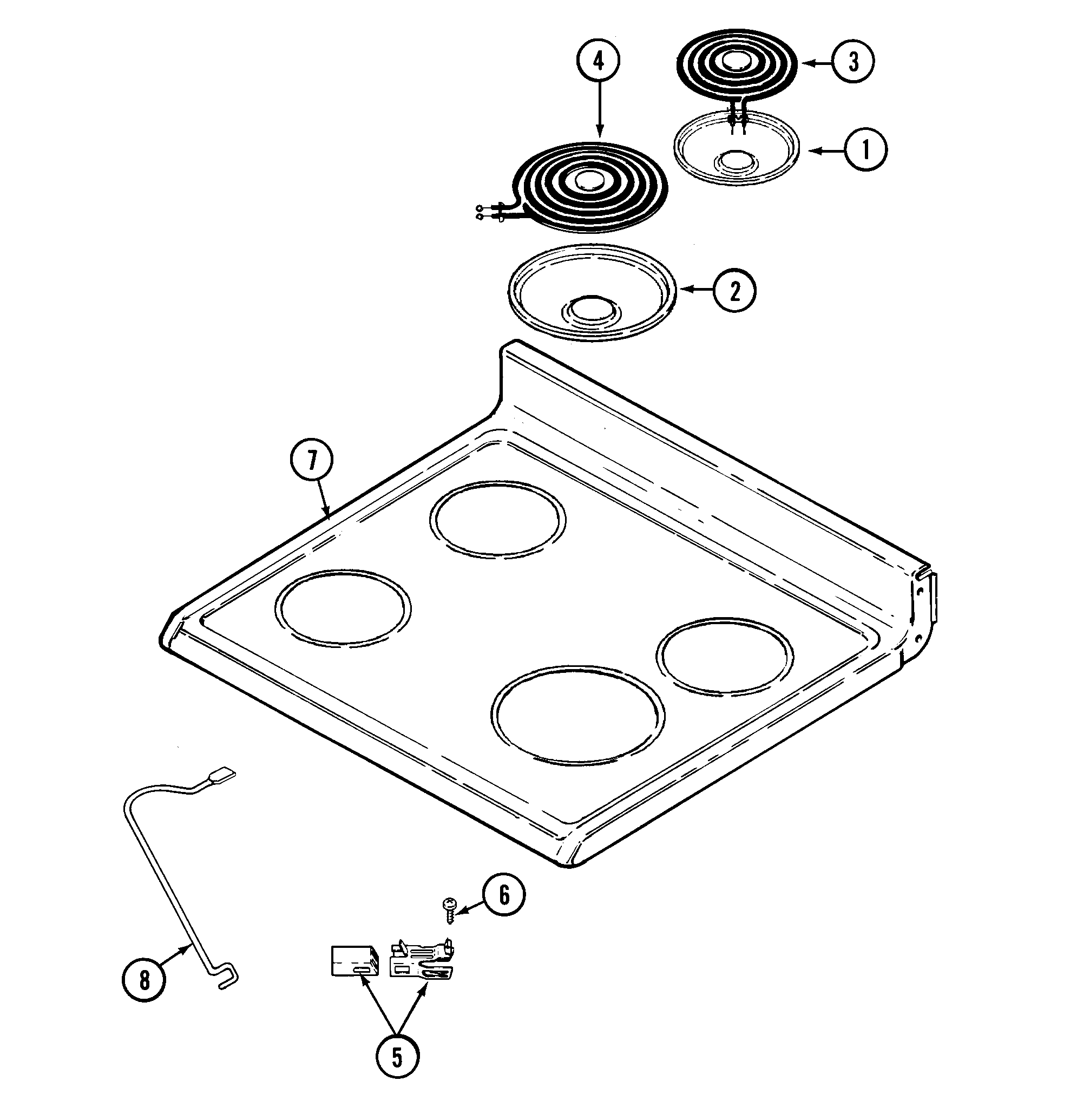

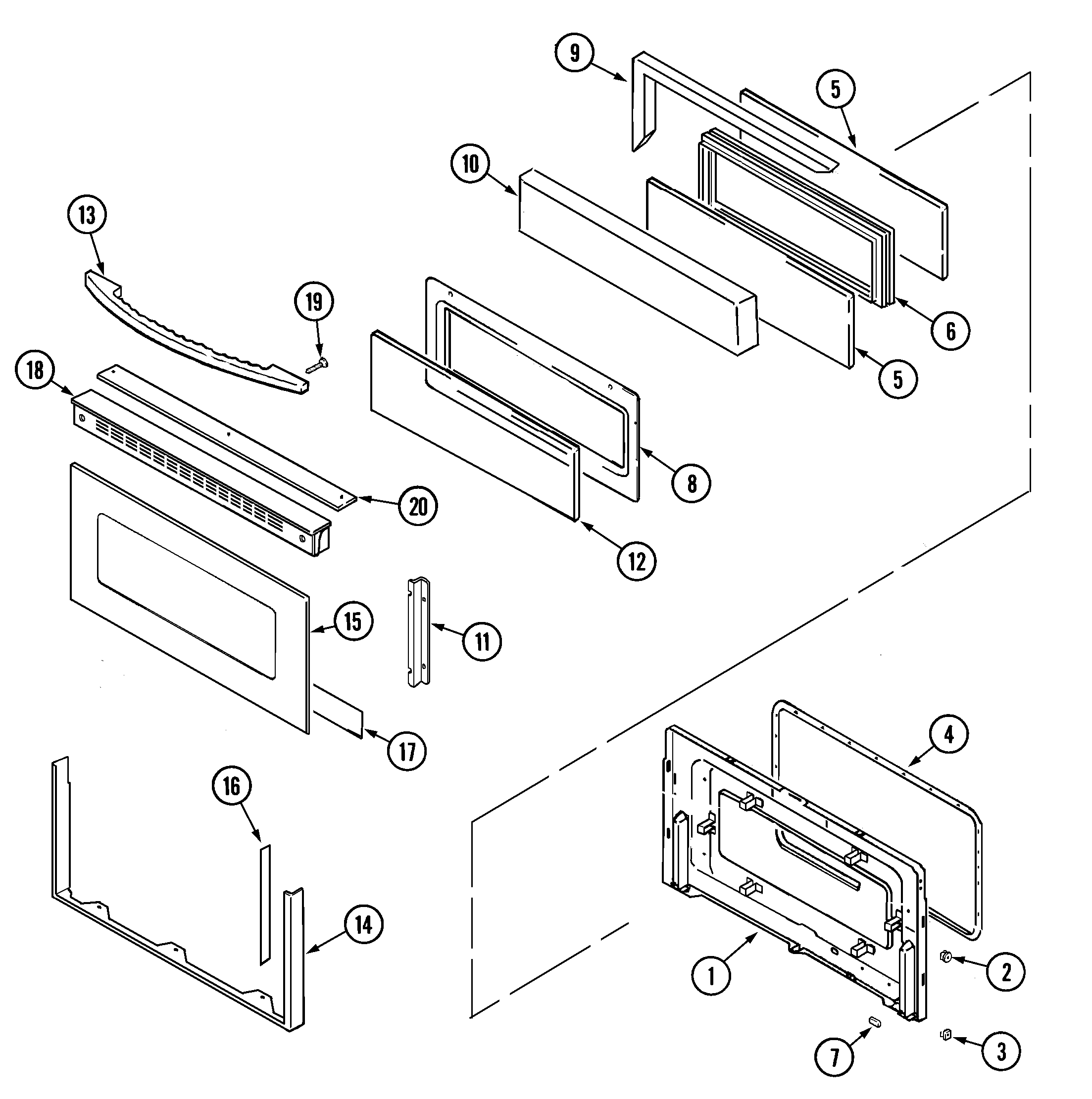

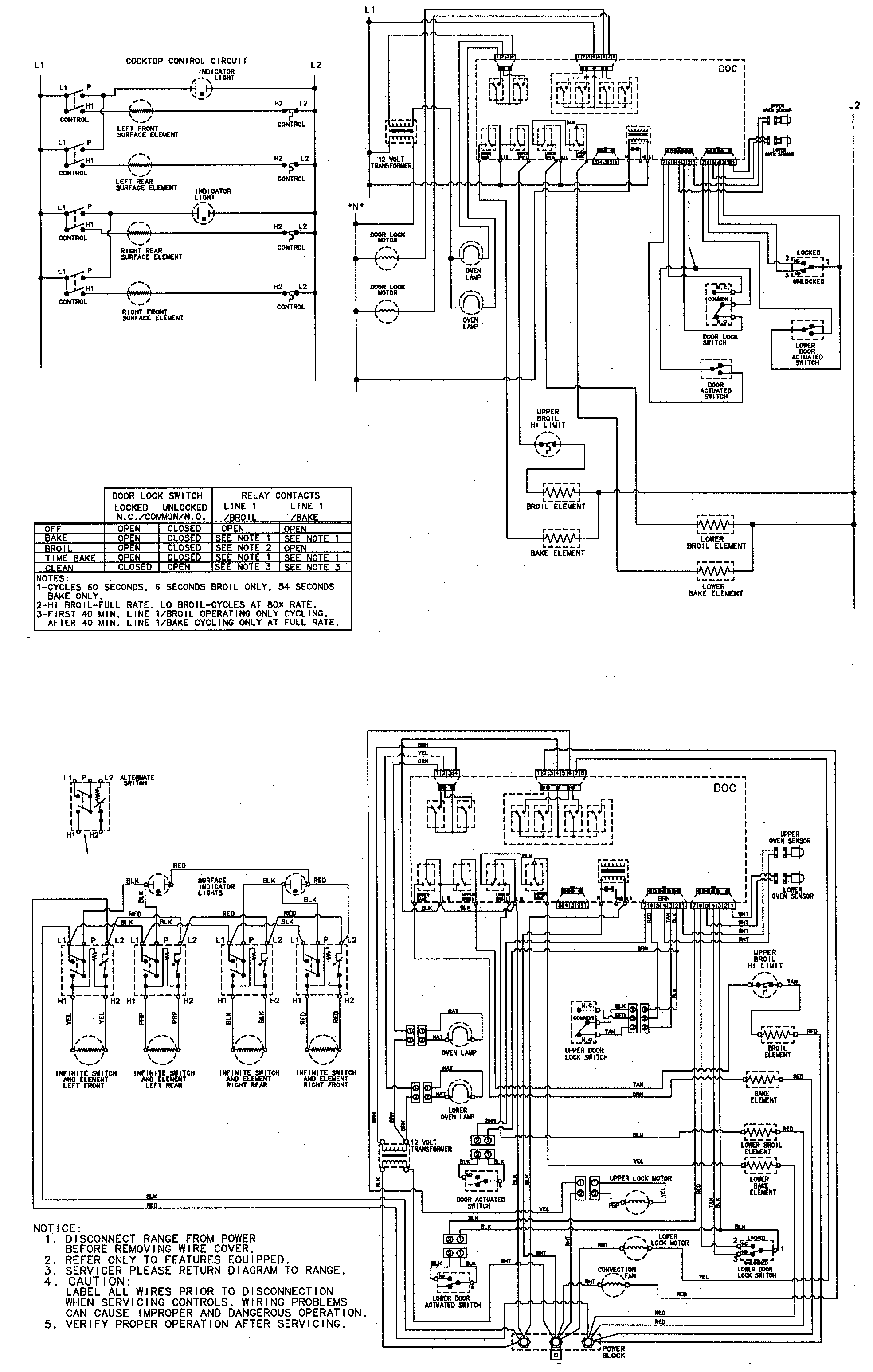

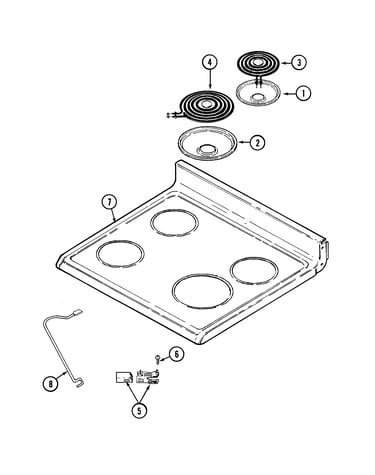

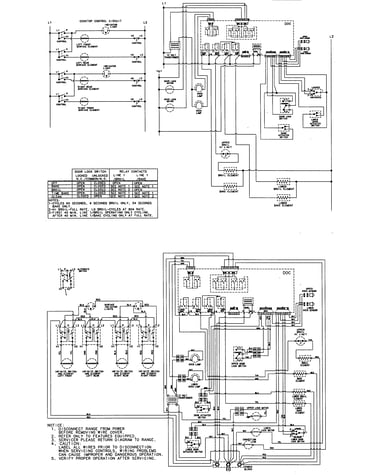

SELECT DIAGRAM
Browse Parts forMER6550AAQ Ranges
- #5

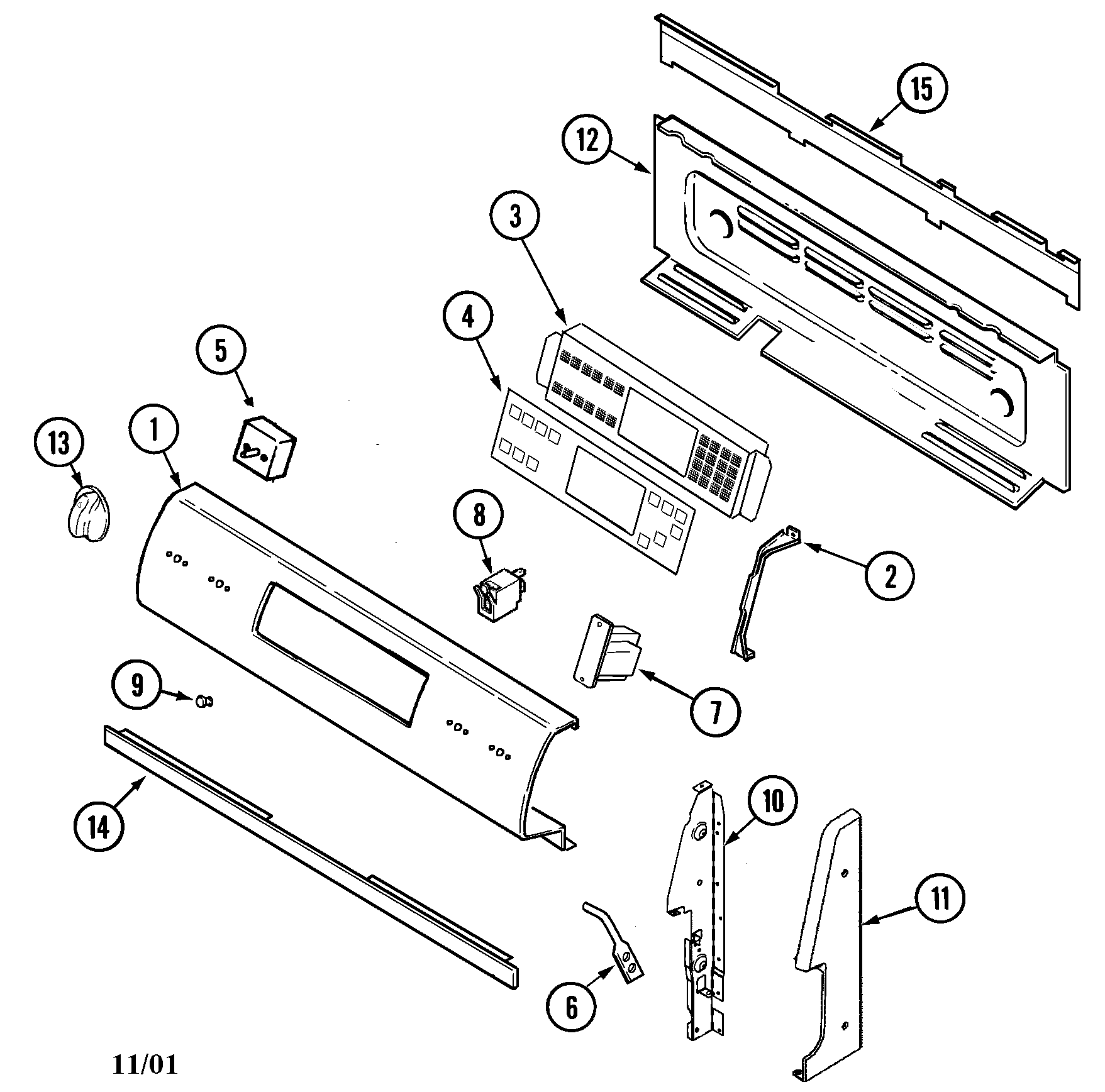

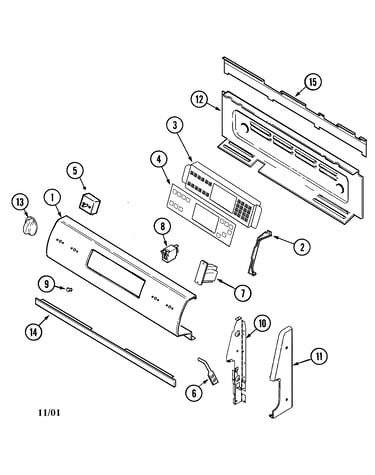

Control panel diagram
Range surface element control switchPart #7403P238-60
Replaced by #WP7403P238-60
?Manufacturer substitutionThis part replaces 7403P238-60. Substitute parts can look different from the original.$47.39 |11% OFF Phone Price : $53.39In Stock - #5A
Control panel diagram
Range surface element control switchPart #7403P239-60
Replaced by #WP7403P239-60
?Manufacturer substitutionThis part replaces 7403P239-60. Substitute parts can look different from the original.$45.10 |12% OFF Phone Price : $51.10In Stock - #14

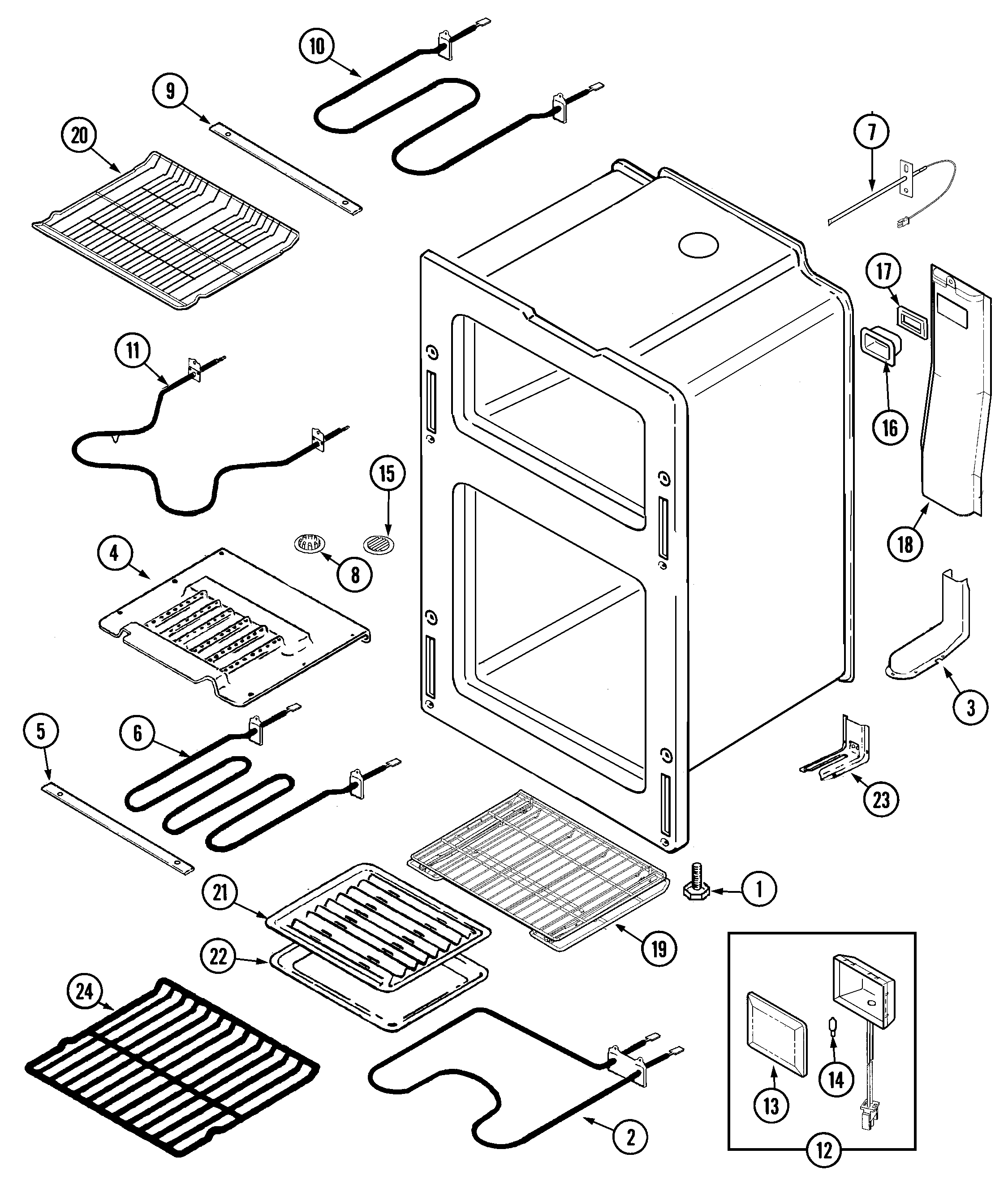

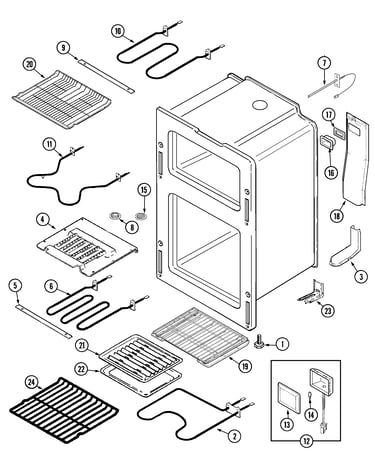

Oven diagram
Range oven light bulbPart #74004458
Replaced by #WP74009925
?Manufacturer substitutionThis part replaces 74004458. Substitute parts can look different from the original.This item is not returnable$19.30 |9% OFF Phone Price : $21.30In Stock - #7
Oven diagram
Oven sensorPart #74003095
Replaced by #WP7430P044-60
?Manufacturer substitutionThis part replaces 74003095. Substitute parts can look different from the original.$94.64 |6% OFF Phone Price : $100.64In Stock - #4

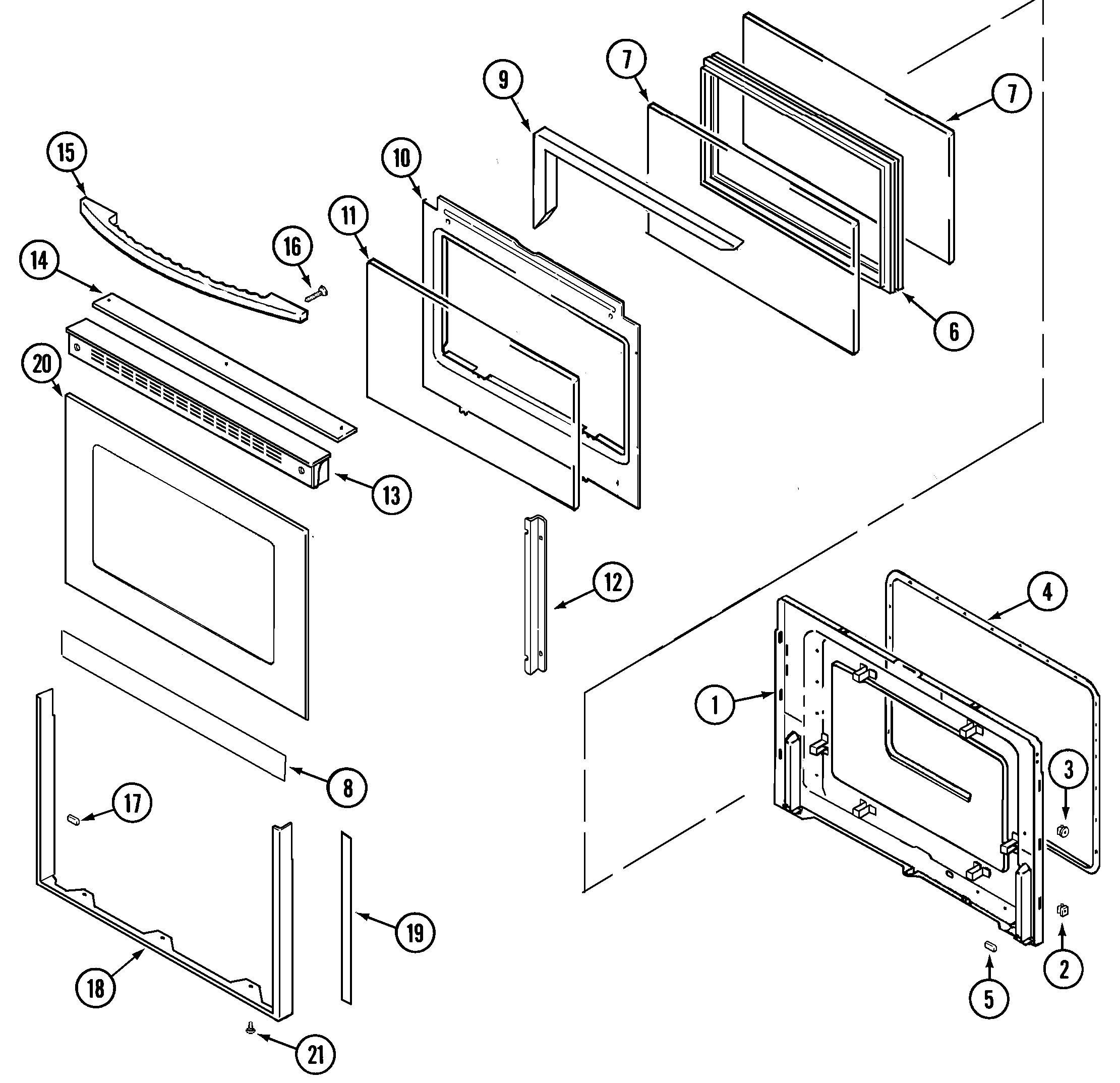

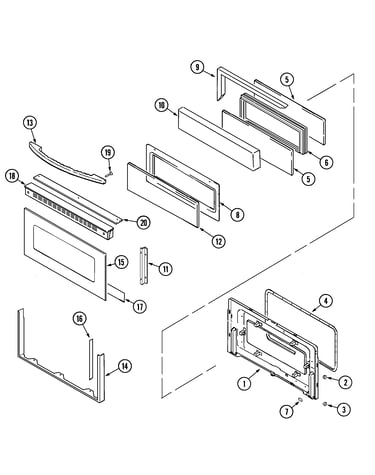

Door (lower) diagram
Door gasketPart #7201P046-60
Replaced by #WPW10162384
?Manufacturer substitutionThis part replaces 7201P046-60. Substitute parts can look different from the original.$69.42 |8% OFF Phone Price : $75.42In Stock - #7

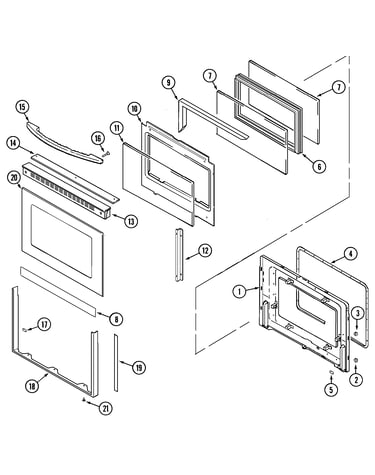

Door (lower) diagram
Range oven door inner glassPart #74003645
$102.92 |10% OFF Phone Price : $114.92In Stock - #21A

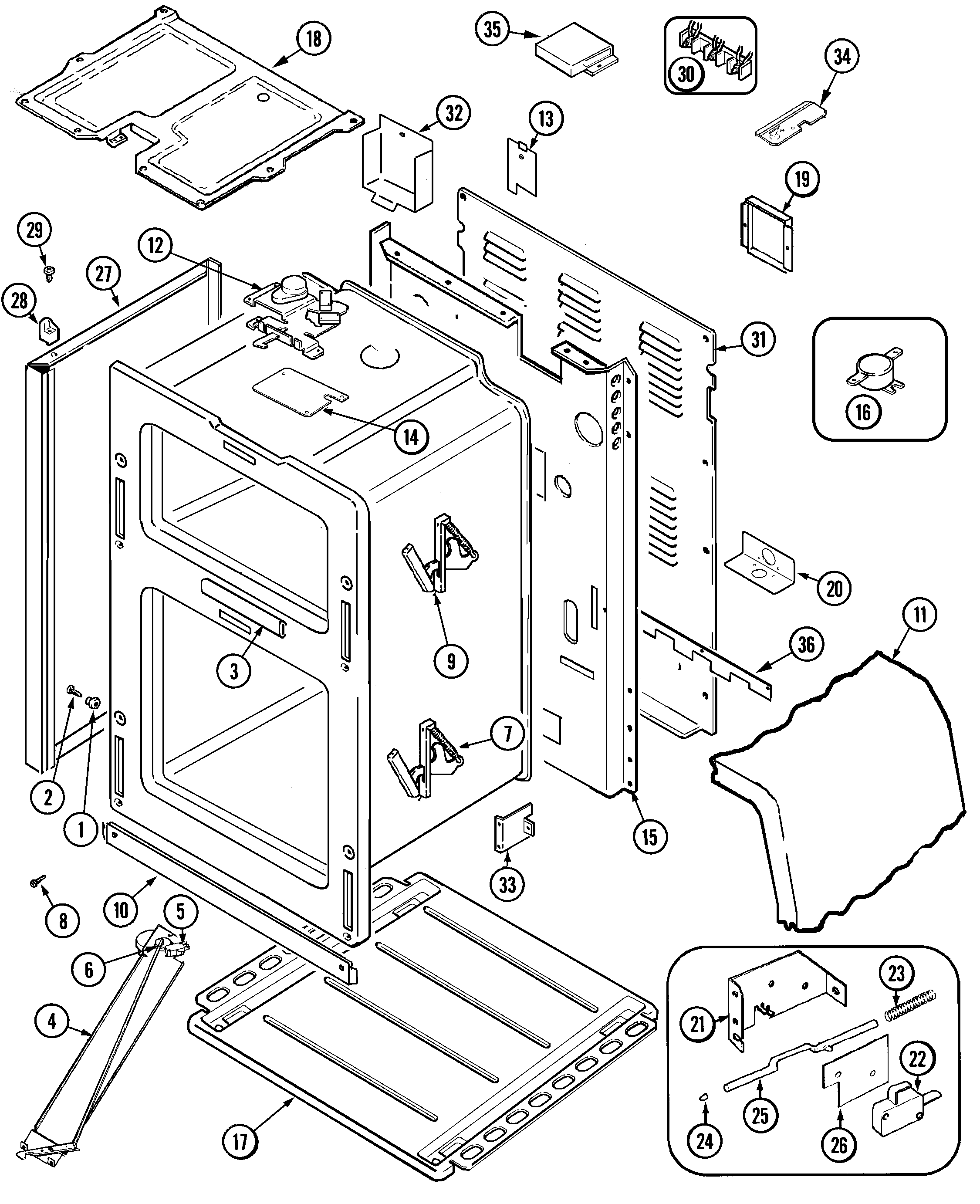

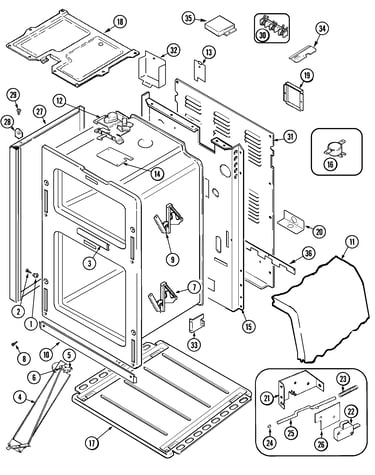

Body diagram
ScrewPart #7101P347-60
Replaced by #WPY706189
?Manufacturer substitutionThis part replaces 7101P347-60. Substitute parts can look different from the original.This item is not returnable$4.46 |18% OFF Phone Price : $5.46In Stock - Screw
Part #7101P282-60
Replaced by #WP4159193
?Manufacturer substitutionThis part replaces 7101P282-60. Substitute parts can look different from the original.This item is not returnable$5.29 |16% OFF Phone Price : $6.29In Stock - #20
Oven diagram
Oven rackPart #74004578
Replaced by #WPW10273816
?Manufacturer substitutionThis part replaces 74004578. Substitute parts can look different from the original.$80.45 |7% OFF Phone Price : $86.45In Stock - #24
Oven diagram
Oven rackPart #74001757
Replaced by #WPW10282492
?Manufacturer substitutionThis part replaces 74001757. Substitute parts can look different from the original.$56.89 |10% OFF Phone Price : $62.89In Stock
