Model # 25321041108 Official Kenmore freezer

Here are the diagrams and repair parts for Official Kenmore 25321041108 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Filter Drier 216634500
#4

System diagram

Filter drier

Part #216634500

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216634500. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Evaporator 216737300
#15

System diagram

Evaporator

Part #216737300

Replaced by #297414901

?
Manufacturer substitution
This part replaces 216737300. Substitute parts can look different from the original.
BEST SELLER
$87.43 |
6% OFF Phone Price : $93.43
In Stock
Freezer Door Gasket 216522312
#1

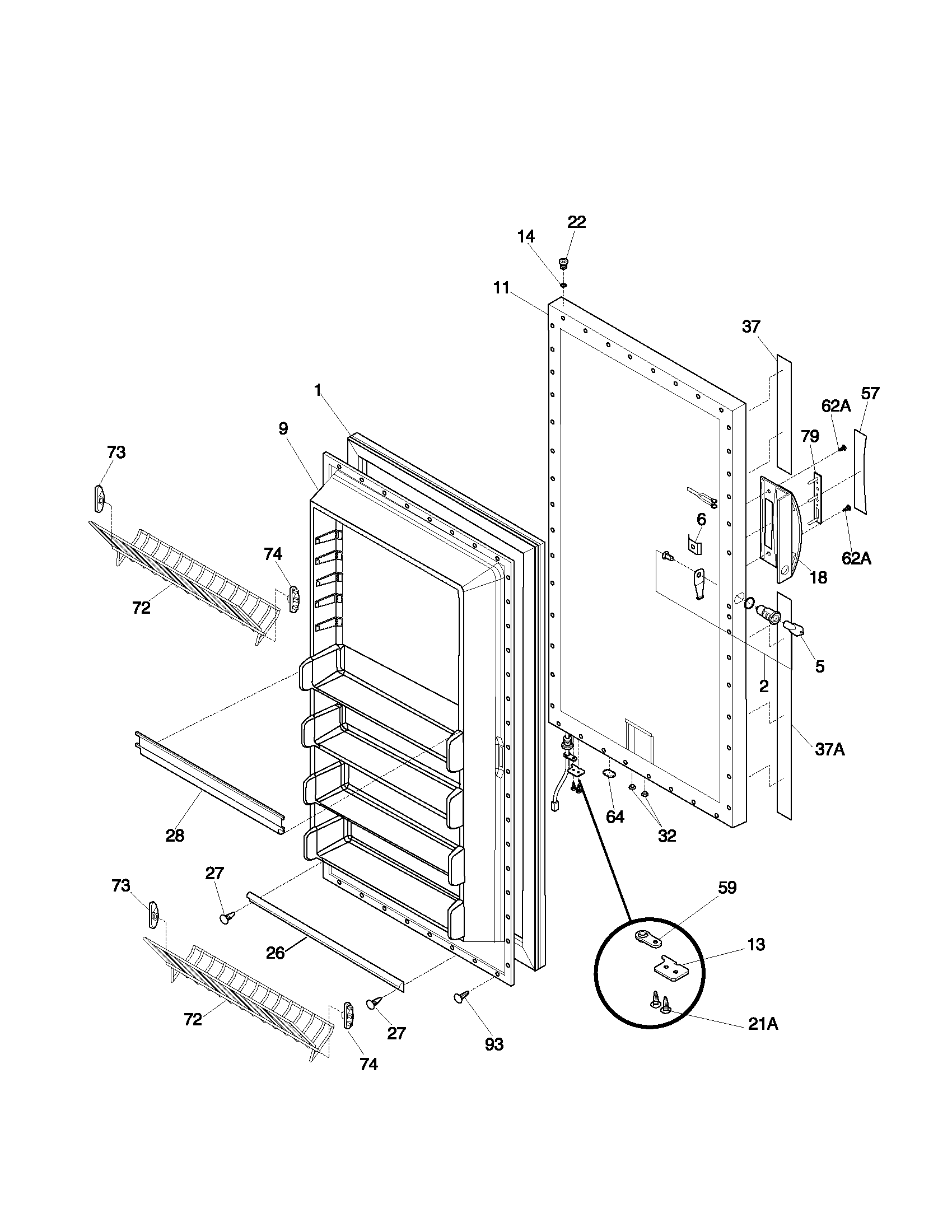

Door diagram

Freezer door gasket

Part #216522312

Replaced by #5304507199

?
Manufacturer substitution
This part replaces 216522312. Substitute parts can look different from the original.
BEST SELLER
$103.47 |
10% OFF Phone Price : $115.47
In Stock
Freezer Door Key 216702900
#5

Door diagram

Freezer door key

Part #216702900

Replaced by #297147700

?
Manufacturer substitution
This part replaces 216702900. Substitute parts can look different from the original.
BEST SELLER
$9.25 |
10% OFF Phone Price : $10.25
In Stock
Compressor 216851800
#29

System diagram

Compressor

Part #216851800

Replaced by #5304475098

?
Manufacturer substitution
This part replaces 216851800. Substitute parts can look different from the original.
BEST SELLER
$363.07 |
$12.00 OFF Phone Price : $375.07
In Stock
Fan Motor 216822500
#13

Cabinet diagram

Fan motor

Part #216822500

Replaced by #5304436055

?
Manufacturer substitution
This part replaces 216822500. Substitute parts can look different from the original.
BEST SELLER
$107.79 |
10% OFF Phone Price : $119.79
In Stock
Appliance Leveling Leg (replaces 134158000, 7216396900) 216396900
#63

Cabinet diagram

Appliance leveling leg (replaces 134158000, 7216396900)

Part #216396900

BEST SELLER
$20.04 |
23% OFF Phone Price : $26.04
In Stock
Sec, Gasket 216524200
#26

Door diagram

Sec, gasket

Part #216524200

Replaced by #216524201

?
Manufacturer substitution
This part replaces 216524200. Substitute parts can look different from the original.
This item is not returnable
$36.81 |
14% OFF Phone Price : $42.81
In Stock
Capacitor 216787800
#55

System diagram

Capacitor

Part #216787800

Replaced by #218909912

?
Manufacturer substitution
This part replaces 216787800. Substitute parts can look different from the original.
$58.16 |
9% OFF Phone Price : $64.16
In Stock
Freezer Suction Line (replaces 7216783200) 216783200
#15A

System diagram

Freezer suction line (replaces 7216783200)

Part #216783200

$70.35 |
8% OFF Phone Price : $76.35
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Most common symptoms to help you fix your freestanding freezers

Choose a symptom to see related freezer repairs.

View all

Why don't the lights in my freezer work?

Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…

Read more

What should I do when my freezer's high-temperature alarm sounds?

Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…

Read more

Why isn't my freezer cooling?

Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…

Read more

Why does my freezer have a lot of frost inside?

Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …

Read more

Why is my freezer too warm?

Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …

Read more

Why is my freezer hot on the outside?

Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…

Read more

Why isn't my freezer running?

Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…

Read more

Why is my freezer so noisy?

Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …

Read more

Repair guides for upright freezers

View all
How to replace a freezer control panel

How to replace a freezer control panel

A freezer control panel that doesn’t show the temperature or respond when you press the buttons could be broken. This DI…

Read more
Repair difficulty
Time required
 15 minutes or less
How to replace a freezer door switch

How to replace a freezer door switch

When the door switch fails, the freezer can’t detect that the door is closed. Follow the steps in this repair guide to r…

Read more
Repair difficulty
Time required
 15 minutes or less
How to replace a freezer thermistor

How to replace a freezer thermistor

When the thermistor can’t sense the freezer temperature, the freezer is colder or warmer than the set temperature. Follo…

Read more
Repair difficulty
Time required
 45 minutes or less

Effective articles & videos to help repair your freestanding freezers

Use the advice and tips in these articles and videos to get the most out of your freezer.

View all
