Model # RSS358ULGCO Official Caloric gas range

Here are the diagrams and repair parts for Official Caloric RSS358ULGCO gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

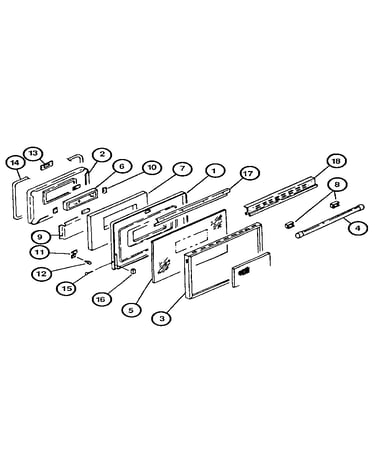

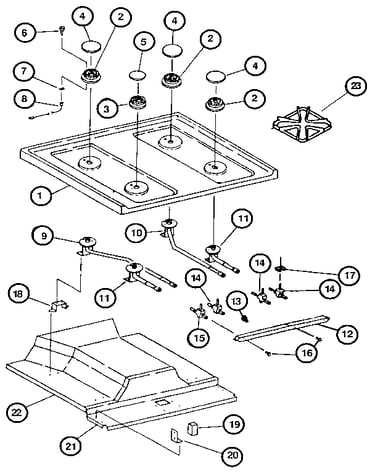

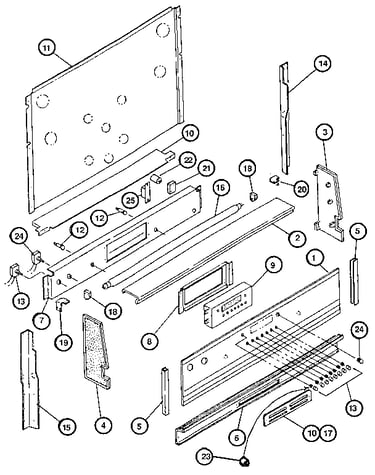

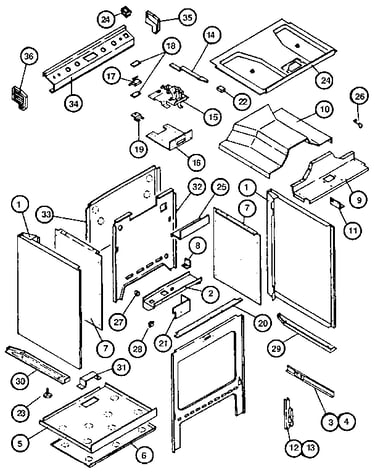

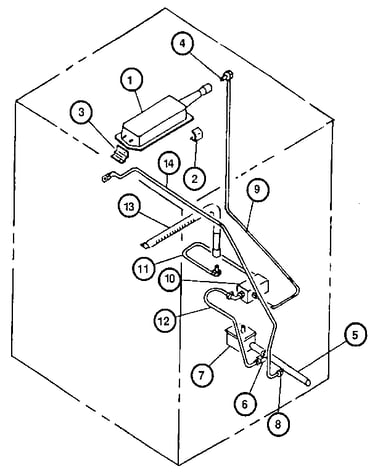

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 254 parts  |

Igniter 0087699
#14

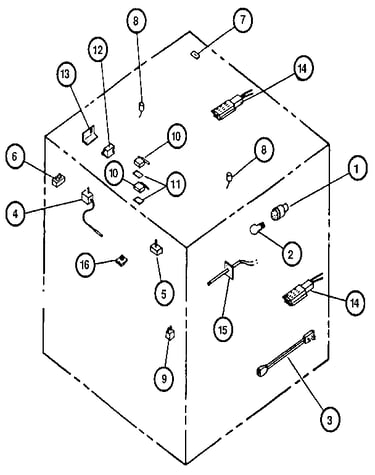

Electric components diagram

Igniter

Part #0087699

Replaced by #786324

?
Manufacturer substitution
This part replaces 0087699. Substitute parts can look different from the original.
$49.19
9% OFF MSRP : $54.00
In Stock
Broiler Pan 0011161
#12

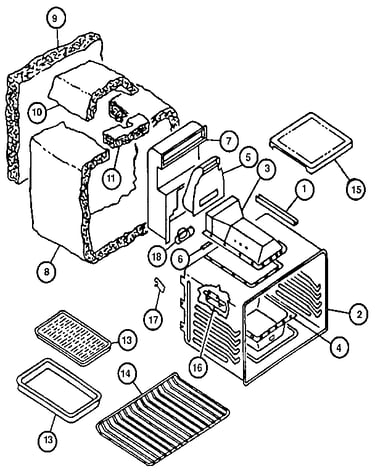

Oven assembly diagram

Broiler pan

Part #0011161

Replaced by #4396923

?
Manufacturer substitution
This part replaces 0011161. Substitute parts can look different from the original.
$25.33
35% OFF MSRP : $39.00
In Stock
Brlr Grid 0304451
#13

Oven assembly diagram

Brlr grid

Part #0304451

Replaced by #4396923

?
Manufacturer substitution
This part replaces 0304451. Substitute parts can look different from the original.
$25.33
35% OFF MSRP : $39.00
In Stock
Screw 0041794

#NI

All parts diagram

Screw

Part #0041794

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 0041794. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Screw 0059445

#NI

All parts diagram

Screw

Part #0059445

Replaced by #W11245710

?
Manufacturer substitution
This part replaces 0059445. Substitute parts can look different from the original.
This item is not returnable
$16.79
11% OFF Phone Price : $18.79
In Stock
Electrode 0304357
Electrode

Part #0304357

Replaced by #WP3185804

?
Manufacturer substitution
This part replaces 0304357. Substitute parts can look different from the original.
This item is not returnable
$34.99
13% OFF Phone Price : $39.99
In Stock
Screw 0041809

#NI

All parts diagram

Screw

Part #0041809

Replaced by #W11245710

?
Manufacturer substitution
This part replaces 0041809. Substitute parts can look different from the original.
This item is not returnable
$16.79
11% OFF Phone Price : $18.79
In Stock
Screw 0071847

#NI

All parts diagram

Screw

Part #0071847

Replaced by #WP400021-1

?
Manufacturer substitution
This part replaces 0071847. Substitute parts can look different from the original.
This item is not returnable
$7.99
11% OFF Phone Price : $8.99
In Stock
Oven Lamp 0042175
#2

Electric components diagram

Oven lamp

Part #0042175

Replaced by #40A15

?
Manufacturer substitution
This part replaces 0042175. Substitute parts can look different from the original.
$15.39
12% OFF Phone Price : $17.39
In Stock
Light Lens 0302471
#1A

Electric components diagram

Light lens

Part #0302471

Replaced by #WP74011278

?
Manufacturer substitution
This part replaces 0302471. Substitute parts can look different from the original.
$71.99
6% OFF Phone Price : $76.99
In Stock
