GE
Electric Wall Oven

Model #JT930WH2WW GE electric oven

Here are the diagrams and repair parts for GE JT930WH2WW electric oven, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

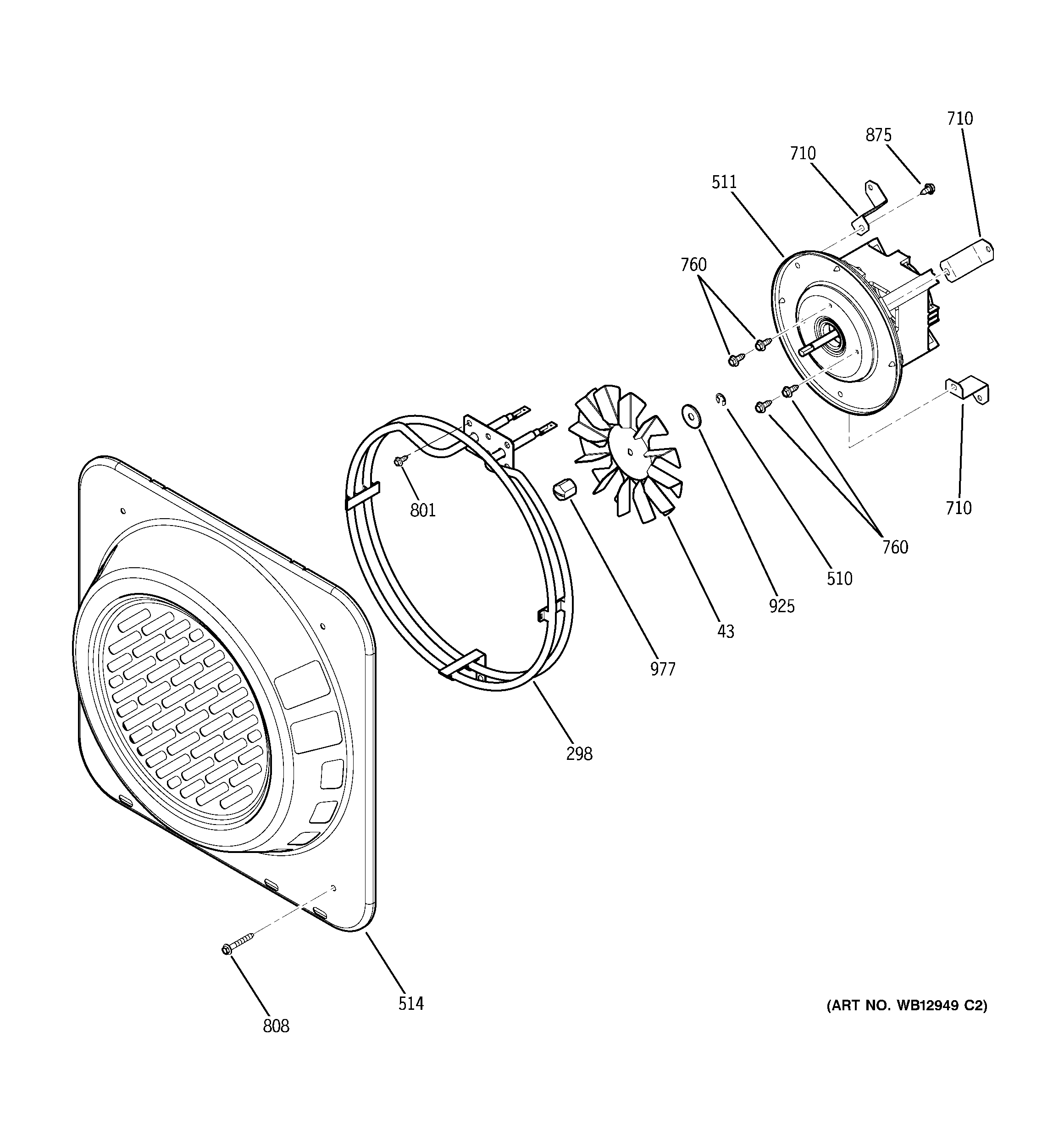

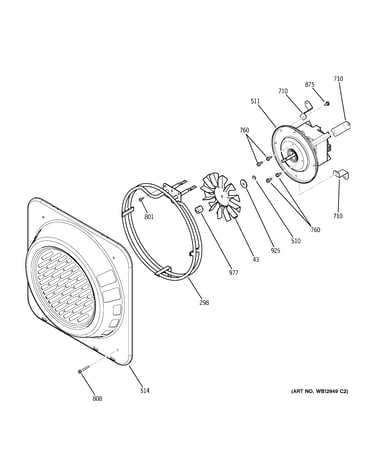

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 143 parts

|

Range Oven Door Middle Glass

#338

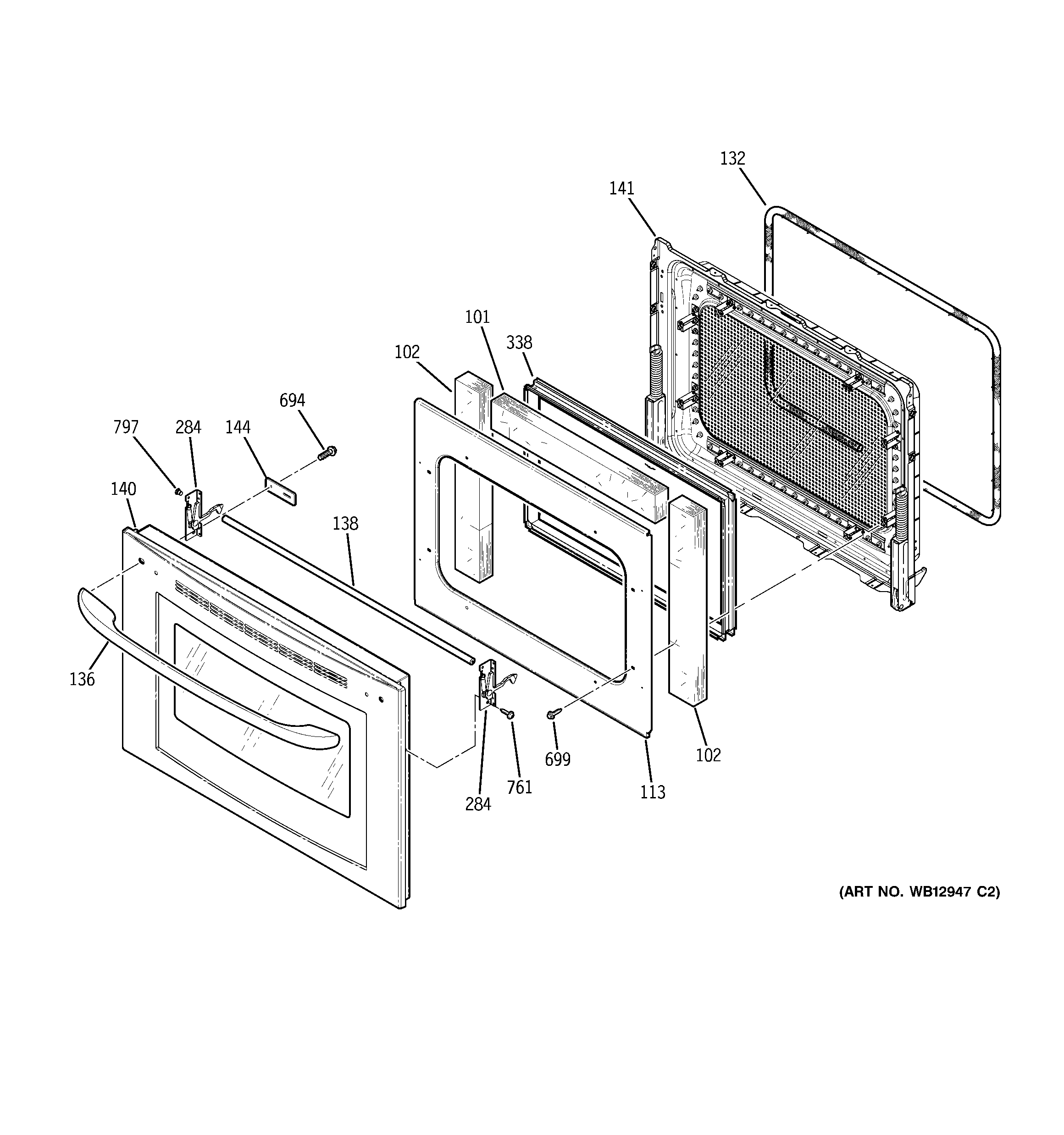

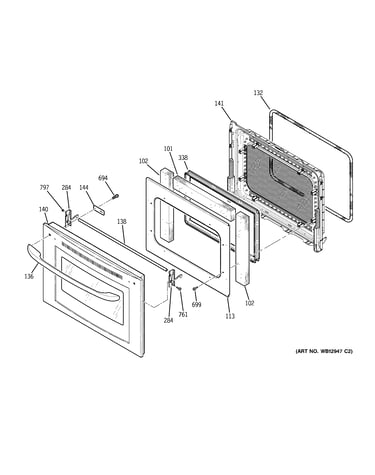

Door Diagram

$49.06

In Stock

Cooking Appliance Screw, #10-32

#1005

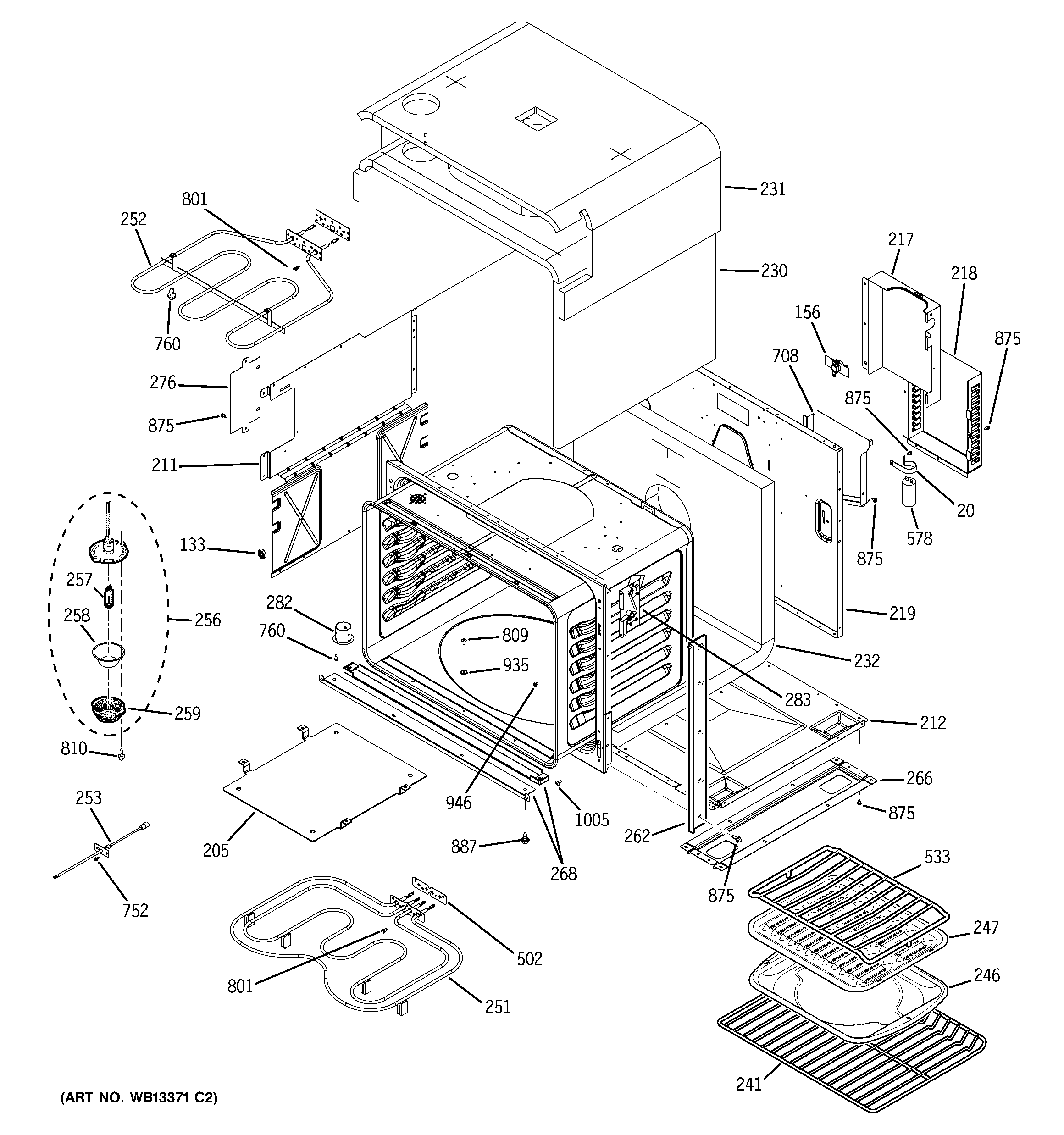

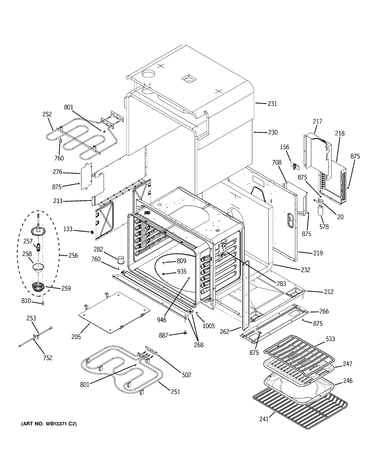

Body parts Diagram

Cooking appliance screw, #10-32

Part #WB01T10008
This item is not returnable
$4.33

In Stock

Range Screw

#694

Door Diagram

Range screw

Part #WB01T10066
This item is not returnable
$2.87

In Stock

Blower Assembly

#409

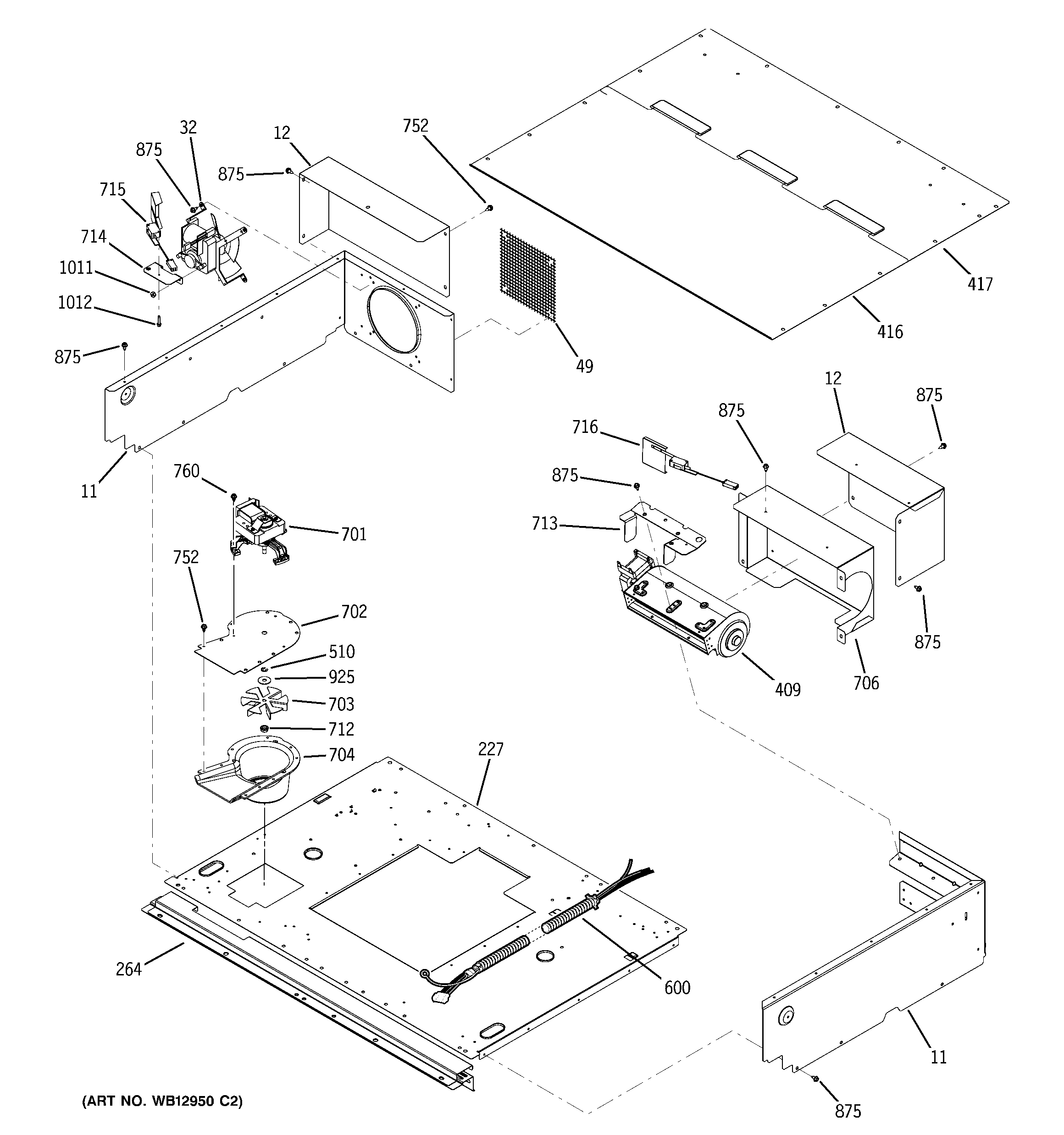

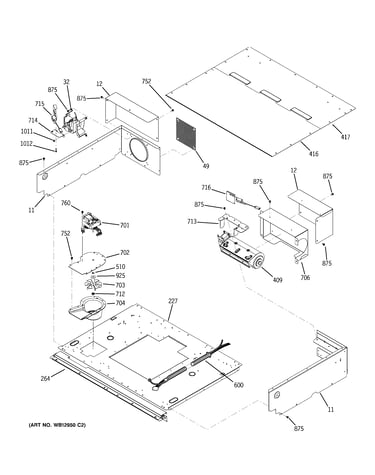

Cooling fan Diagram

Blower assembly

Part #WB26T10023
$71.28

In Stock

Wall Oven Transformer Fan Assembly

#32

Cooling fan Diagram

$92.65

In Stock

Stirrer Motor

#499

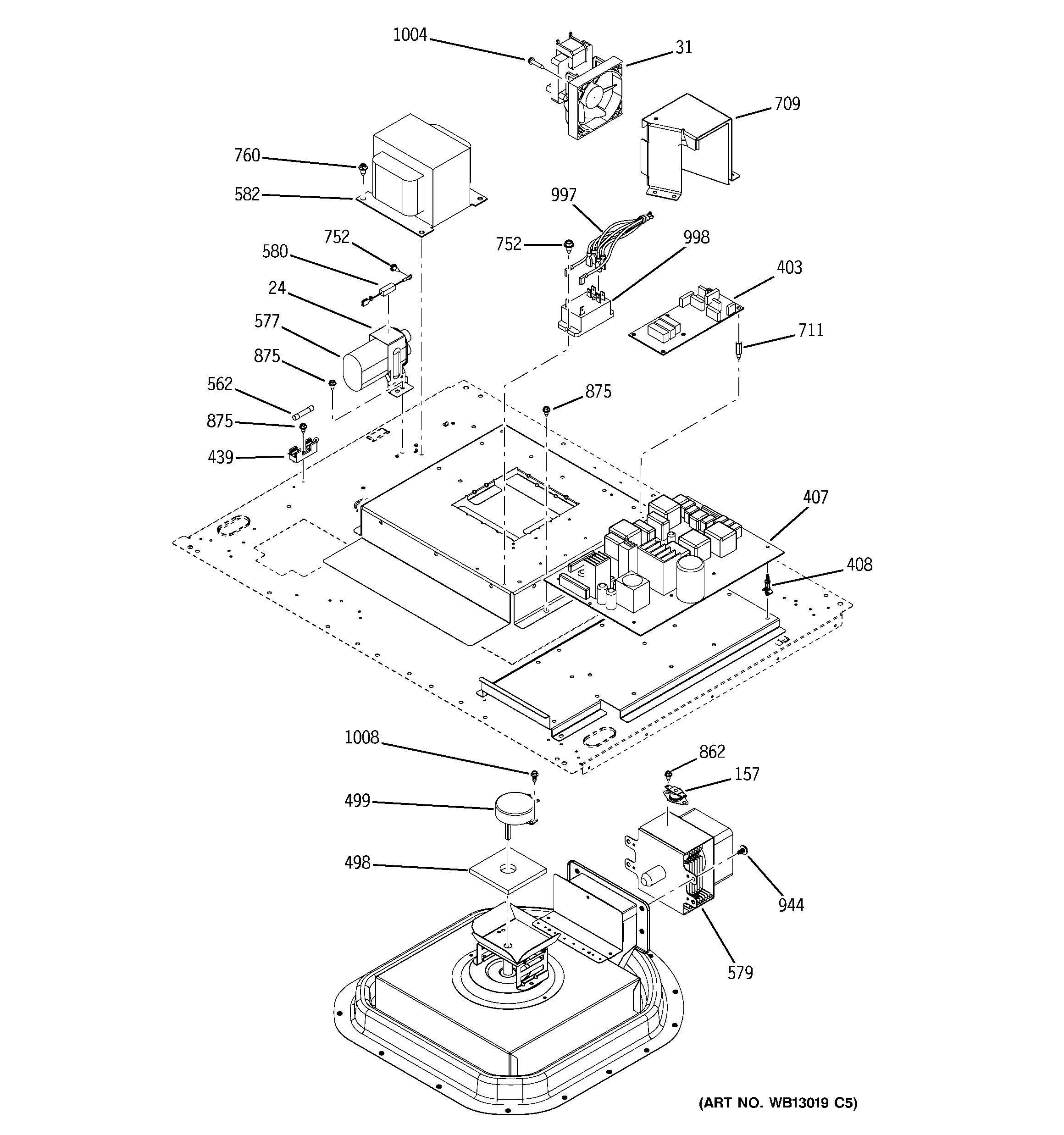

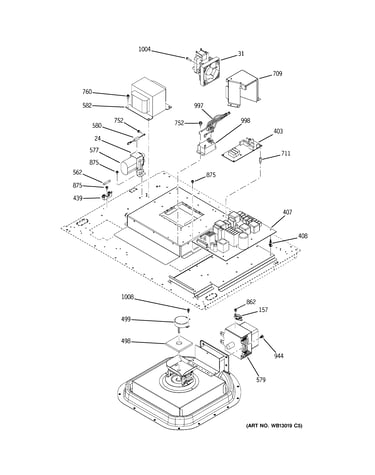

Cooktop Diagram

Stirrer motor

Part #WB26T10028
$57.61

In Stock

Harness Sail

#999

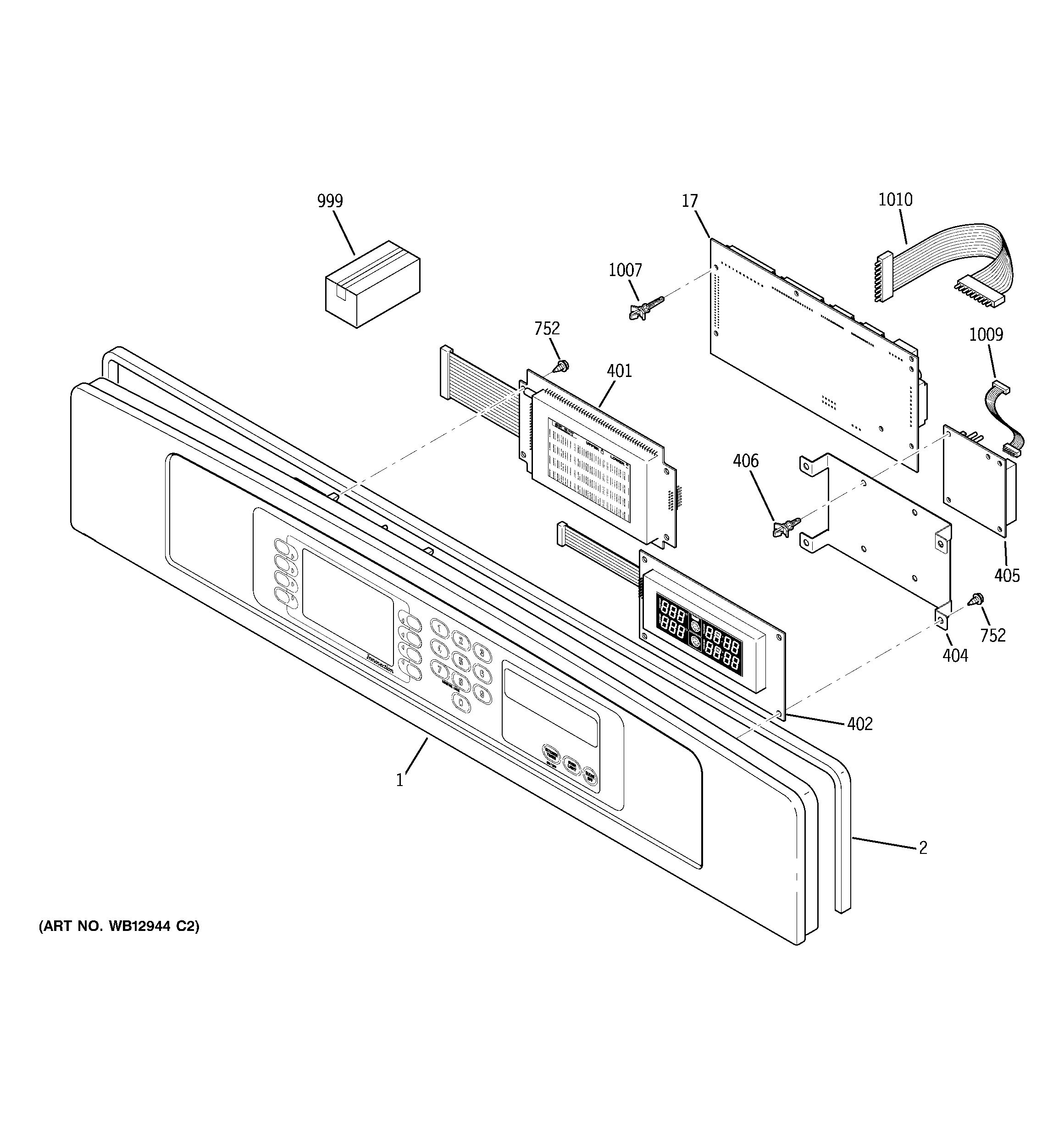

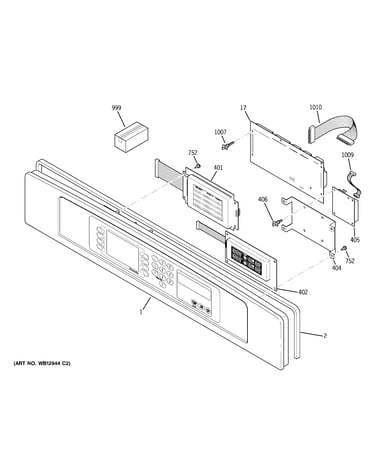

Control panel Diagram

Harness sail

Part #WB18T10310
$18.36

In Stock

Conduit Wire

#600

Cooling fan Diagram

Conduit wire

Part #WB18T10312
$79.31

In Stock

Retainer Insert

#227

Cooling fan Diagram

Retainer insert

Part #WB02T10202
$46.76

In Stock

Standoff

#406

Control panel Diagram

Standoff

Part #WB02T10204
This item is not returnable
$2.71

In Stock

Showing 10 of 143 parts

Symptoms common to all wall oven

Choose a symptom to see related wall oven repairs.

Main causes: broken broil element, faulty broil burner igniter, control system failure
Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, control system failure
Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure
Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure
Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat
Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element
