Kenmore 2538753101 window air conditioner

Kenmore 2538753101 window air conditioner Parts

Here are the diagrams and repair parts for Kenmore 2538753101 window air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 2538753101 Window Air Conditioner

  • Tube for Kenmore 2538753101 - Part 5314404427

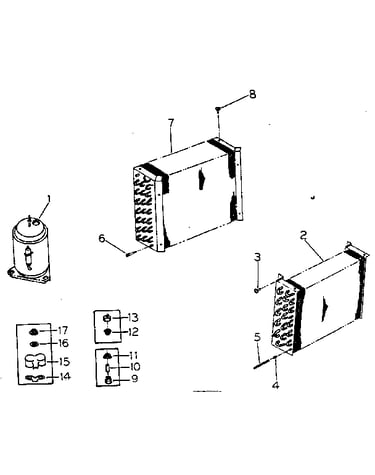

    Unit parts diagram

    Capillary Tube

    Part #144044-09

    Replaced by #5314404427

    Info Icon
    Manufacturer substitution
    This part replaces 144044-09. Substitute parts can look different from the original.
    In Stock
    $36.14
    Minus Item
    Qty
    Plus Item
  • Gasket for Kenmore 2538753101 - Part 5303295516

    Unit parts diagram

    Nut

    Part #515929

    Replaced by #5303295516

    Info Icon
    Manufacturer substitution
    This part replaces 515929. Substitute parts can look different from the original.
    In Stock
    $26.04
    Minus Item
    Qty
    Plus Item
  • Screw for Kenmore 2538753101 - Part 5300516352

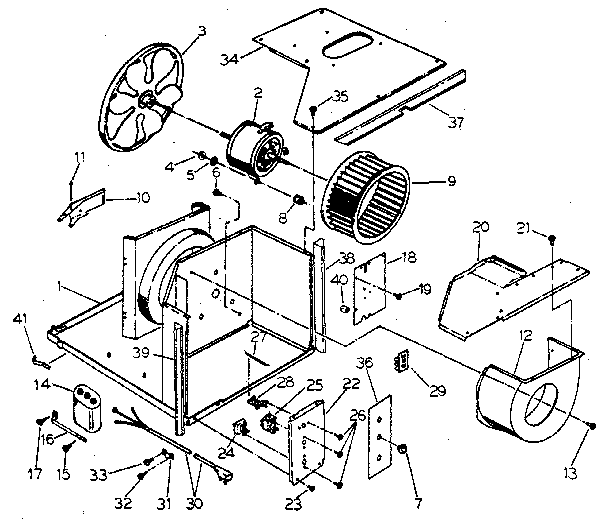

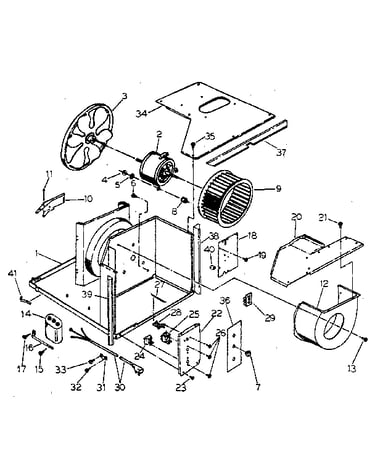

    Electrical system and air handling parts diagram

    Screw

    Part #516352

    Replaced by #5300516352

    Info Icon
    Manufacturer substitution
    This part replaces 516352. Substitute parts can look different from the original.
    In Stock
    $25.13
    Minus Item
    Qty
    Plus Item
  • Louver for Kenmore 2538753101 - Part 5303208310

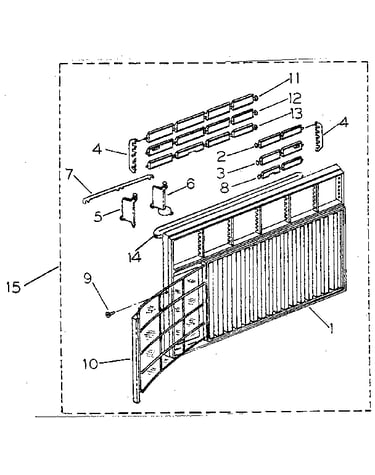

    Cabinet and front panel parts diagram

    Louver

    Part #519058-01

    Replaced by #5303208310

    Info Icon
    Manufacturer substitution
    This part replaces 519058-01. Substitute parts can look different from the original.
    In Stock
    $30.88
    Minus Item
    Qty
    Plus Item
  • Louver for Kenmore 2538753101 - Part 5303208310

    Cabinet and front panel parts diagram

    Louver

    Part #519060-01

    Replaced by #5303208310

    Info Icon
    Manufacturer substitution
    This part replaces 519060-01. Substitute parts can look different from the original.
    In Stock
    $30.88
    Minus Item
    Qty
    Plus Item
  • Condenser for Kenmore 2538753101 - Part 5303209576

    Unit parts diagram

    Condenser

    Part #516971

    Replaced by #5303209576

    Info Icon
    Manufacturer substitution
    This part replaces 516971. Substitute parts can look different from the original.
    In Stock
    $317.81
    Minus Item
    Qty
    Plus Item
  • Screw for Kenmore 2538753101 - Part 5308047555

    Cabinet and front panel parts diagram

    Screw

    Part #509750

    Replaced by #5308047555

    Info Icon
    Manufacturer substitution
    This part replaces 509750. Substitute parts can look different from the original.
    In Stock
    $25.17
    Minus Item
    Qty
    Plus Item
  • Room Air Conditioner Compressor Start Relay Kit for Kenmore 2538753101 - Part 5304413630

    #NI

    All parts diagram

    Start Kit

    Part #501725

    Replaced by #5304413630

    Info Icon
    Manufacturer substitution
    This part replaces 501725. Substitute parts can look different from the original.
    In Stock
    $212.58
    Minus Item
    Qty
    Plus Item
  • Vertical Louver for Kenmore 2538753101 - Part 5300136378

    Cabinet and front panel parts diagram

    Louver

    Part #136378

    Replaced by #5300136378

    Info Icon
    Manufacturer substitution
    This part replaces 136378. Substitute parts can look different from the original.
    In Stock
    $27.35
    Minus Item
    Qty
    Plus Item
  • Screw for Kenmore 2538753101 - Part 5303209556

    Electrical system and air handling parts diagram

    Screw

    Part #521068

    Replaced by #5303209556

    Info Icon
    Manufacturer substitution
    This part replaces 521068. Substitute parts can look different from the original.
    In Stock
    $25.24
    Minus Item
    Qty
    Plus Item

Most common symptoms to help you fix your room air conditioners

View all

Why is water leaking into the house from my window air conditioner?

Main causes: clogged condensate drain, air conditioner not leveled properly, leaky window air seals …

Read more

Why your window AC compressor is not turning on?

Main causes: bad compressor, lack of refrigerant, bad compressor start relay, electronic control board failure…

Read more

Why won't my window air conditioner start?

Main causes: lack of electrical power, bad electronic control board, wiring failure, bad temperature sensor…

Read more

Why isn’t my air conditioner cooling?

Thermostat problems, bad compressor/condenser fan capacitor, lack of refrigerant, failed compressor…

Read more

Why isn’t my air conditioner cooling well?

Dirty air filter, clogged condenser coils, low refrigerant charge, faulty compressor…

Read more

Why does my window air conditioner's compressor hum but not work?

Main causes: turning the air conditioner off and the back on too quickly, dirty or restricted condenser coil, compressor…

Read more

Why won't my air conditioner turn on?

Main causes: errant thermostat settings, lack of electrical power, clogged drain line, wiring failure, control failure.…

Read more

Why are my window air conditioner's evaporator fins iced up?

Main causes: dirty air filter, air conditioner is too small for the room, temperature set too cold, control failure…

Read more

Why won't water draining from my window air conditioner?

Main causes: clogged drain hole, air conditioner not leveled properly…
