Whirlpool
Electric Range

Model #RF366PXXW2 Whirlpool electric range

Here are the diagrams and repair parts for Whirlpool RF366PXXW2 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

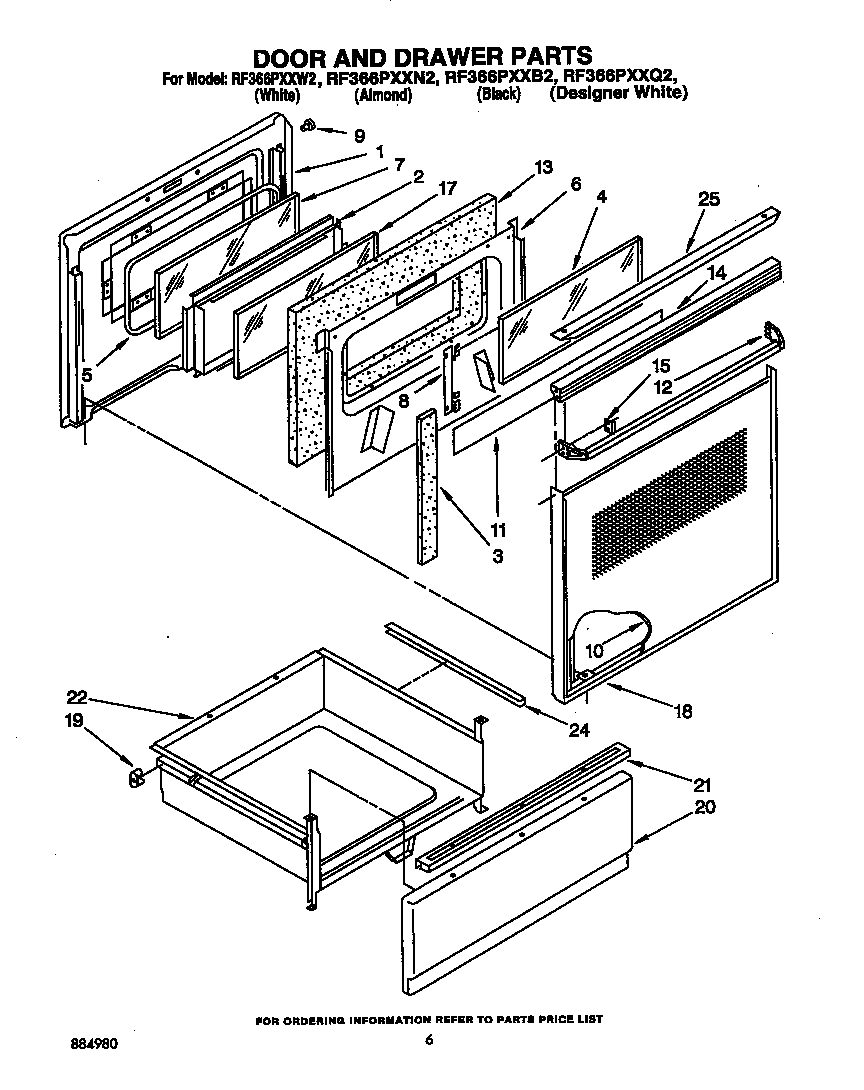

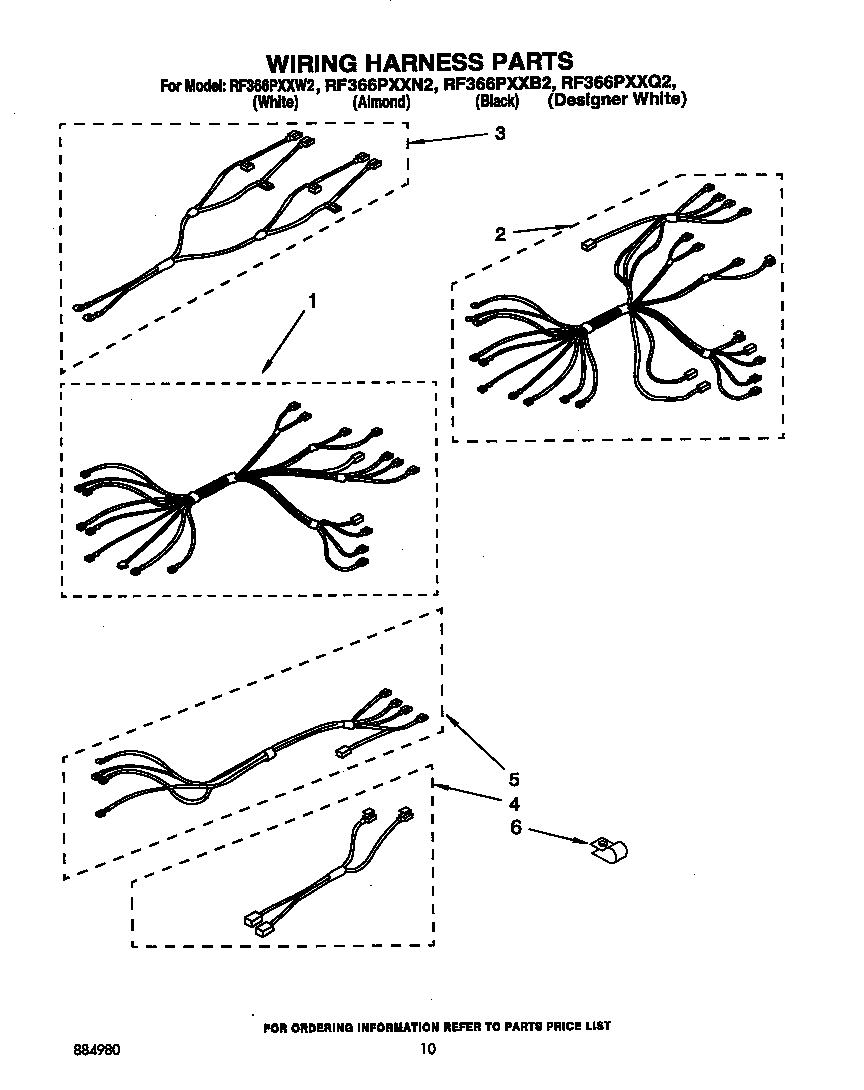

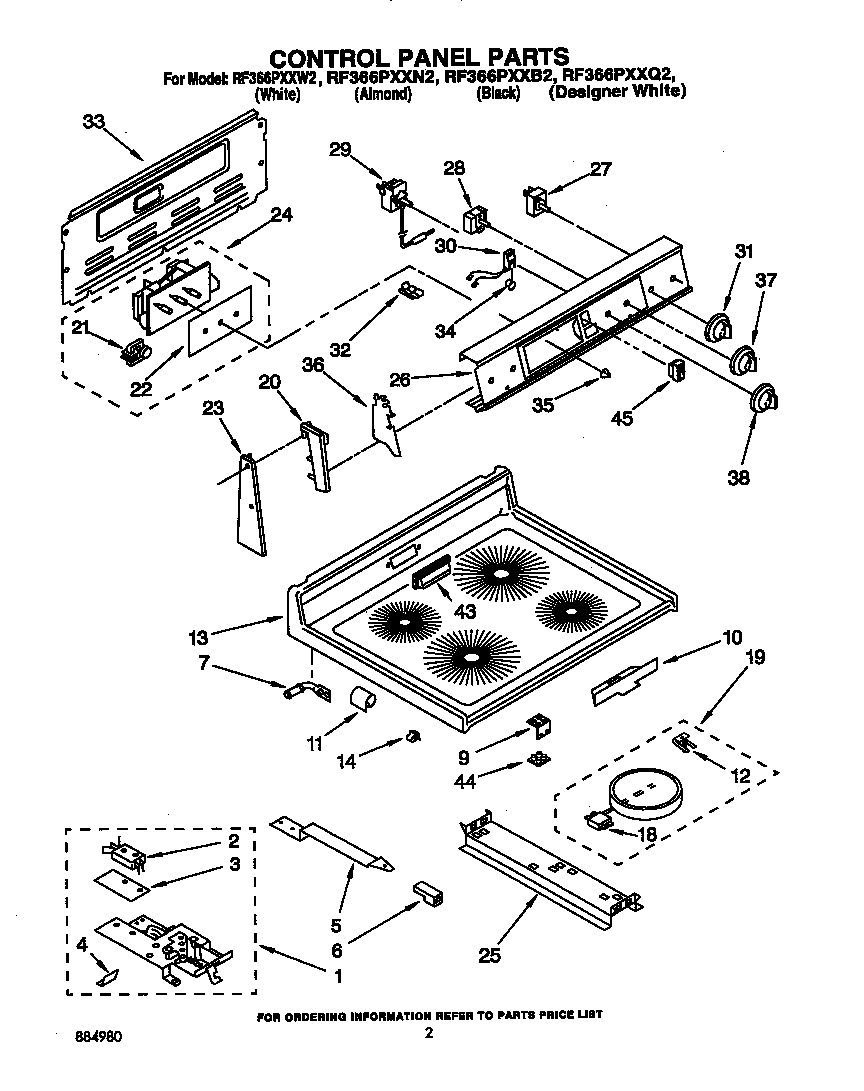

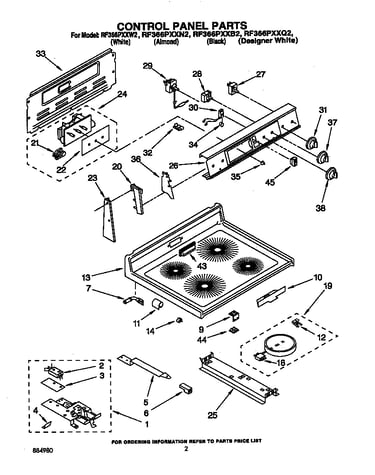

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

    Showing 10 of 231 parts

    Appliance Light Bulb, 40-watt#11

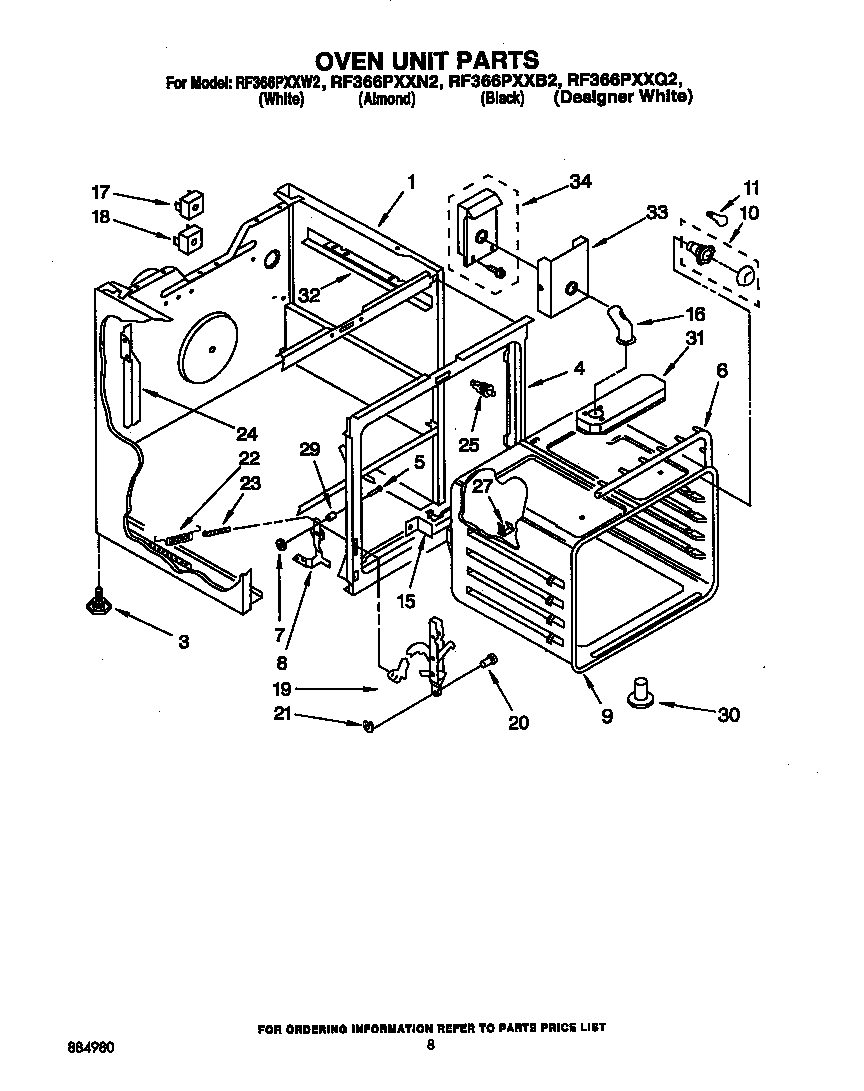

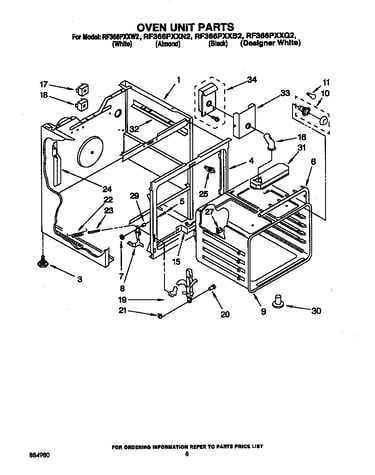

    Oven unit Diagram

    Light bulb

    Part #311255
    Replaced by #40A15
    ?
    Manufacturer substitution
    This part replaces 311255. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $6.50
    Appliance Touch-Up Paint, 0.6-oz (White)

    #NI

    All parts Diagram

    Appliance touch-up paint

    Part #72017
    Replaced by #72017
    ?
    Manufacturer substitution
    This part replaces 72017. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    Back Order
    $8.29
    Range Bake Element#4

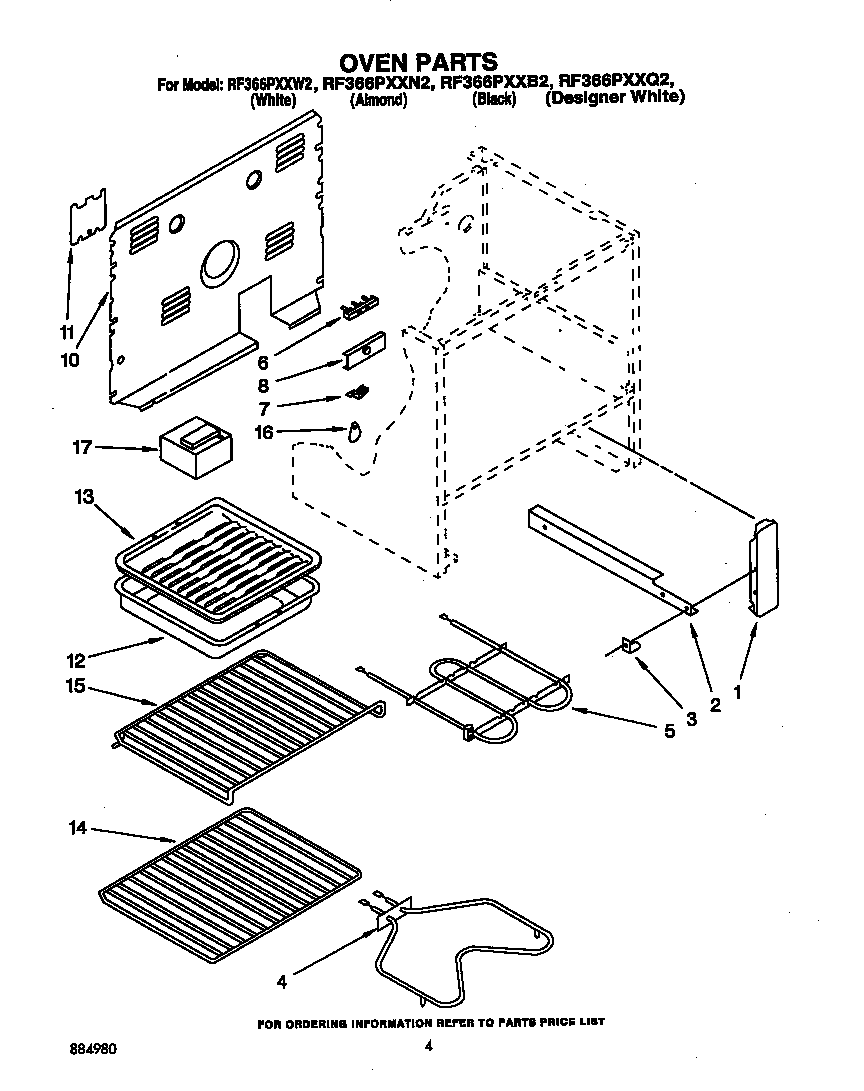

    Oven Diagram

    Bake element

    Part #661170
    Replaced by #WP308180
    ?
    Manufacturer substitution
    This part replaces 661170. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $75.69
