Craftsman
Air Compressor

Model #10217315 Official Craftsman two-stage two-cylinder tank-type air compressor

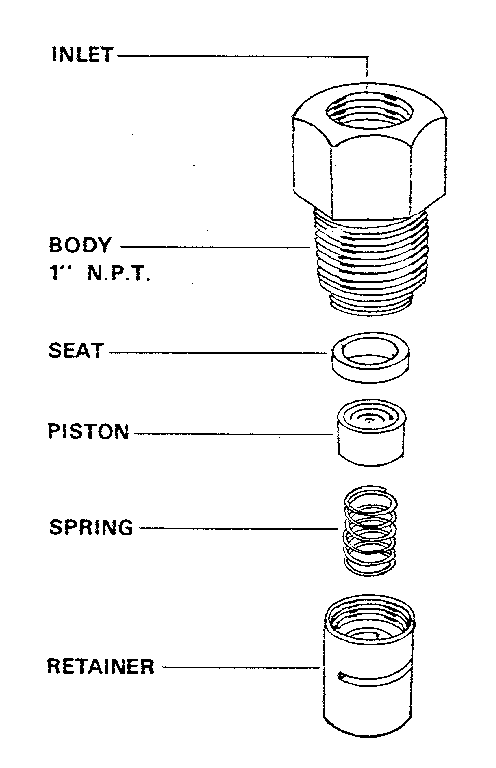

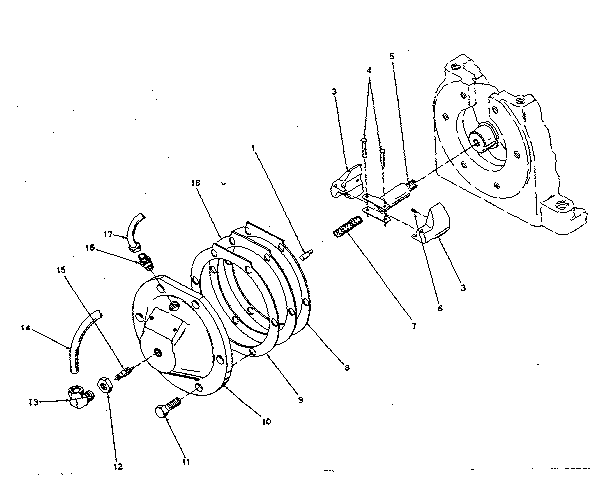

Here are the diagrams and repair parts for Craftsman 10217315 two-stage two-cylinder tank-type air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 145 parts

Cap Screw#6

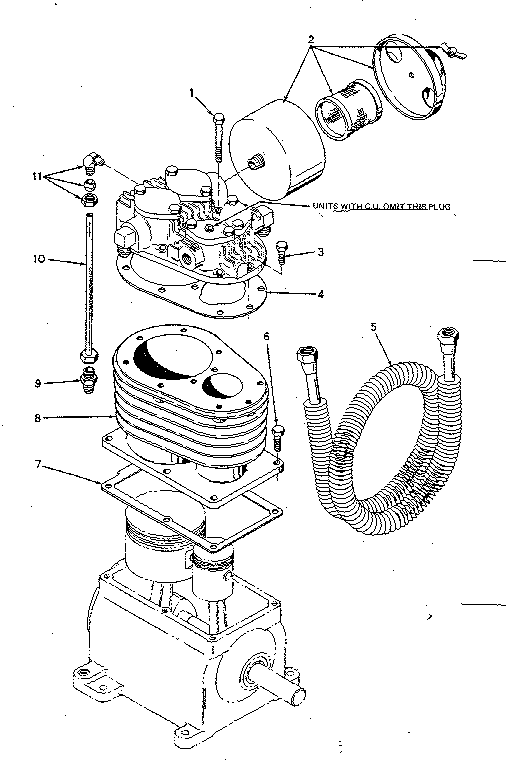

Inlet filter silencer, cylinder & intercooler assy detail Diagram

Cap screw

Part #986

The manufacturer no longer makes this part, and there's no substitute part

Drain Pipe#22

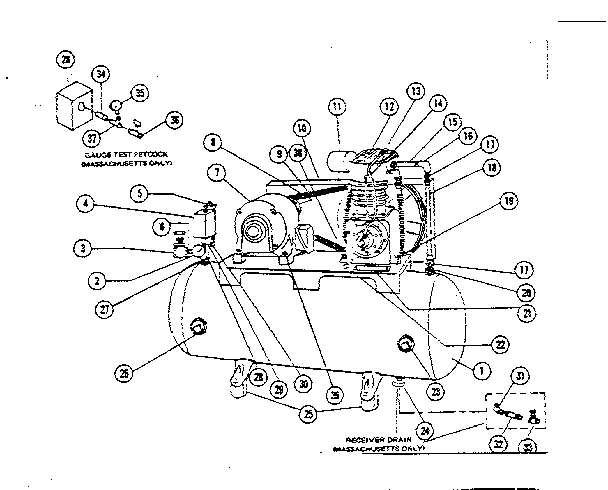

5 h.p. 2 stage 2 cylinder air compressors Diagram

Drain pipe

Part #10205

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw#13

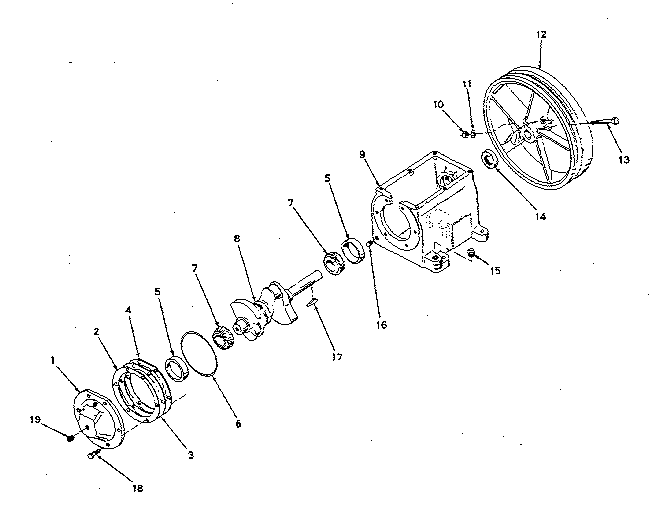

Crankcase assembly detail Diagram

Cap screw

Part #97526

The manufacturer no longer makes this part, and there's no substitute part

Cylindr Head#14

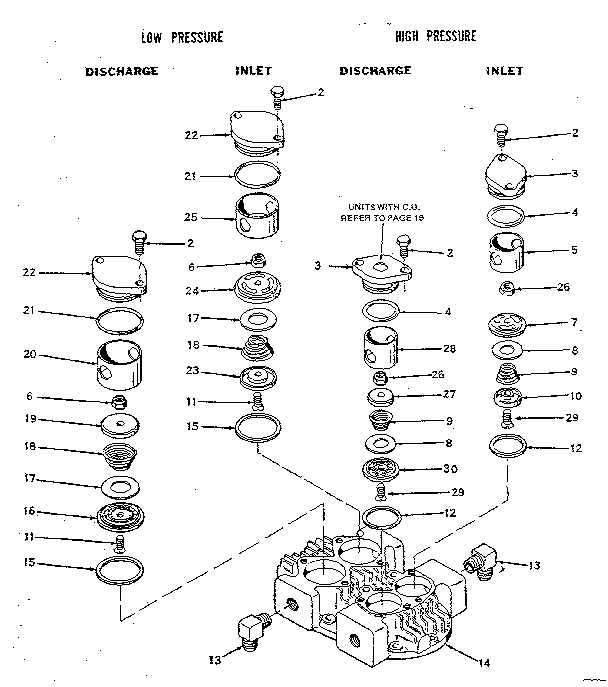

Cylinder head assembly detail Diagram

Cylindr head

Part #47926

The manufacturer no longer makes this part, and there's no substitute part

20 Power Dumpy Level#12

Crankcase assembly detail Diagram

20 power dumpy level

Part #48004

The manufacturer no longer makes this part, and there's no substitute part

Wrist Pin#14

Connecting rod, piston and crankshaft assembly detail Diagram

Wrist pin

Part #47945

The manufacturer no longer makes this part, and there's no substitute part

Drain Cap#22A

5 h.p. 2 stage 2 cylinder air compressors Diagram

Drain cap

Part #37001

The manufacturer no longer makes this part, and there's no substitute part

Gasket#4

Inlet filter silencer, cylinder & intercooler assy detail Diagram

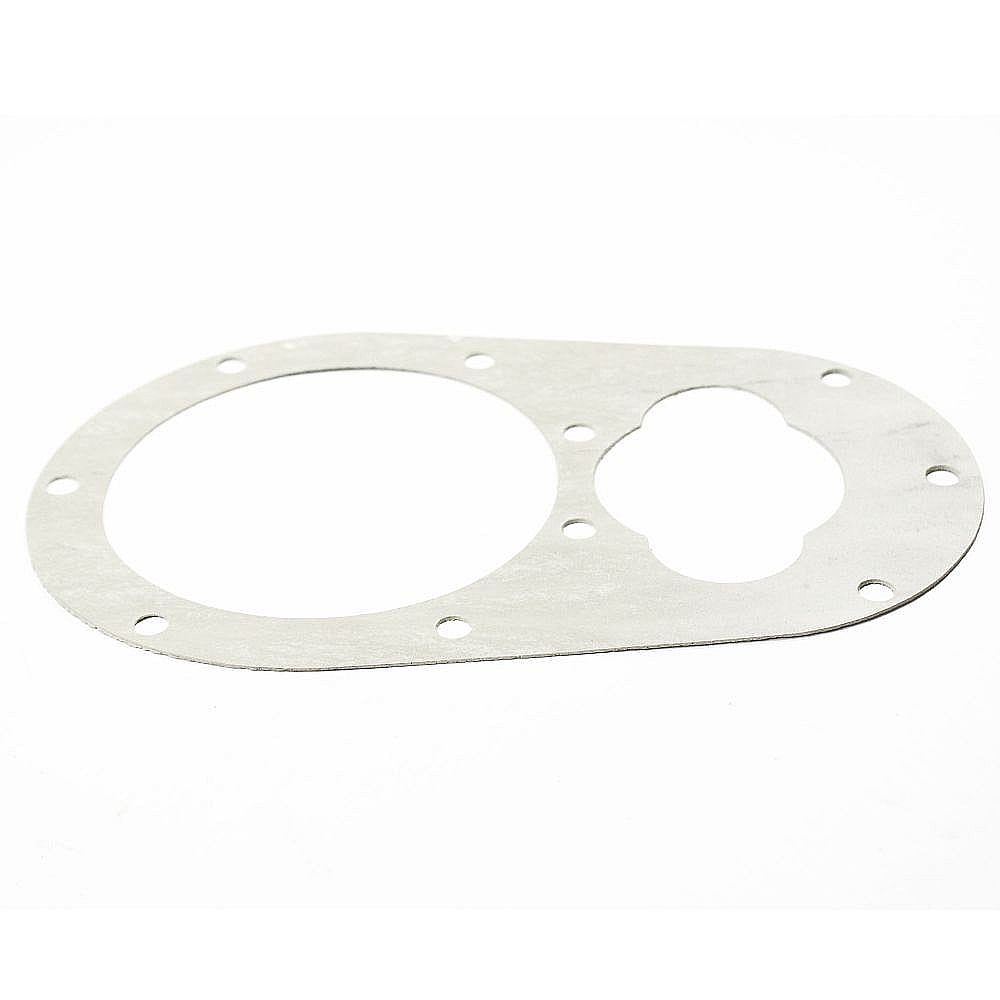

Gasket

Part #47939

The manufacturer no longer makes this part, and there's no substitute part

Piston Assembly#4A

Connecting rod, piston and crankshaft assembly detail Diagram

Piston assembly

Part #48175

The manufacturer no longer makes this part, and there's no substitute part

Belt Guard#10

5 h.p. 2 stage 2 cylinder air compressors Diagram

Belt guard

Part #50340

The manufacturer no longer makes this part, and there's no substitute part
