Frigidaire GRMC2273BF bottom-mount refrigerator Parts

A bottom-mount fridge freezer is a refrigerator design where the fresh-food compartment is on top (at eye level) and the freezer is in a lower drawer or bottom compartment. On your Frigidaire GRMC2273BF, this layout makes everyday refrigerated items easier to reach while keeping frozen foods below.

Most bottom-mount units (including the GRMC2273BF) are organized like this:

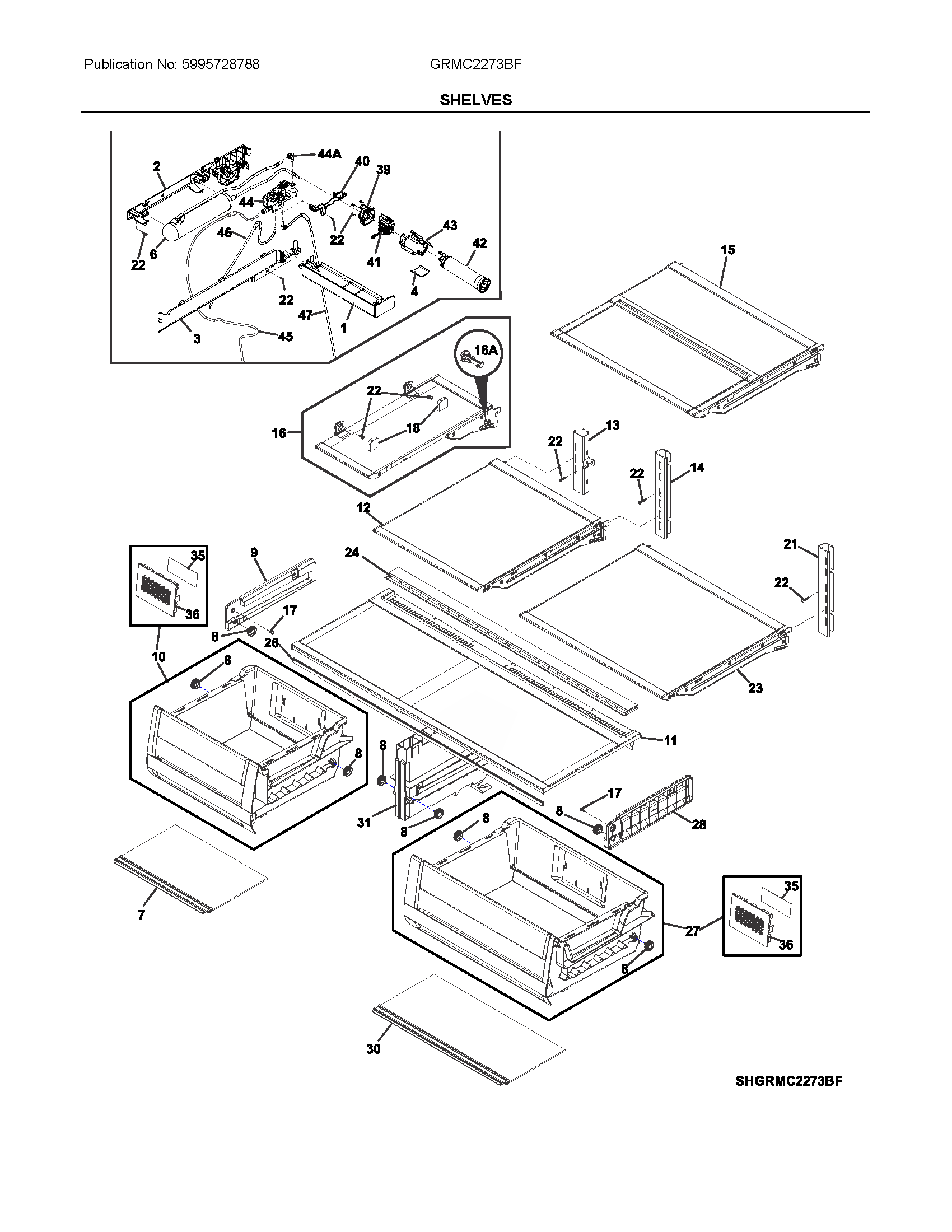

• Fresh-food section on top with shelves and door bins

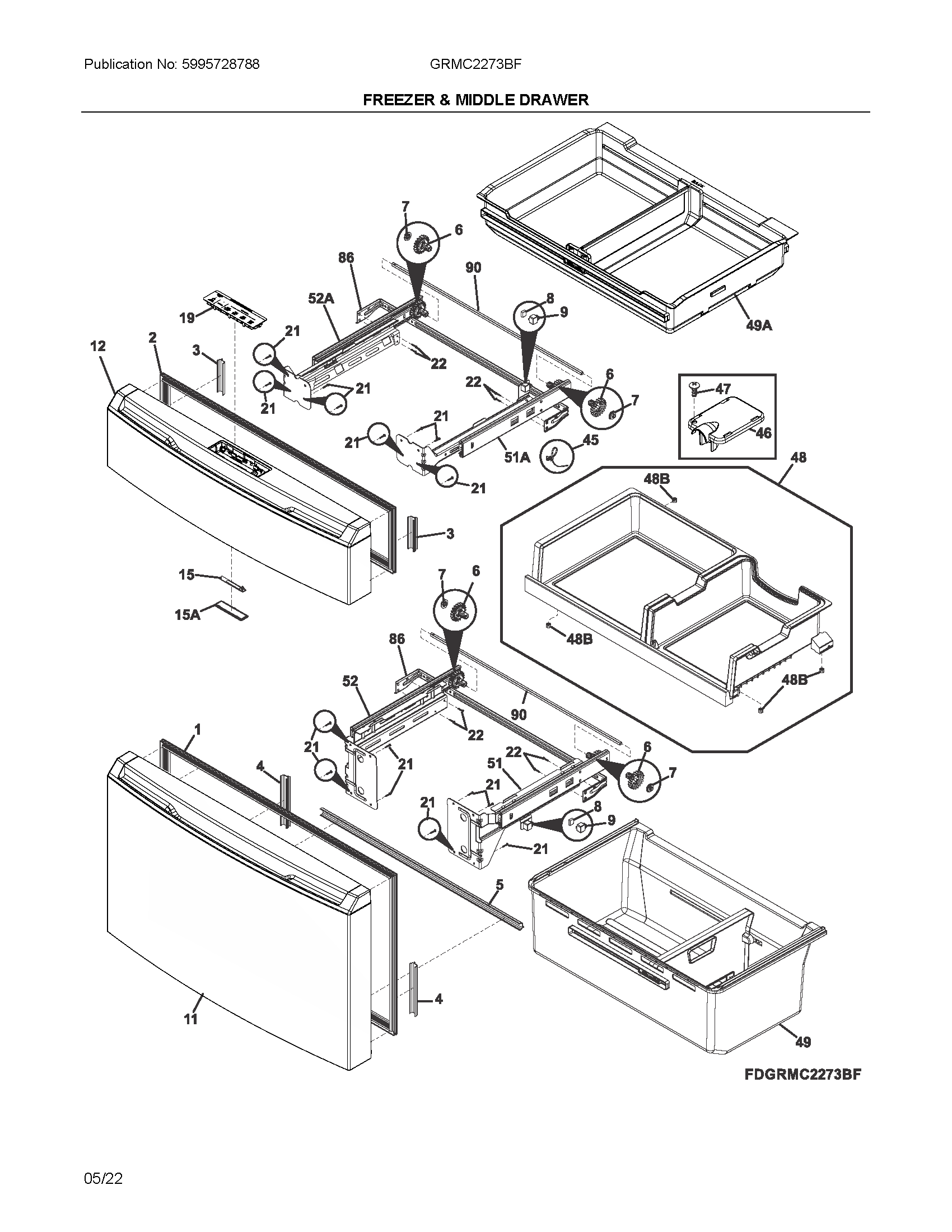

• Freezer section on the bottom with upper and lower baskets
• Many models include a middle temperature-controlled drawer (often used for deli items or drinks)

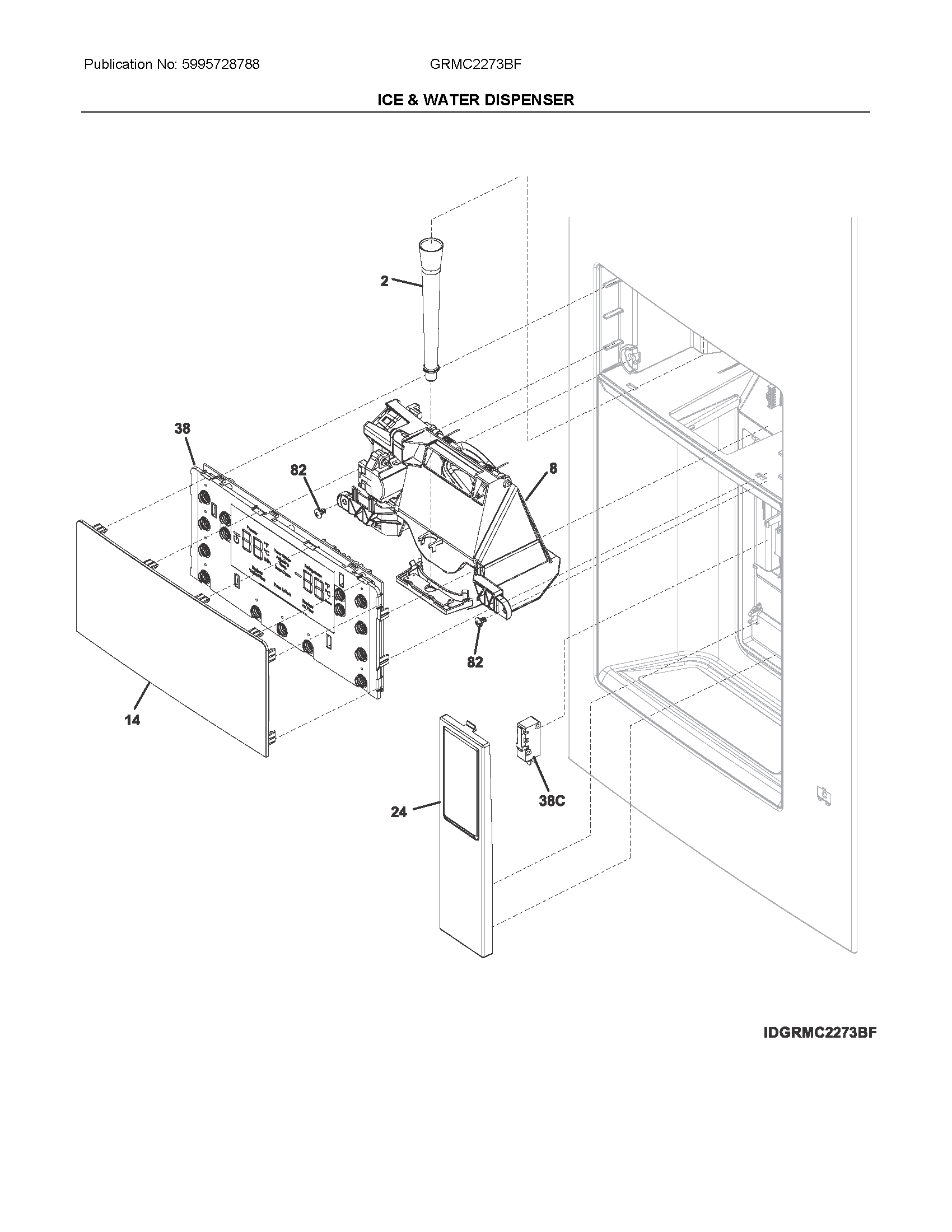

• Ice and water features are typically accessed from the upper doors

For a full feature map and compartment names, use the GRMC2273BF owner's manual.

Bottom-mount refrigerators are popular because they prioritize the items most households use most often.

• Less bending for fresh foods, drinks, and produce
• Wider, drawer-style freezer storage for bulky frozen items
• Better visibility for refrigerated groceries at eye level
• Often pairs well with French door styling in the fresh-food section

Bottom-mount designs need enough clearance for the upper doors and the lower freezer drawer to open fully.

• Leave space so doors and freezer baskets can fully extend
• Install near a grounded outlet (avoid extension cords)
• Keep the refrigerator level so doors close tightly
• Allow airflow clearances (typical guidance is small side/top clearance and about 1 inch at the rear)

For the exact clearance and placement guidance for this model, follow the GRMC2273BF installation guide.

Understanding the bottom-mount layout helps with everyday use (loading groceries, organizing freezer baskets) and with practical setup decisions like door swing clearance, leveling, and airflow space so the refrigerator cools efficiently.

You can also find replacement parts for your GRMC2273BF on this model’s parts list, or search by model number on Sears PartsDirect.

Last updated: February 2026

Cooling and ice maker performance are the most common Frigidaire refrigerator complaints. On the Frigidaire GRMC2273BF, the issues we see most often are warm fresh-food temperatures from airflow problems (fan, frost buildup, blocked vents) and “no ice” caused by the ice maker being off, a closed water valve, a kinked supply line, or a clogged or mis-seated filter; use the owner's manual to match symptoms to the right fix.

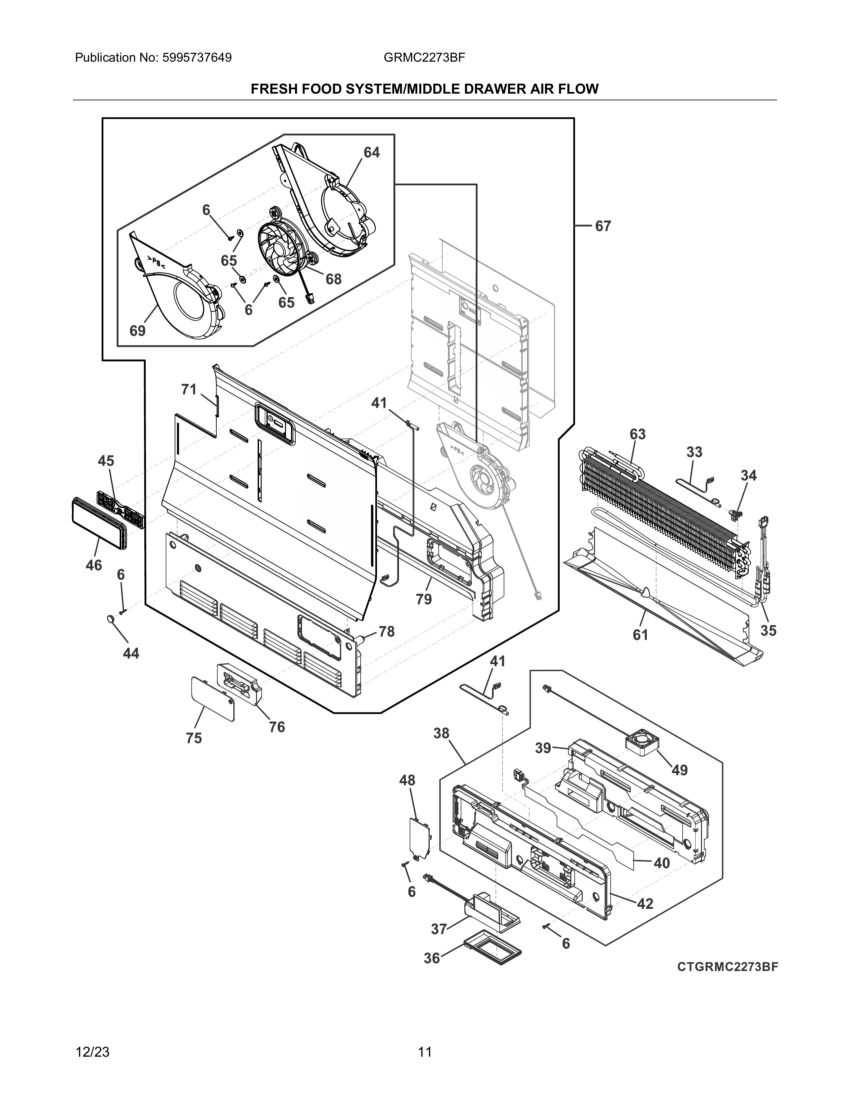

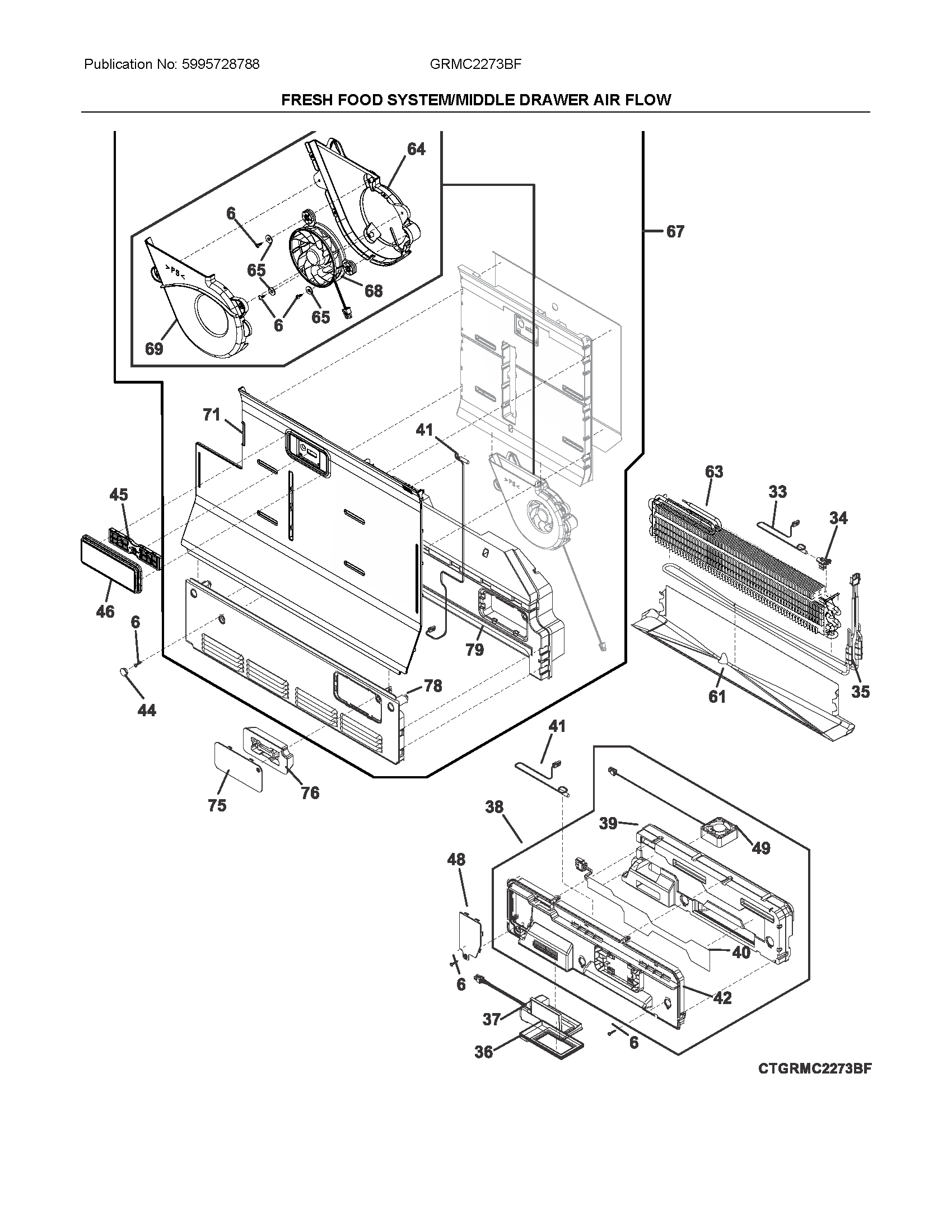

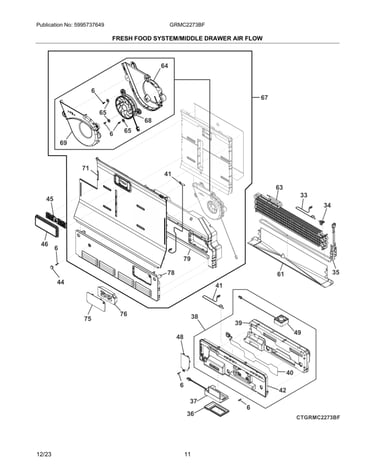

• Fridge warm, freezer cold: evaporator fan not moving air, vents blocked by food, or frost restricting airflow.
• No ice: ice maker turned off, water valve closed, kinked water line, or filter issue.
• Food freezing in the fresh-food section: temperature set too low or the temperature sensor is covered by food.
• Moisture between doors or on the cabinet: normal in humid weather; check door closing and gasket contact.
• Water in the bottom of a drawer: often normal after storing wet produce; dry items before loading.

1. Confirm temperature settings are in a normal range (most households do best around 37°F fresh food and 0°F freezer).
2. Make sure packages are not blocking air ports and the temperature sensor area.
3. If ice is not dispensing or producing:
   • Verify the ice maker is ON (the manual notes holding the ice maker button for about 3 seconds to toggle ON).
   • Confirm the household water valve is open and the supply line is not kinked.
4. Listen for the evaporator fan; if airflow is weak, use our DIY steps in how to fix your evaporator cooling fan.

Airflow and water supply problems can look like “the refrigerator isn’t cooling” or “the ice maker is bad,” but the fix is often a blocked vent, a failing fan, or a water inlet issue. Correct diagnosis prevents unnecessary part replacement and helps protect food quality.

If you’re ordering parts for GRMC2273BF, start with the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

A bottom leak on your Frigidaire GRMC2273BF bottom-mount refrigerator is usually caused by defrost water missing the drain path (clogged/iced drain) or water supply issues (filter, tubing, or inlet valve). Start by checking for a frozen drain and any signs of dripping at the rear water connections.

• Unplug the refrigerator before inspecting internal panels or wiring.
• Look for a sheet of ice on the freezer floor; that points to a clogged or frozen defrost drain.
• Check the water filter area for drips after dispensing water.
• Inspect the water line connection at the back for slow seepage.
• Confirm the refrigerator is level; a forward tilt can encourage water to spill out of the drain pan area.

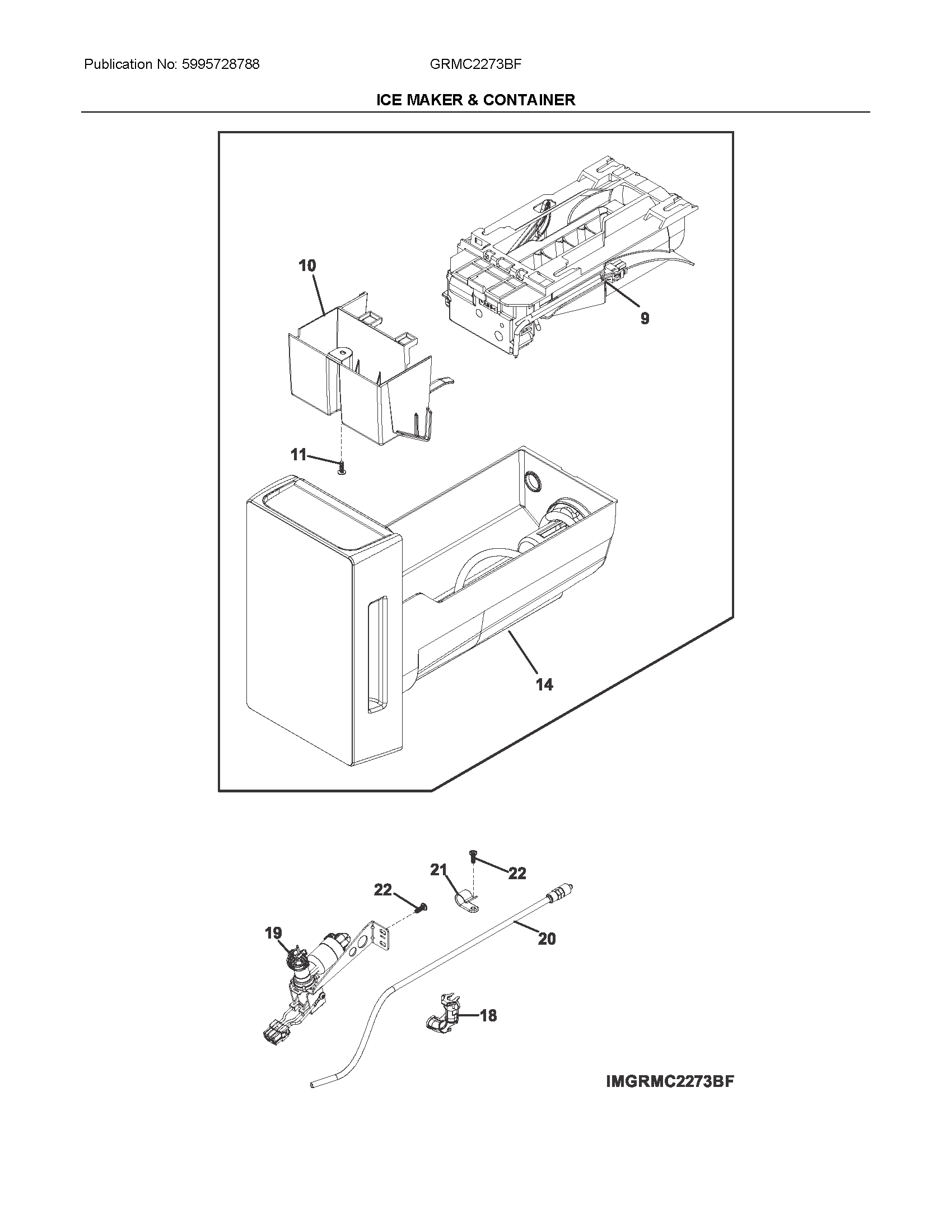

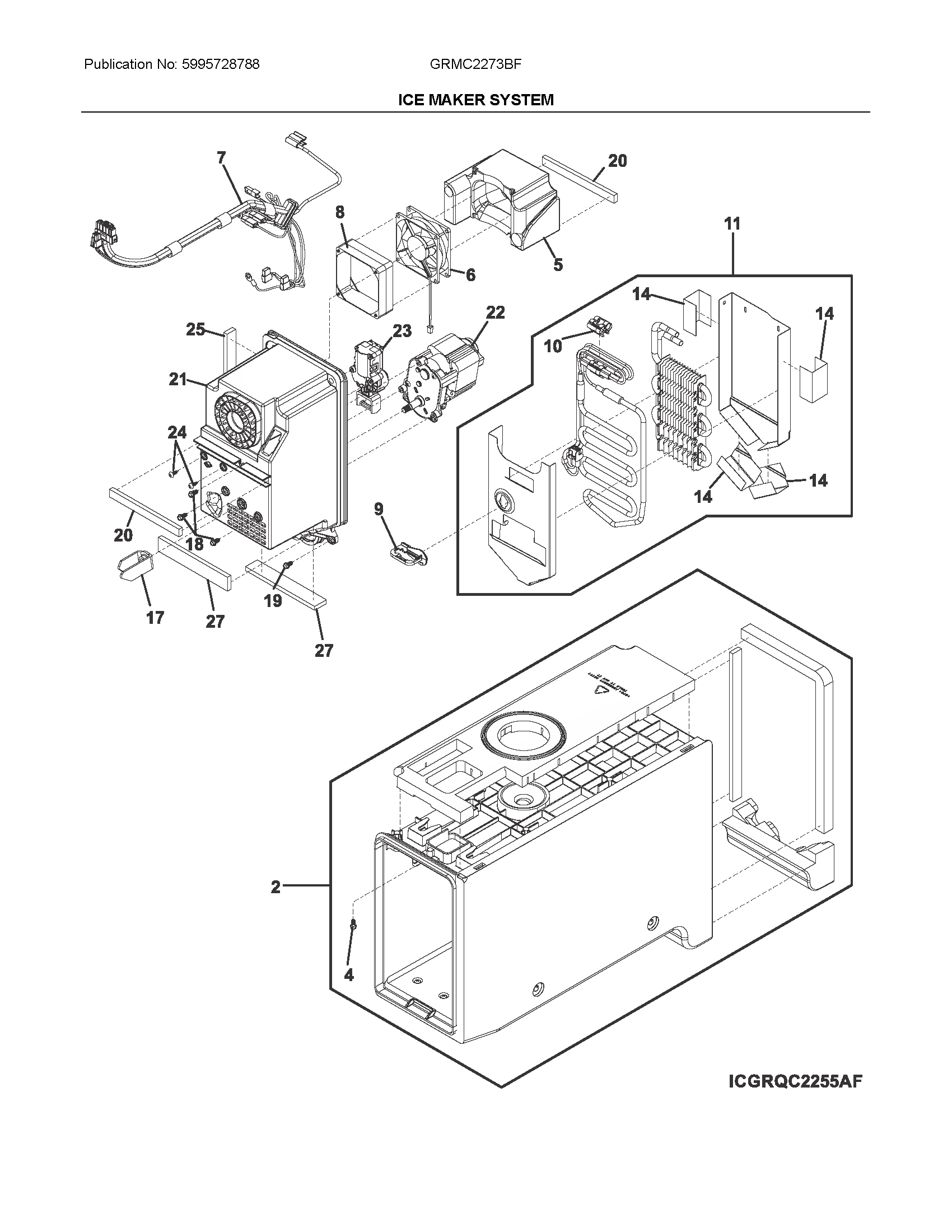

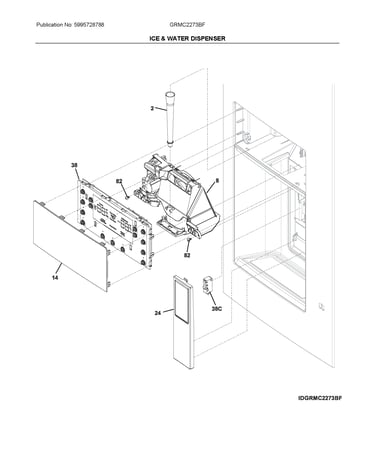

If the leak is tied to the water system (ice maker or dispenser), these parts on GRMC2273BF are common suspects:

• Refrigeration appliance water inlet valve 5304536607 (water supply control valve)
• Refrigeration appliance water inlet valve 5304529544 (alternate valve used in some configurations)
• Refrigerator ice maker gasket kit 5303918784 (helps prevent leaks around the ice maker housing)

Water on the bottom can lead to ice buildup, odors, and floor damage. Fixing the drain path or stopping a slow inlet valve seep also helps prevent repeat leaks and improves ice and water dispenser reliability.

• Use the owner's manual for the exact locations of the water filter, ice maker, and key components.
• For ordering, you can use the parts list for GRMC2273BF on this page, or search by model on Sears PartsDirect.

Last updated: February 2026

On a Frigidaire GRMC2273BF bottom-mount refrigerator, CF is most often tied to a control-system condition that can show up when the refrigerator is not reaching or maintaining the correct temperature, or when the control is reacting to abnormal sensor feedback. Use the model’s error-code guidance in the GRMC2273BF owner's manual to confirm the exact definition and the recommended checks.

• Power reset: unplug the refrigerator or turn off the breaker for 5 minutes, then restore power.
• Verify both compartments are cooling; set fresh food to 37°F and freezer to 0°F.
• Make sure doors fully close and gaskets seal; avoid frequent door openings for 2 to 4 hours.
• Confirm vents are not blocked by food packages.
• Listen for normal operation: evaporator fan running, compressor cycling on and off.

CF commonly appears alongside cooling complaints. These checks address the most frequent root causes:

• Temperature sensor (thermistor) reading out of range
• Evaporator fan not moving air through the compartments
• Frost buildup restricting airflow (defrost system issue)
• Control not responding correctly to sensor inputs

When the refrigerator cannot control temperature accurately, food safety and ice production are affected. Addressing airflow, sensor readings, and control operation prevents extended warm periods.

• CF returns soon after a reset and temperatures stay above target.
• The fan is not running when the doors are closed.
• You see heavy frost on the evaporator cover.

You can order GRMC2273BF replacement parts from the parts list for this model, or search by model number on Sears PartsDirect.
