Model #JBP66BY4AD GE electric range

Here are the diagrams and repair parts for GE JBP66BY4AD electric range, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileError Codes

Showing 10 of 133 parts

|

Range Oven Light Bulb

#1024

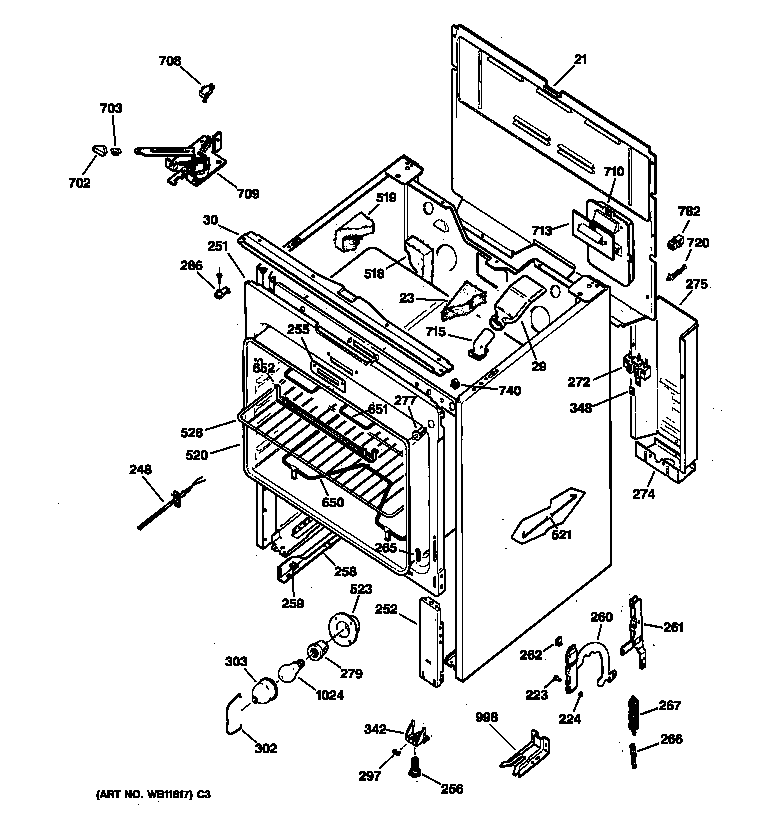

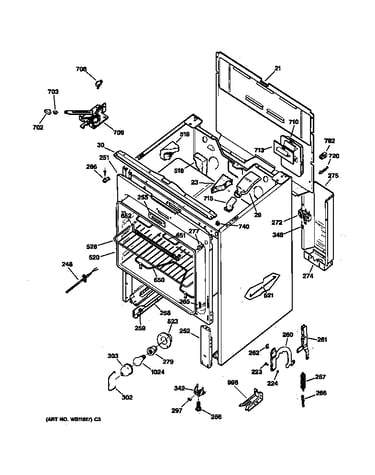

Body parts Diagram

Range oven light bulb

Part #WX12X1510
This item is not returnable
$5.09

In Stock

Range Oven Rack

#528

Body parts Diagram

Range oven rack

Part #WB48X5099
$37.77

In Stock

Range Broil Element

#651

Body parts Diagram

Range broil element

Part #WB44X10015
$56.83

In Stock

Range Oven Door Handle (Black)

#365

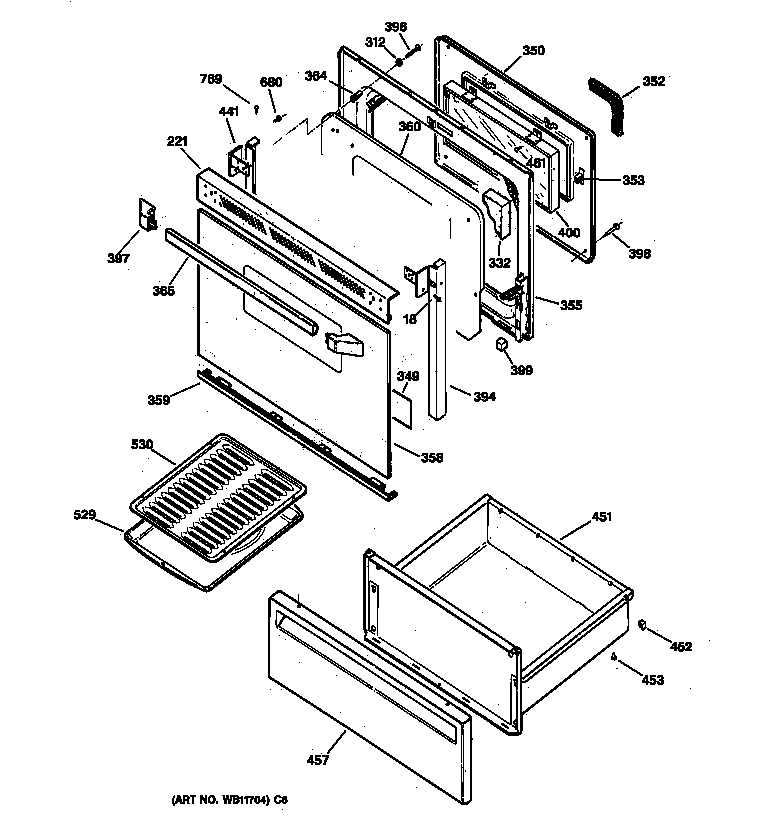

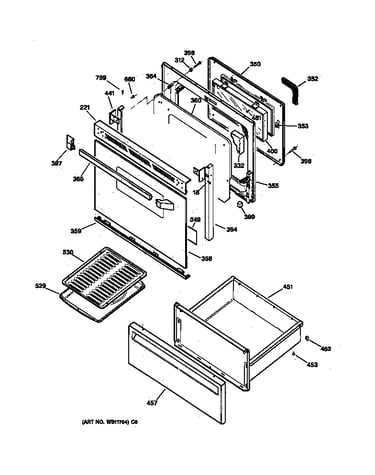

Door & drawer parts Diagram

$54.06

In Stock

Range Oven Door End Cap, Left (Black)

#441B

Door & drawer parts Diagram

$21.47

In Stock

Range Oven Door Outer Panel

#358

Door & drawer parts Diagram

$85.95

In Stock

Range Wire Harness Connector Kit

#782B

Body parts Diagram

$20.86

In Stock

Ground Pl

#348

Body parts Diagram

Ground pl

Part #WB2X646
$16.49

In Stock

Range Broil Element Support

#652

Body parts Diagram

$21.24

In Stock

Range Screw

#108

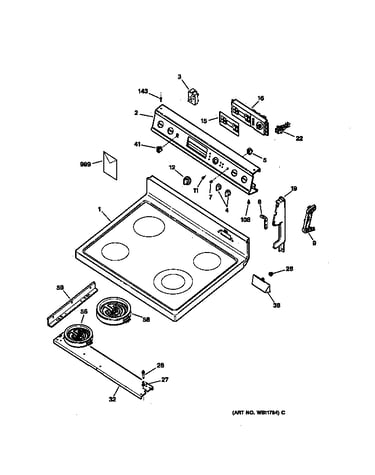

Control panel & cooktop Diagram

Range screw

Part #WB1X5904
This item is not returnable
$2.99

In Stock

Showing 10 of 133 parts

Symptoms common to all ranges

Choose a symptom to see related range repairs.

Main causes: broken oven door lock assembly, wiring failure, electronic control board problem
Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleaning the door
Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sensor, wiring failure
Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure
Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner igniter
Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner igniter, oven door problem
Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sensor, wiring failure
