Model # SS-U611AV Official Sony audio speaker

Here are the diagrams and repair parts for Official Sony SS-U611AV audio speaker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 11 parts  |
Screw (#8x3/4", + T) X12 4-942-190-01
#9

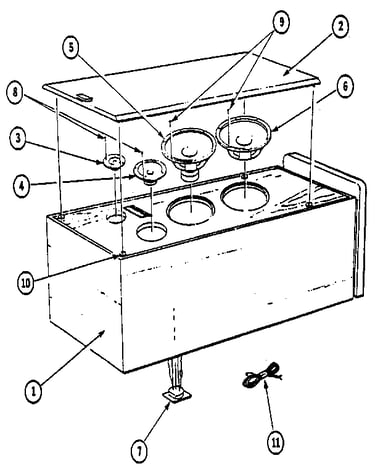

Replacement parts diagram

Screw (#8x3/4", + t) x12

Part #4-942-190-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 4-950-336-01
#8

Replacement parts diagram

Screw

Part #4-950-336-01

The manufacturer no longer makes this part, and there's no substitute part

Audio Speaker Cord 1-574-558-11
#11

Replacement parts diagram

Audio speaker cord

Part #1-574-558-11

The manufacturer no longer makes this part, and there's no substitute part

Tweeter 1-544-081-12
#3

Replacement parts diagram

Tweeter

Part #1-544-081-12

The manufacturer no longer makes this part, and there's no substitute part

Audio Speaker 1-544-466-11
#5

Replacement parts diagram

Audio speaker

Part #1-544-466-11

The manufacturer no longer makes this part, and there's no substitute part

Frame X-4941-285-1
#2

Replacement parts diagram

Frame

Part #X-4941-285-1

The manufacturer no longer makes this part, and there's no substitute part

Rediator 1-544-469-11
#6

Replacement parts diagram

Rediator

Part #1-544-469-11

The manufacturer no longer makes this part, and there's no substitute part

Audio Speaker 1-544-465-11
#4

Replacement parts diagram

Audio speaker

Part #1-544-465-11

The manufacturer no longer makes this part, and there's no substitute part

Cabinet X-4941-280-1
#1

Replacement parts diagram

Cabinet

Part #X-4941-280-1

The manufacturer no longer makes this part, and there's no substitute part

Catch 4-912-222-01
#10

Replacement parts diagram

Catch

Part #4-912-222-01

The manufacturer no longer makes this part, and there's no substitute part
