Thermador
Side-By-Side Refrigerator

Model # KBUIT4875E01 Official Thermador built-in side-by-side refrigerator

Here are the diagrams and repair parts for Official Thermador KBUIT4875E01 built-in side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

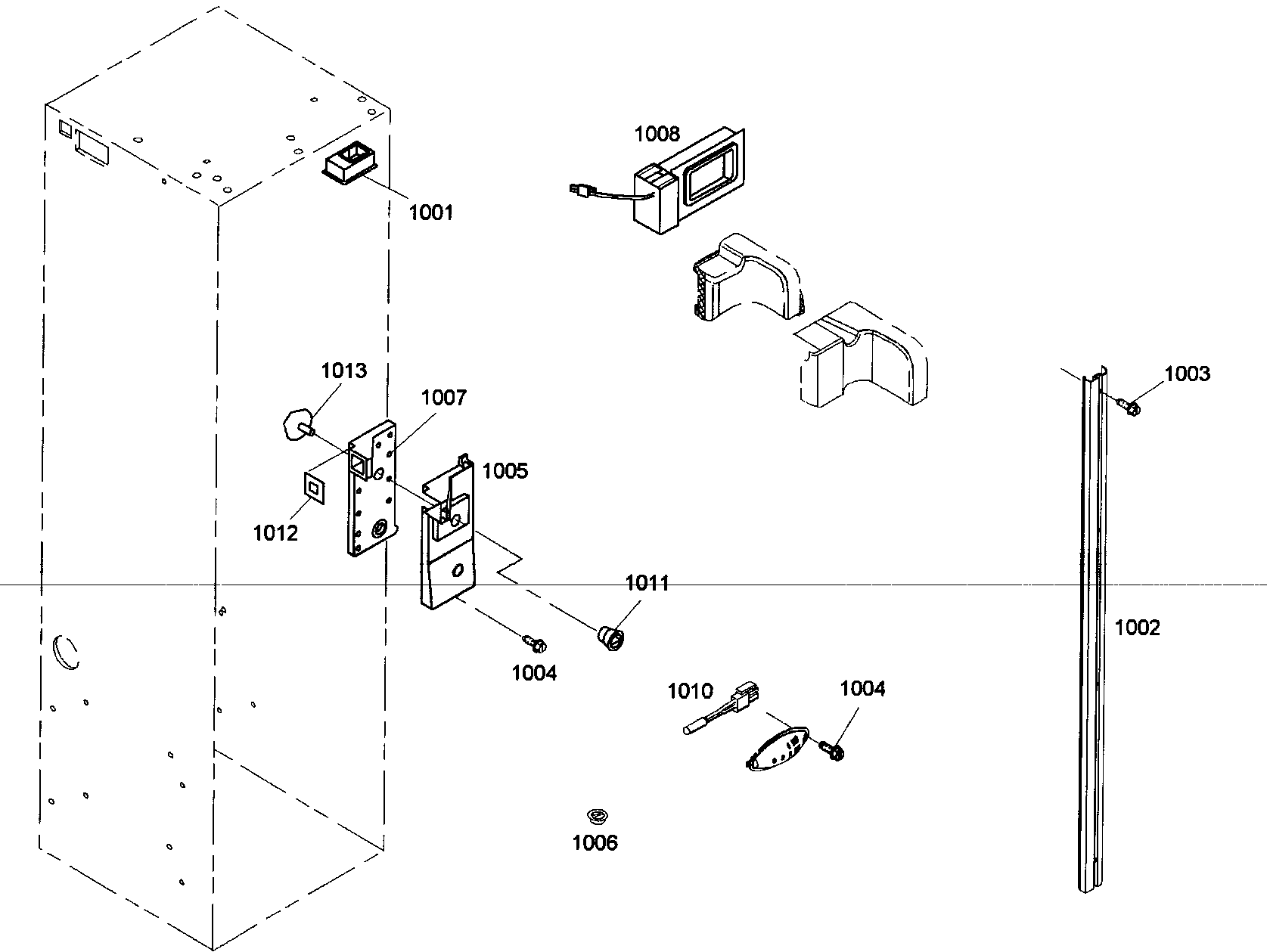

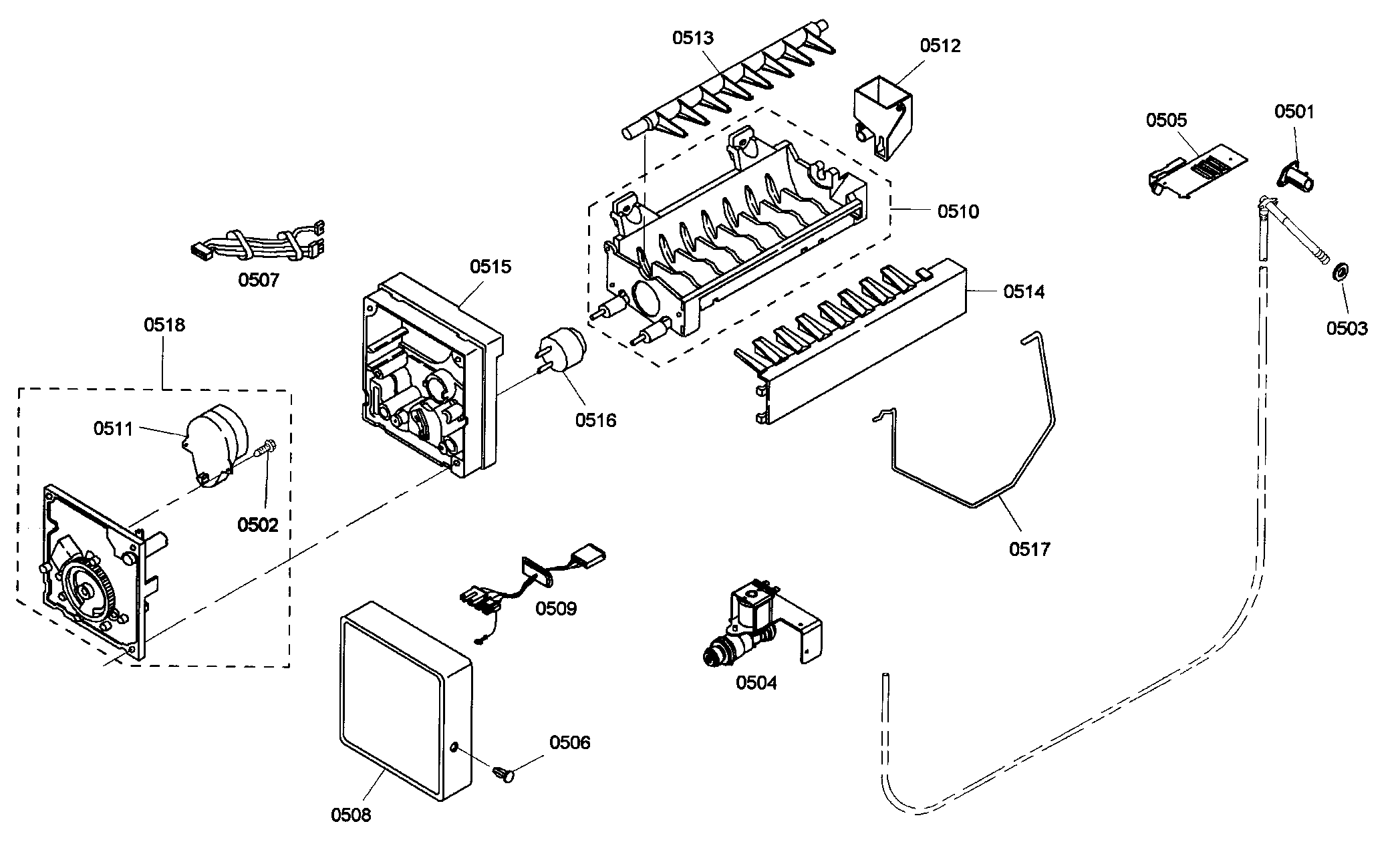

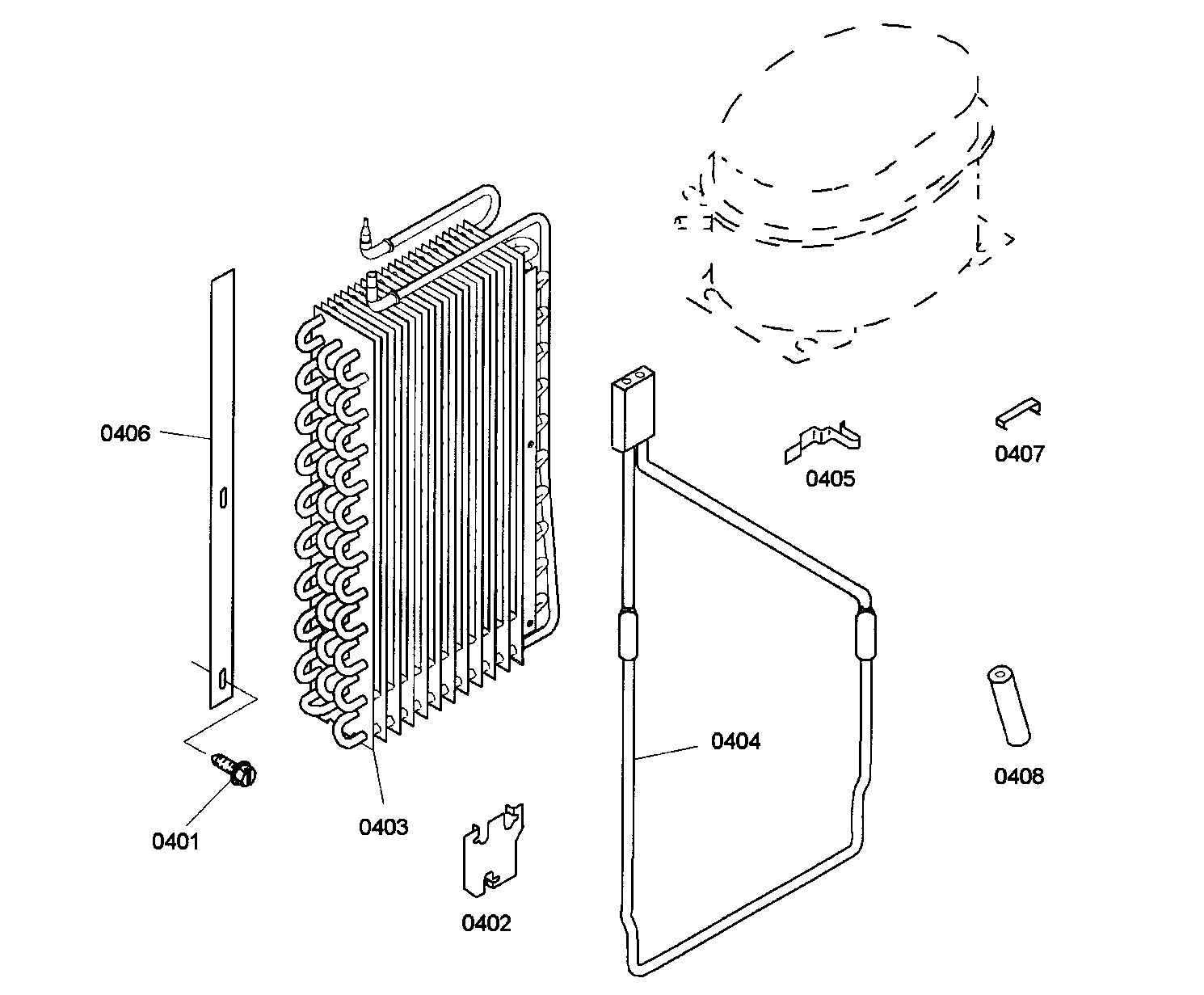

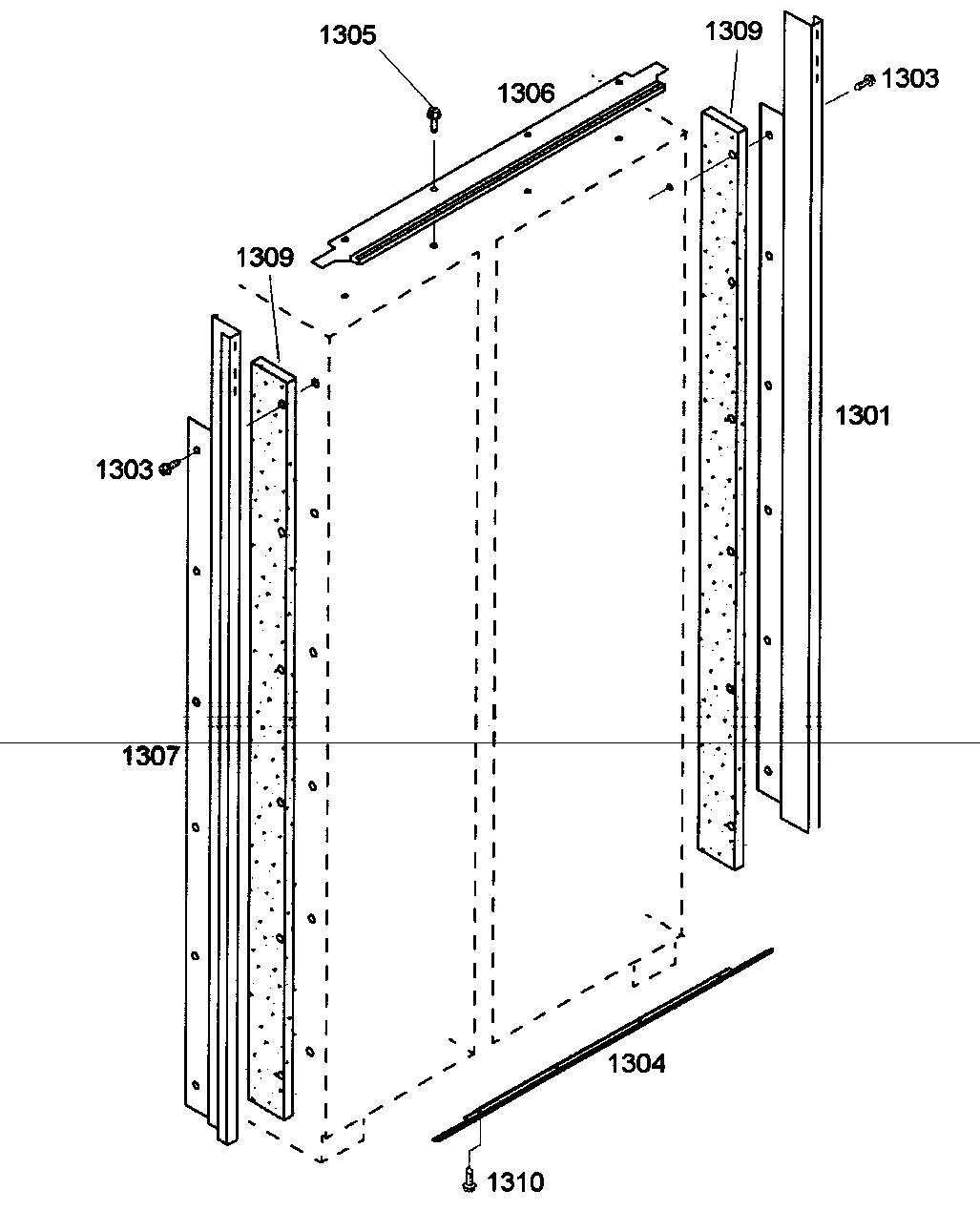

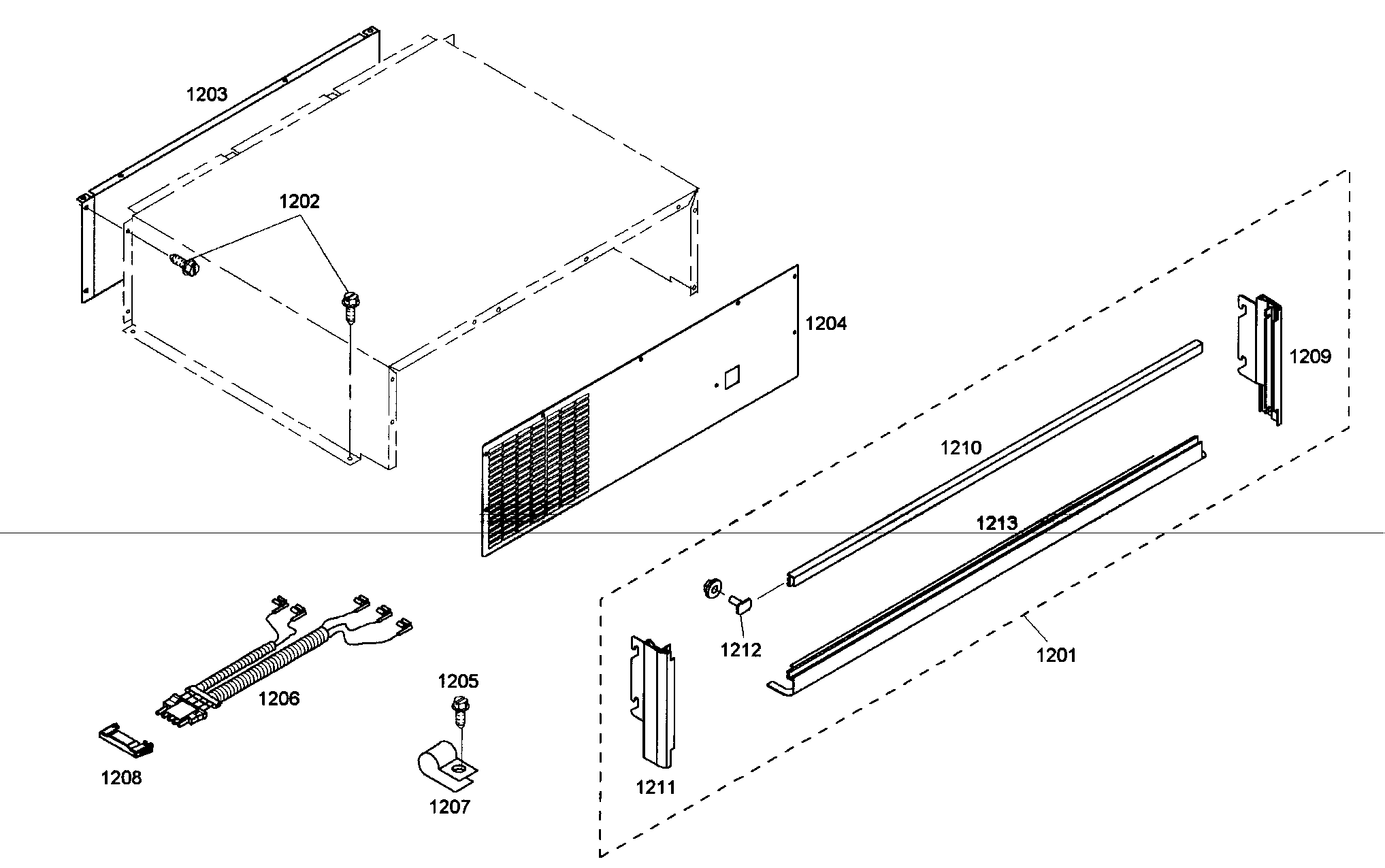

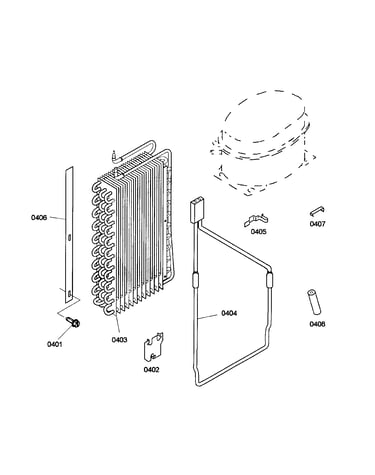

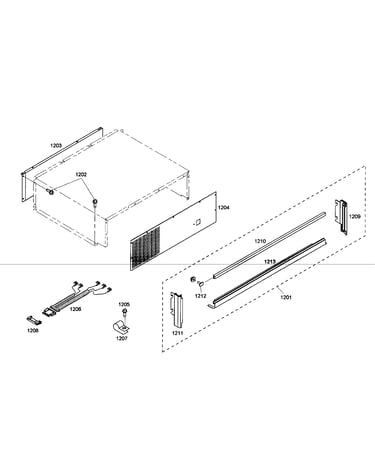

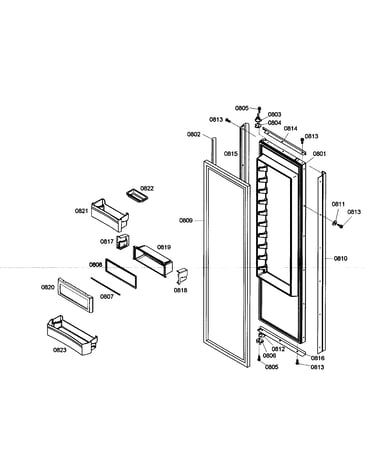

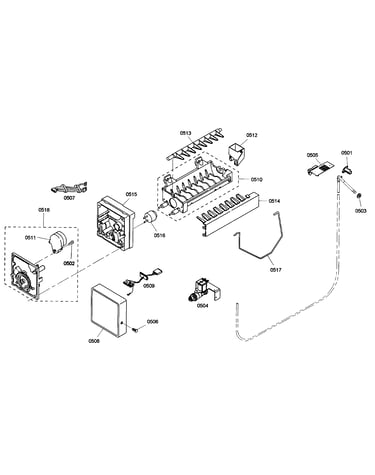

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 227 parts  |
Refrigerator Door Seal 643894
#908

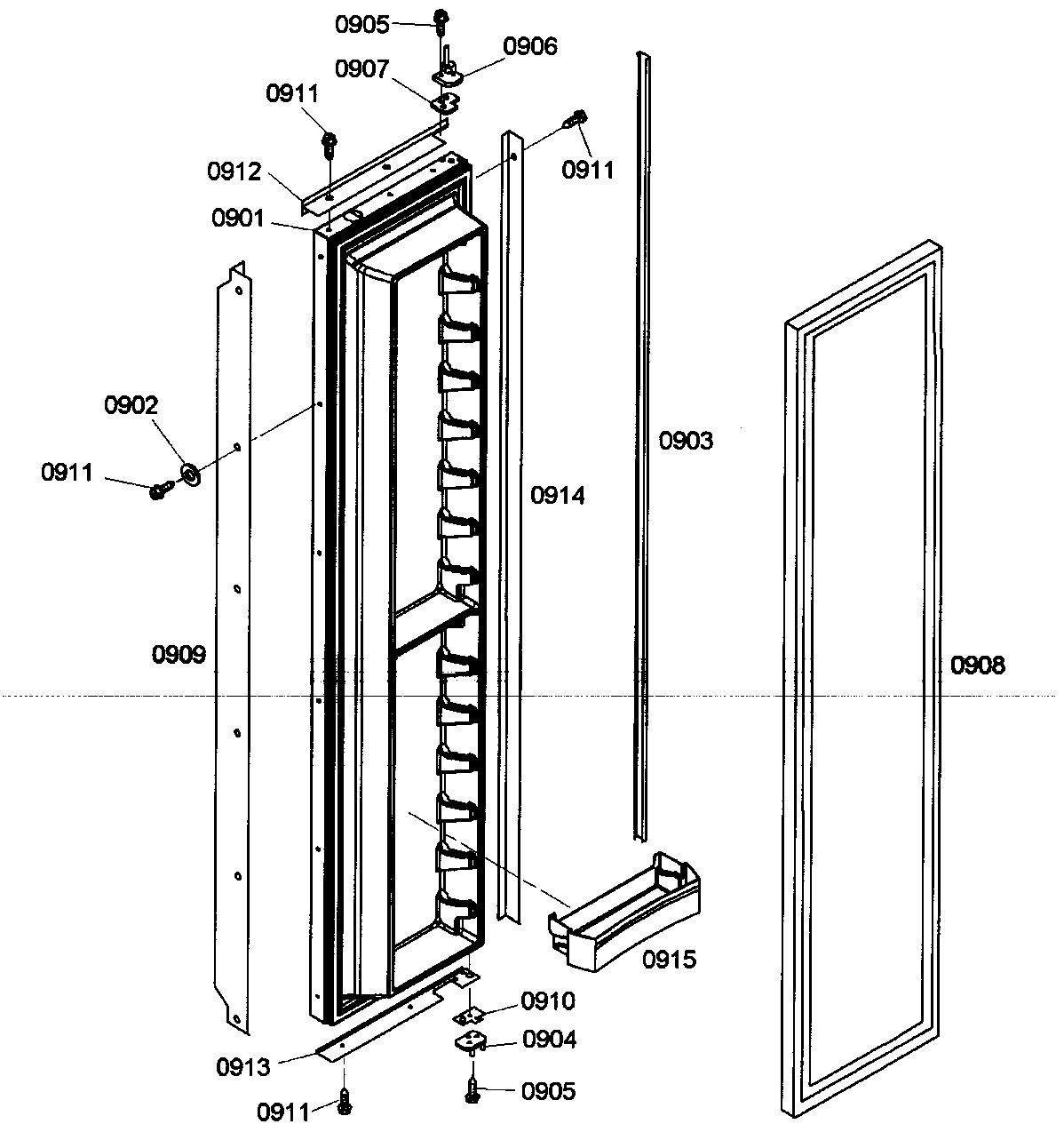

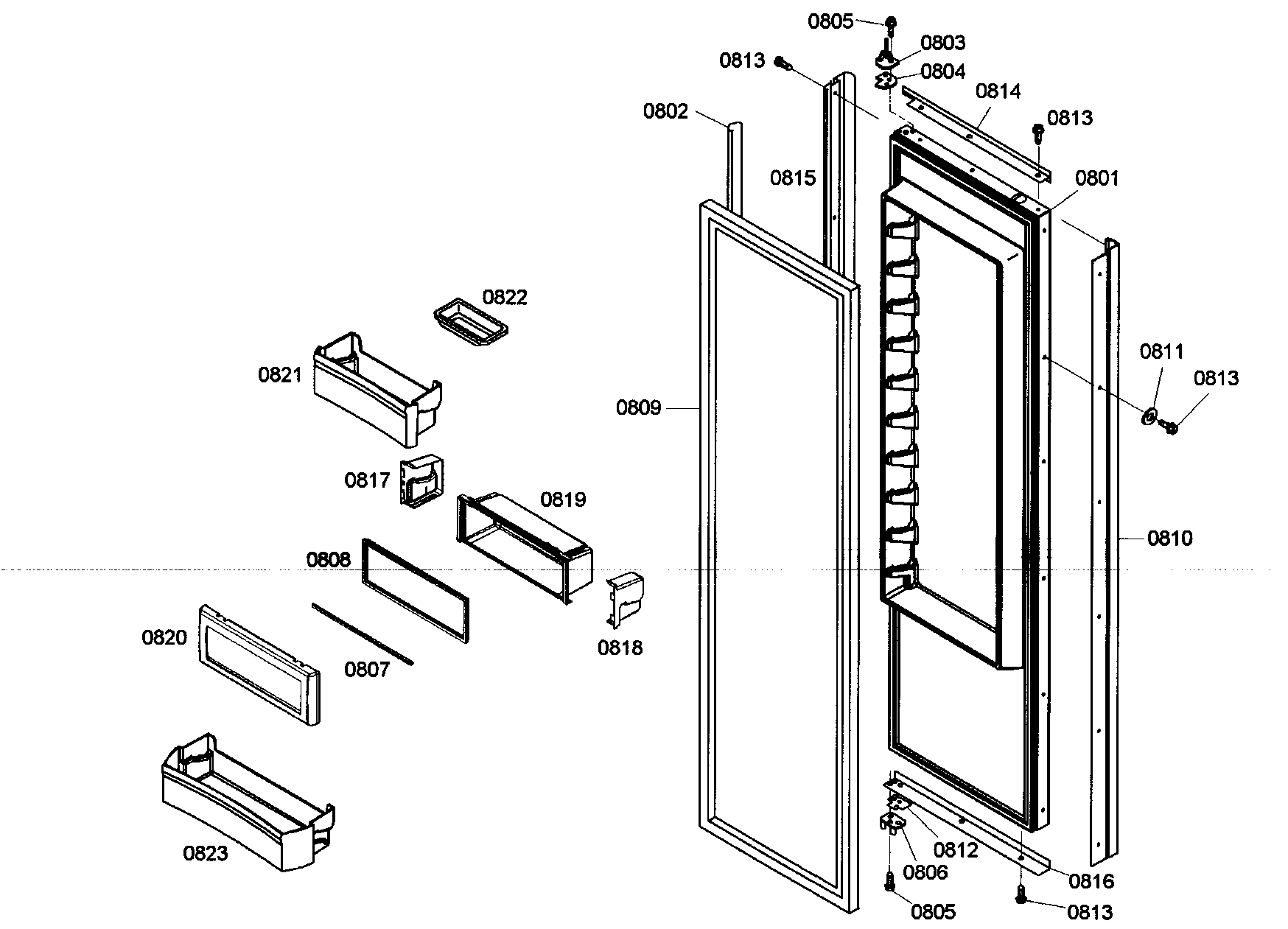

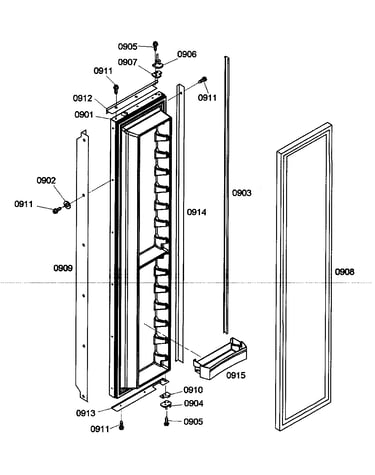

Door assy 2 diagram

Refrigerator door seal

Part #643894

Replaced by #00241190

?
Manufacturer substitution
This part replaces 643894. Substitute parts can look different from the original.
$575.12 |
$10.00 OFF Phone Price : $585.12
In Stock
Refrigerator Cap 422456
#206

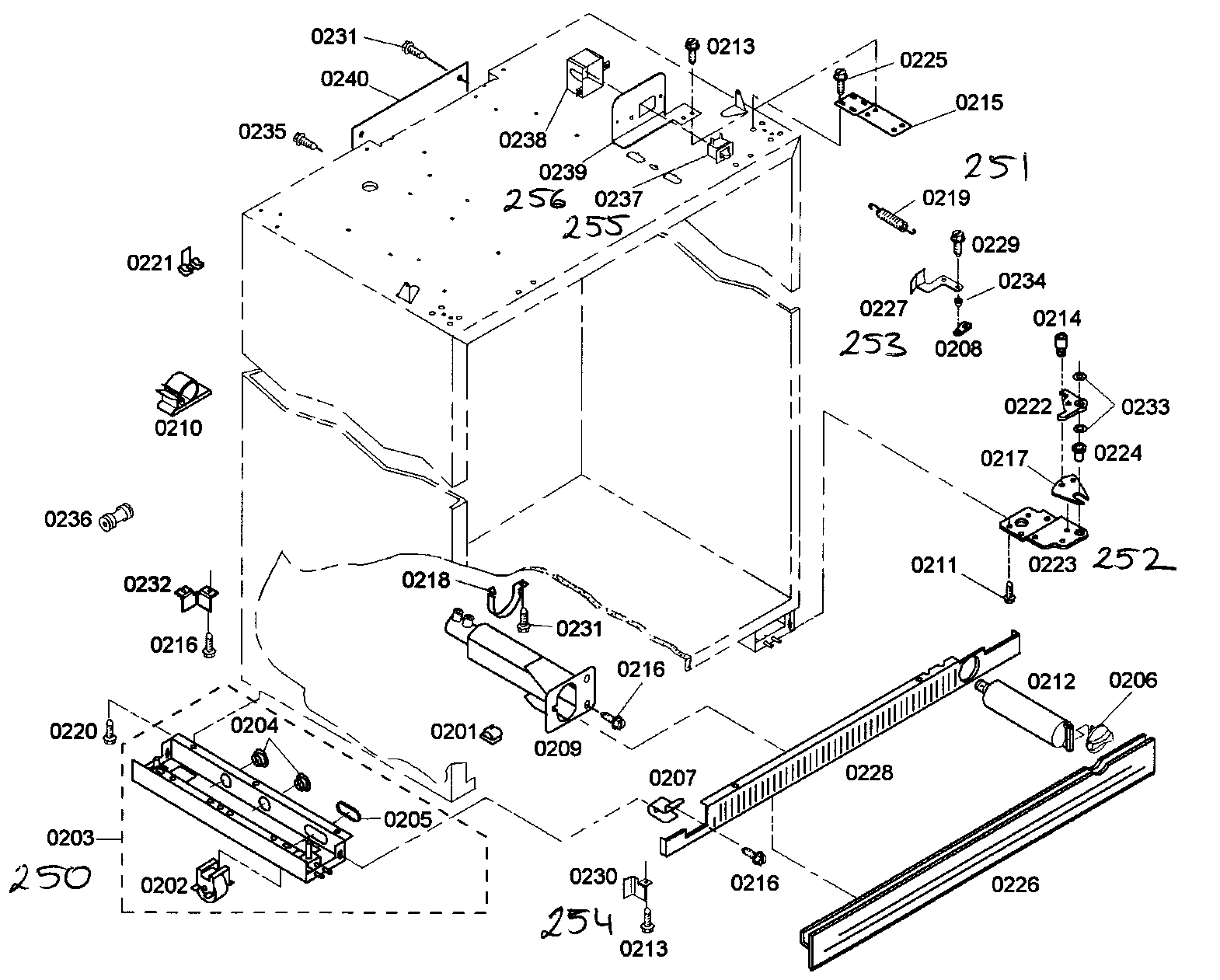

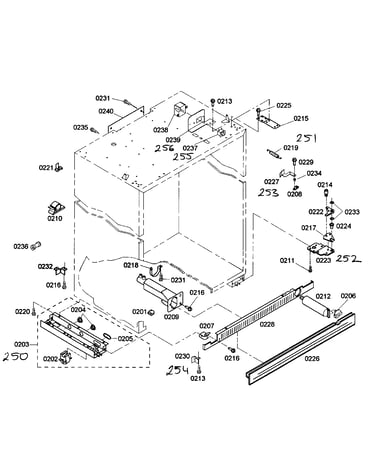

Cabinet parts diagram

Refrigerator cap

Part #422456

Replaced by #00422456

?
Manufacturer substitution
This part replaces 422456. Substitute parts can look different from the original.
$88.29 |
5% OFF Phone Price : $93.29
In Stock
Refrigerator Deflector 437487
#1122

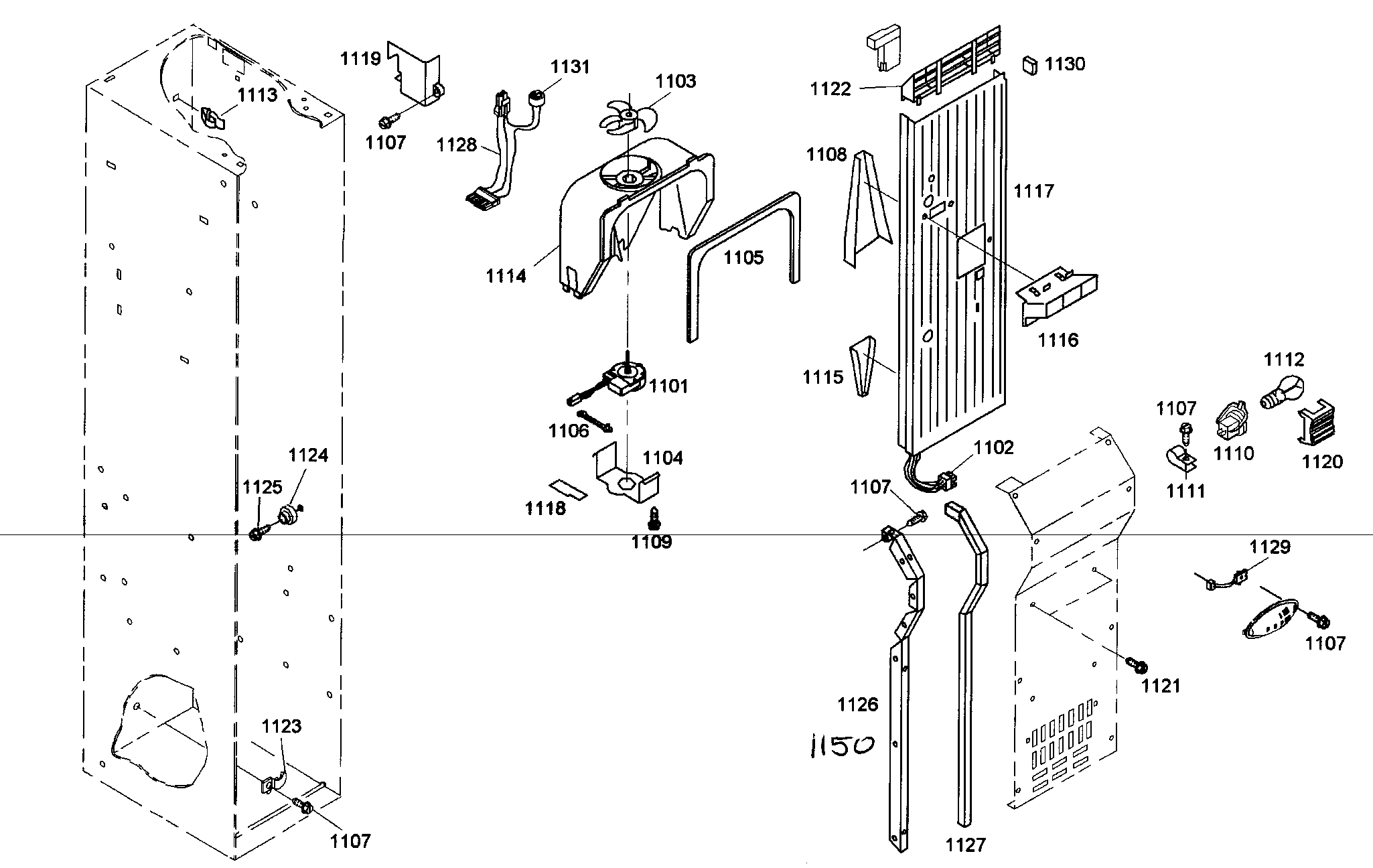

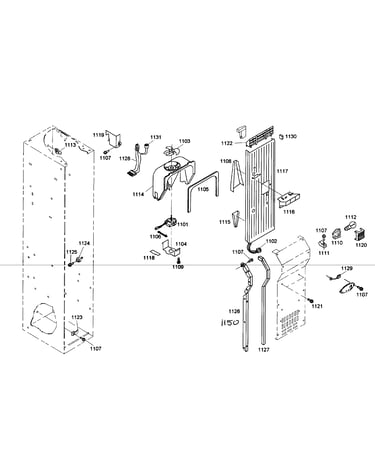

Duct assy diagram

Refrigerator deflector

Part #437487

Replaced by #00437487

?
Manufacturer substitution
This part replaces 437487. Substitute parts can look different from the original.
$103.58
In Stock
Refrigerator Valve 422410
#NI

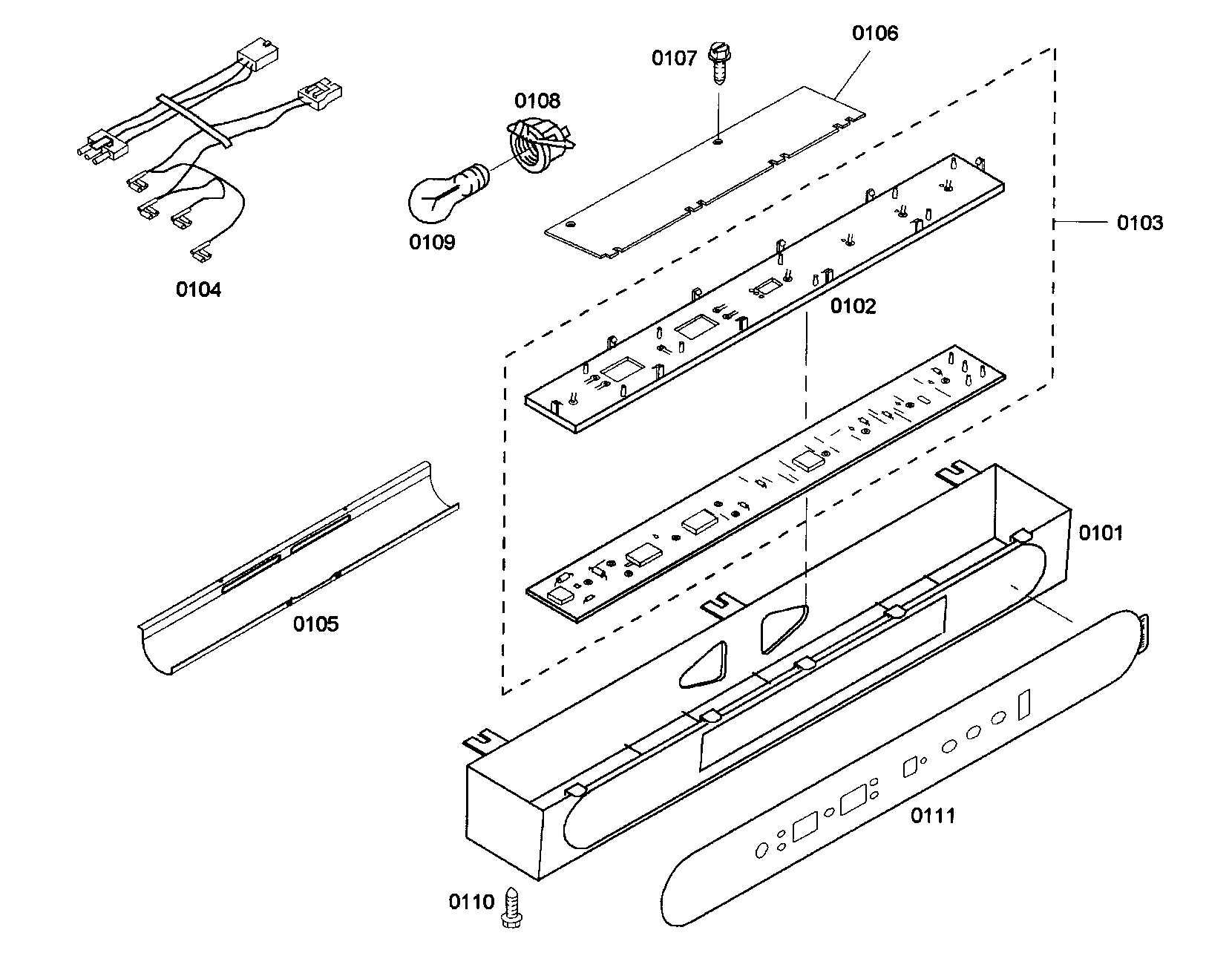

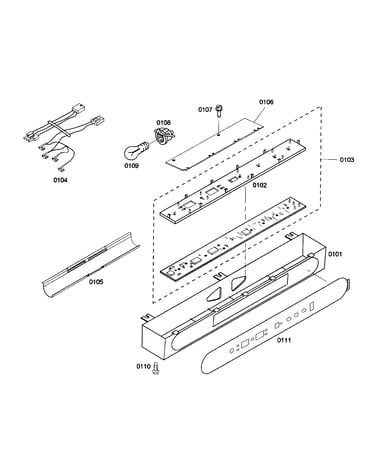

Control panel diagram

Refrigerator valve

Part #422410

Replaced by #00422410

?
Manufacturer substitution
This part replaces 422410. Substitute parts can look different from the original.
$143.24
In Stock
Refrigerator Shelf 144369
#703

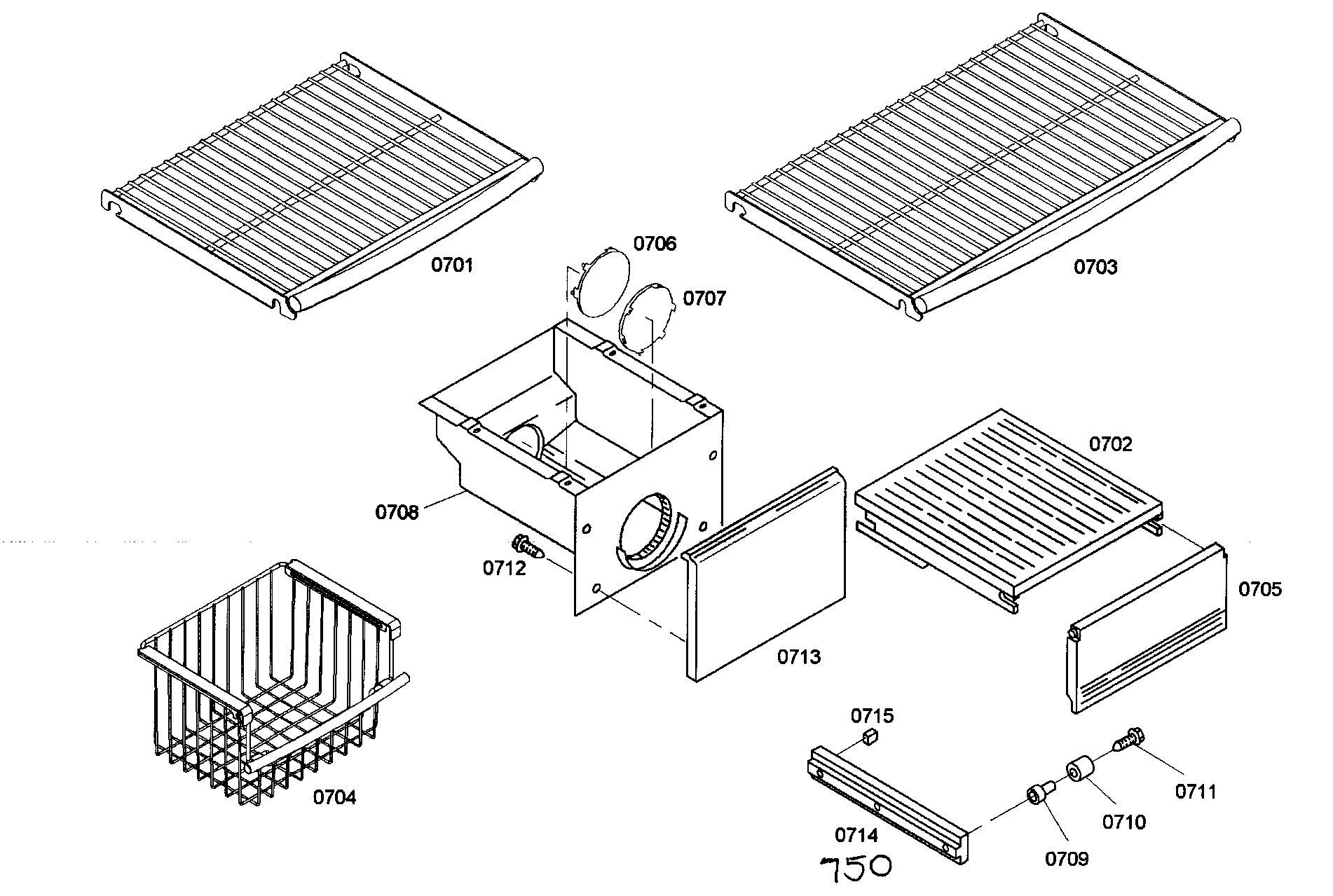

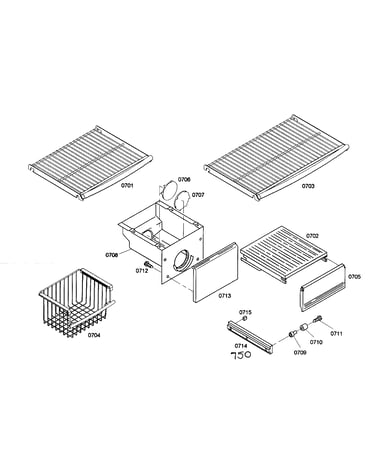

Shelf assy 2 diagram

Refrigerator shelf

Part #144369

Replaced by #00144369

?
Manufacturer substitution
This part replaces 144369. Substitute parts can look different from the original.
$179.96
In Stock
Refrigerator Dryer 609285
#308

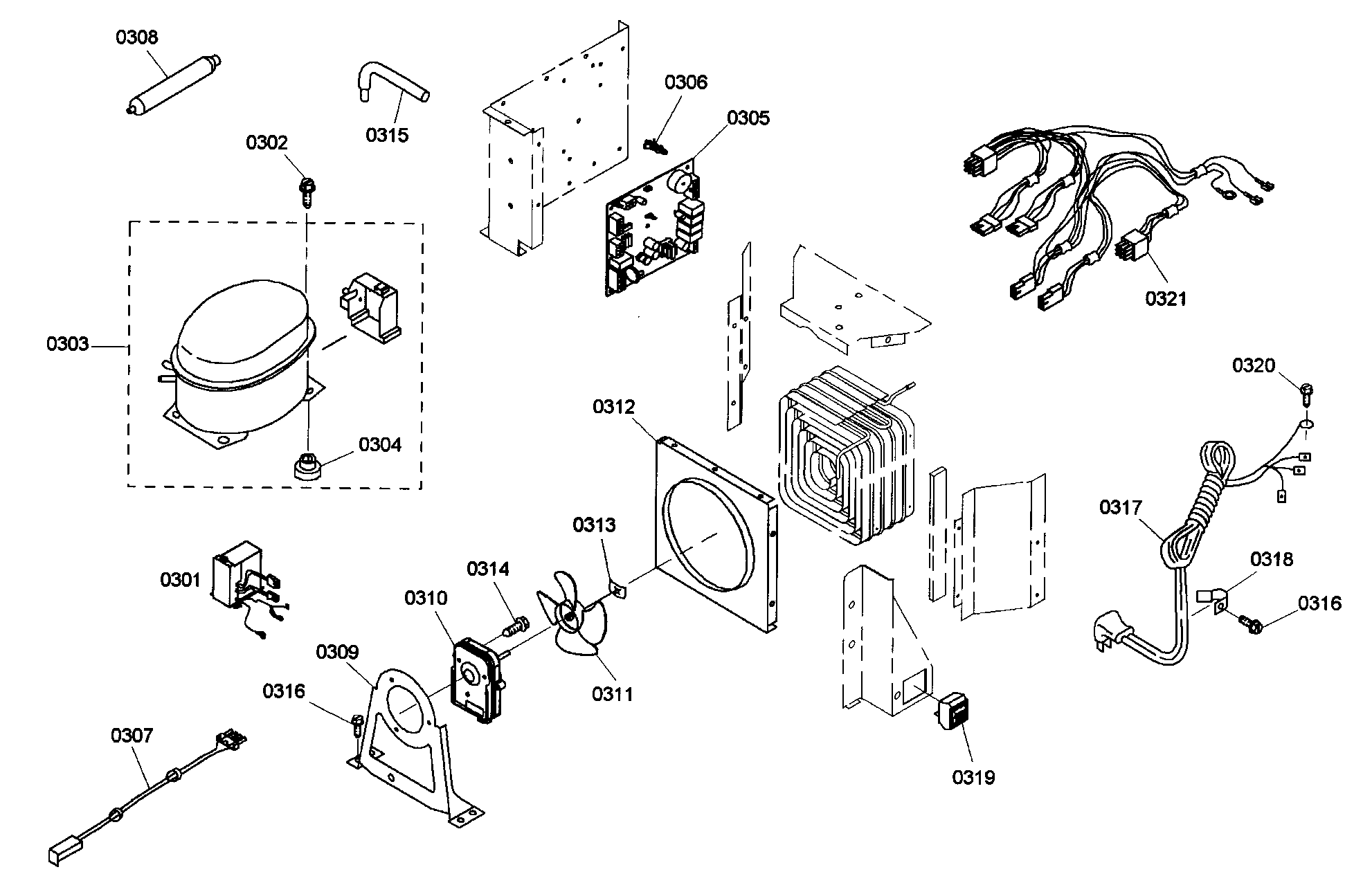

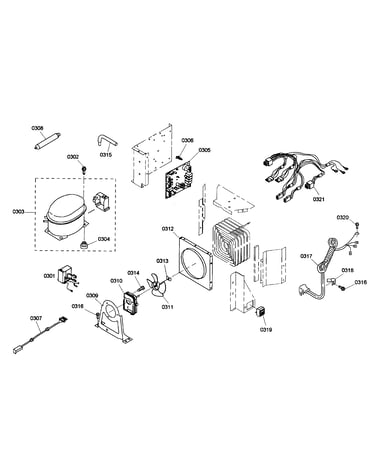

Compressor assy diagram

Refrigerator dryer

Part #609285

Replaced by #00644085

?
Manufacturer substitution
This part replaces 609285. Substitute parts can look different from the original.
$75.87
In Stock
Refrigerator Drawer 474935
#614

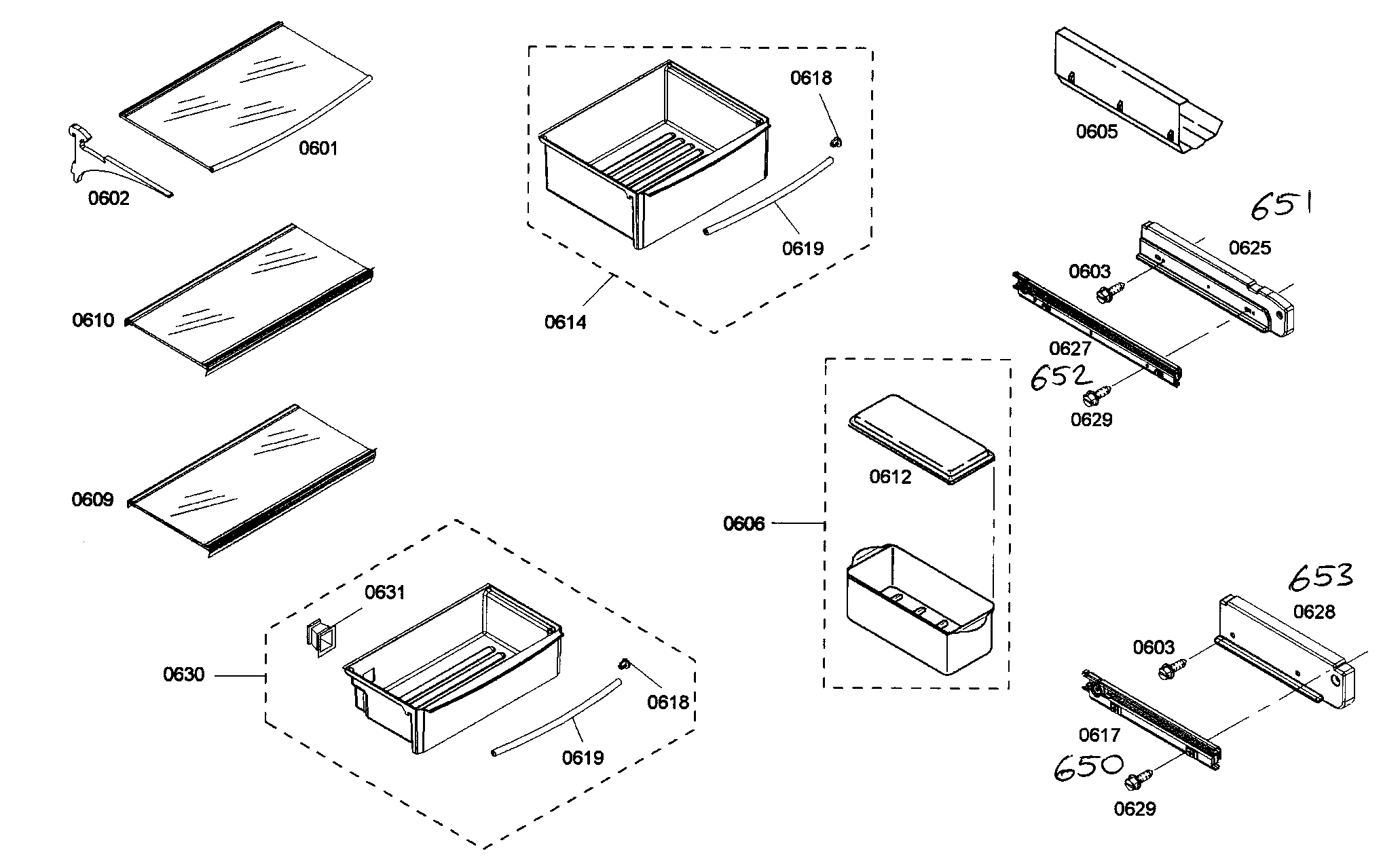

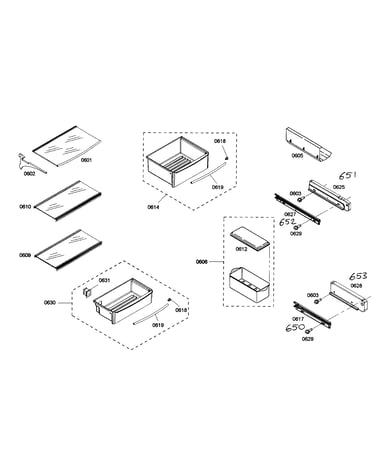

Shelf assy 1 diagram

Refrigerator drawer

Part #474935

Replaced by #00474935

?
Manufacturer substitution
This part replaces 474935. Substitute parts can look different from the original.
$311.58
In Stock
Refrigerator Cover 144137
#609

Shelf assy 1 diagram

Refrigerator cover

Part #144137

Replaced by #00144137

?
Manufacturer substitution
This part replaces 144137. Substitute parts can look different from the original.
$378.45 |
$10.00 OFF Phone Price : $388.45
In Stock
Bracket,r 422500
#239

Cabinet parts diagram

Bracket,r

Part #422500

Replaced by #00422500

?
Manufacturer substitution
This part replaces 422500. Substitute parts can look different from the original.
$130.06
In Stock
Refrigerator Nut 422480
#234

Cabinet parts diagram

Refrigerator nut

Part #422480

Replaced by #00422480

?
Manufacturer substitution
This part replaces 422480. Substitute parts can look different from the original.
$26.82
In Stock
