Jenn-Air SVE47600B electric slide-in range Parts

Your range’s model number is on the appliance ID tag; on the Jenn-Air SVE47600B it’s typically found around the oven door frame area or on a frame edge behind the storage or warming drawer. Use the full model number to match diagrams, manuals, and parts.

Where to look on the range

Check these common ID-tag locations first:

• Left or right oven door jamb (open the oven door and look along the frame)
• Frame behind the lower storage drawer or warming drawer (pull the drawer out)
• Side trim or lower front frame near the floor
• Back panel (if the range is accessible)

What to write down (so parts match)

Record the information exactly as shown on the tag:

• Model number (SVE47600B)
• Serial number
• Any revision, series, or engineering code (if listed)

ID tag item	Why it matters
Model number	Ensures correct part fit and wiring layout
Serial number	Helps confirm production run differences
Revision code	Can change which control board or element is used

Why it matters

Even small model or revision differences can change which oven control, bake element, or door seal fits. Once you confirm the tag, you can use the SVE47600B owner's manual for feature details and the correct operating instructions.

Last updated: March 2026

To troubleshoot your Jenn-Air SVE47600B electric range, start with power and settings, then isolate whether the issue is in the oven (bake/broil/temperature) or the cooktop/vent. Many problems trace to a failed heating element, a loose connection, or a control issue.

Step-by-step checks (safe, high value)

• Confirm the range has power; check the breaker (electric ranges typically use a 240V circuit).
• Verify the clock and cooking mode are set correctly (Bake vs Broil, temperature, timer).
• Test a different function (Bake, Broil, surface element, downdraft vent) to narrow the failure.
• Inspect for obvious damage: burned wire ends, melted terminals, or a loose terminal block cover.
• If the oven heats poorly, look for blisters or breaks on the bake or broil element.

Quick symptom guide

Problem	Most common causes	What to check next
Oven won’t bake	Failed bake element, control issue, wiring	Inspect and test the range bake element WP71001680
Broil not working	Failed broil element, control issue	Inspect element; confirm Broil mode
Oven temp off	Sensor drift, calibration, door seal leak	Check sensor, door seal, calibration steps
No display or beeps	Control board, power supply, wiring	Verify power, then control connections

When parts are likely involved

If basic checks point to a component failure, these model-matched parts are common:

• Range bake element WP71001680 for no-bake or weak baking

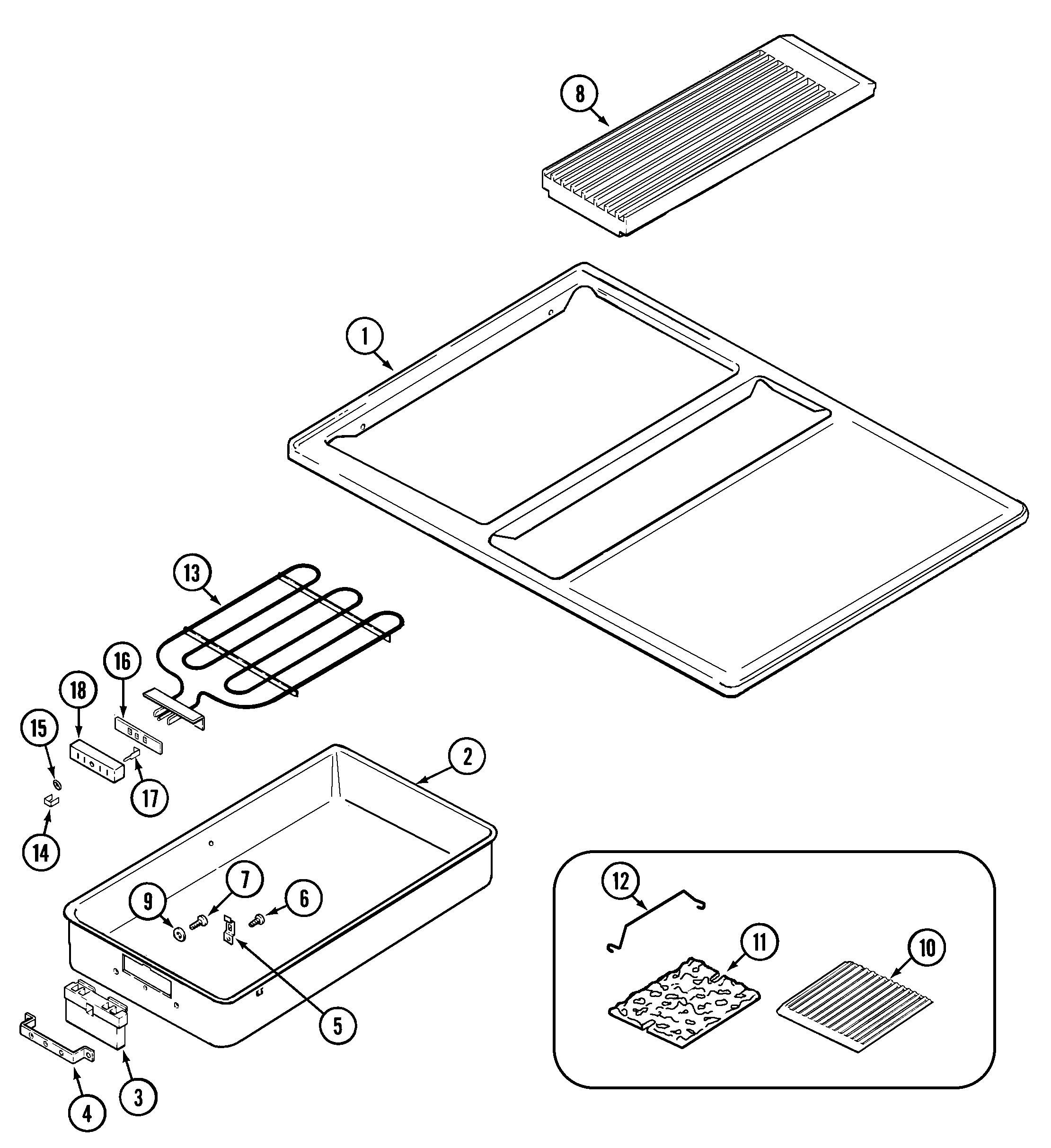

• Broiler element WPW10310260 for no-broil
• Range oven control board and clock WP71001799 for dead display or erratic control behavior
• Oven sensor 12001656 for temperature regulation problems

Why it matters

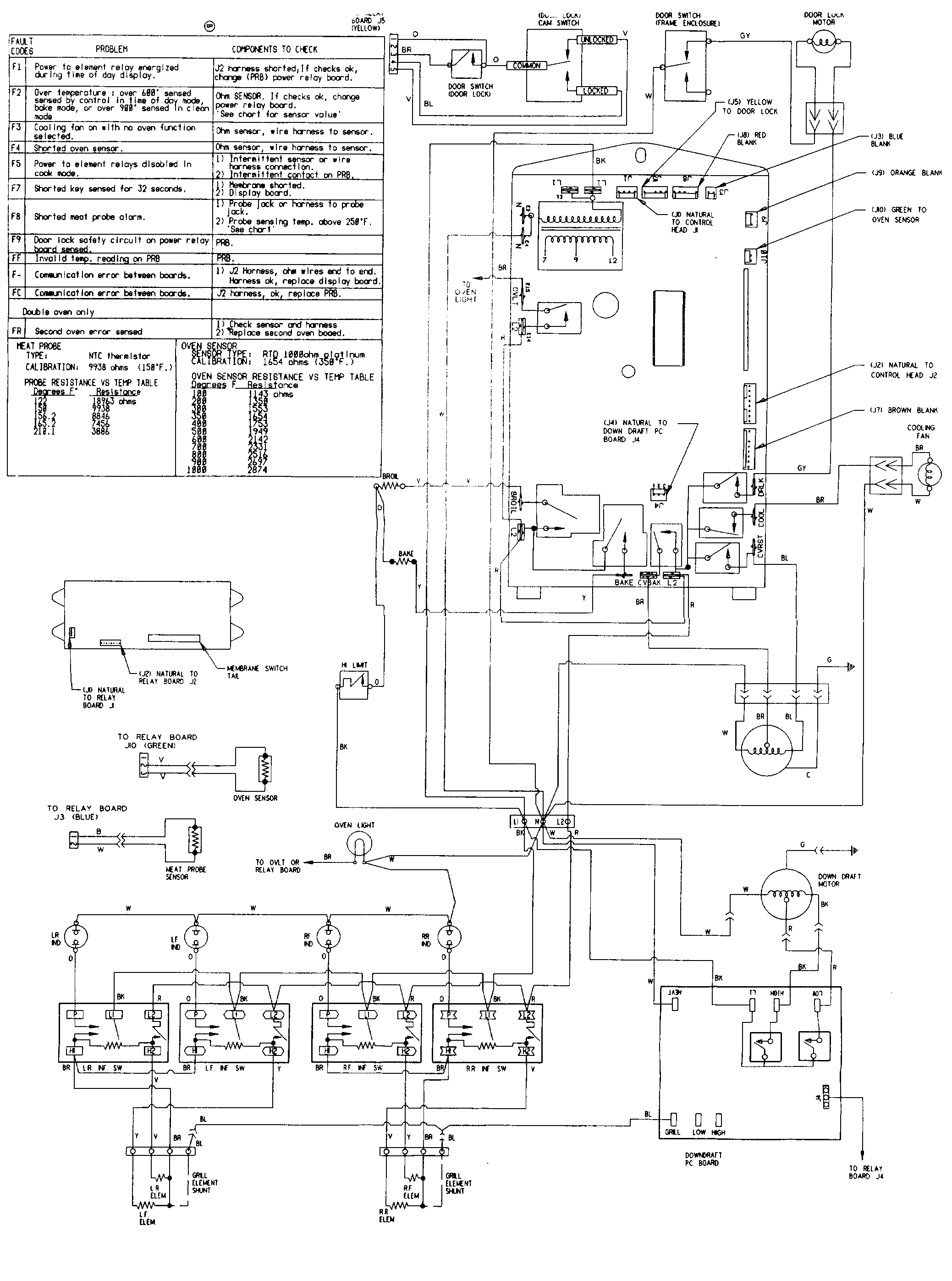

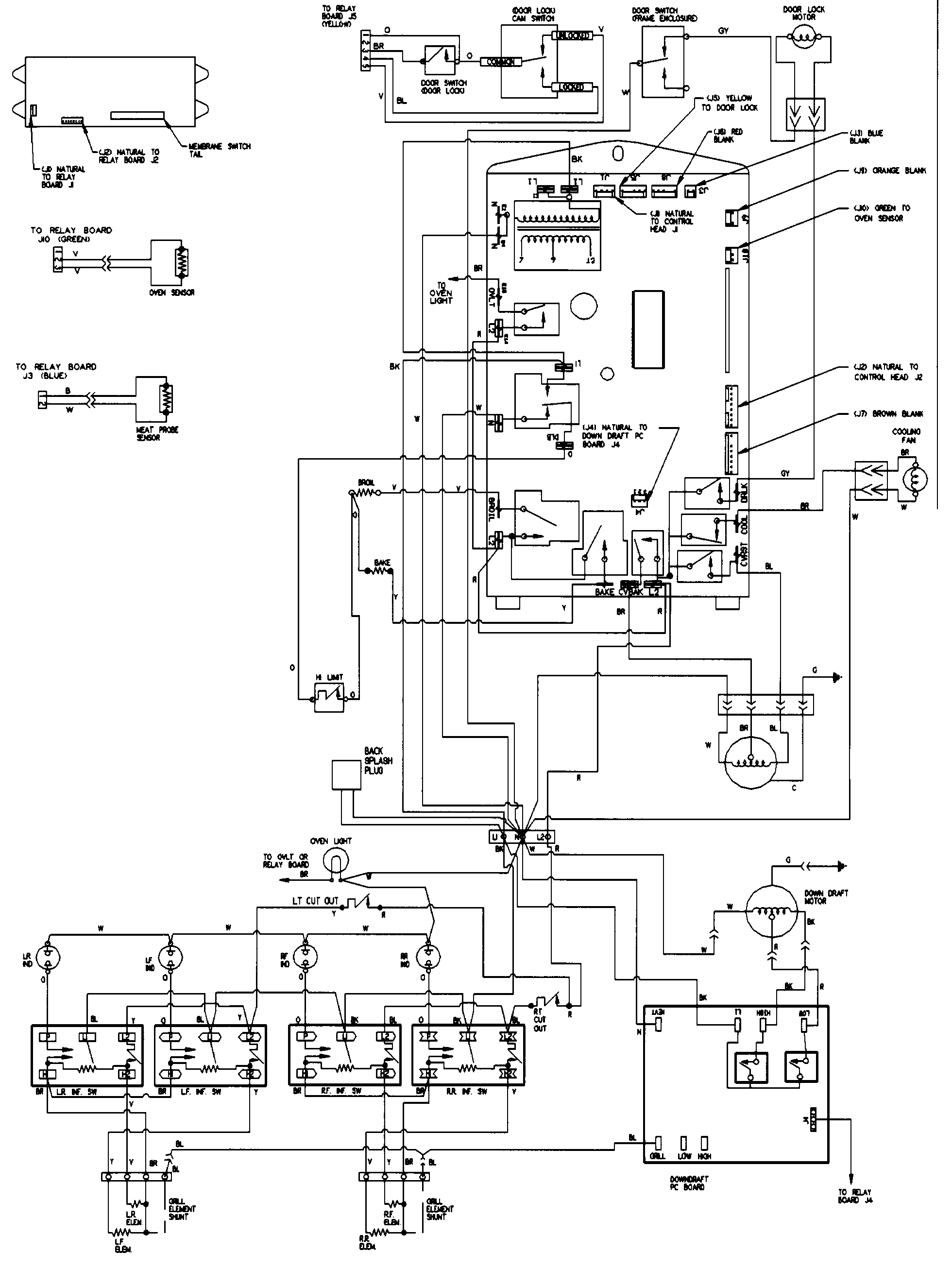

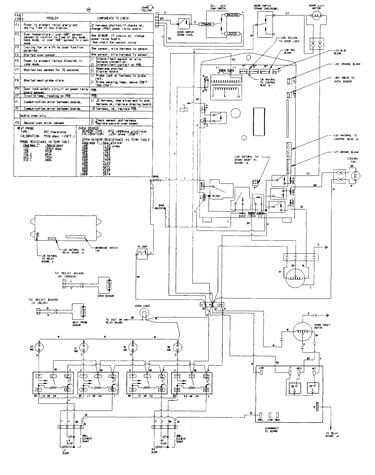

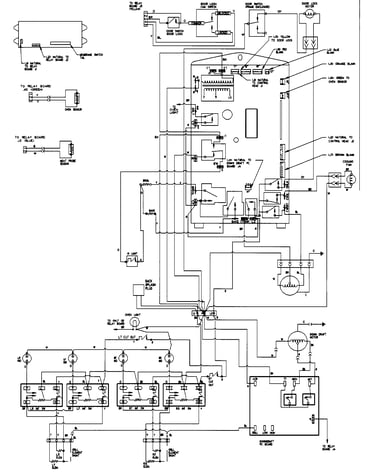

Systematic troubleshooting prevents unnecessary part returns and helps you fix the real failure the first time. Use the wiring and diagnostic information in the SVE47600B installation guide to confirm connections and component locations.

Last updated: March 2026

The average lifespan of an electric range like the Jenn-Air SVE47600B is 13 to 15 years with normal household use and basic maintenance. Keeping the oven cavity clean, ensuring proper electrical connections, and replacing wear items on time helps it reach that range.

What most affects lifespan

These factors have the biggest impact:

• Heat stress on electronic controls (self-clean use and high-heat cooking)
• Power quality and tight, corrosion-free wiring connections

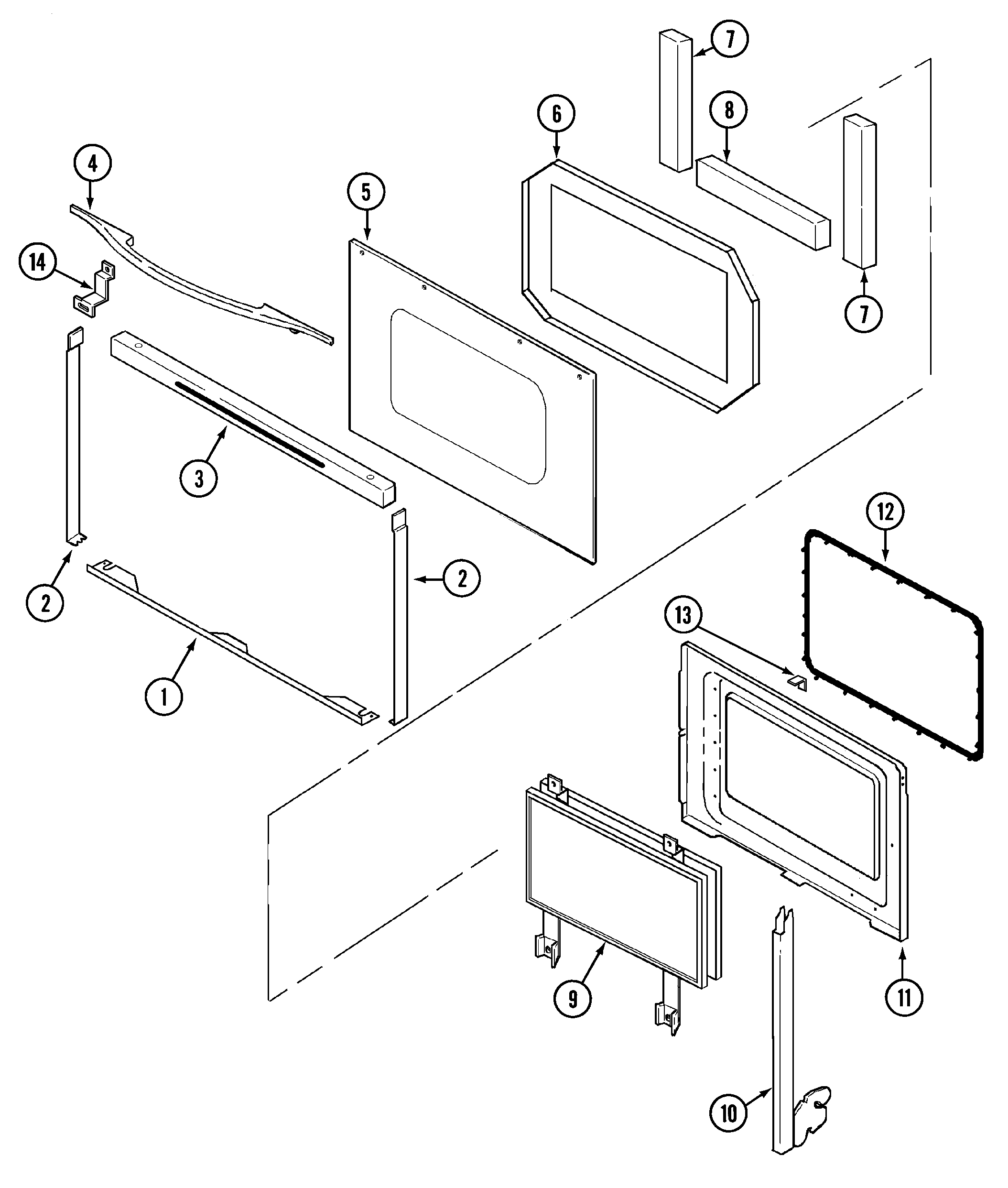

• Door seal condition (heat leaks make components work harder)
• Element condition (bake and broil elements weaken over time)
• Venting and airflow (especially on downdraft models)

Parts that commonly drive “end of life” decisions

If performance drops, these are typical repair points:

• Oven temperature problems: sensor or heating element
• No heat or uneven baking: bake element
• Display or keypad issues: control board

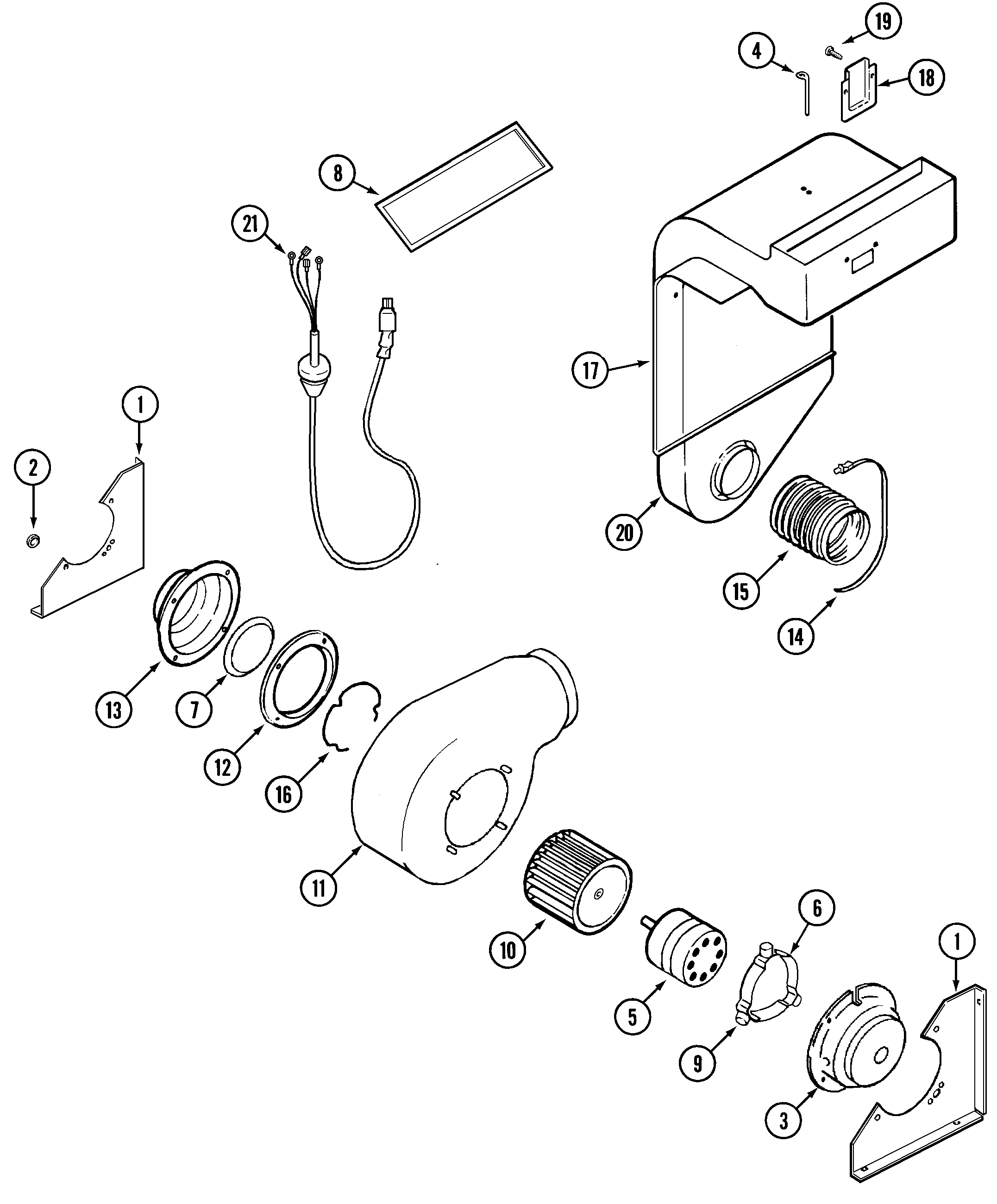

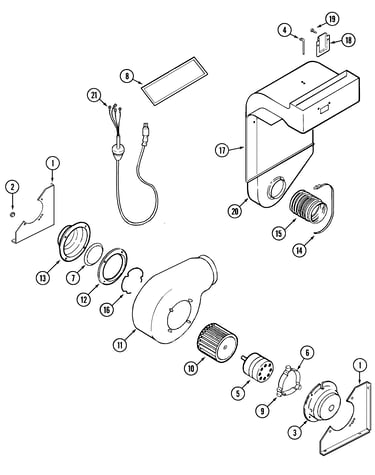

• Excess smoke or poor venting: grease filter or blower components

Symptom	Common fix category
Oven won’t heat	Heating circuit (element, wiring, control)
Temperature inaccurate	Sensor calibration or sensor replacement
Dead display	Control board or power supply issue

Why it matters

Knowing the typical 13 to 15 year lifespan helps you decide whether to repair or replace when a major component fails. For maintenance and operating practices that reduce wear, follow the SVE47600B owner's manual.
