Maytag GA3277WUWM gas range Parts
Here are the diagrams and repair parts for Maytag GA3277WUWM gas range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for GA3277WUWM Ranges

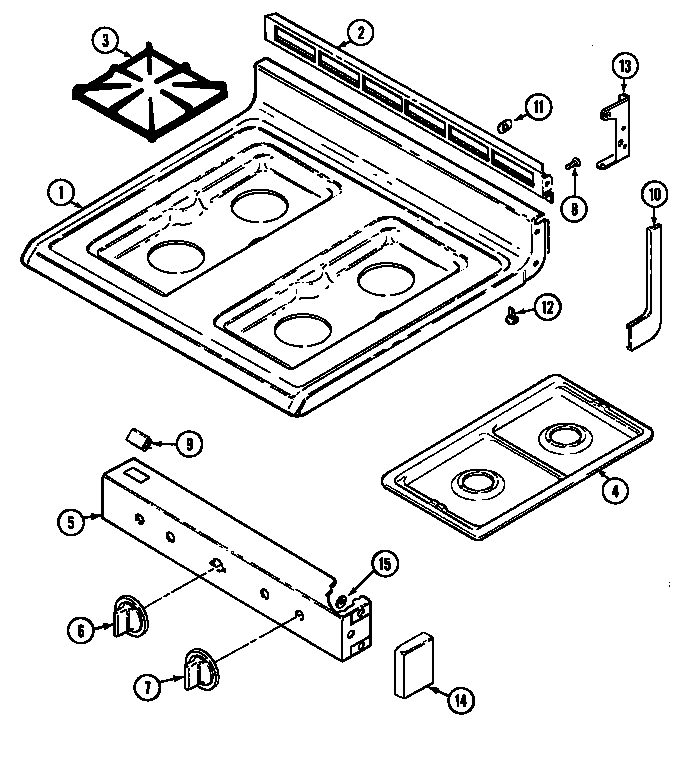

Top assembly diagram
Valve Knob
Part #7733P027-60Replaced by #WP7711P135-60
Manufacturer substitutionThis part replaces 7733P027-60. Substitute parts can look different from the original.This item is not returnableIn Stock$27.5218% OFF Phone Price : $33.52
Qty

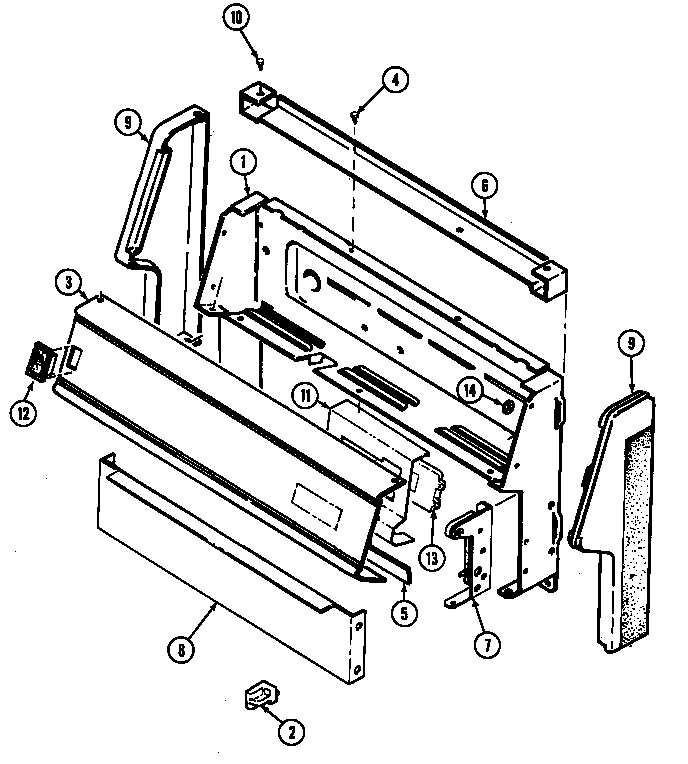

Control panel diagram
Screw, Switc
Part #7101P148-60Replaced by #WP59002061

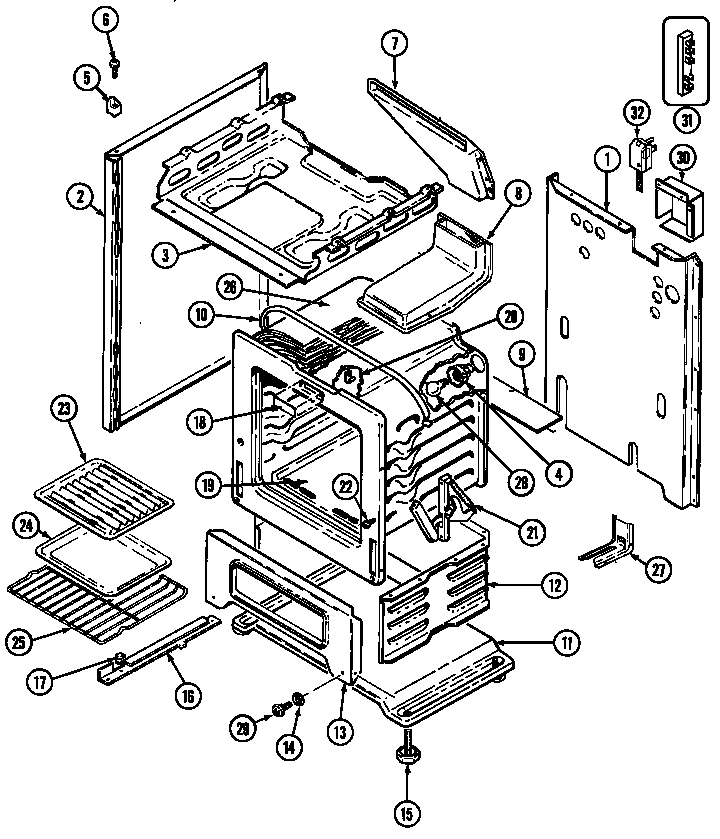

Manufacturer substitutionThis part replaces 7101P148-60. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyOven/body diagram
Broiler Pan
Part #3401F020-19Replaced by #4396923
Manufacturer substitutionThis part replaces 3401F020-19. Substitute parts can look different from the original.In Stock$45.5612% OFF Phone Price : $51.56QtySpeed Nut
Part #7103P044-60Replaced by #WP3195558
Manufacturer substitutionThis part replaces 7103P044-60. Substitute parts can look different from the original.In Stock$30.77QtyOven/body diagram
Screw
Part #7118P013-60Replaced by #WP74004005
Manufacturer substitutionThis part replaces 7118P013-60. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyGas controls diagram

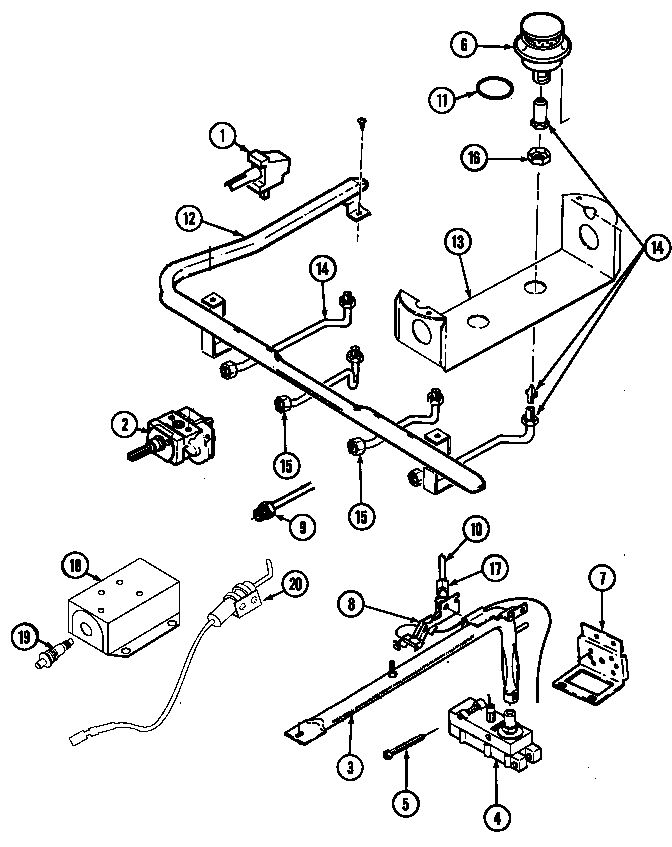

Burner Seal
Part #3412D018-09Replaced by #WP3412D024-09
Manufacturer substitutionThis part replaces 3412D018-09. Substitute parts can look different from the original.In Stock$64.808% OFF Phone Price : $70.80QtyGas controls diagram
Screw, #10
Part #7101P062-60Replaced by #WP7101P062-60
Manufacturer substitutionThis part replaces 7101P062-60. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8217% OFF Phone Price : $5.82QtyOven/body diagram
Broiler Insert
Part #3413F016-19Replaced by #4396923

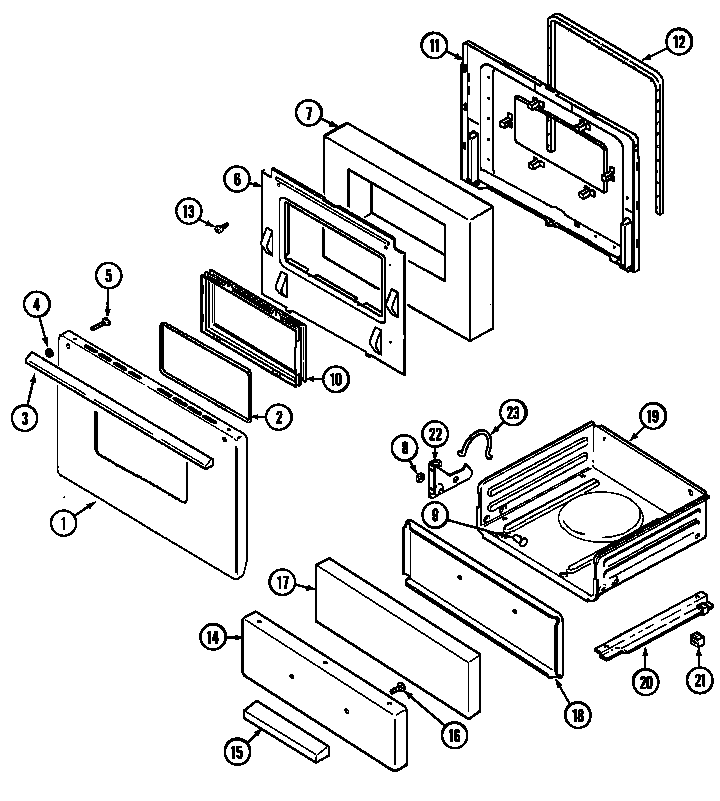

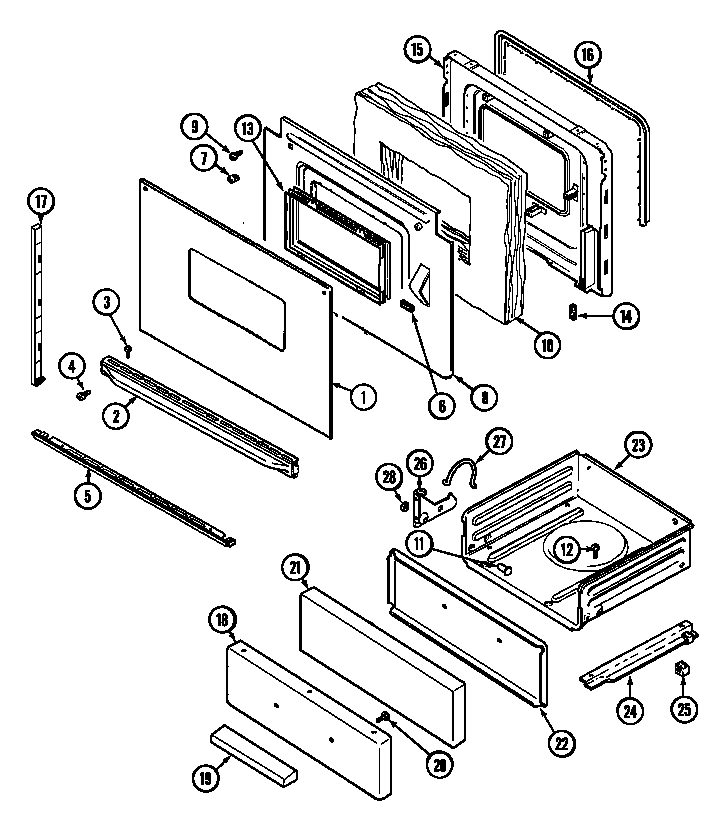

Manufacturer substitutionThis part replaces 3413F016-19. Substitute parts can look different from the original.In Stock$45.5612% OFF Phone Price : $51.56QtyDoor/drawer (ga3277wu*m) (ga3277wuam) (ga3277wuwm) diagram
Clamp Screw
Part #7101P080-60Replaced by #WP3387230
Manufacturer substitutionThis part replaces 7101P080-60. Substitute parts can look different from the original.This item is not returnableIn Stock$5.2316% OFF Phone Price : $6.23QtyOven/body diagram
Retainer
Part #3804F010-50
The manufacturer no longer makes this part, and there's no substitute part
