Maytag MAV275SAWW washer/dryer

Maytag MAV275SAWW washer/dryer Parts

Here are the diagrams and repair parts for Maytag MAV275SAWW washer/dryer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for MAV275SAWW Washer/Dryer

  • Maytag Appliance Hose Clamp for Maytag MAV275SAWW - Part WP596669

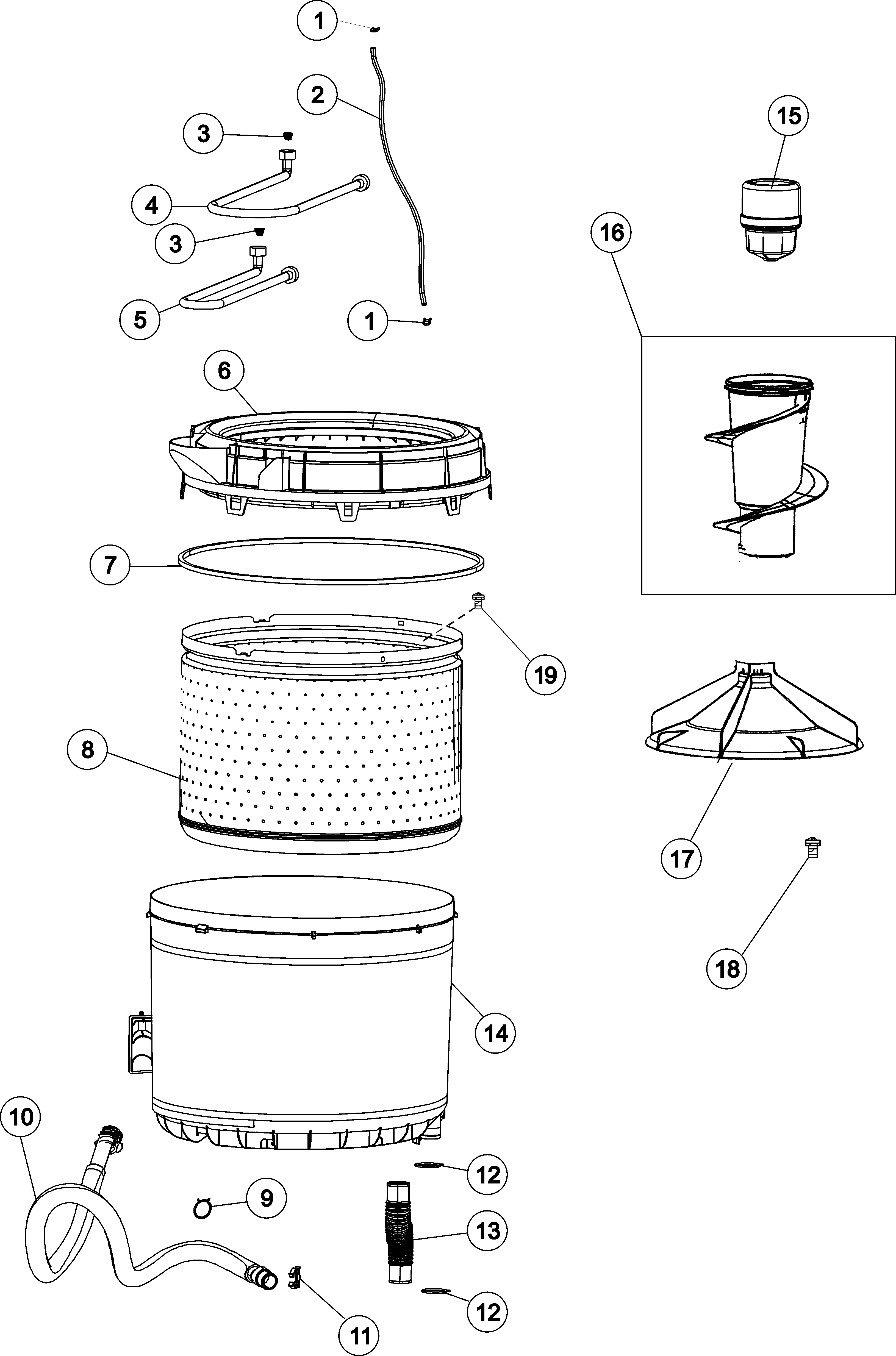

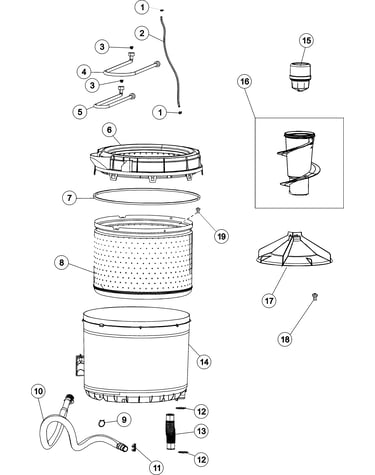

    Inner - outer tub diagram

    Clamp, Pressure Switch Hose

    Part #25-7796

    Replaced by #WP596669

    Info Icon
    Manufacturer substitution
    This part replaces 25-7796. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.73
    17% OFF Phone Price : $5.73Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Pulley And Thrust Bearing Kit for Maytag MAV275SAWW - Part 12002213

    Washer Pulley And Thrust Bearing Kit

    Part #12002213
    In Stock
    $48.93
    11% OFF Phone Price : $54.93Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Pulley And Thrust Bearing Kit for Maytag MAV275SAWW - Part 12002213

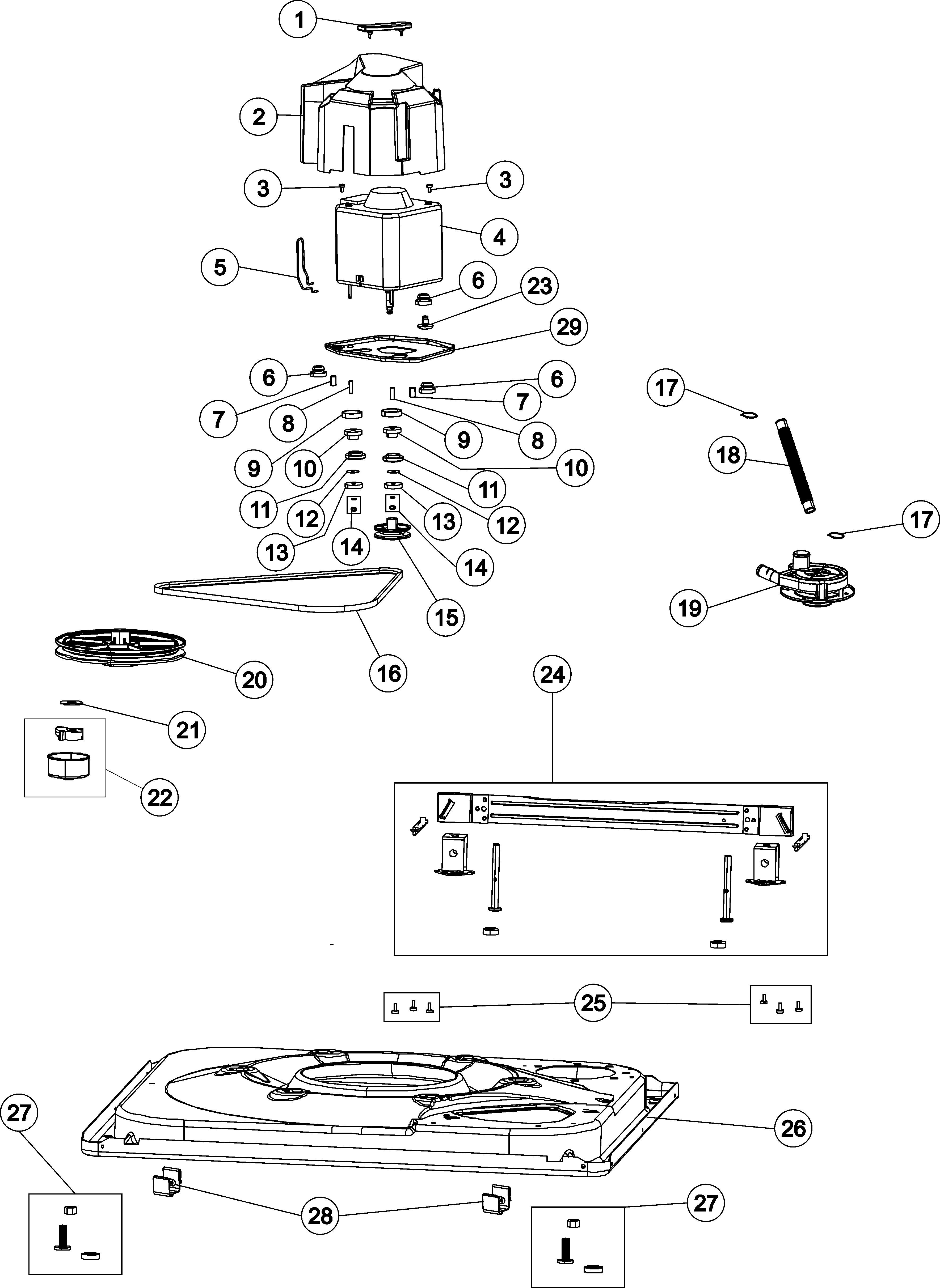

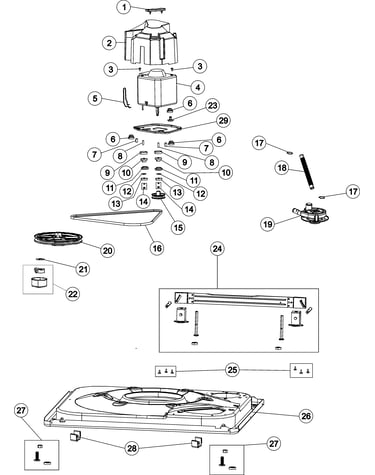

    Base & motor diagram

    Pulley, Driv

    Part #21001733

    Replaced by #12002213

    Info Icon
    Manufacturer substitution
    This part replaces 21001733. Substitute parts can look different from the original.
    In Stock
    $48.93
    11% OFF Phone Price : $54.93Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Drain Pump for Maytag MAV275SAWW - Part WP35-6780

    Base & motor diagram

    Pump

    Part #21001873

    Replaced by #WP35-6780

    Info Icon
    Manufacturer substitution
    This part replaces 21001873. Substitute parts can look different from the original.
    In Stock
    $113.72
    10% OFF Phone Price : $125.72Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Nut for Maytag MAV275SAWW - Part WP3400029

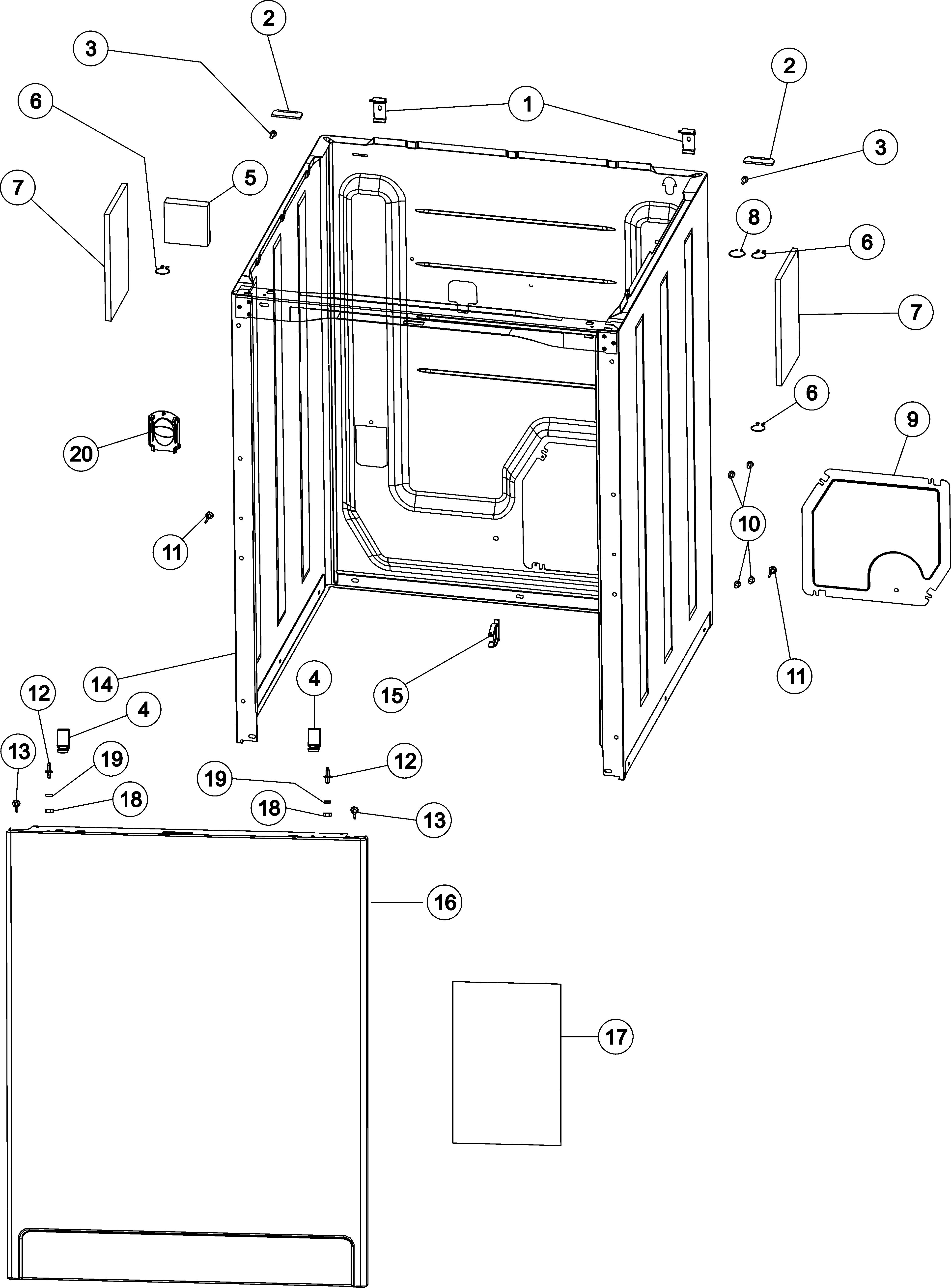

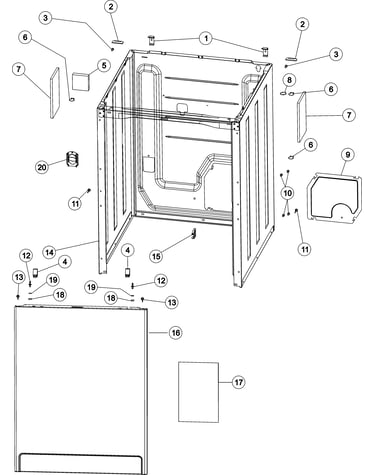

    Cabinet & front panel diagram

    Locator Nut

    Part #25-0224

    Replaced by #WP3400029

    Info Icon
    Manufacturer substitution
    This part replaces 25-0224. Substitute parts can look different from the original.
    In Stock
    $7.21
    12% OFF Phone Price : $8.21Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Lid Hinge for Maytag MAV275SAWW - Part WP35-2044

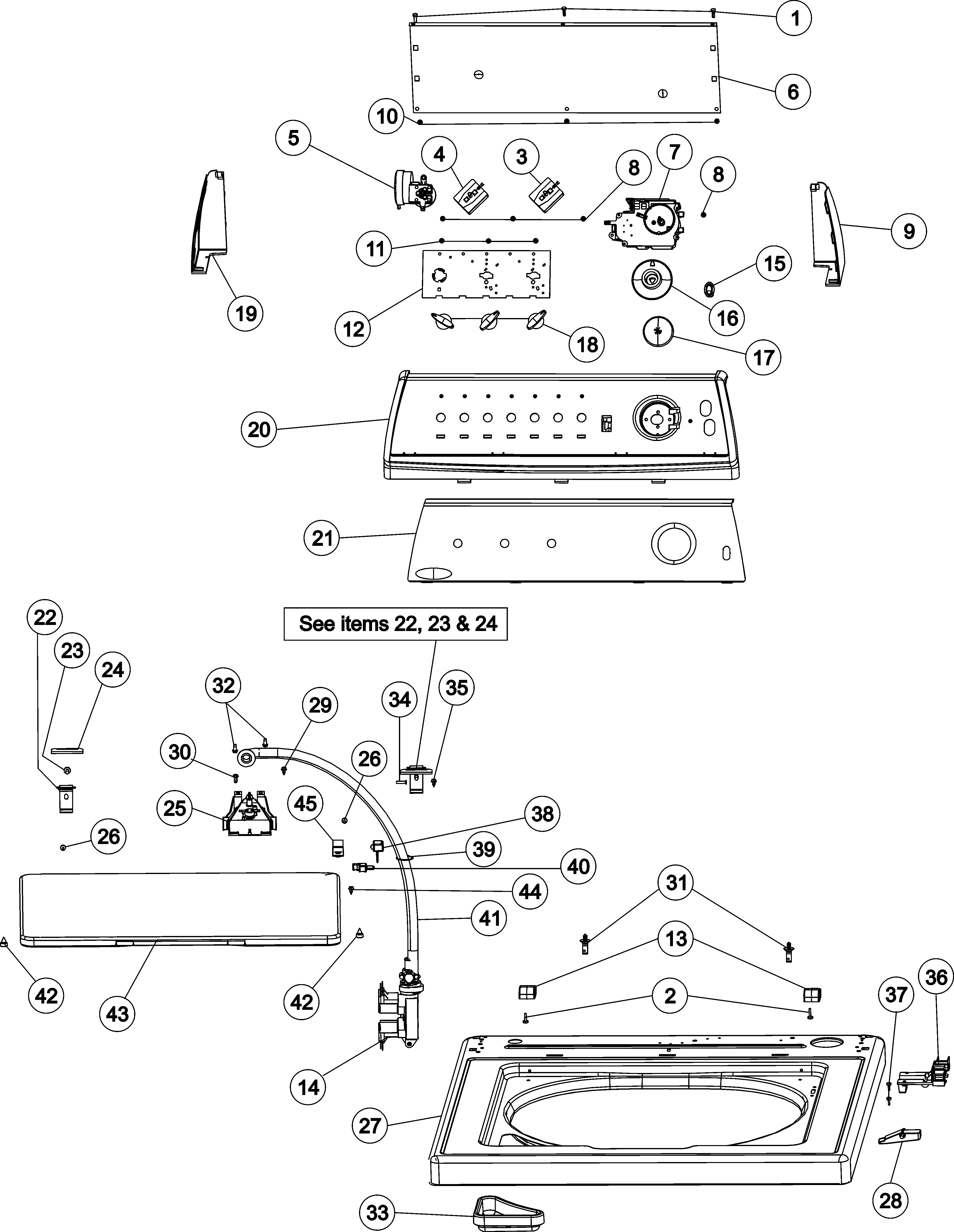

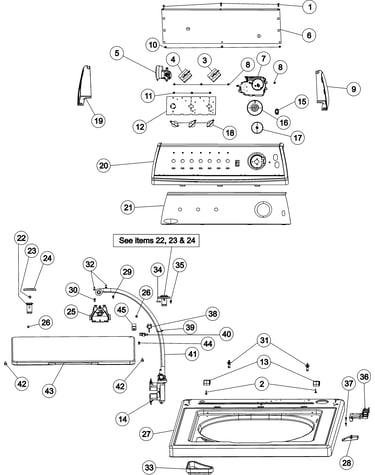

    Control panel & top diagram

    Washer Lid Hinge

    Part #35-2044

    Replaced by #WP35-2044

    Info Icon
    Manufacturer substitution
    This part replaces 35-2044. Substitute parts can look different from the original.
    In Stock
    $11.55
    15% OFF Phone Price : $13.55Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Drive Motor Pivot Spring for Maytag MAV275SAWW - Part WP22004376

    Base & motor diagram

    Spring Motor

    Part #21001110

    Replaced by #WP22004376

    Info Icon
    Manufacturer substitution
    This part replaces 21001110. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.21
    12% OFF Phone Price : $8.21Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Motor Plate Isolator for Maytag MAV275SAWW - Part WP35-3646

    Base & motor diagram

    Isolator, Motor Plate

    Part #35-3646

    Replaced by #WP35-3646

    Info Icon
    Manufacturer substitution
    This part replaces 35-3646. Substitute parts can look different from the original.
    In Stock
    $29.81
    Minus Item
    Qty
    Plus Item
  • Washer Drain Hose for Maytag MAV275SAWW - Part WP21001872

    Inner - outer tub diagram

    Washer Drain Hose

    Part #21001872

    Replaced by #WP21001872

    Info Icon
    Manufacturer substitution
    This part replaces 21001872. Substitute parts can look different from the original.
    In Stock
    $35.84
    29% OFF Was : $50.70Info Icon
    Minus Item
    Qty
    Plus Item
  • Spring Kit for Maytag MAV275SAWW - Part 21002065

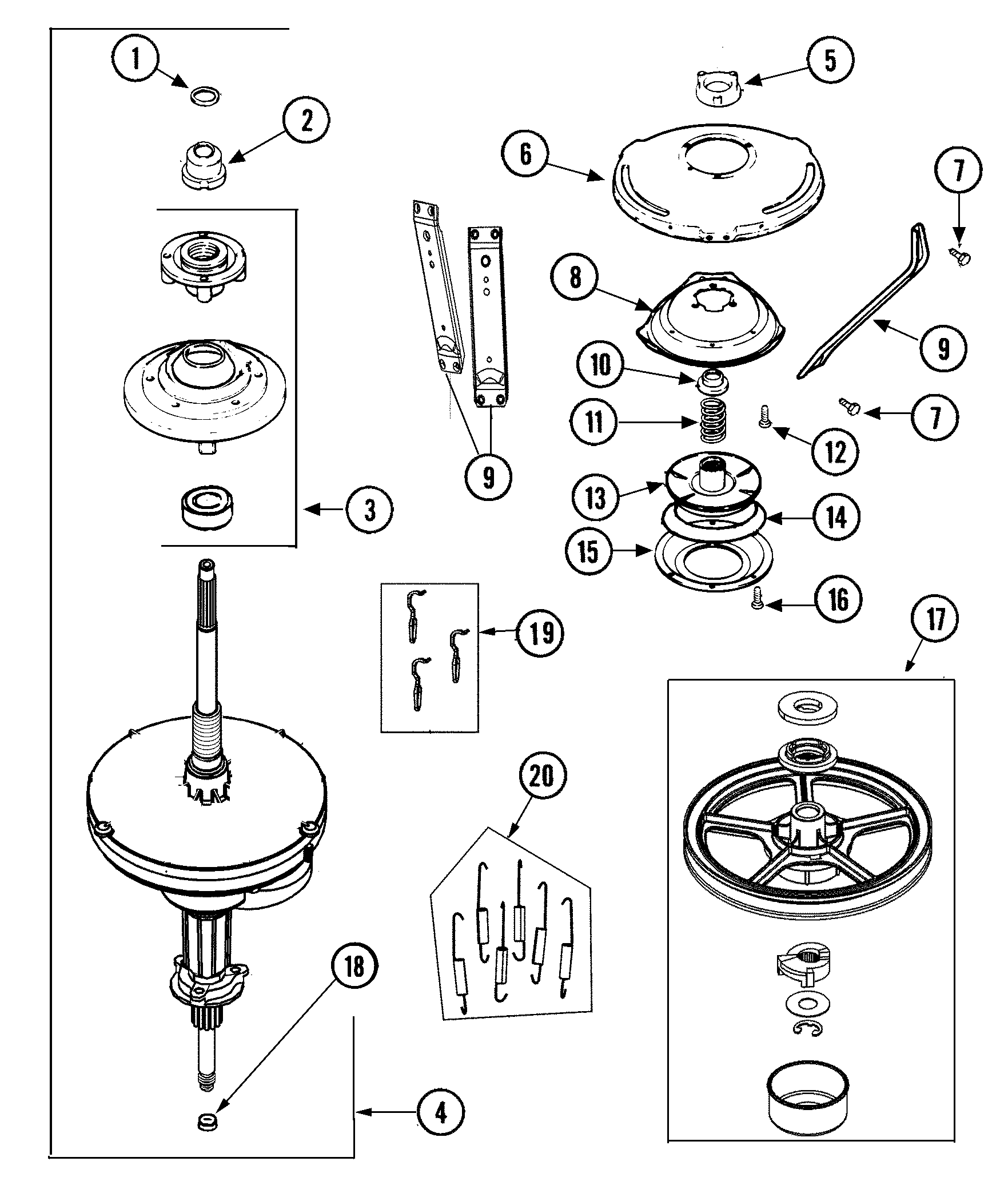

    Transmission diagram

    Spring Kit

    Part #21002065

    The manufacturer no longer makes this part, and there's no substitute part
