Model # MXS25PNATS Official Maytag commercial washer

Here are the diagrams and repair parts for Official Maytag MXS25PNATS commercial washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

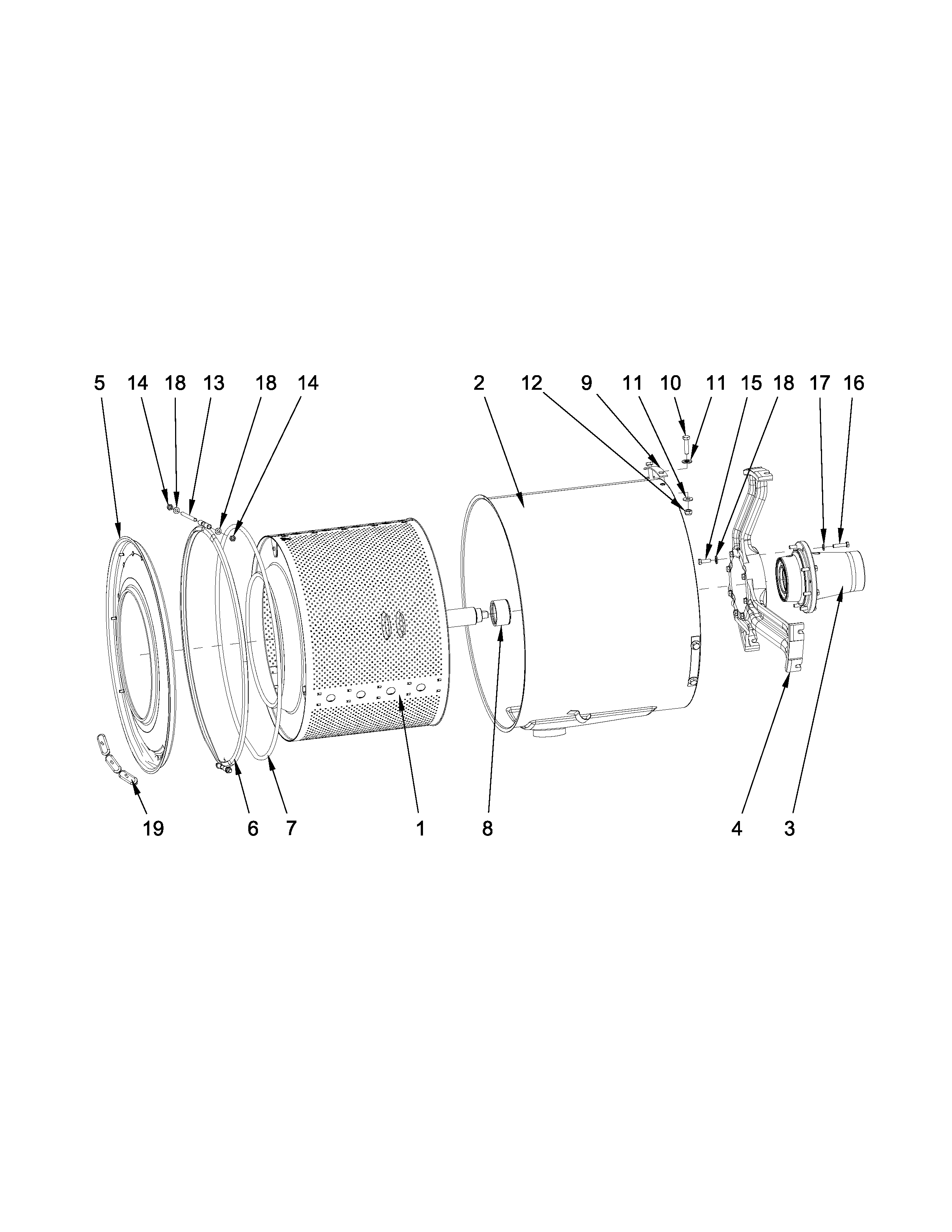

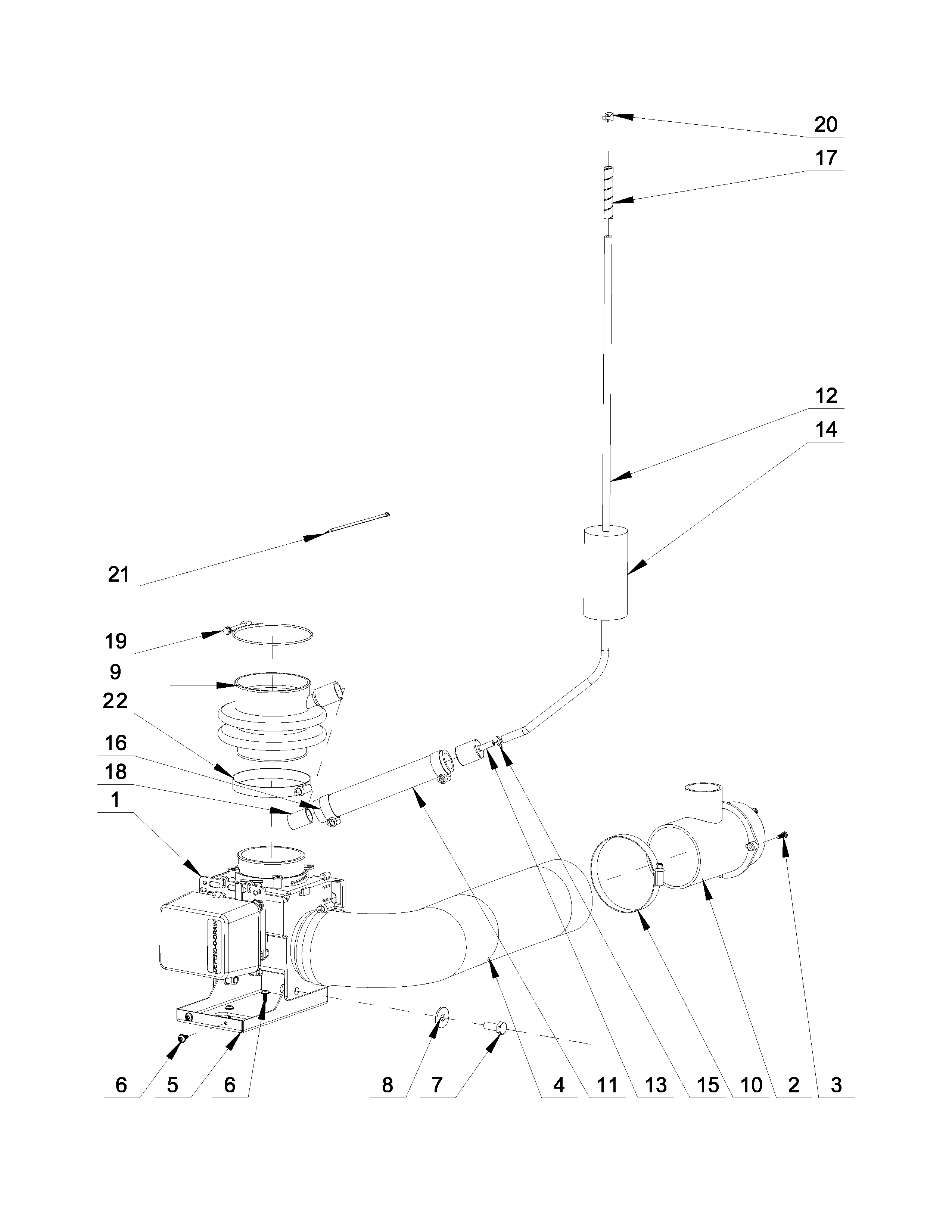

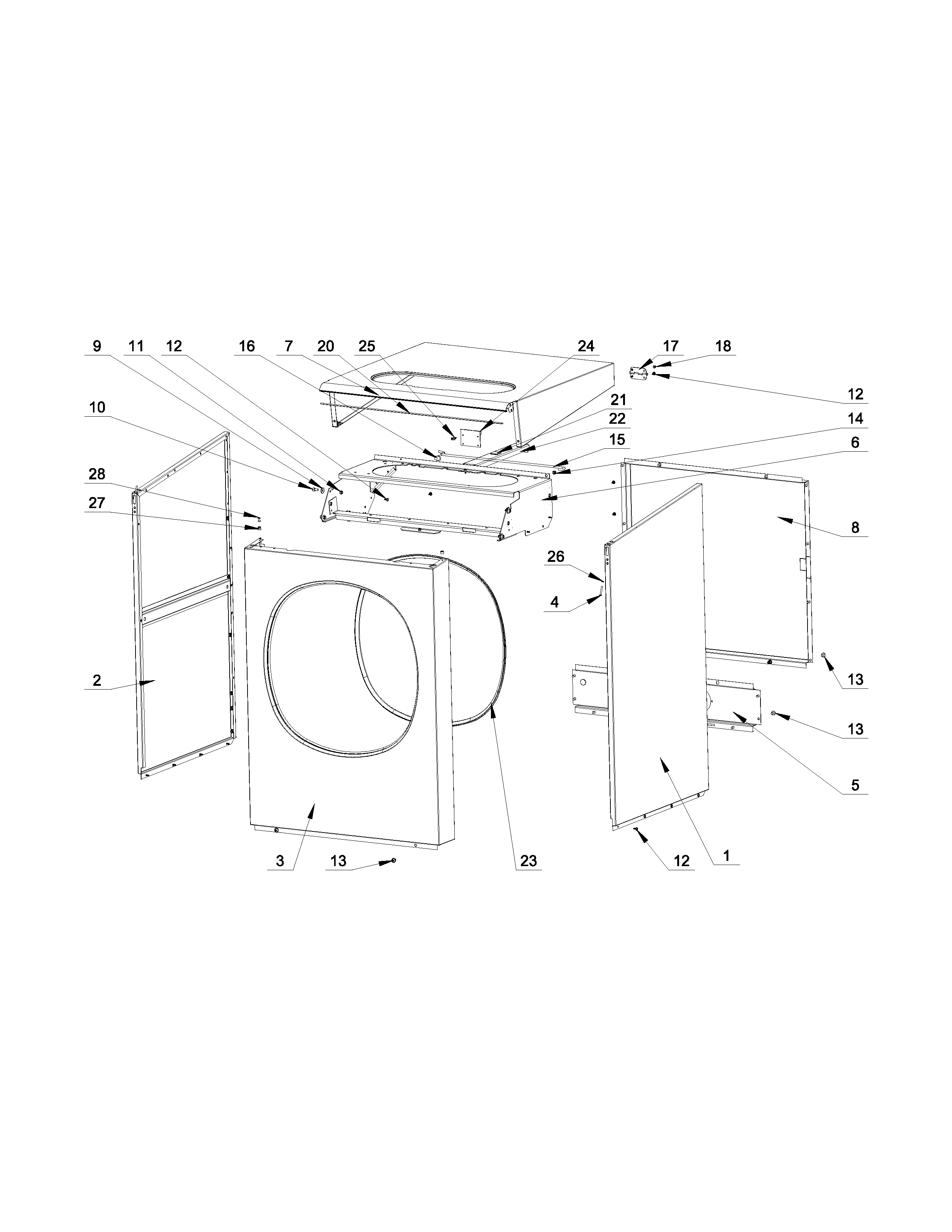

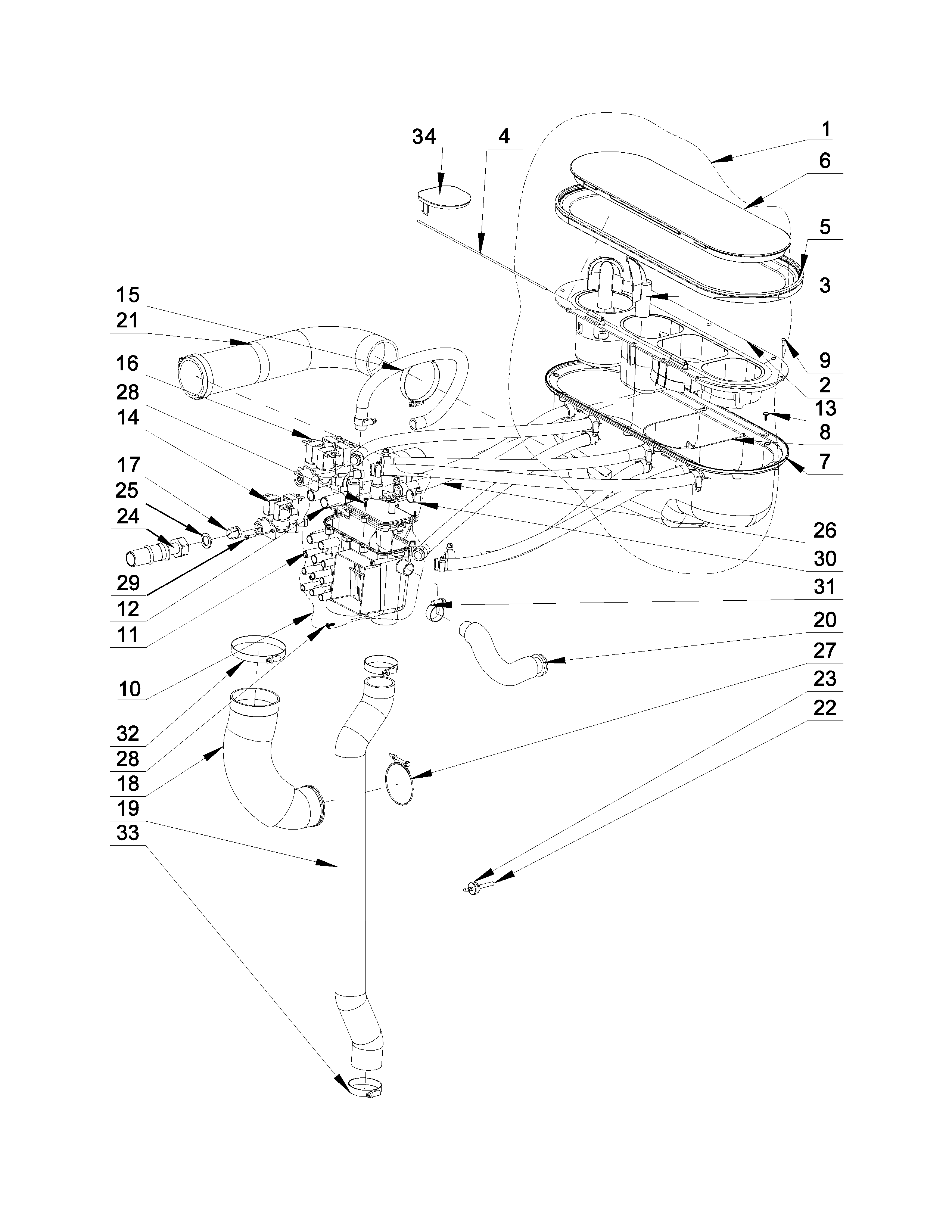

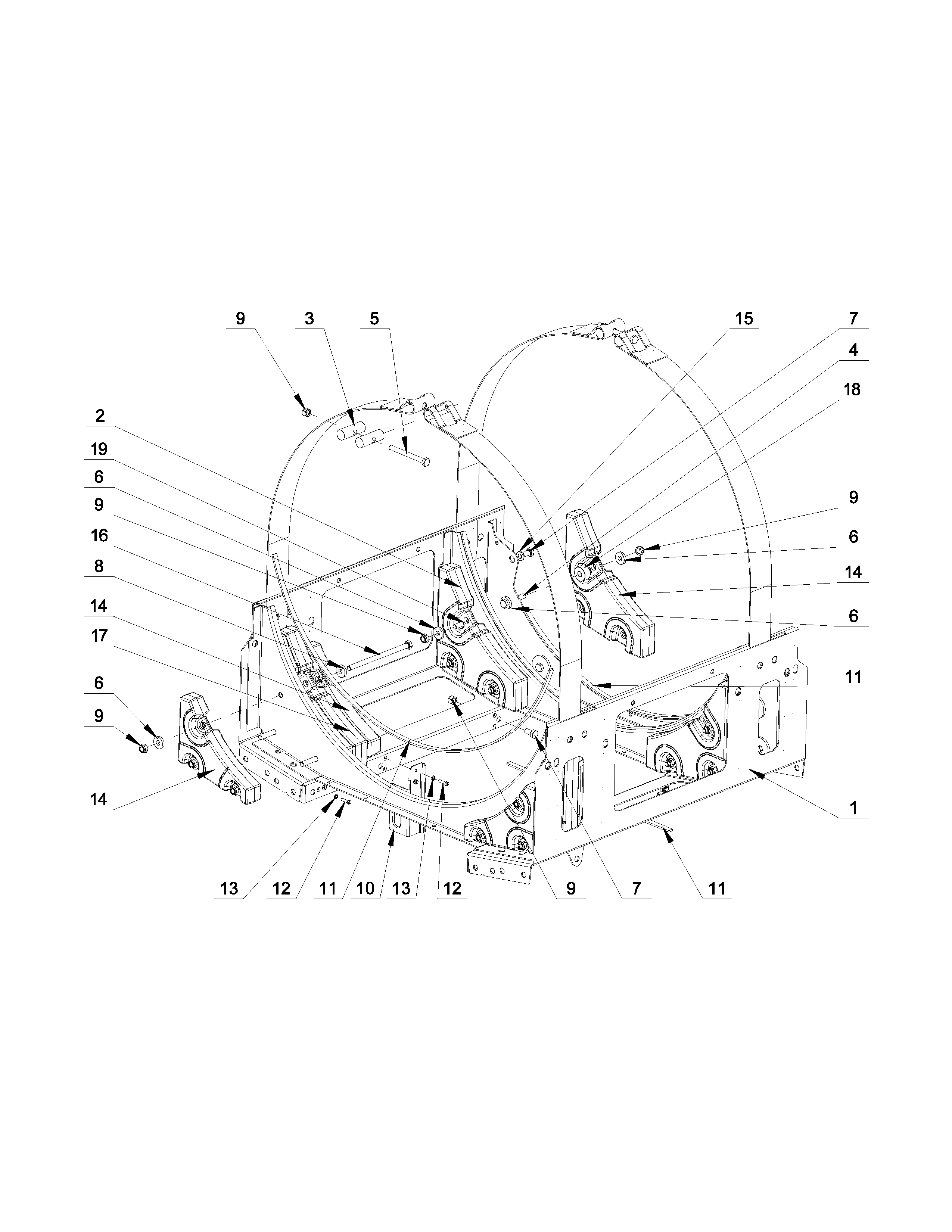

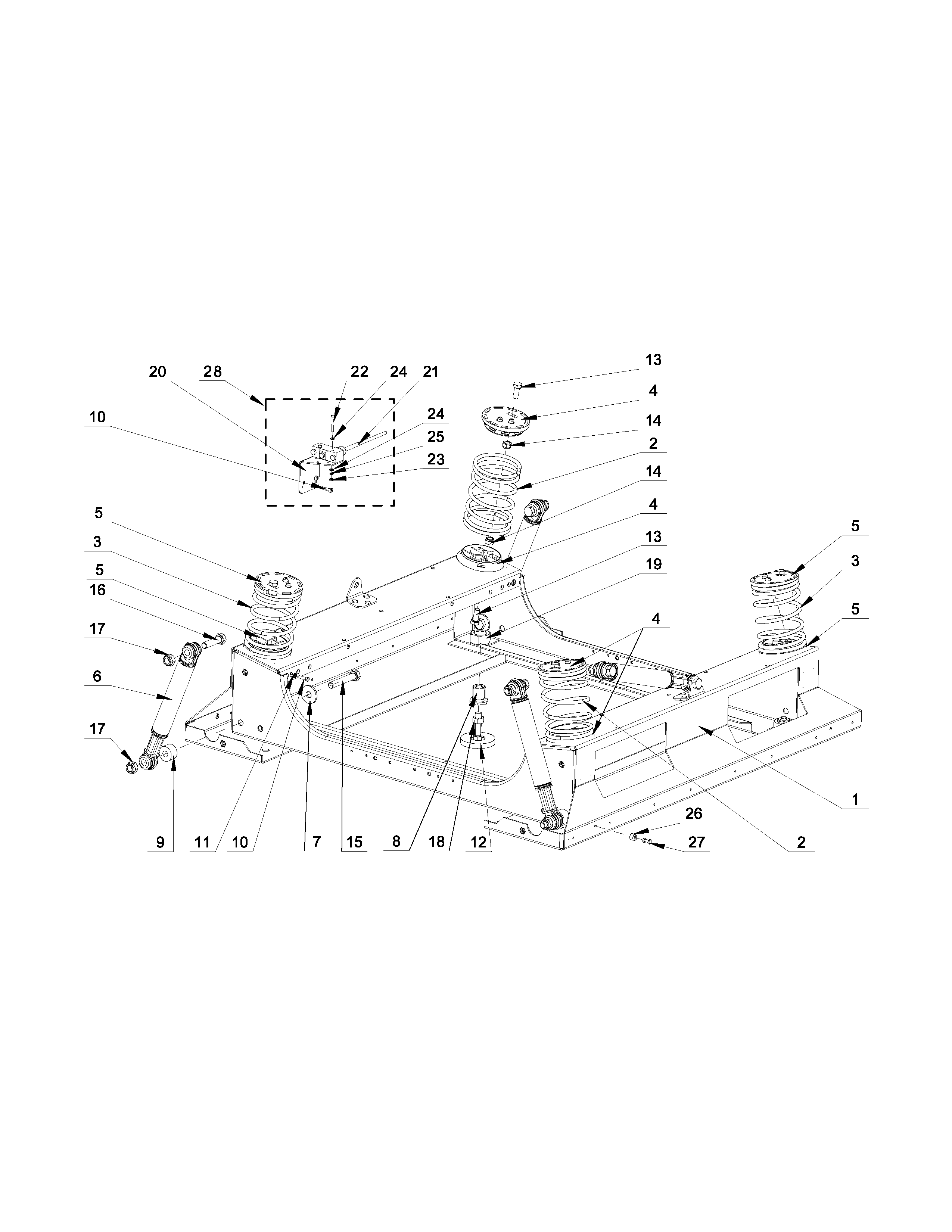

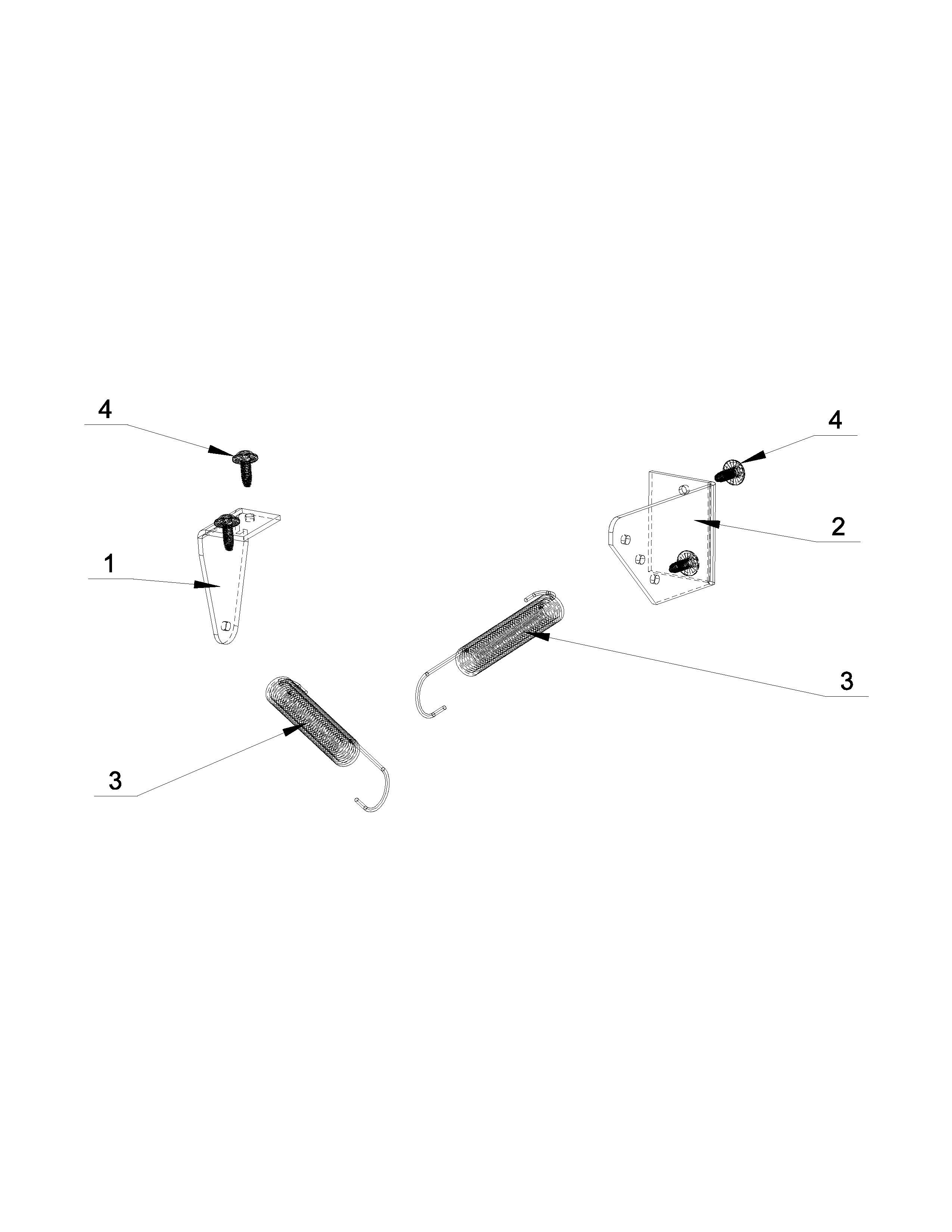

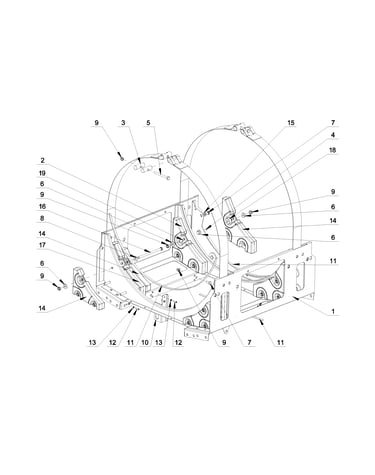

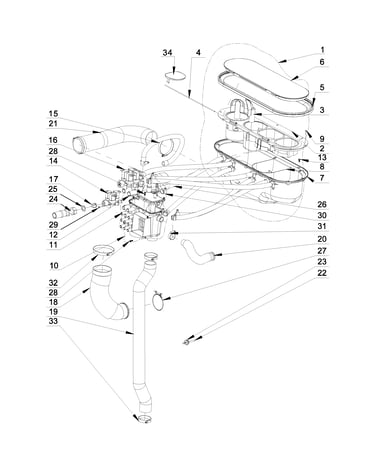

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 257 parts  |
Bushing 23001742
#22

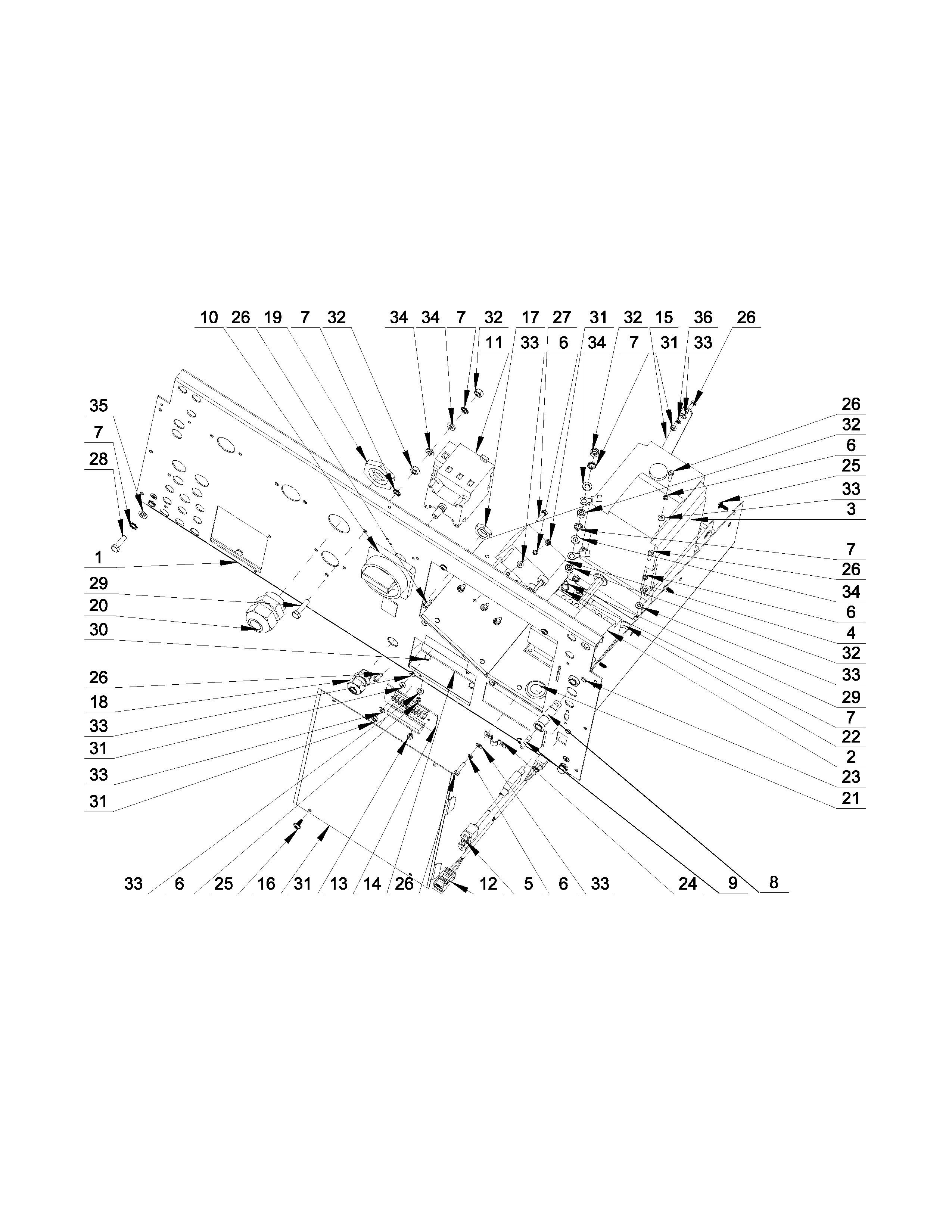

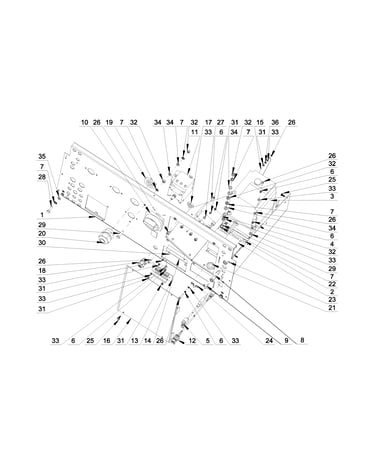

Rear panel parts diagram

Bushing

Part #23001742

This item is not returnable
$6.40
In Stock
Bracket W10714002
#8

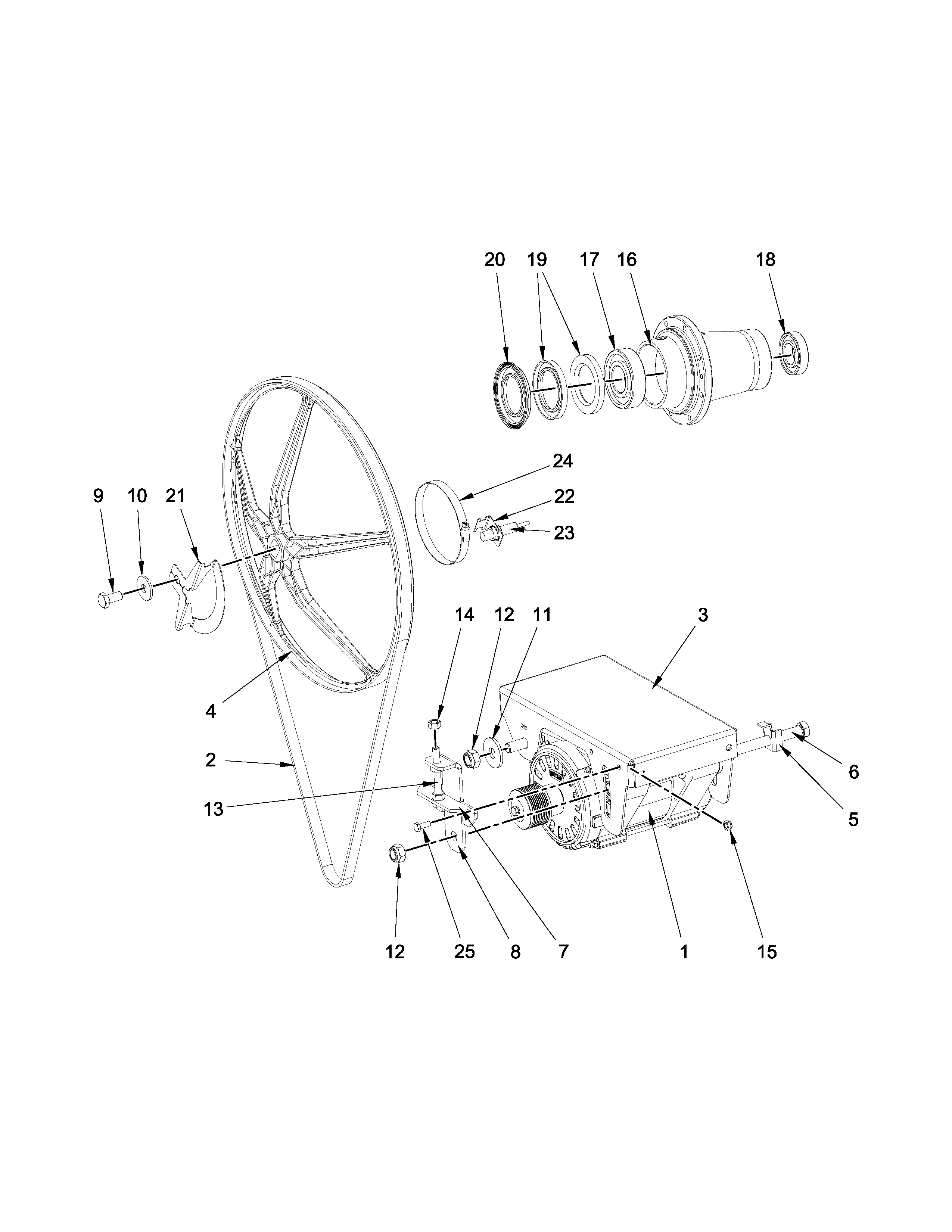

Drive parts diagram

Bracket

Part #W10714002

$17.07
In Stock
Commercial Washer Door Glass W10712300
#2

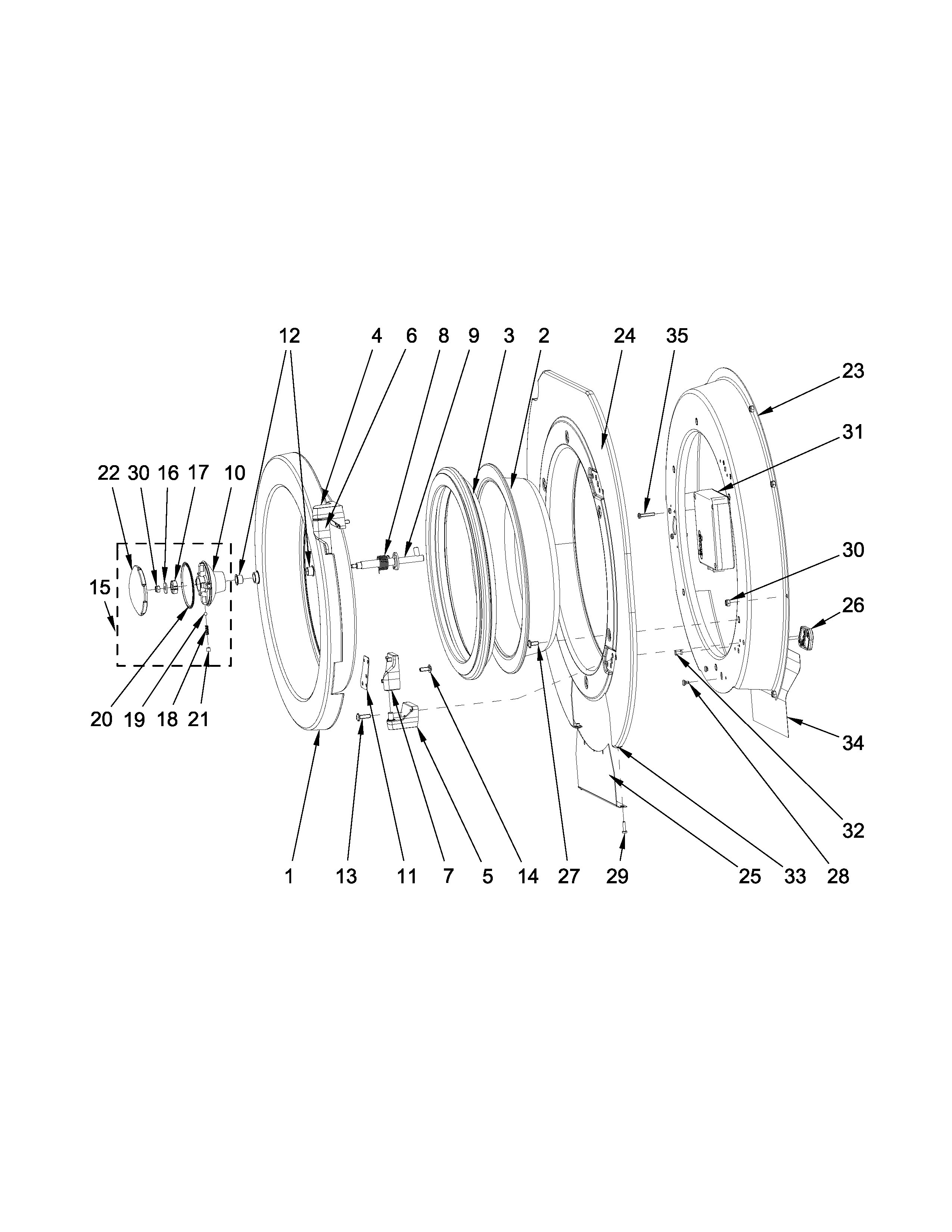

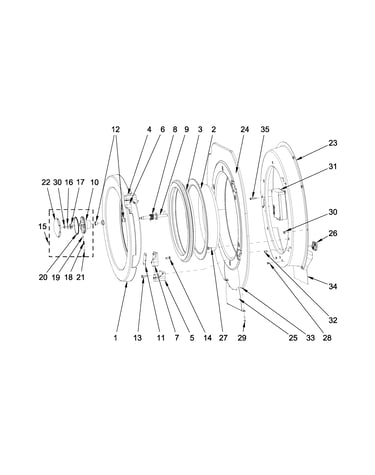

Door parts diagram

Commercial washer door glass

Part #W10712300

$383.76
In Stock
Shield 23002877
#26

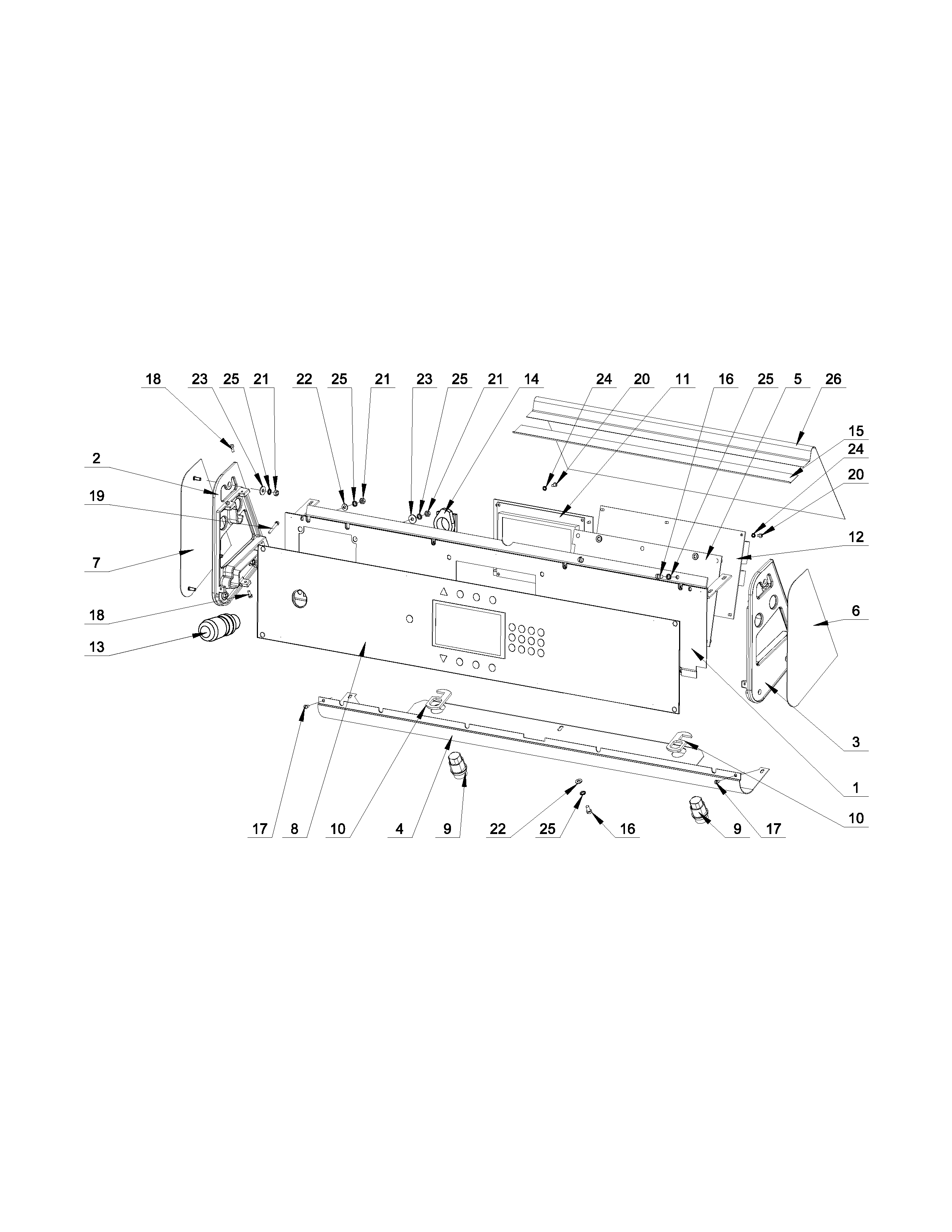

Control panel parts diagram

Shield

Part #23002877

$13.69
In Stock
V-pulley Dru W10713992
#4

Drive parts diagram

V-pulley dru

Part #W10713992

$322.09
In Stock
Bracket W10714001
#7

Drive parts diagram

Bracket

Part #W10714001

$18.82
In Stock
Washer Door Hinge W10712307
#5

Door parts diagram

Washer door hinge

Part #W10712307

$19.49 |
9% OFF Phone Price : $21.49
In Stock
Bolt W10712367
#27

Door parts diagram

Bolt

Part #W10712367

This item is not returnable
$7.24
In Stock
Knob W10712238
#13

Control panel parts diagram

Knob

Part #W10712238

$81.71
In Stock
Bolt W10304863
Bolt

Part #W10304863

$8.47
In Stock
