Owner’s manual
How to look up Craftsman model number?
For Craftsman model 486243294, we look up the model number on the identification plate attached to the right side of the drive housing; record the model and serial number so you can match the correct parts list and diagrams in the 486243294 owner's manual.
On this tow-behind power mower attachment, the ID plate is typically on the drive housing (not under a tractor seat).
- Locate the drive housing on the attachment
- Check the right side for a metal or printed identification plate
- Write down both the model number and serial number
- Keep the numbers with your purchase date for future maintenance and parts ordering
Once you have the model number, match it exactly when selecting parts like pulleys, cables, and hardware.
| What you have | What it helps with | Example for this model |
|---|---|---|
| Model number | Correct diagrams and parts list | 486243294 |
| Serial number | Confirms production run details | Used for service reference |
| Part ID / part number | Ordering the exact replacement | Blade engagement cable HA24617 |
- Match the full model number exactly (all digits)
- Use the parts diagram in the manual to confirm the part name and location
- Replace worn fasteners with the same size and type (for example, hex lock nut, 5/16-in 43064)
- If a part is missing from your assembly, verify it against the carton contents list in the manual
Tow-behind mower attachments often share similar-looking components (idler pulleys, cables, pins, and bolts). Using the exact model number ensures the replacement part fits and functions correctly.
Last updated: February 2026
How to read Craftsman serial number?
For Craftsman model 486243294, the serial number is the unique identifier we use to match the correct parts list and service information. On this attachment, the model and serial numbers are printed on an ID plate; use the location diagram and notes in the 486243294 owner's manual to find it and record it exactly.
The owner’s manual specifies that the model and serial numbers are on a plate attached to the drive housing.
- Inspect the drive housing for an ID plate or label
- Clean off grass, dirt, and oil so the characters are readable
- Copy the serial number exactly as shown (include any letters, dashes, and leading zeros)
- Record the date of purchase with the serial number for your records
- Keep the information with your maintenance paperwork for faster parts lookup
For this type of Craftsman tow-behind power mower attachment, the serial number functions as an identifier, not a universal date code. Use it to confirm the correct diagrams, hardware, and assemblies when ordering parts.
| What you should capture | Example format | Why we need it |
|---|---|---|
| Model number | 486243294 | Identifies the product family |
| Serial number | Letters and/or numbers | Identifies the production run |
| Purchase date | MM/YYYY | Helps with recordkeeping and service history |
Small differences between production runs can affect which fasteners, pulleys, or cables fit correctly. Having the exact serial number helps prevent ordering the wrong part.
If you are replacing missing hardware during service, common items listed for this model include the agri-fab lawn tractor attachment washer, 5/16-in 43081 and the agri-fab lawn tractor attachment hex lock nut, 5/16-in 43064.
Last updated: February 2026
What Craftsman lawnmower do I have?
If your tow-behind mower attachment matches Craftsman model 486243294, you have the Craftsman 42-inch Universal Tow Behind Power Mower; the exact model number is printed on the product identification label and is also shown on the cover of the 486243294 owner's manual.
We use the model number to match the correct parts list (blades, pulleys, cables, hardware) and the right assembly and maintenance instructions.
- Look for a product identification label on the attachment frame or deck area
- Clean off grass and dirt so the full number is readable
- Write down the full model number exactly as printed (for this unit: 486243294)
- If the label is damaged, compare your attachment to the diagrams and parts list in the manual
- Use the model number when ordering common wear items like the blade engagement cable HA24617
Based on the manual cover, this model is identified as a 42-inch universal tow-behind powered mower attachment.
| What to check | What you should see for this model |
|---|---|
| Brand | Craftsman |
| Model number format | 486243294 |
| Deck size | 42-inch |
| Product type | Universal tow-behind power mower |
Parts and adjustments can vary by model, even when attachments look similar. Using 486243294 helps us match the correct blade, spindle/mandrel components, idler pulley, and belt routing so the mower cuts correctly and runs safely.
Last updated: February 2026
What are the common problems with Craftsman lawn mowers?
Common Craftsman mower problems usually show up as hard starting, poor cutting, belt or blade drive issues, and excessive vibration. On Craftsman model 486243294 (tow-behind power mower attachment), we focus first on safety checks, belt condition, and any vibration or guarding issues called out in the 486243294 owner's manual.
- Excessive vibration: blade damage, loose hardware, bent components, or debris buildup (stop and inspect immediately).
- Poor cut quality or uneven cut: dull blades, incorrect cutting height, wet grass, or mowing too fast.
- Blades do not engage or stop poorly: belt routing/tension issue, idler/brake linkage issue, or a stretched cable.
- Belt squeal, slipping, or burning smell: worn belt, misaligned pulleys, or a sticking idler pulley.
- Clogging and clumping: mowing wet grass or letting grass get too tall.
Before you inspect or service anything, shut the engine off, wait for all moving parts to stop, and disconnect the spark plug wire.
- Check for abnormal vibration and stop mowing immediately if it occurs.
- Inspect the deck area for packed grass, sticks, or rocks.
- Confirm guards and covers are installed; never run without proper guards.
- Verify the blade drive system is operating smoothly; a worn idler can cause slipping (see idler pulley HA15015).
- If blade engagement feels loose or inconsistent, inspect the cable for stretch or binding (see blade engagement cable HA24617).
The manual’s belt replacement procedure highlights typical failure points: belt covers, belt guides, belt brake position, idler arm spring, and pulley routing.
| Symptom | Likely cause | What to do first |
|---|---|---|
| Blades will not engage | Belt off pulley, brake not releasing | Inspect routing and brake clearance |
| Belt slips | Worn belt, weak idler tension | Check idler movement and spring tension |
| Vibration after impact | Bent blade or spindle issue | Stop, inspect blades and mandrel area |
Vibration and missing guards are more than annoyances; they are strong indicators of damage and unsafe operation. Catching belt, pulley, and blade issues early helps prevent bigger failures in the mandrel, deck, and drive system.
Last updated: February 2026
What year is a Craftsman 486243294 tow-behind power mower?
The Craftsman model 486243294 (42-inch universal tow-behind power mower) is identified in the manual as Form No. 40369 (6/06), which places this model’s documentation in June 2006. For the exact production year of your specific unit, match the serial number from the ID plate to your purchase date in the 486243294 owner's manual.
We use the model and serial plate to tie your mower attachment to its build and purchase details.
- Look for the model and serial number plate on the right side of the drive housing.
- Record the serial number and your date of purchase.
- Keep that information with your manual for future parts lookups.
- Use the serial number when ordering parts like fasteners, pulleys, or cables.
The “(6/06)” printed on the manual is a reliable timestamp for the manual version, and it is commonly close to the product’s sales period.
| Item | What it tells you | What it does not tell you |
|---|---|---|
| Manual form date: (6/06) | Manual revision timing (June 2006) | Exact build date of your specific unit |
| Serial number plate | Identifies your exact unit | Does not automatically show a calendar year without cross-reference |
| Purchase date | When your unit was bought | Not always the manufacturing date |
Knowing the correct year range helps us match the right diagrams and hardware sizes, and it prevents ordering the wrong mower attachment parts (for example, the correct idler pulley, blade engagement cable, or hitch components).
If you are confirming what you have during inspection or maintenance, these common model-related parts can help you match assemblies to the diagrams:
- Lawn tractor mower attachment idler pulley HA15015
- Agri-fab lawn tractor mower attachment blade engagement cable HA24617
- Agri-fab lawn & garden equipment pin 47134
Last updated: February 2026
Where to find model number on Craftsman lawn mower?
On the Craftsman tow-behind power mower model 486243294, the model and serial number are on a plate attached to the right side of the drive housing. Use the model number to match the correct parts list and the serial number for service and recordkeeping; see the 486243294 owner's manual.
- Park the mower attachment on a flat surface and let the engine cool.
- Disconnect the spark plug wire before reaching near moving parts.
- Stand on the right side of the unit.
- Look for a metal or durable label plate on the drive housing.
- Write down both the model number and serial number.
| Item | What it looks like | What we use it for |
|---|---|---|
| Model number | “486243294” | Ensures diagrams and parts match your exact attachment |
| Serial number | A longer unique number | Helps identify production details when ordering or servicing |
| Purchase date | Your receipt date | Useful for maintenance tracking and support |
Using the correct model number prevents ordering the wrong hardware or mower-deck components. Even small items like a 5/16-in washer or lock nut can vary by model and affect belt alignment, blade engagement, and safe operation.

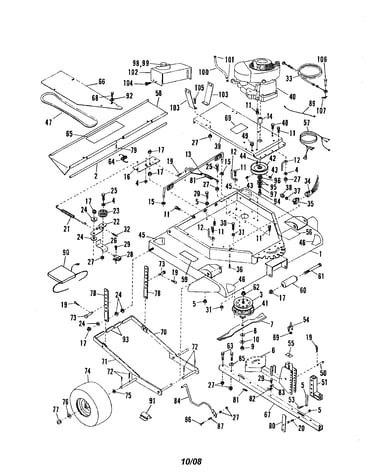

If you are matching parts to the exploded view, these are common items listed for model 486243294:
- Agri-fab lawn tractor attachment washer, 5/16-in 43081 (standard washer used in multiple assemblies)
- Agri-fab lawn tractor attachment hex lock nut, 5/16-in 43064 (locking nut used on 5/16-in fasteners)
- Lawn tractor mower attachment blade engagement cable HA24617 (controls blade engagement)
Last updated: February 2026
