Countertop Microwave

Model # MS1240WB/XAA Official Samsung microwave

Here are the diagrams and repair parts for Official Samsung MS1240WB-XAA microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Microwave Door Interlock Switch (replaces 3405-000178) 3405-001034
#9

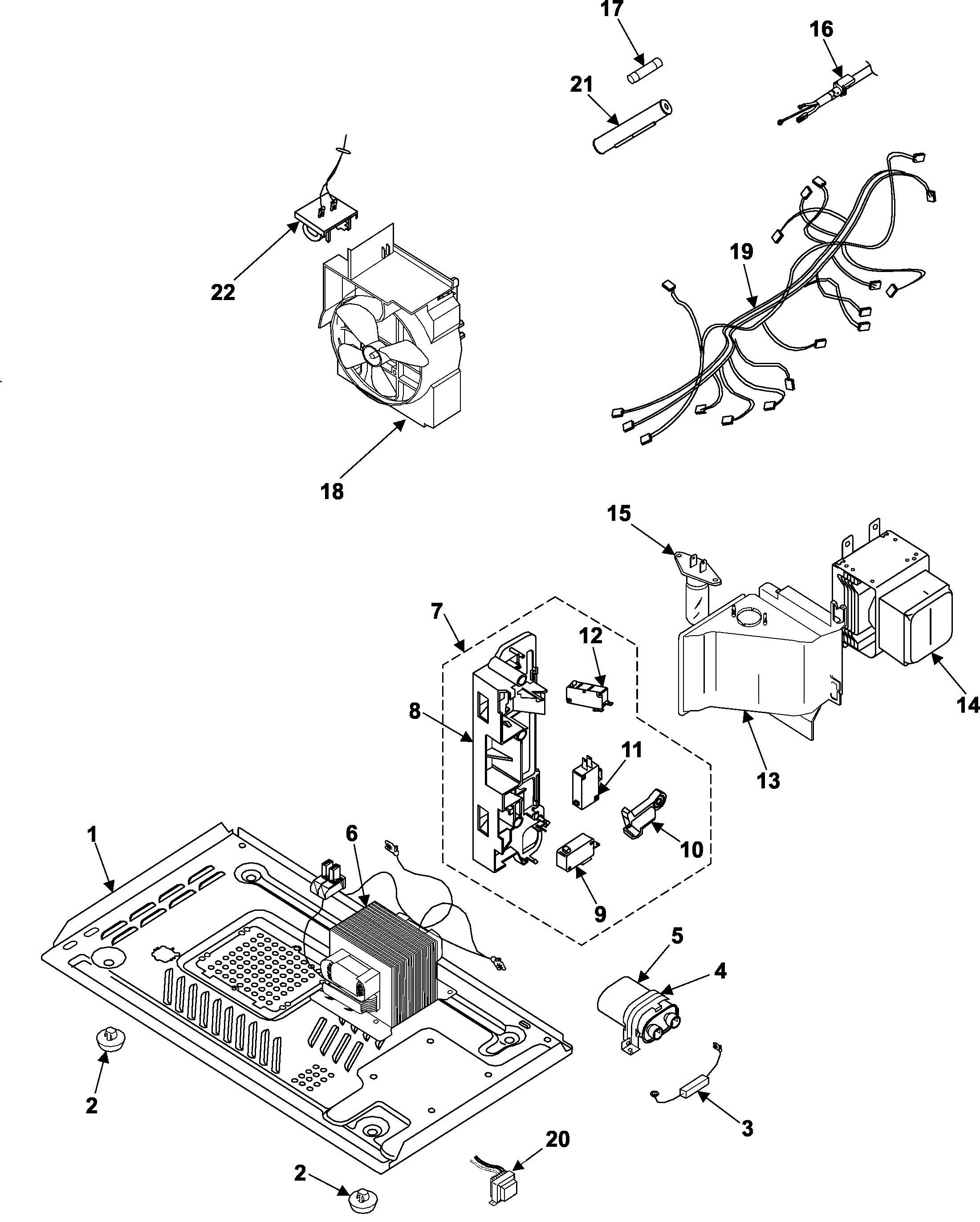

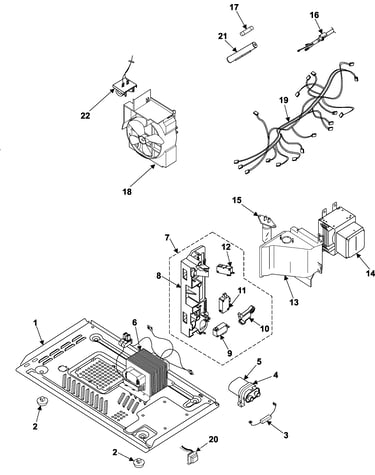

Internal control/latch assy/base diagram

Microwave door interlock switch (replaces 3405-000178)

Part #3405-001034

BEST SELLER
$16.93 |
11% OFF Phone Price : $18.93
In Stock
Microwave Door Micro-switch 3405-001033
#11

Internal control/latch assy/base diagram

Microwave door micro-switch

Part #3405-001033

BEST SELLER
$13.42 |
13% OFF Phone Price : $15.42
In Stock
Microwave Fuse, 20-amp (replaces 3601-001142) 3601-001198
#17

Internal control/latch assy/base diagram

Microwave fuse, 20-amp (replaces 3601-001142)

Part #3601-001198

This item is not returnable
$12.96 |
13% OFF Phone Price : $14.96
In Stock
Diode DE59-40001A
#3

Internal control/latch assy/base diagram

Diode

Part #DE59-40001A

The manufacturer no longer makes this part, and there's no substitute part

Microwave Door Interlock Switch, Upper 3405-001055
#12

Internal control/latch assy/base diagram

Microwave door interlock switch, upper

Part #3405-001055

$11.08 |
15% OFF Phone Price : $13.08
In Stock
Lever DE66-00088A
#10

Internal control/latch assy/base diagram

Lever

Part #DE66-00088A

$16.94
In Stock
Cover DE71-60449A
#5

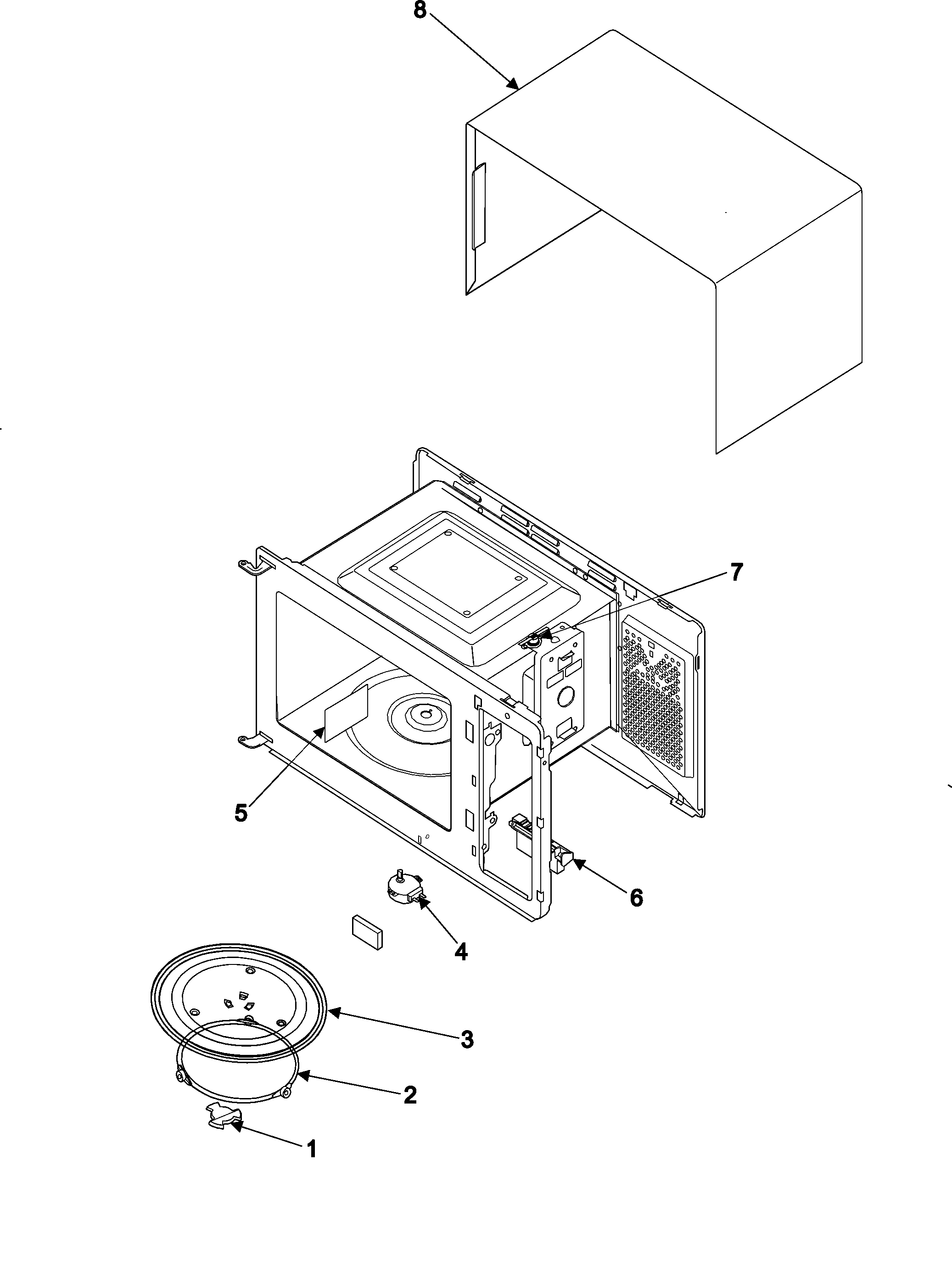

Body/cavity/elements diagram

Cover

Part #DE71-60449A

$20.57
In Stock
Door Key DE64-00210A
#9

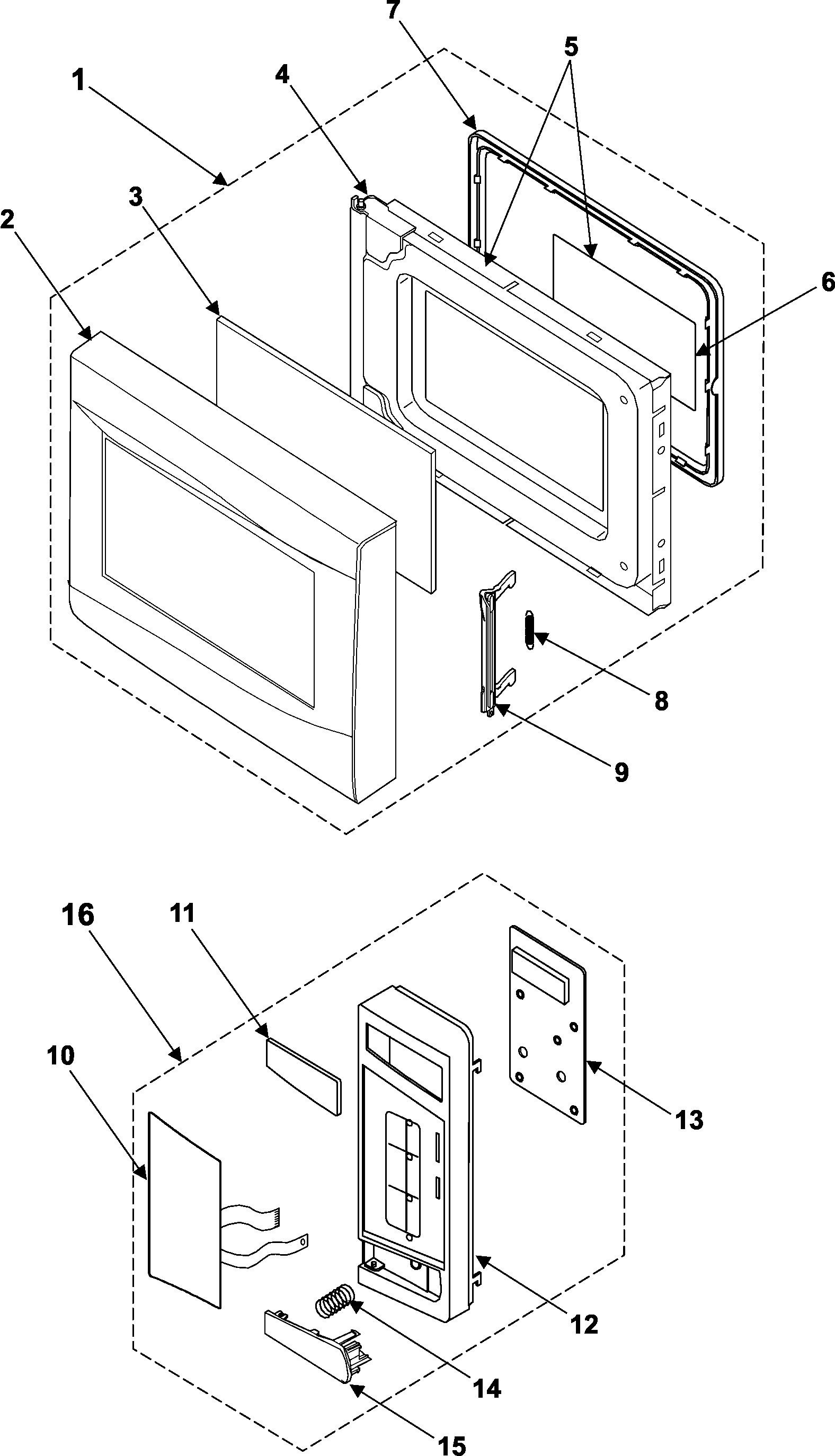

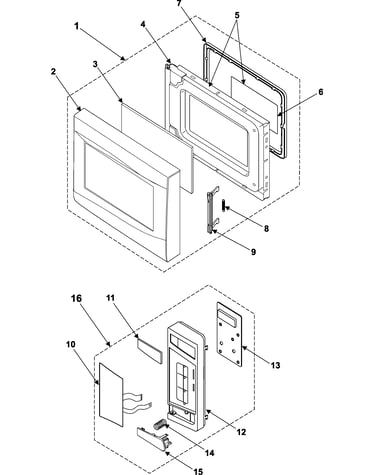

Control panel/door assembly diagram

Door key

Part #DE64-00210A

$13.91
In Stock
Microwave Turntable Support DE97-00222A
#2

Body/cavity/elements diagram

Microwave turntable support

Part #DE97-00222A

$26.82
In Stock
Door Film DE64-00248A
#6

Control panel/door assembly diagram

Door film

Part #DE64-00248A

$8.46
In Stock
