Model # JGCP548HM00 Official Jenn-Air gas counter unit

Here are the diagrams and repair parts for Official Jenn-Air JGCP548HM00 gas counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Range Broil Pan Assembly W10123240
#NI

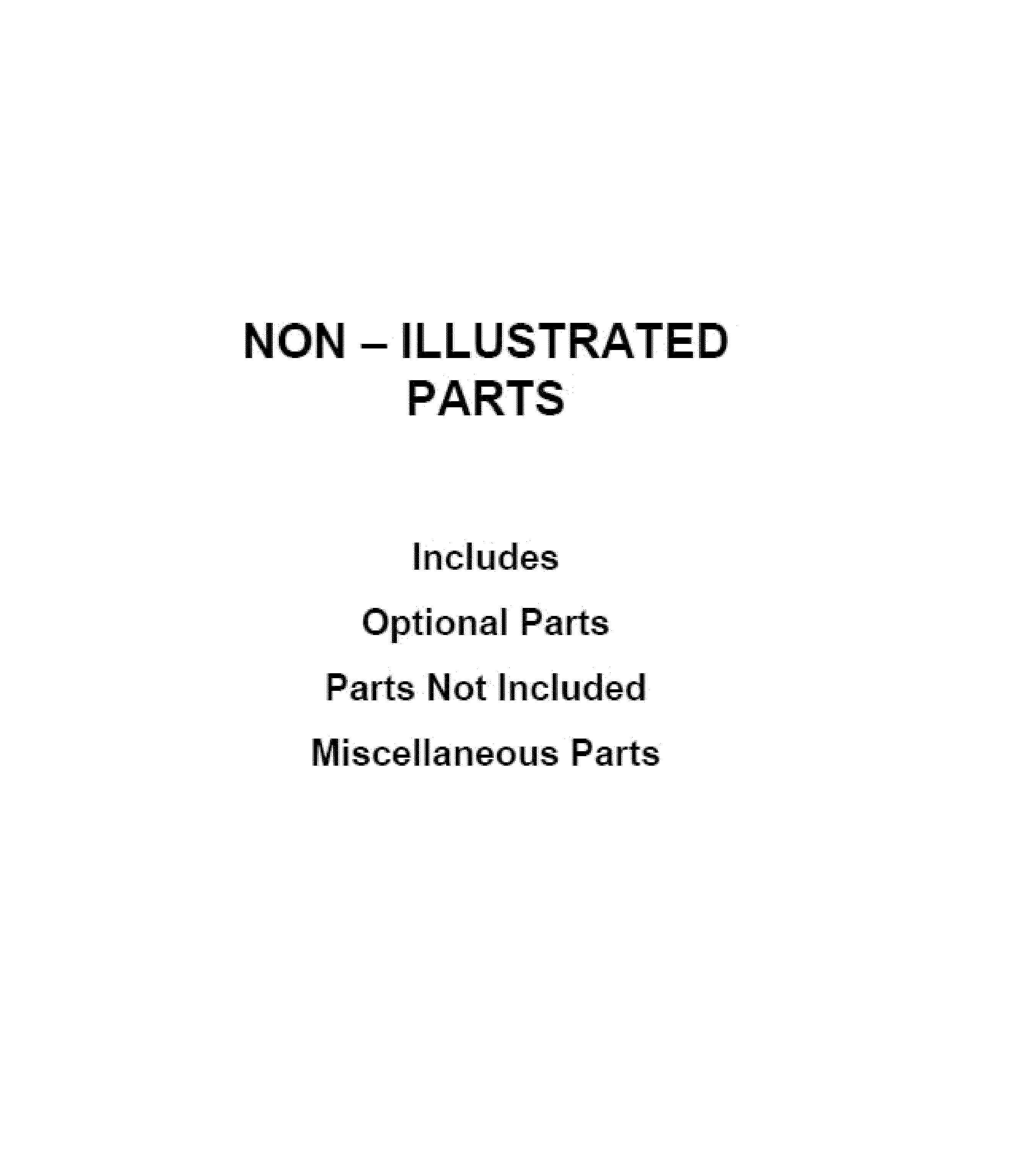

Optional parts (not included) diagram

Range broil pan assembly

Part #W10123240

$62.06 |
13% OFF MSRP : $71.00
In Stock
Indicator Light W10116114
#9

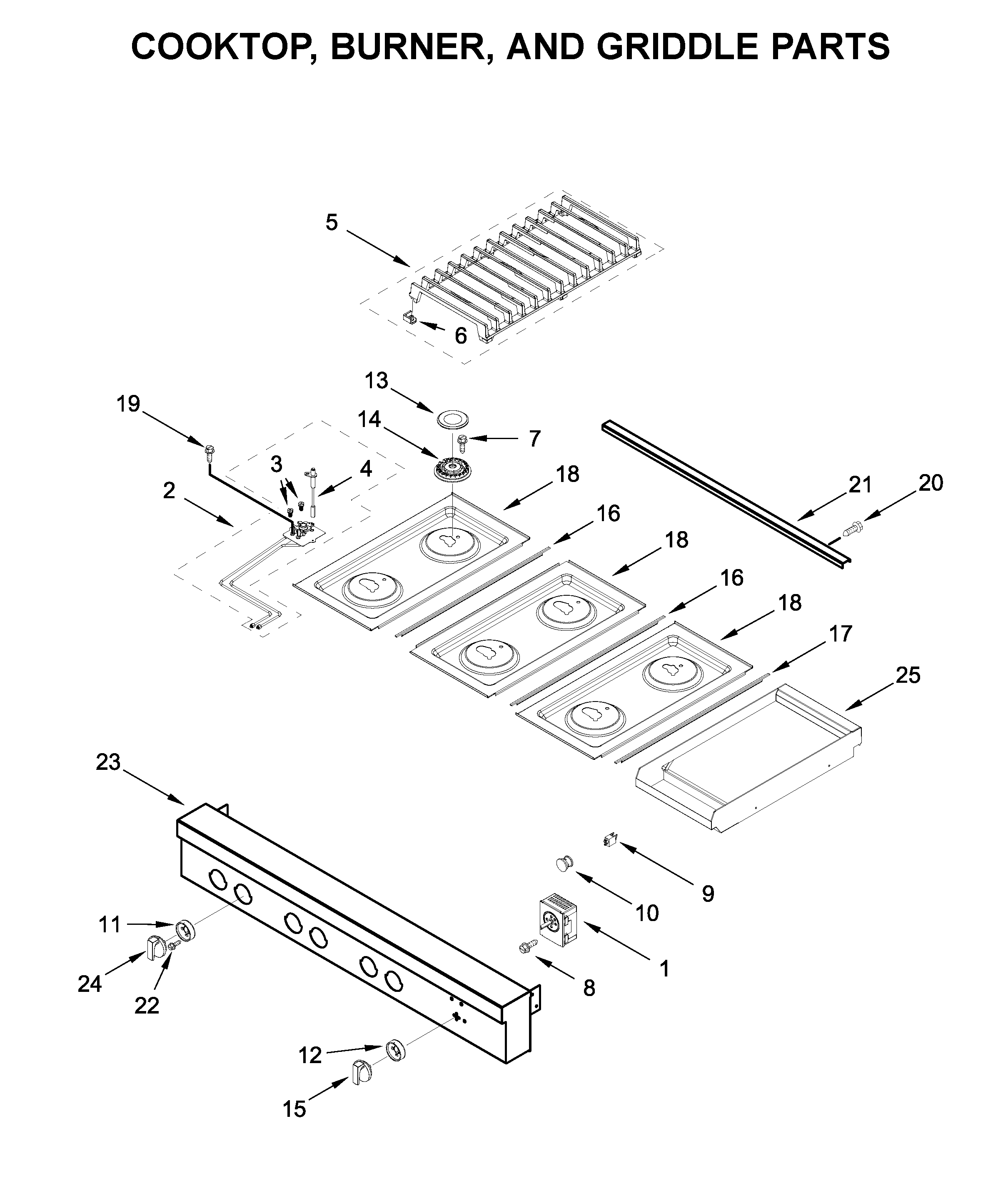

Cooktop, burner, and griddle parts diagram

Indicator light

Part #W10116114

$36.09
In Stock
Knob, Griddle (stainless) W10891923
#15

Cooktop, burner, and griddle parts diagram

Knob, griddle (stainless)

Part #W10891923

Replaced by #W11317536

?
Manufacturer substitution
This part replaces W10891923. Substitute parts can look different from the original.
$246.53
In Stock
Accessory Parts, Brass, Oven W11323067
#NI

Optional parts (not included) diagram

Accessory parts, brass, oven

Part #W11323067

$58.20
In Stock
Range Surface Burner Orifice, 17,400-btu W10892422
#3

Cooktop, burner, and griddle parts diagram

Range surface burner orifice, 17,400-btu

Part #W10892422

$36.69 |
12% OFF Phone Price : $41.69
In Stock
Range Surface Burner Grate Pad W11042504
#6

Cooktop, burner, and griddle parts diagram

Range surface burner grate pad

Part #W11042504

This item is not returnable
$10.62 |
16% OFF Phone Price : $12.62
In Stock
Range Main Top Trim W10271524
#16

Cooktop, burner, and griddle parts diagram

Range main top trim

Part #W10271524

$102.47
In Stock
Orifice, Simmer (2.0k) (left Center Rear) W10892429
#3C

Cooktop, burner, and griddle parts diagram

Orifice, simmer (2.0k) (left center rear)

Part #W10892429

$36.67
In Stock
Range Surface Burner Cap Set (brass) W11323014
#NI

Optional parts (not included) diagram

Range surface burner cap set (brass)

Part #W11323014

$371.73 |
$10.00 OFF Phone Price : $381.73
In Stock
Range Ground Screw 4450800
#NI

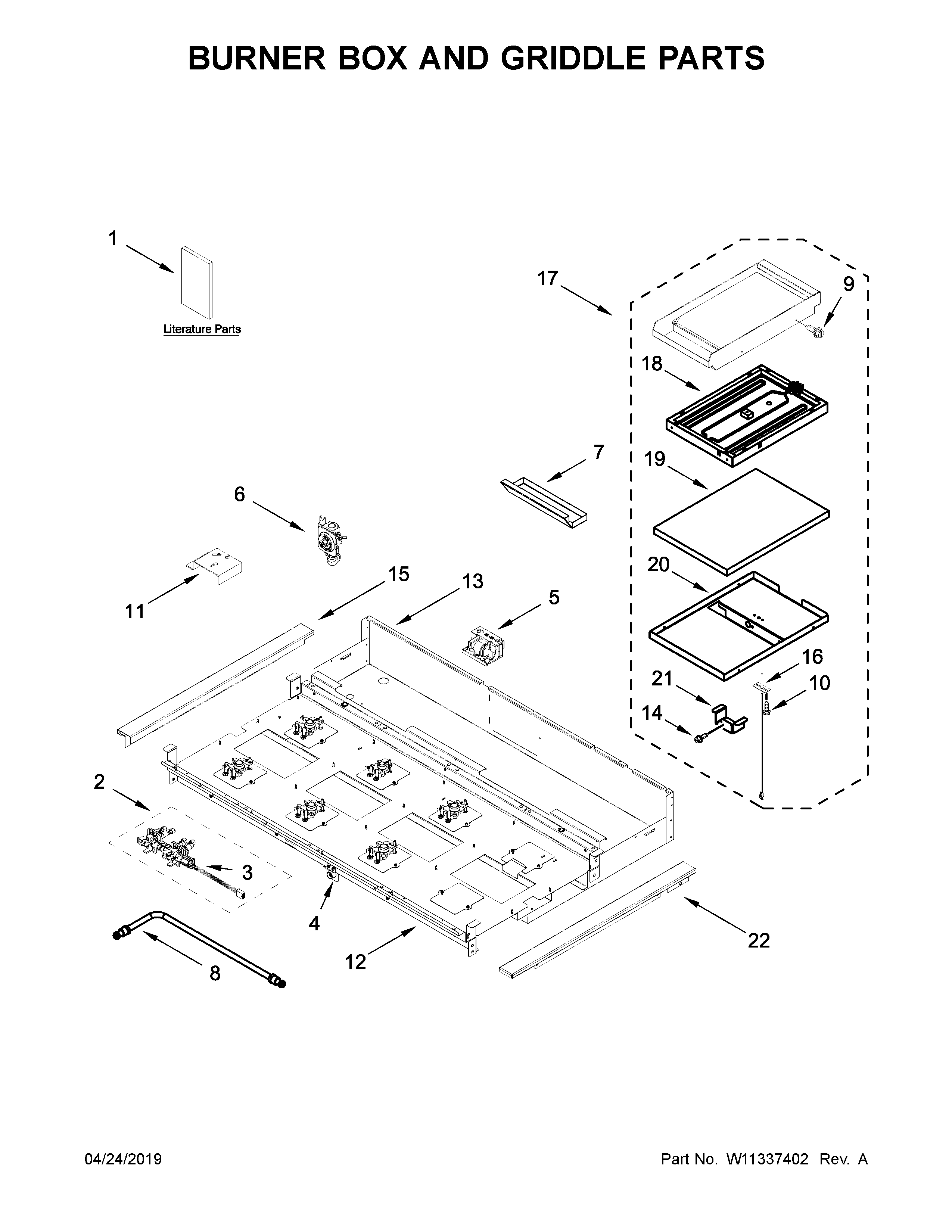

Burner box and griddle parts diagram

Range ground screw

Part #4450800

$12.49
In Stock
