Model # 11081375740 Official Kenmore system 21 washer

Here are the diagrams and repair parts for Official Kenmore 11081375740 system 21 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 155 parts  |

Washer Agitator Bolt 358237
#2

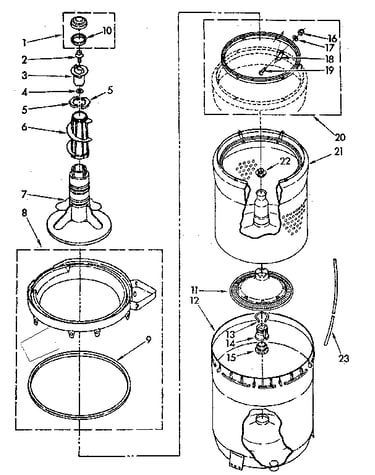

Agitator, basket and tub parts diagram

Washer agitator bolt

Part #358237

Replaced by #WP358237

?
Manufacturer substitution
This part replaces 358237. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.94
58% OFF MSRP : $14.00
In Stock
Valve 358992
#18

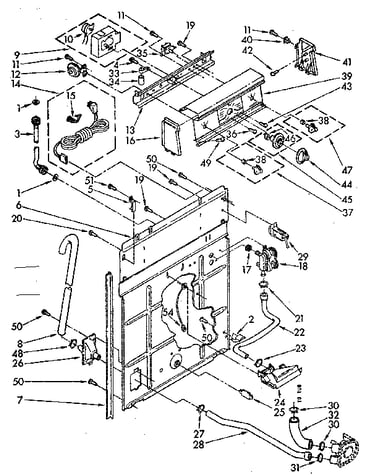

Controls and rear panel parts diagram

Valve

Part #358992

Replaced by #285805

?
Manufacturer substitution
This part replaces 358992. Substitute parts can look different from the original.
BEST SELLER
$27.47
15% OFF Phone Price : $32.47
In Stock
Gasket 62665
#15

Agitator, basket and tub parts diagram

Gasket

Part #62665

Replaced by #W10814296

?
Manufacturer substitution
This part replaces 62665. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.44
77% OFF MSRP : $15.00
In Stock
Switch 359230
#11

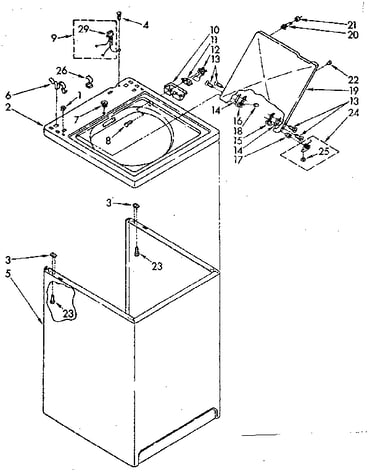

Top and cabinet parts diagram

Switch

Part #359230

Replaced by #W10820036

?
Manufacturer substitution
This part replaces 359230. Substitute parts can look different from the original.
BEST SELLER
$24.59
34% OFF MSRP : $37.00
In Stock
Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017

#NI

All parts diagram

Appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29
11% OFF Phone Price : $9.29
In Stock
Clamp 371503
#23

Controls and rear panel parts diagram

Clamp

Part #371503

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 371503. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37
69% OFF MSRP : $14.00
In Stock
Bumper 354241
#22

Top and cabinet parts diagram

Bumper

Part #354241

Replaced by #WP9724509

?
Manufacturer substitution
This part replaces 354241. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Washer Lid Hinge Bearing 21258
#17

Top and cabinet parts diagram

Washer lid hinge bearing

Part #21258

Replaced by #WP21258

?
Manufacturer substitution
This part replaces 21258. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49
13% OFF Phone Price : $7.49
In Stock
Tap Screw 90767
#11

Controls and rear panel parts diagram

Tap screw

Part #90767

Replaced by #WP90767

?
Manufacturer substitution
This part replaces 90767. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37
19% OFF Phone Price : $5.37
In Stock
Screw 384435
#23

Top and cabinet parts diagram

Screw

Part #384435

Replaced by #WP681414

?
Manufacturer substitution
This part replaces 384435. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
