Gibson
Side-By-Side Refrigerator

Model #RS22F9WS1C Gibson side-by-side refrigerator - lg30588030

Here are the diagrams and repair parts for Gibson RS22F9WS1C side-by-side refrigerator - lg30588030, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileError Codes

    Showing 10 of 324 parts

    Refrigerator Shelf

    #16

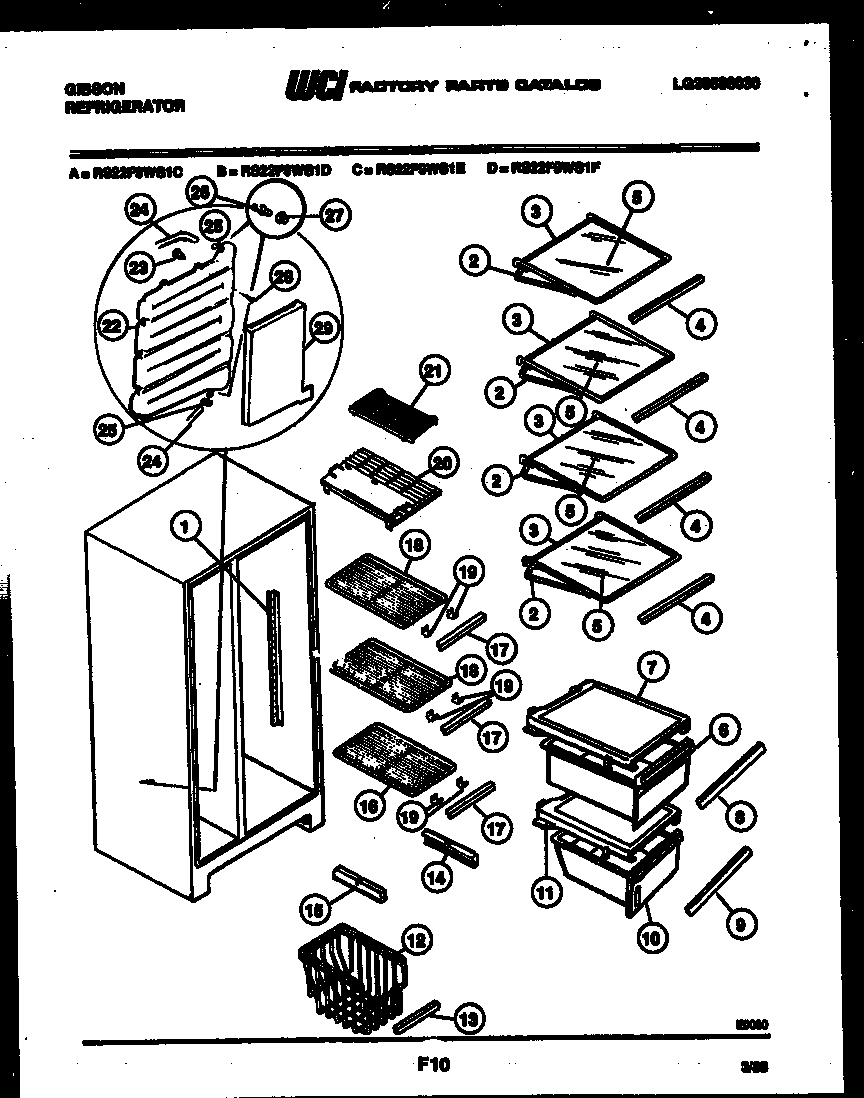

    Shelves and supports Diagram

    Refrigerator shelf

    Part #G169658-06
    $16.34

    In Stock

    Refrigerator Evaporator Fan Motor Grommet

    #25

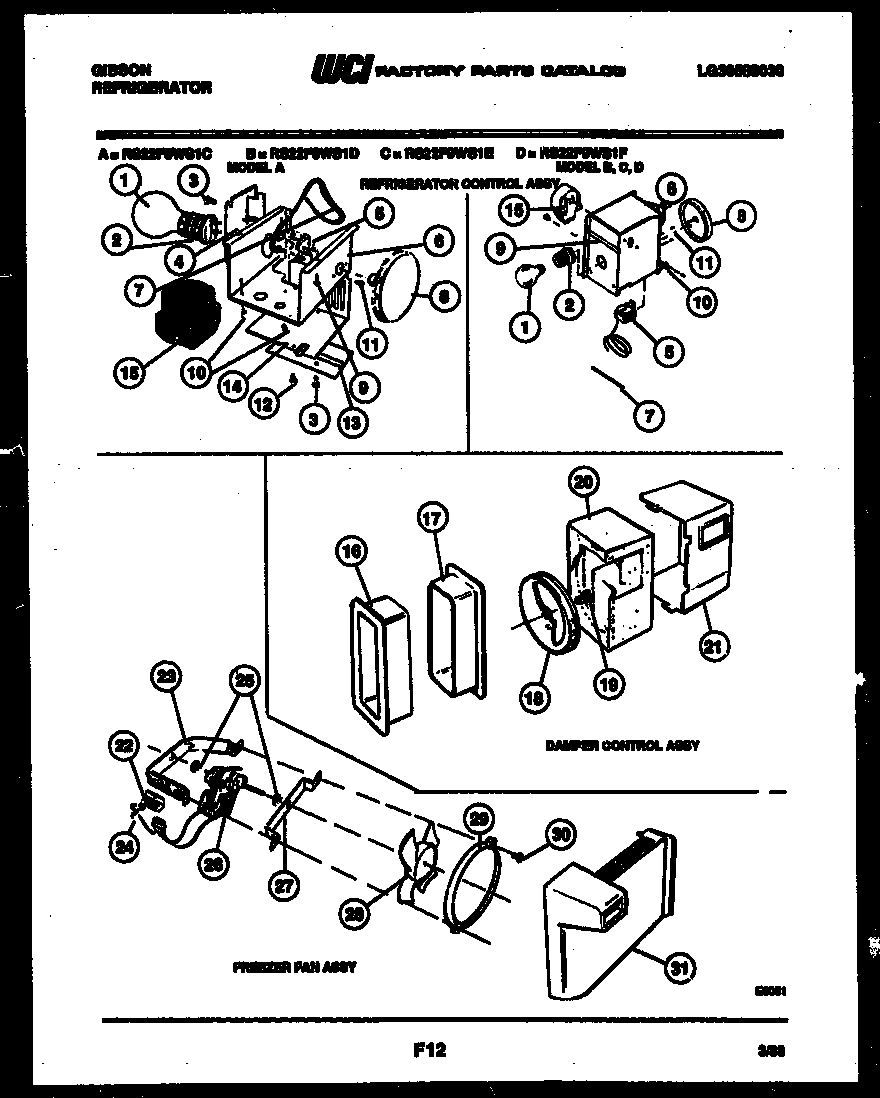

    Refrigerator control assembly, damper control assembly and f Diagram

    $25.54 |
    41% OFF MSRP:$43.00

    Back Order

    Refrigerator Strap

    #7

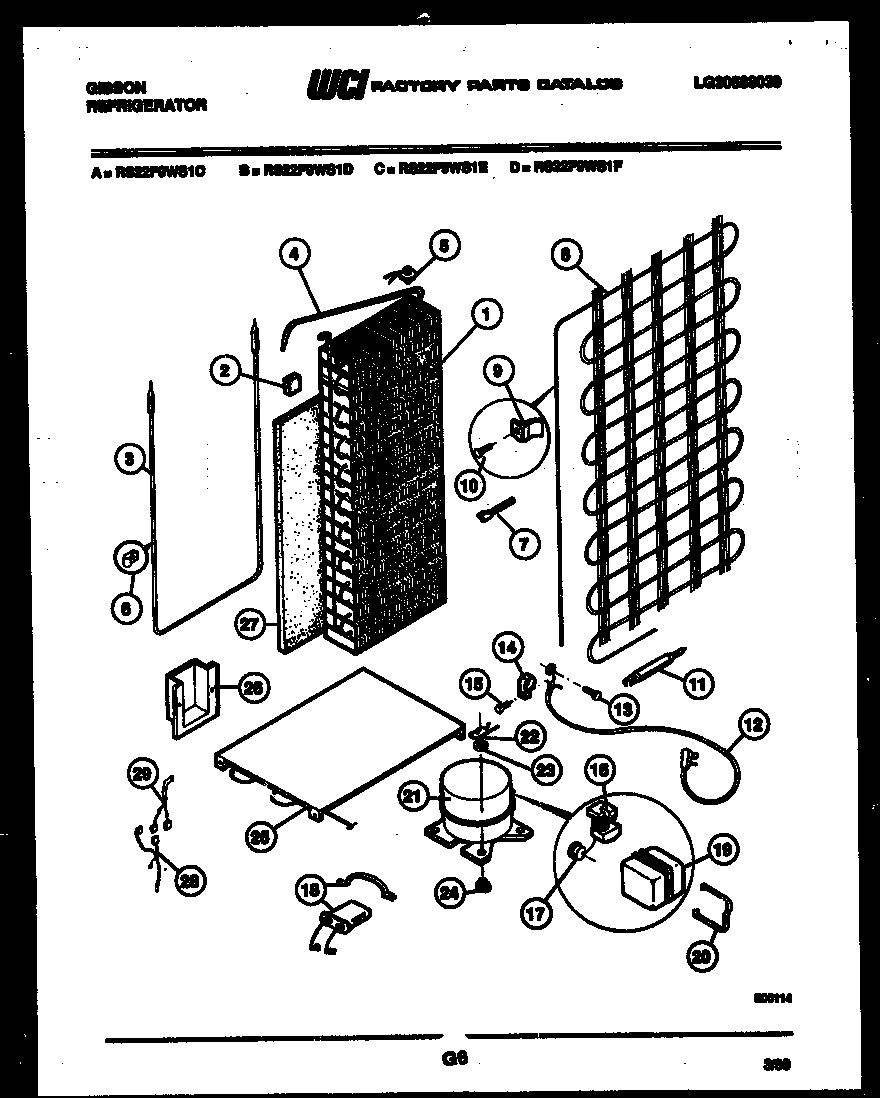

    System and automatic defrost parts Diagram

    Refrigerator strap

    Part #5308000110
    ?
    Manufacturer substitution
    This part replaces G165546. Substitute parts can look different from the original.
    This part replaces G165546
    $29.59 |
    31% OFF MSRP:$43.00

    In Stock

    Refrigerator Bracket

    #22

    Refrigerator control assembly, damper control assembly and f Diagram

    Refrigerator bracket

    Part #5308000107
    ?
    Manufacturer substitution
    This part replaces G164571. Substitute parts can look different from the original.
    This part replaces G164571
    $18.79 |
    35% OFF MSRP:$29.00

    In Stock

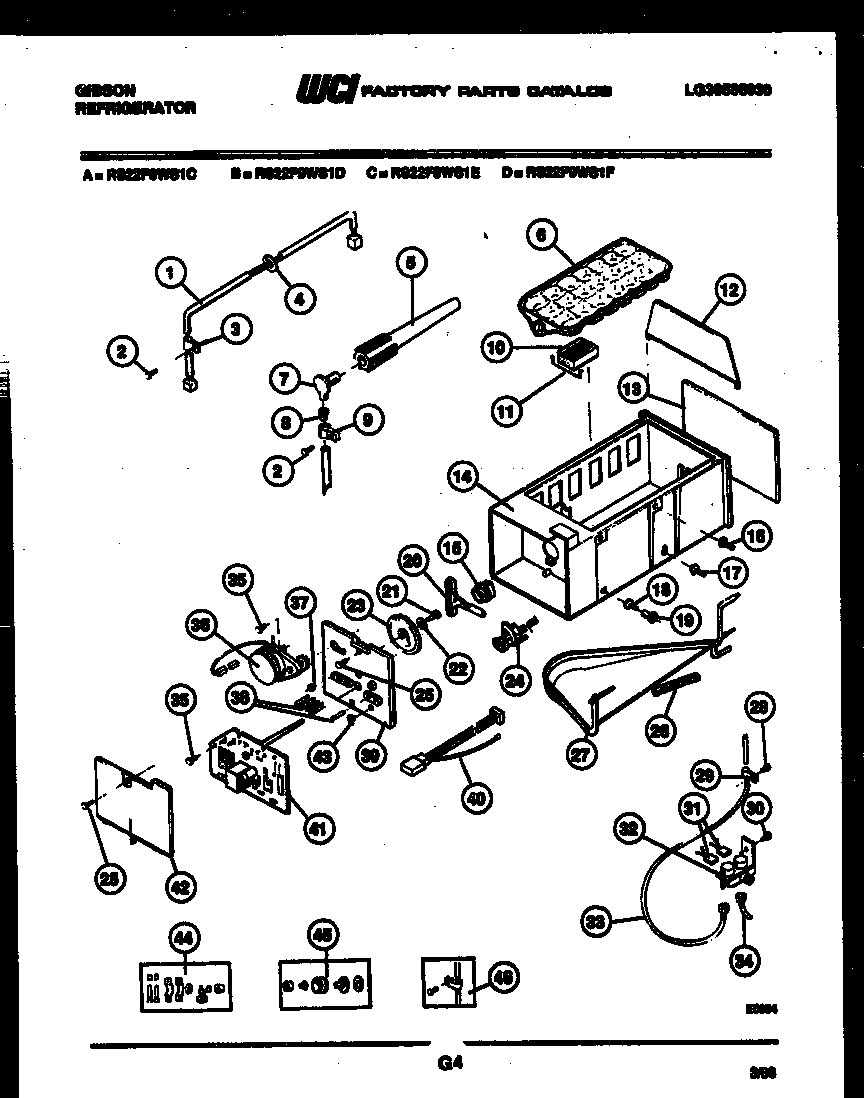

    Refrigerator Ice Maker Mounting Screw

    #9

    Refrigerator control assembly, damper control assembly and f Diagram

    Refrigerator ice maker mounting screw

    Part #5304455852
    ?
    Manufacturer substitution
    This part replaces G166567. Substitute parts can look different from the original.
    This part replaces G166567
    $13.92

    In Stock

    Refrigerator Freezer Housing

    #4

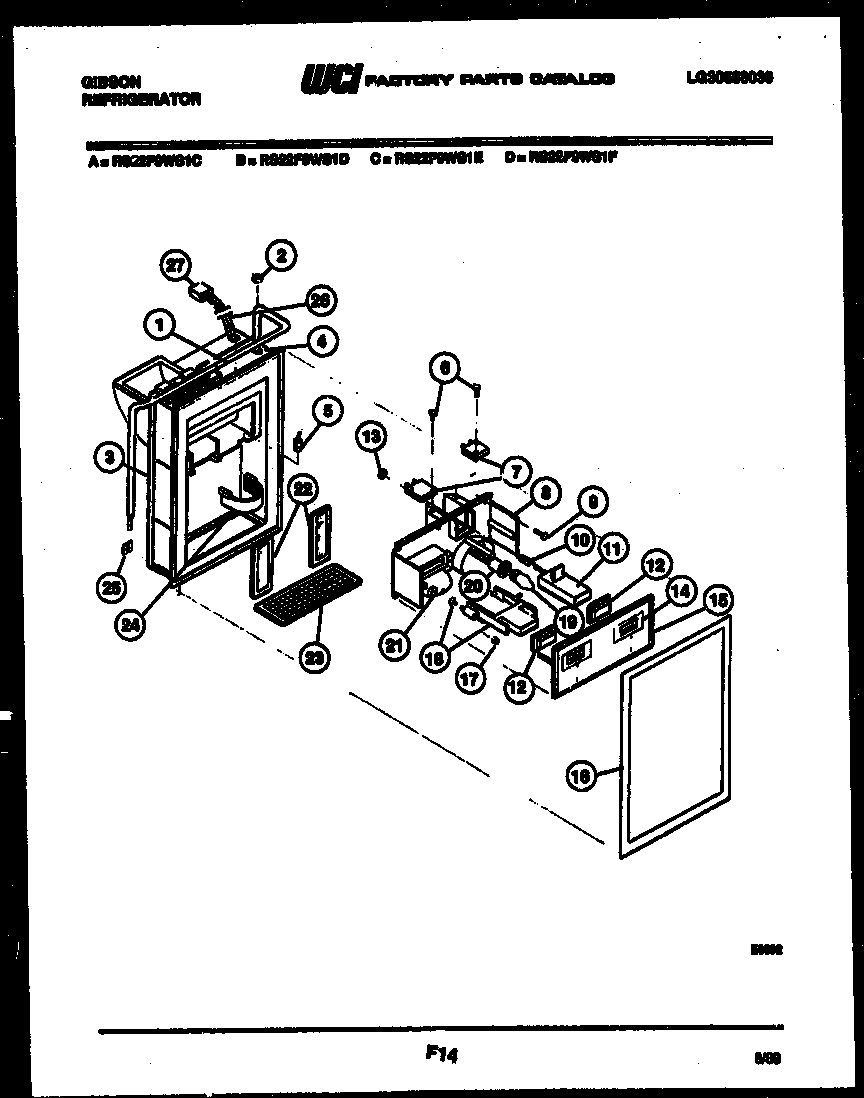

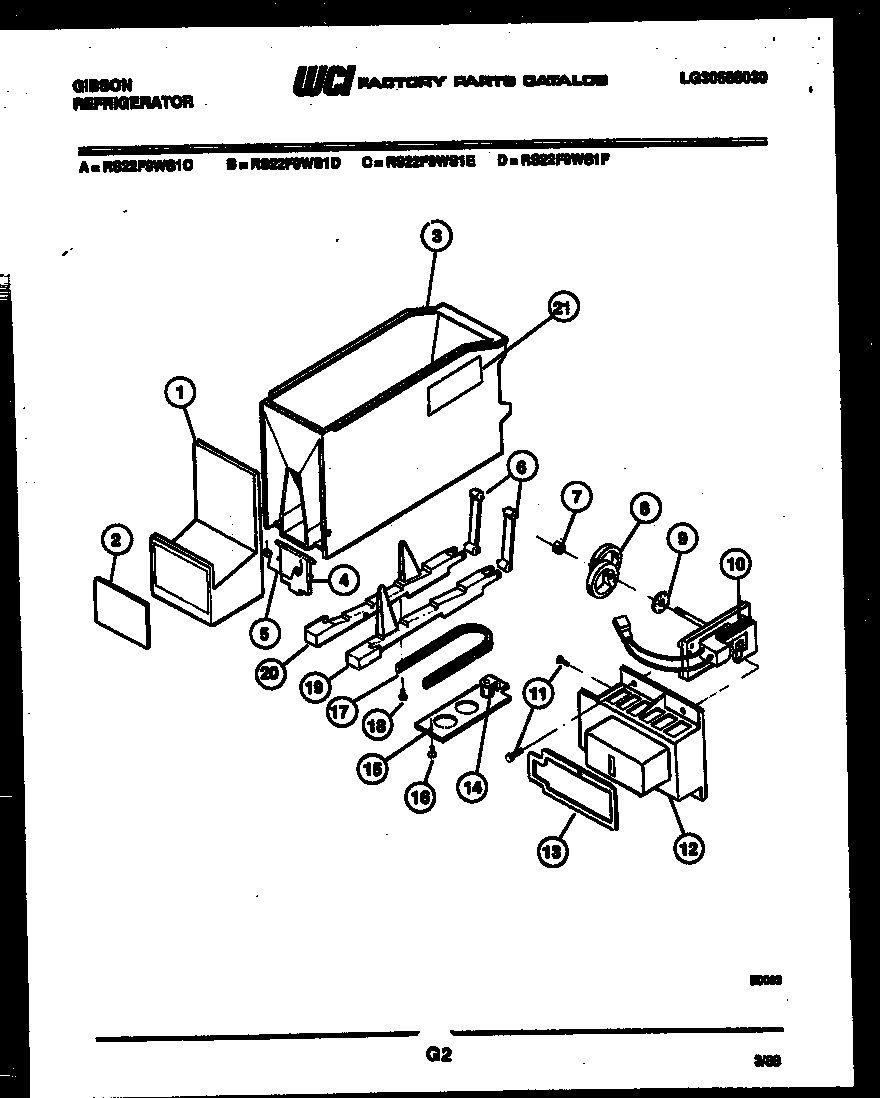

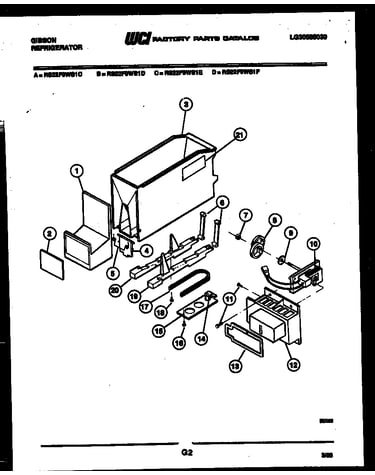

    Ice door, dispenser and water tank Diagram

    Refrigerator freezer housing

    Part #5303211547
    ?
    Manufacturer substitution
    This part replaces 3017350. Substitute parts can look different from the original.
    This part replaces 3017350
    $86.49

    In Stock

    Refrigerator Temperature Control Thermostat

    #5

    Refrigerator control assembly, damper control assembly and f Diagram

    Refrigerator temperature control thermostat

    Part #5308000068
    ?
    Manufacturer substitution
    This part replaces G162205-05. Substitute parts can look different from the original.
    This part replaces G162205-05
    $71.51 |
    55% OFF MSRP:$160.00

    In Stock

    Refrigerator Door Shelf

    #12

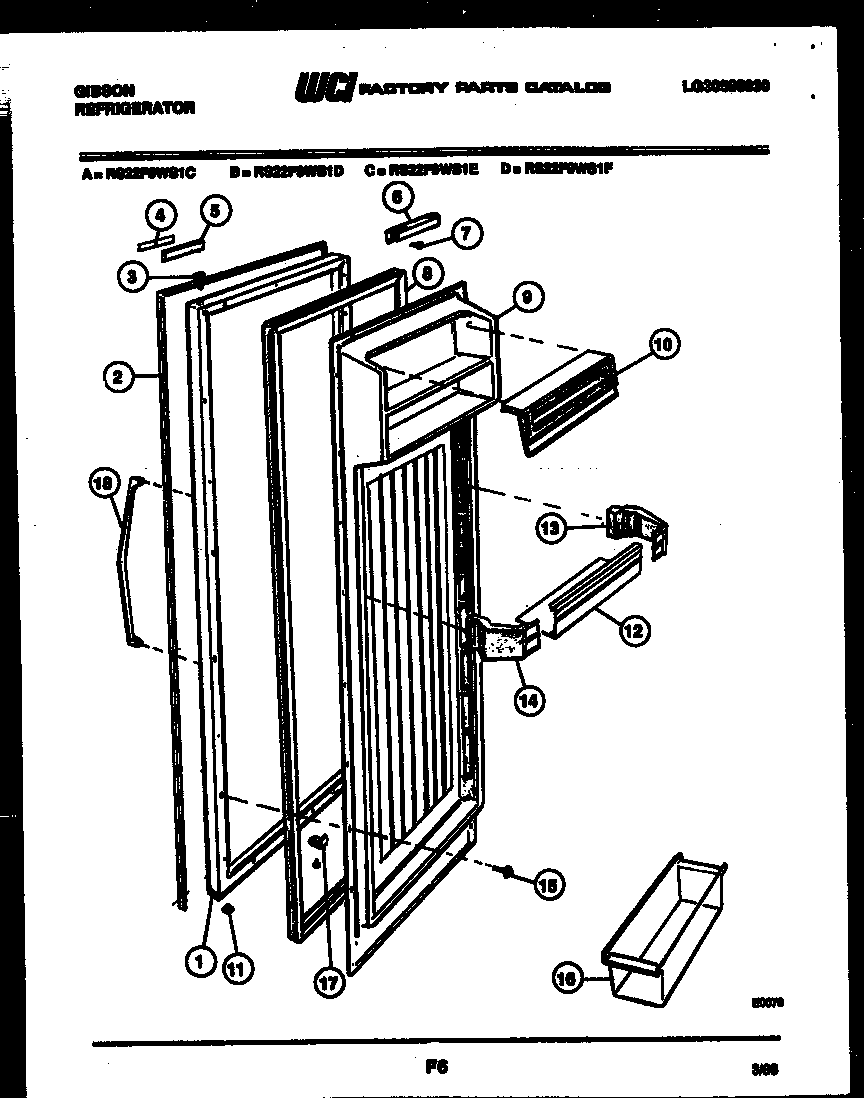

    Refrigerator door parts Diagram

    Refrigerator door shelf

    Part #5303292050
    ?
    Manufacturer substitution
    This part replaces G164109-21. Substitute parts can look different from the original.
    This part replaces G164109-21
    $45.80

    In Stock

    Refrigerator Light Socket

    #18

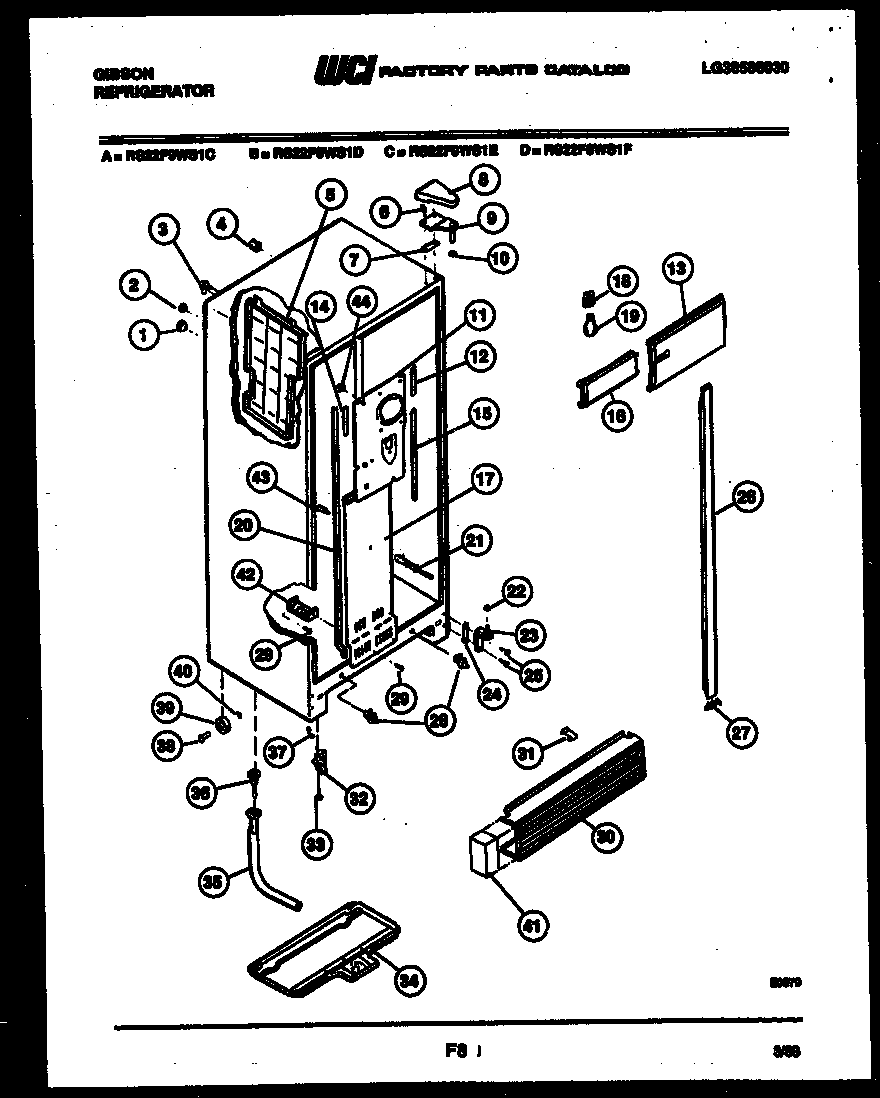

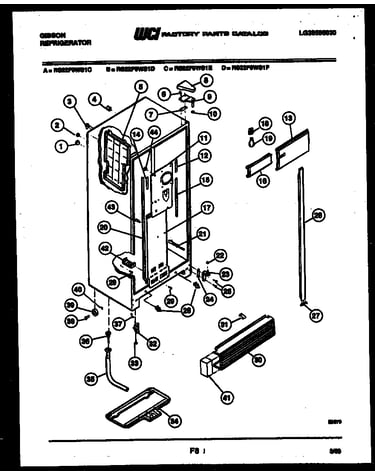

    Cabinet parts Diagram

    Refrigerator light socket

    Part #218906802
    ?
    Manufacturer substitution
    This part replaces G168510. Substitute parts can look different from the original.
    This part replaces G168510
    $11.00 |
    39% OFF MSRP:$18.00

    In Stock

    Refrigerator Screw

    #16A

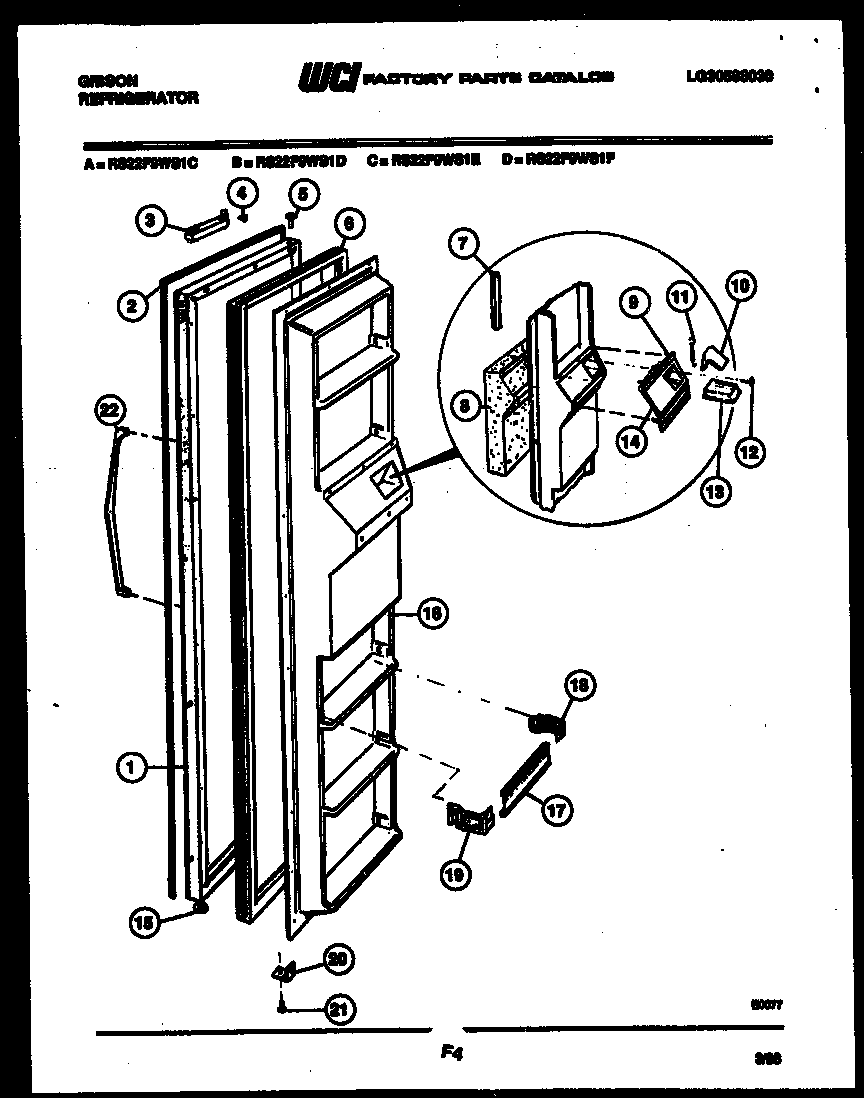

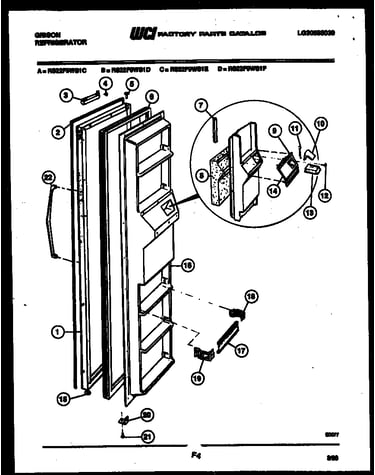

    Freezer door parts Diagram

    Refrigerator screw

    Part #5304455651
    ?
    Manufacturer substitution
    This part replaces G162585. Substitute parts can look different from the original.
    This part replaces G162585
    This item is not returnable
    $7.43

    In Stock
