Speed Queen
Washer

Model # AWN43RSN116TW01 Official Speed Queen washer

Here are the diagrams and repair parts for Official Speed Queen AWN43RSN116TW01 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

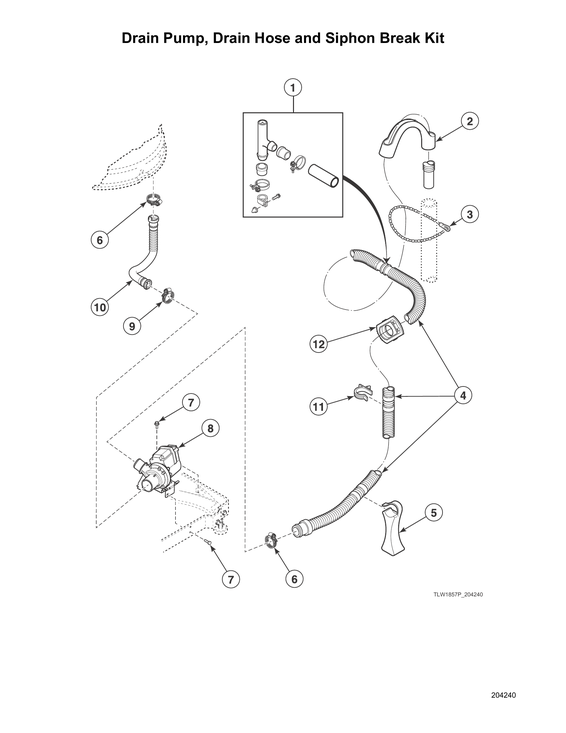

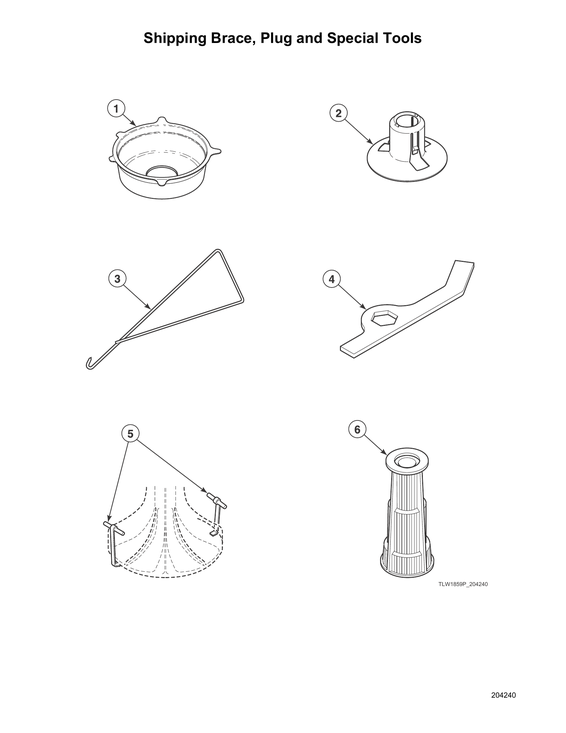

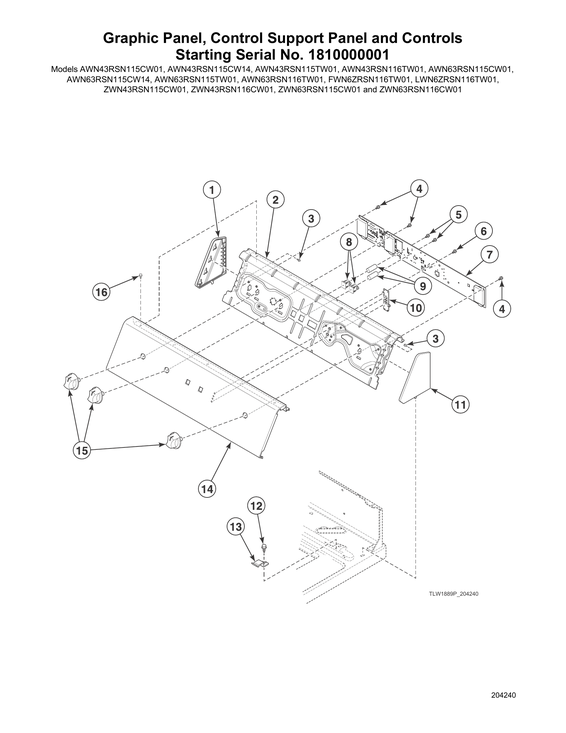

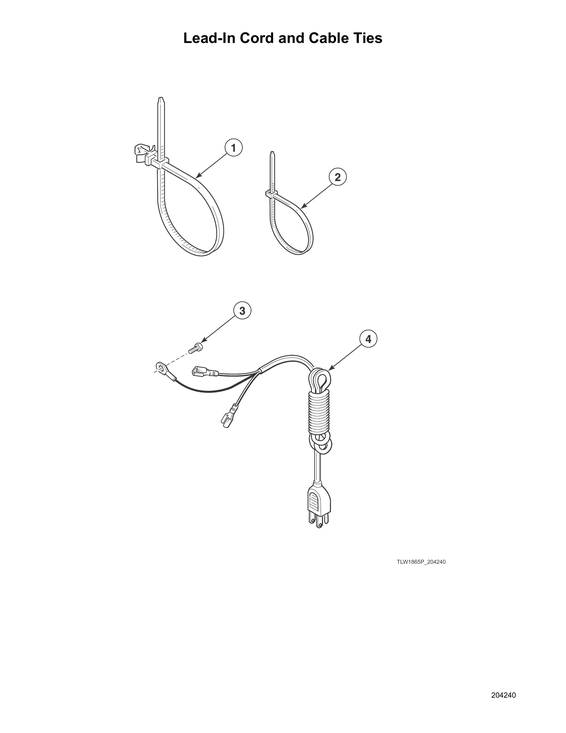

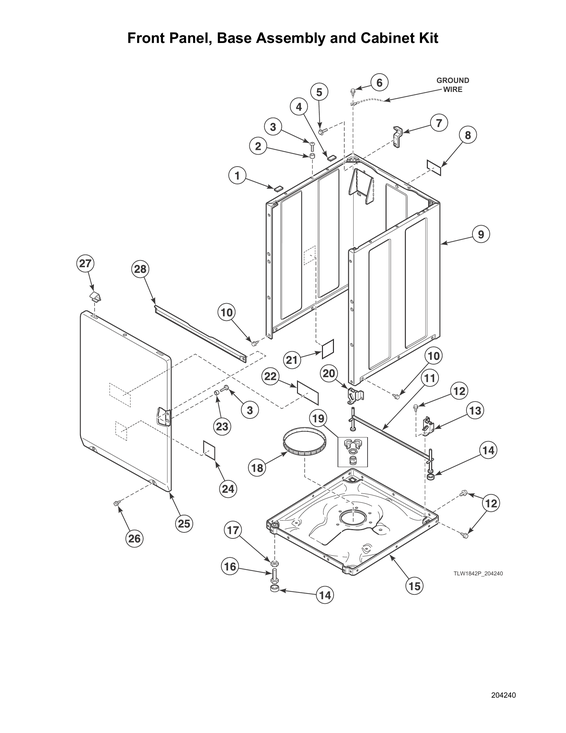

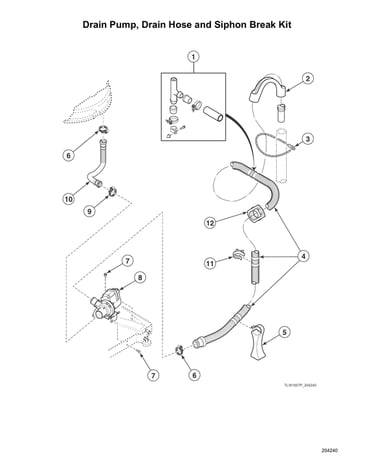

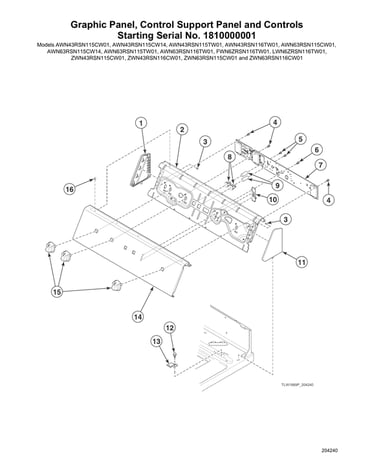

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 171 parts  |
Mixing Valve - All Other Models 202395P
#9

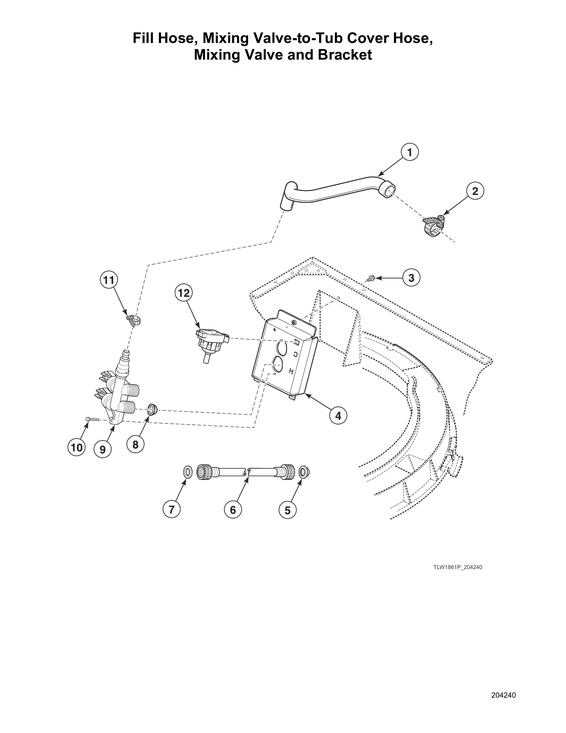

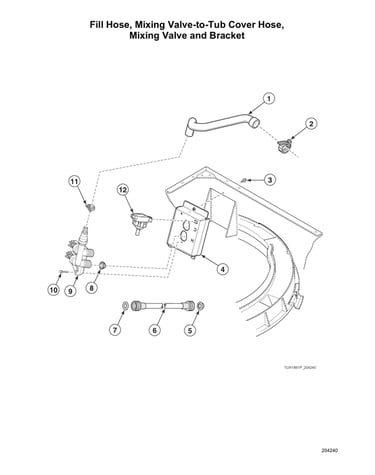

Fill hose/mixing valve-to-tub cover hose/mixing valve/bracket diagram

Mixing valve - all other models

Part #202395P

$84.11
In Stock
Lid Lock (through Serial No. 1905999999) 203504
#15

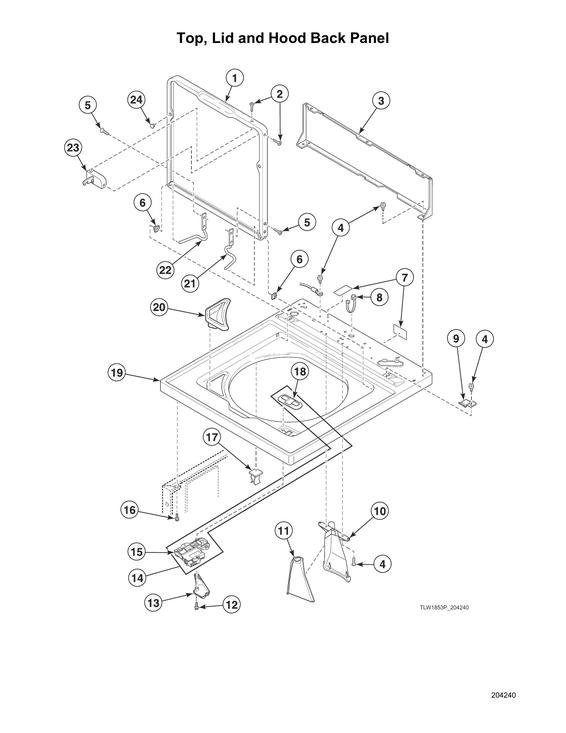

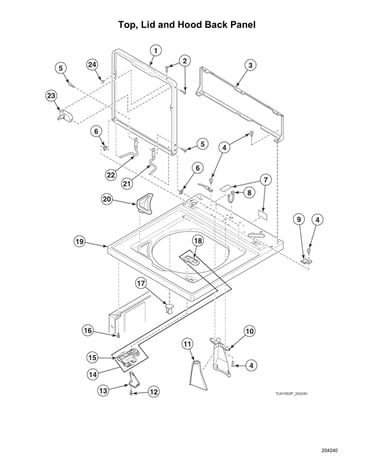

Top/lid/hood back panel diagram

Lid lock (through serial no. 1905999999)

Part #203504

$111.11
In Stock
Lid Lock Catch 203573
#23

Top/lid/hood back panel diagram

Lid lock catch

Part #203573

$29.56
In Stock

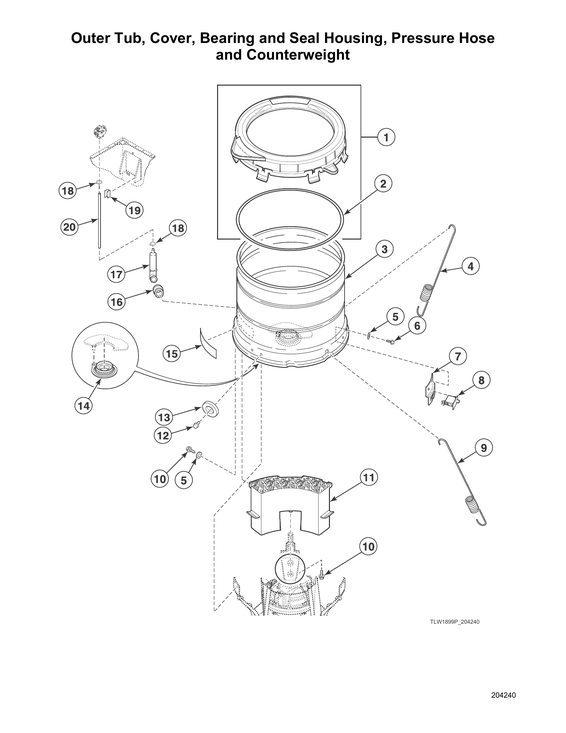

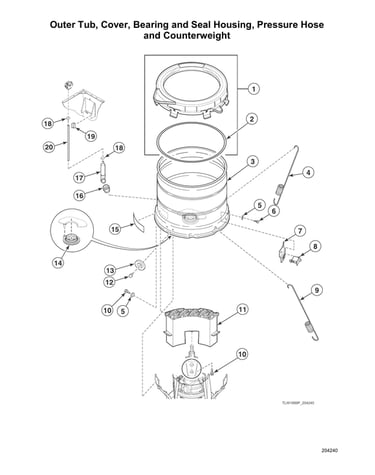

Washer Counterweight Spring 37575
Washer counterweight spring

Part #37575

The manufacturer no longer makes this part, and there's no substitute part

Drive Cover 203612
#8

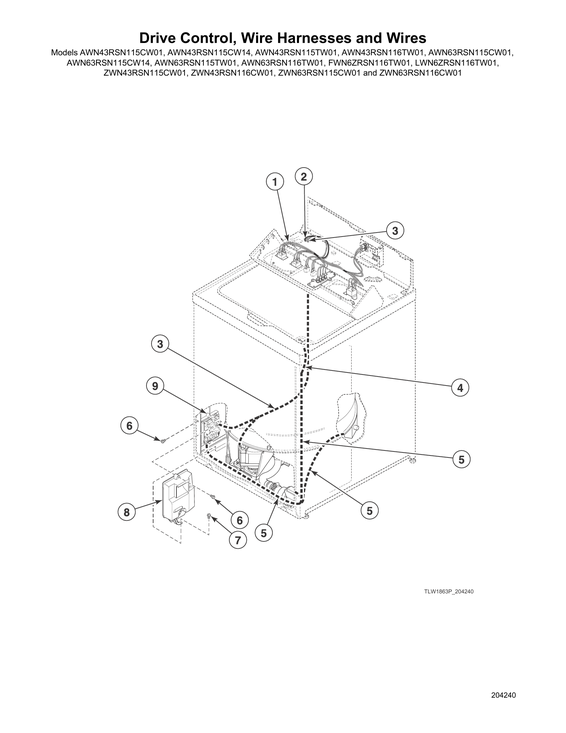

Drive control/wire harnesses/wires diagram

Drive cover

Part #203612

$23.04
In Stock
Belt 204690
#4

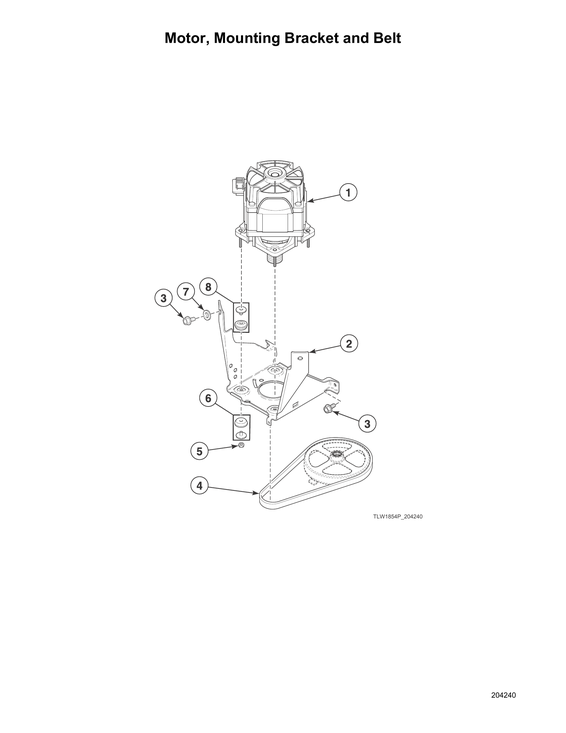

Motor/mounting bracket/belt diagram

Belt

Part #204690

$27.66
In Stock
Washer Tub Support And Bearing Assembly 39253
#3

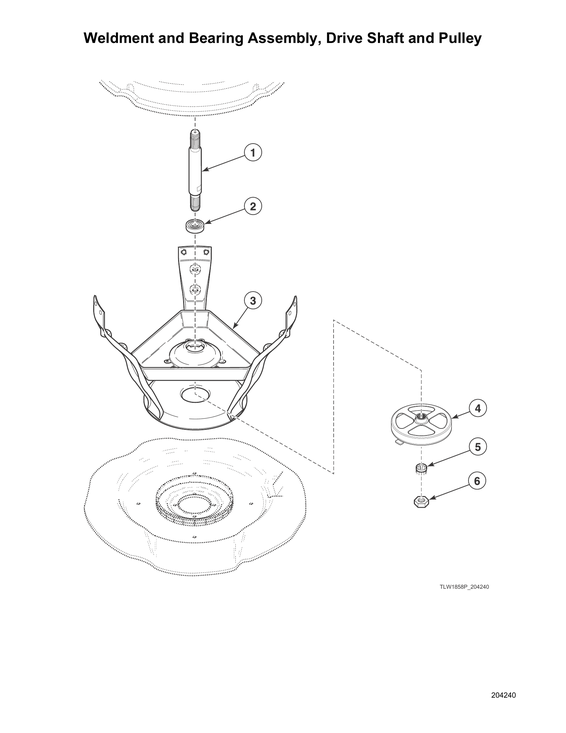

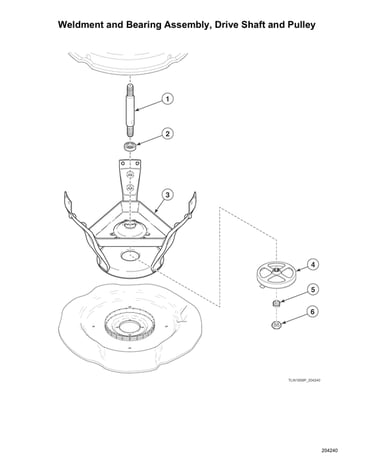

Weldment/bearing assy/drive shaft/pulley diagram

Washer tub support and bearing assembly

Part #39253

The manufacturer no longer makes this part, and there's no substitute part

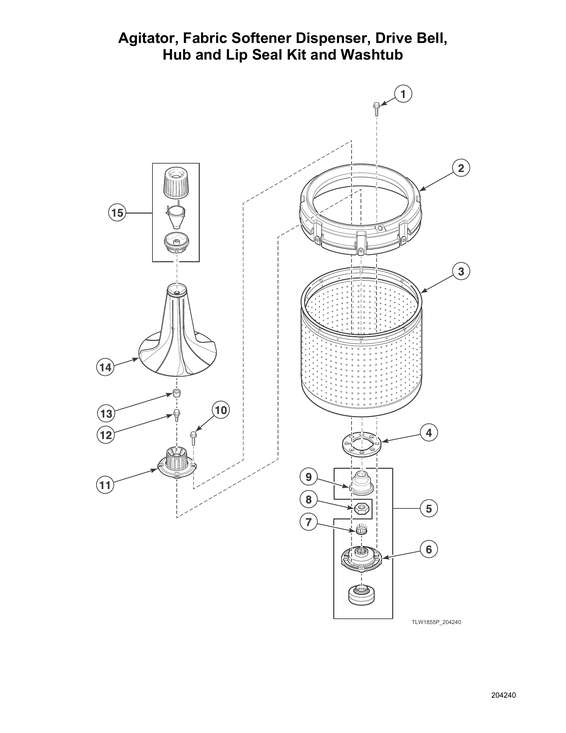

Washer Hub And Seal Kit 766P3A
Washer hub and seal kit

Part #766P3A

The manufacturer no longer makes this part, and there's no substitute part

Lid Switch Kit 204696
#1

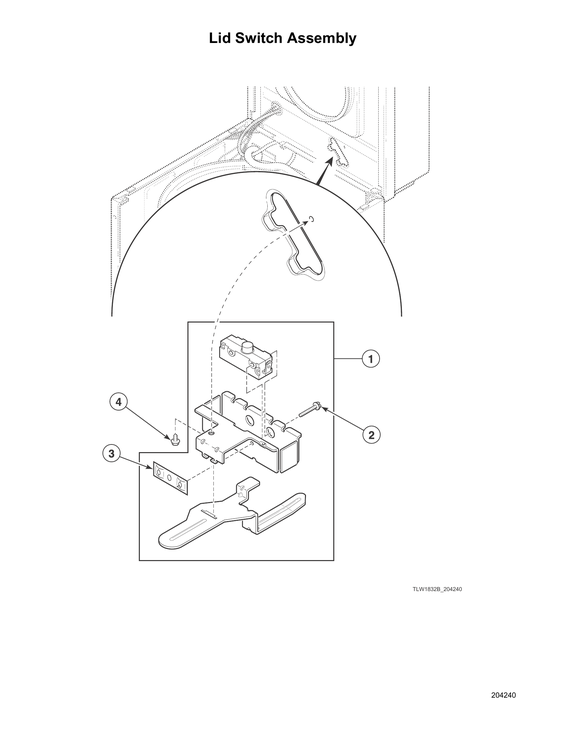

Lid switch assy diagram

Lid switch kit

Part #204696

The manufacturer no longer makes this part, and there's no substitute part

Appliance Silicone Sealant 200996P
Appliance silicone sealant

Part #200996P

The manufacturer no longer makes this part, and there's no substitute part
