Crosley
Gas Cooktop

Model # CGLW821K Official Crosley gas counter unit cooktop

Here are the diagrams and repair parts for Official Crosley CGLW821K gas counter unit cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Screw 7118P004-60
#4A

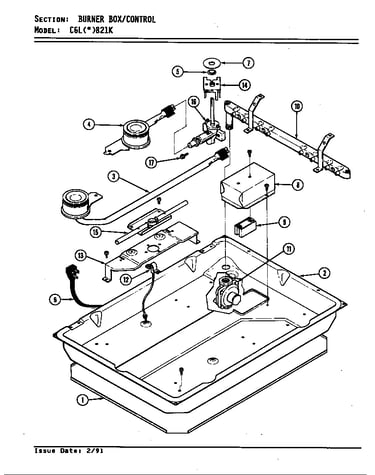

Burner box diagram

Screw

Part #7118P004-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7118P004-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Grate 2003W001-00
#1

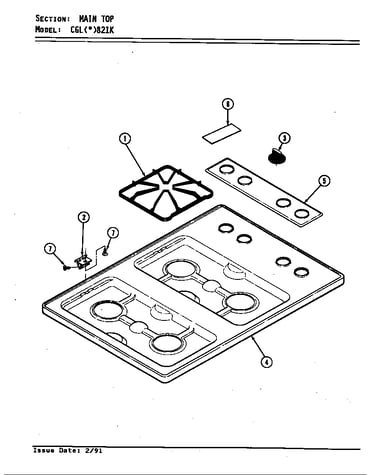

Top assembly diagram

Grate

Part #2003W001-00

Replaced by #W11400301

?
Manufacturer substitution
This part replaces 2003W001-00. Substitute parts can look different from the original.
$103.49 |
9% OFF Phone Price : $113.49
In Stock
Burner Switch 7403P190-60
#14

Burner box diagram

Burner switch

Part #7403P190-60

Replaced by #WP7403P190-60

?
Manufacturer substitution
This part replaces 7403P190-60. Substitute parts can look different from the original.
$53.36 |
9% OFF Phone Price : $58.36
In Stock
Grate (black) 2003W026-00
#1A

Top assembly diagram

Grate (black)

Part #2003W026-00

Replaced by #W11400301

?
Manufacturer substitution
This part replaces 2003W026-00. Substitute parts can look different from the original.
$103.49 |
9% OFF Phone Price : $113.49
In Stock
Screw (wht) 7101P261-60
#7

Top assembly diagram

Screw (wht)

Part #7101P261-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P261-60. Substitute parts can look different from the original.
This item is not returnable
$4.03 |
20% OFF Phone Price : $5.03
In Stock
Main Top 2001W067-84
#4A

Top assembly diagram

Main top

Part #2001W067-84

The manufacturer no longer makes this part, and there's no substitute part

Hi Me Valve 7502P121-60
#16

Burner box diagram

Hi me valve

Part #7502P121-60

The manufacturer no longer makes this part, and there's no substitute part

Baffle 3601F185-51
#1

Burner box diagram

Baffle

Part #3601F185-51

The manufacturer no longer makes this part, and there's no substitute part

Control Panel 7720P146-60
#5

Top assembly diagram

Control panel

Part #7720P146-60

The manufacturer no longer makes this part, and there's no substitute part

Burner 4011F141-23
#2

Burner box diagram

Burner

Part #4011F141-23

The manufacturer no longer makes this part, and there's no substitute part
