Side-By-Side Refrigerator

Model # GSH25JFTFWW Official GE refrigerator - t series

Here are the diagrams and repair parts for Official GE GSH25JFTFWW refrigerator - t series, as well as links to manuals and error code tables, if available.

By Schematic
By Part

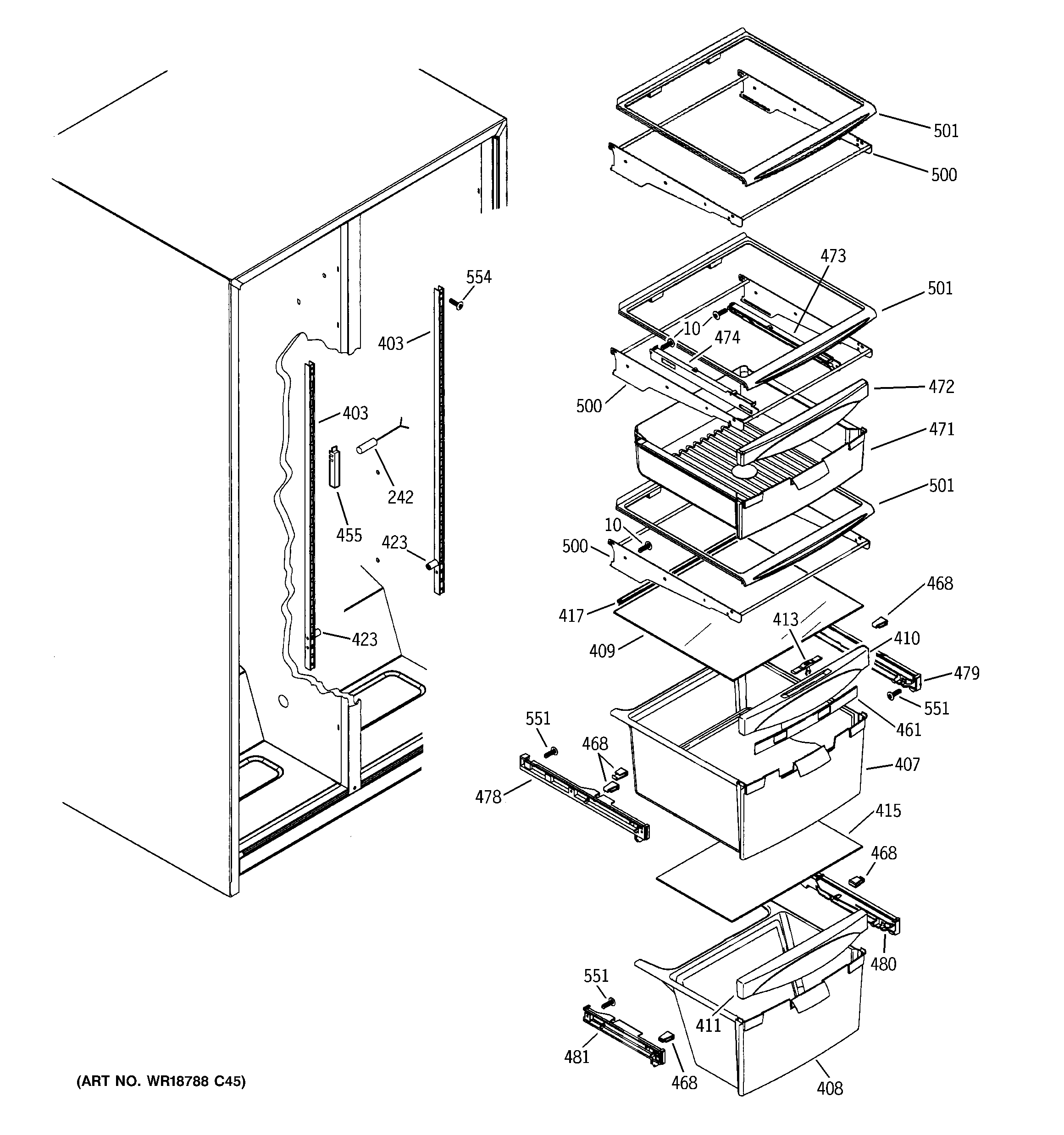

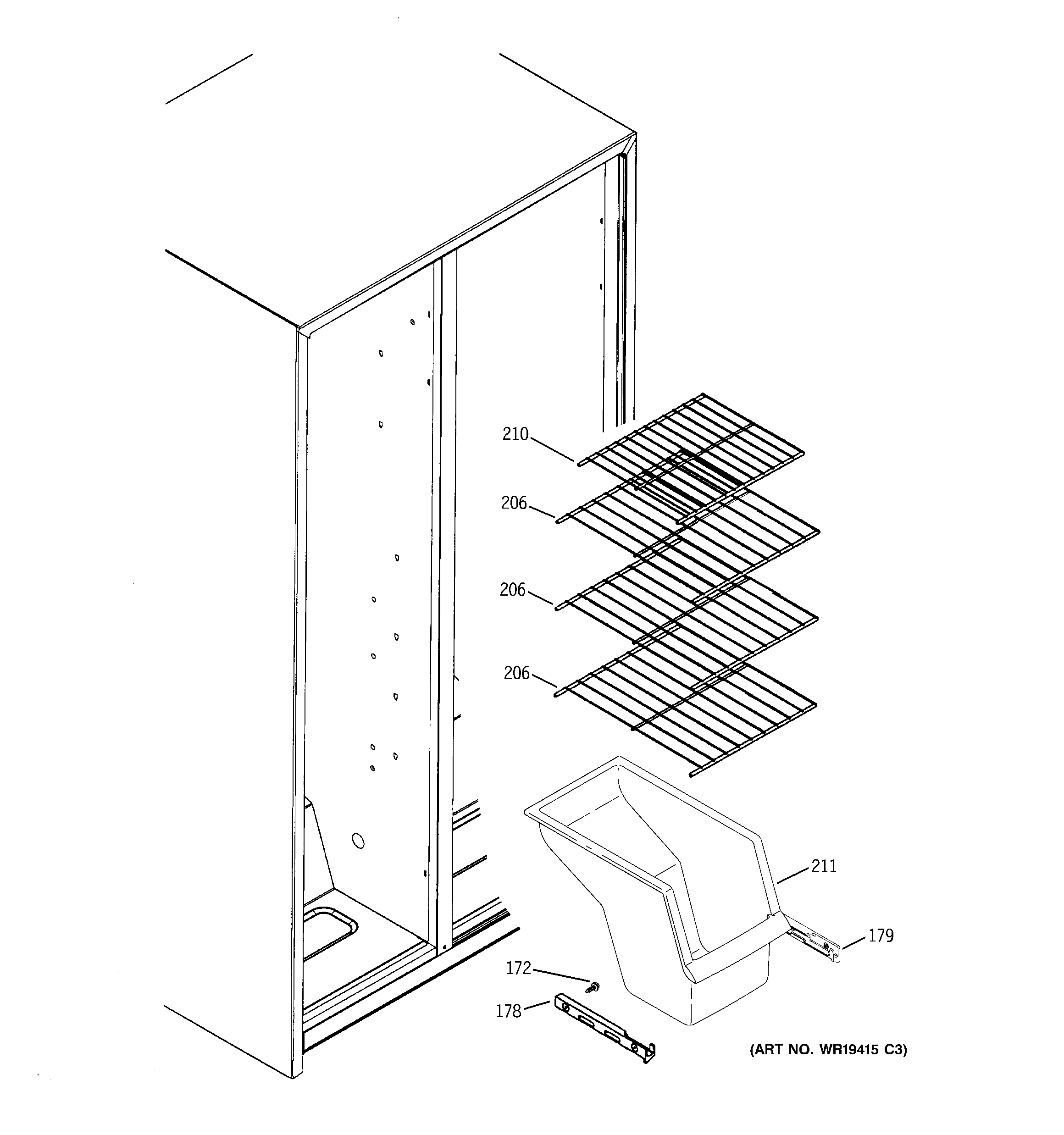

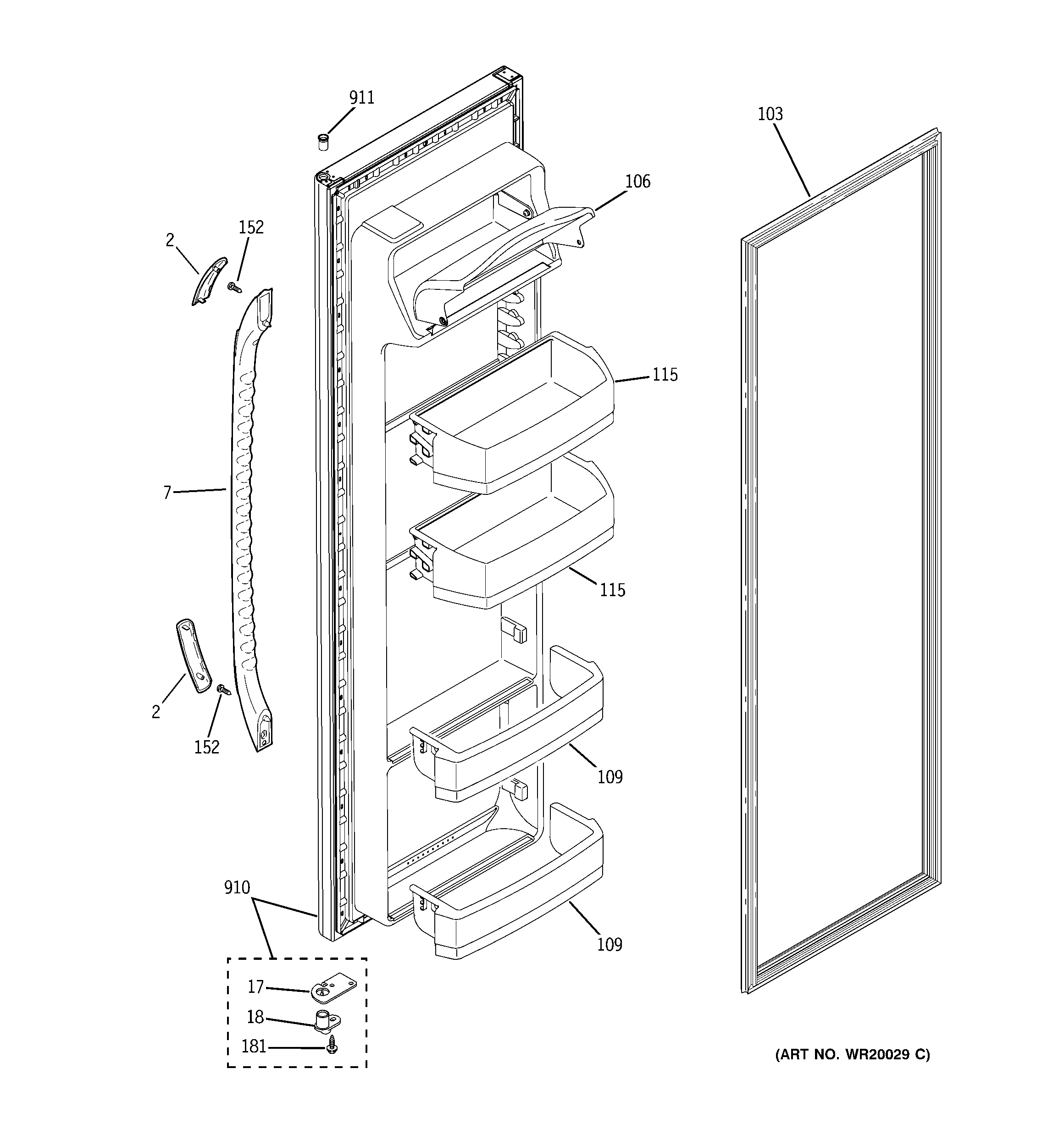

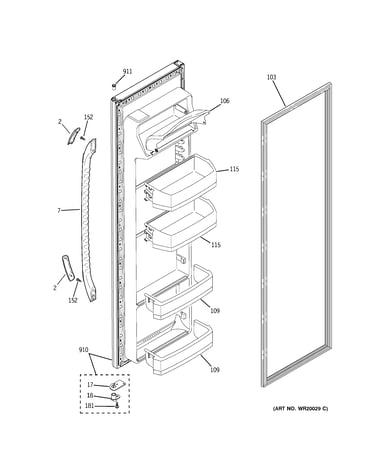

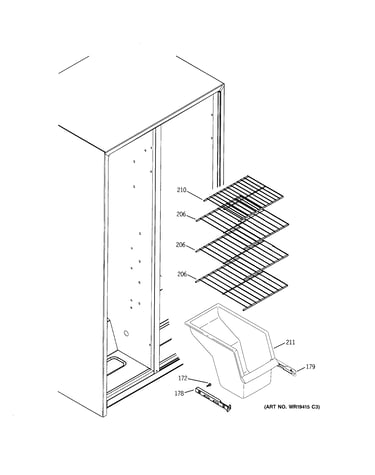

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forGSH25JFTFWW Refrigerators

  • Refrigerator Temperature Sensor WR55X10735
    #241

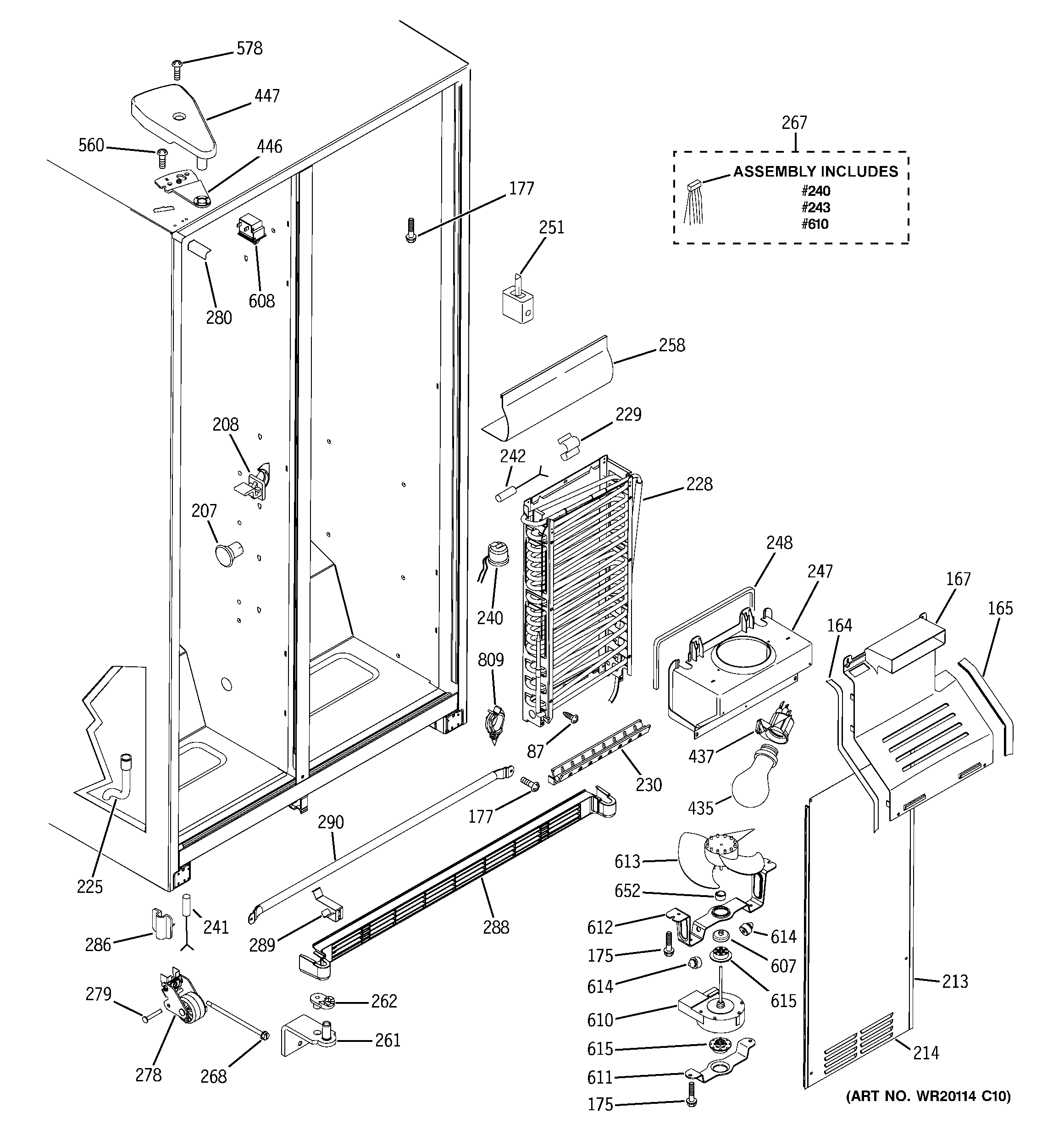

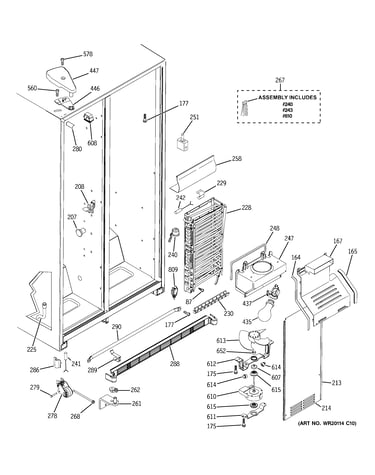

    Freezer section diagram

    Refrigerator temperature sensor

    Part #WR55X10735

    Replaced by #WR55X10025

    ?
    Manufacturer substitution
    This part replaces WR55X10735. Substitute parts can look different from the original.
    BEST SELLER
    $19.24
    30% OFF Phone Price : $27.65
    In Stock
  • Refrigerator Temperature Sensor WR55X10736
    Refrigerator temperature sensor

    Part #WR55X10736

    Replaced by #WR55X10025

    ?
    Manufacturer substitution
    This part replaces WR55X10736. Substitute parts can look different from the original.
    BEST SELLER
    $19.24
    30% OFF Phone Price : $27.65
    In Stock
  • Electronic I WR30X10061
    #820

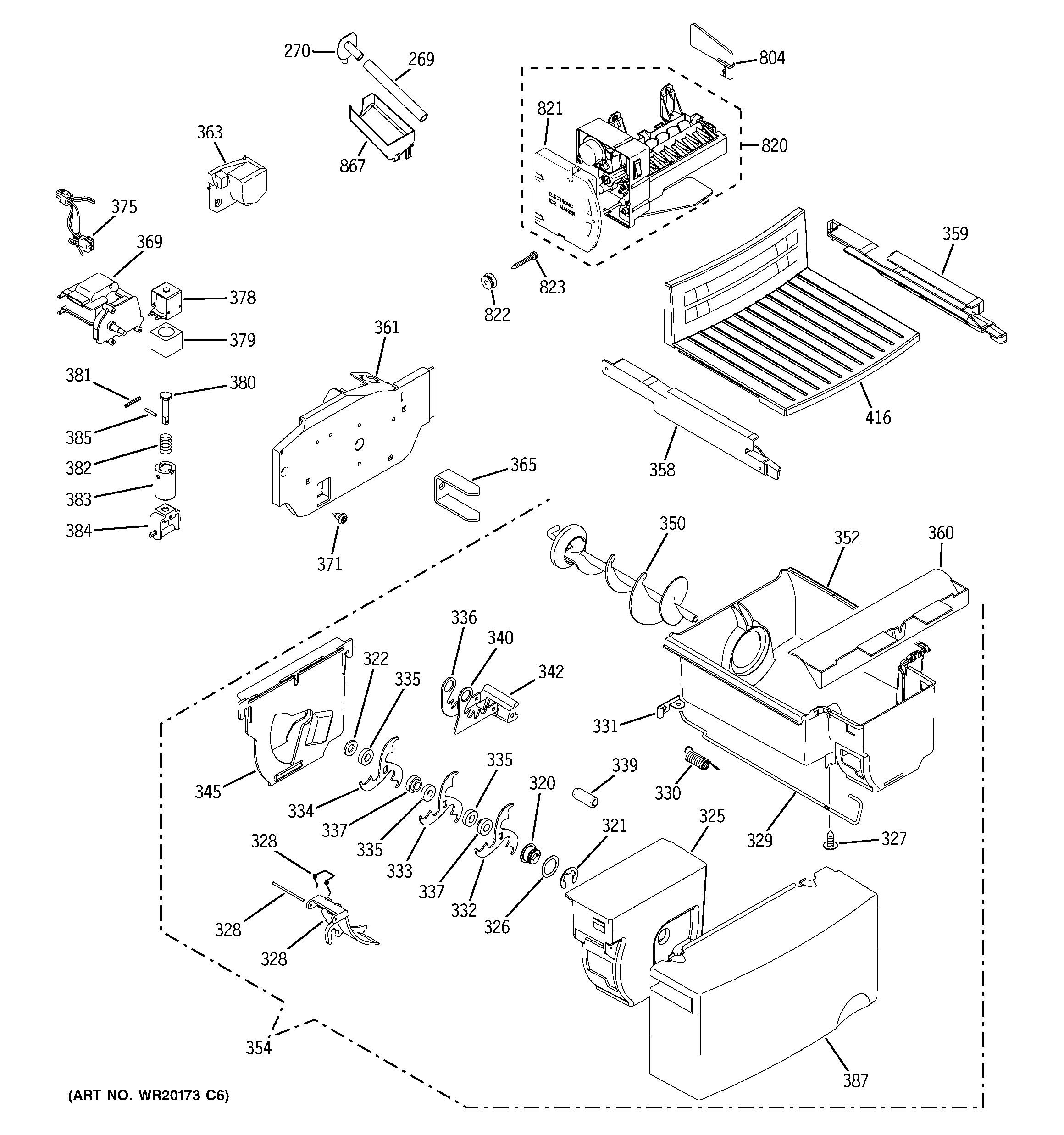

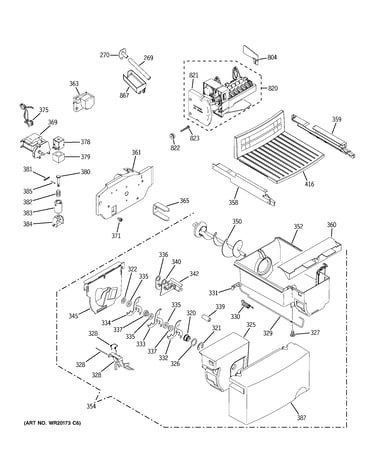

    Ice maker & dispenser diagram

    Electronic i

    Part #WR30X10061

    Replaced by #WR30X10093

    ?
    Manufacturer substitution
    This part replaces WR30X10061. Substitute parts can look different from the original.
    BEST SELLER
    $185.29
    15% OFF Phone Price : $218.32
    In Stock
  • Ge Refrigerator Water Filter MWF
    #790

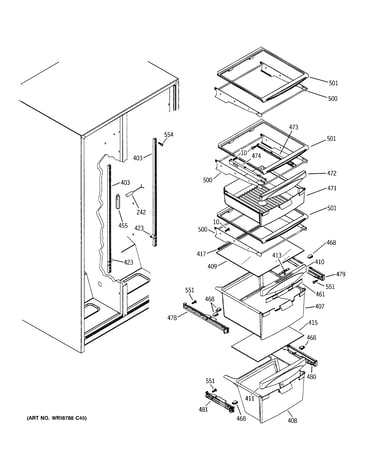

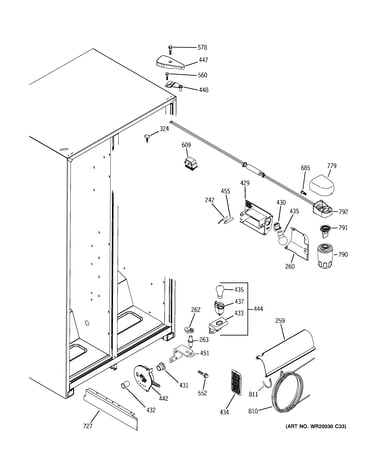

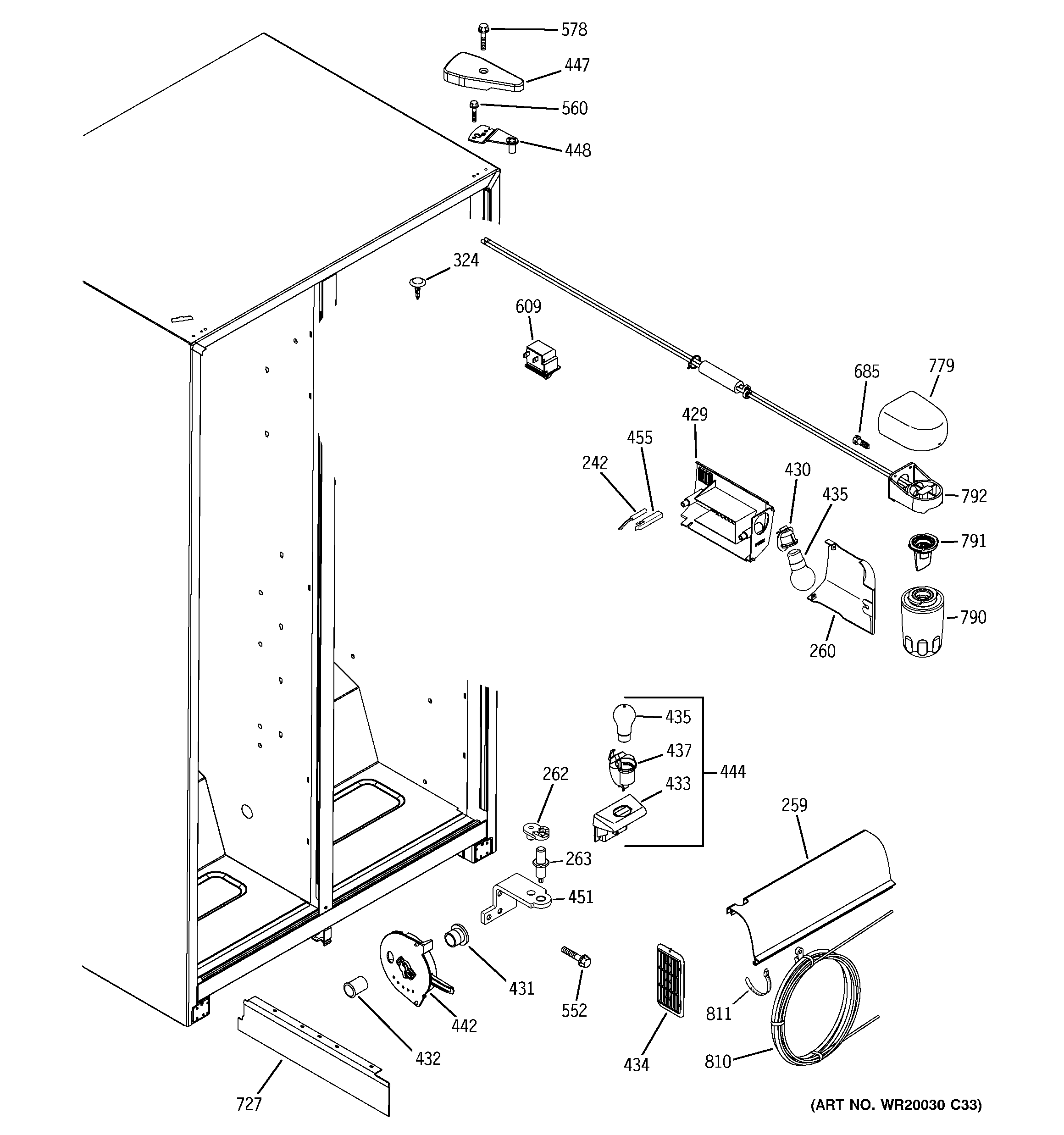

    Fresh food section diagram

    Ge refrigerator water filter

    Part #MWF

    Replaced by #MWFP

    ?
    Manufacturer substitution
    This part replaces MWF. Substitute parts can look different from the original.
    BEST SELLER

    Get free shipping with Automatic Reorder

    $57.92
    9% OFF Phone Price : $63.92
    In Stock
  • Refrigerator Filter Dryer WR86X96
    #740

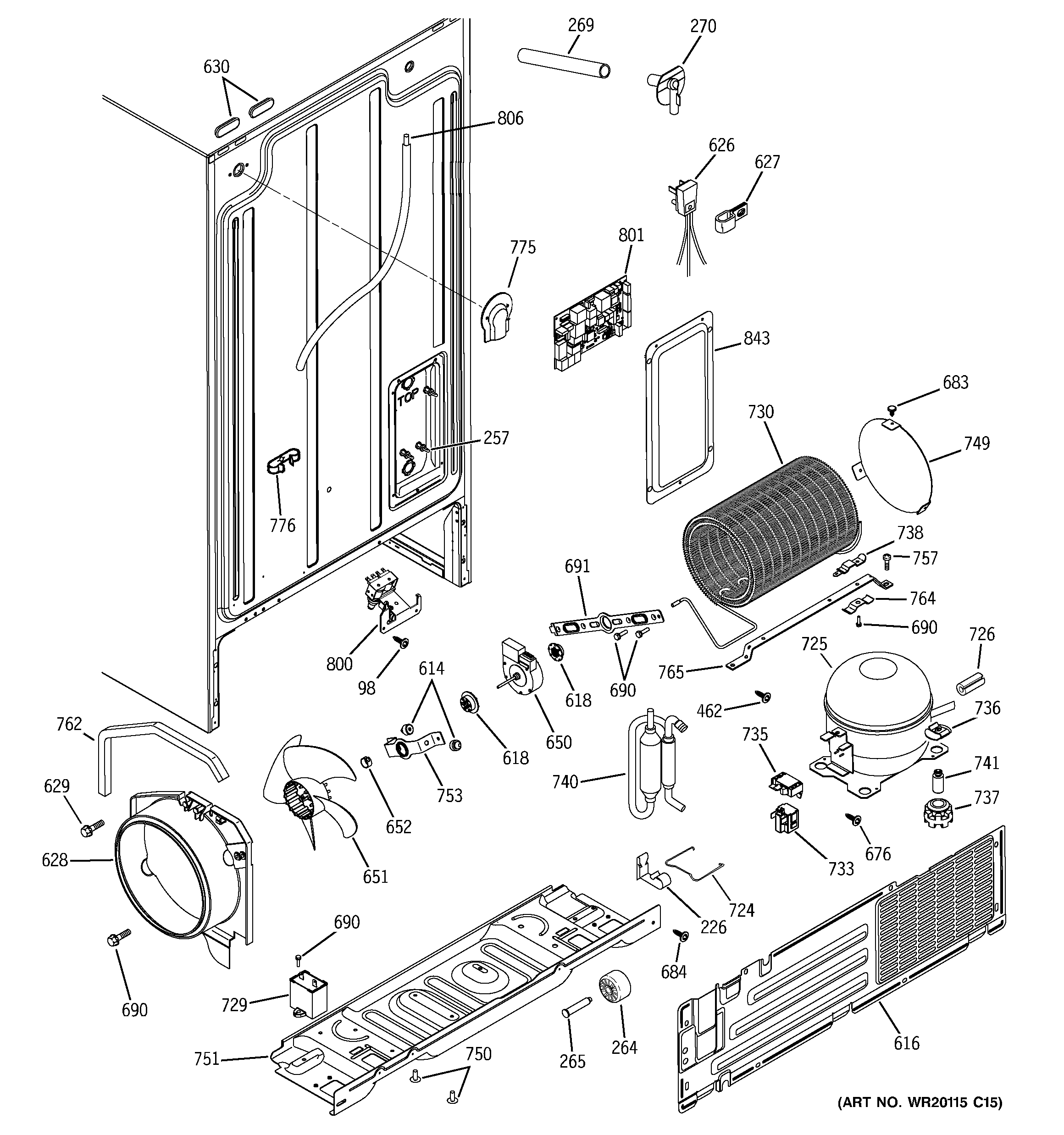

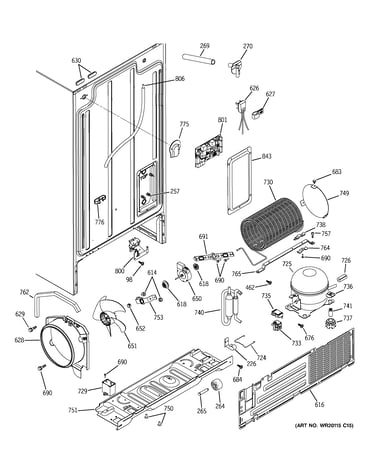

    Sealed system & mother board diagram

    Refrigerator filter dryer

    Part #WR86X96

    Replaced by #WR86X25269

    ?
    Manufacturer substitution
    This part replaces WR86X96. Substitute parts can look different from the original.
    BEST SELLER
    $74.11
    7% OFF Phone Price : $80.11
    In Stock
  • Refrigerator Water Valve WR57X10040
    #800

    Sealed system & mother board diagram

    Refrigerator water valve

    Part #WR57X10040

    Replaced by #WR57X33326

    ?
    Manufacturer substitution
    This part replaces WR57X10040. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
  • Refrigerator Light Bulb 60A
    Refrigerator light bulb

    Part #60A

    Replaced by #40A15

    ?
    Manufacturer substitution
    This part replaces 60A. Substitute parts can look different from the original.
    BEST SELLER
    $15.06
    9% OFF Phone Price : $16.62
    In Stock
  • Comp. Repl. WR87X10098
    #725

    Sealed system & mother board diagram

    Comp. repl.

    Part #WR87X10098

    Replaced by #WR87X20798

    ?
    Manufacturer substitution
    This part replaces WR87X10098. Substitute parts can look different from the original.
    BEST SELLER
    $448.79
    $12.00 OFF Phone Price : $460.79
    In Stock
  • Rca Refrigerator Dispenser Ice Chute Door Solenoid WR62X10055
    #36

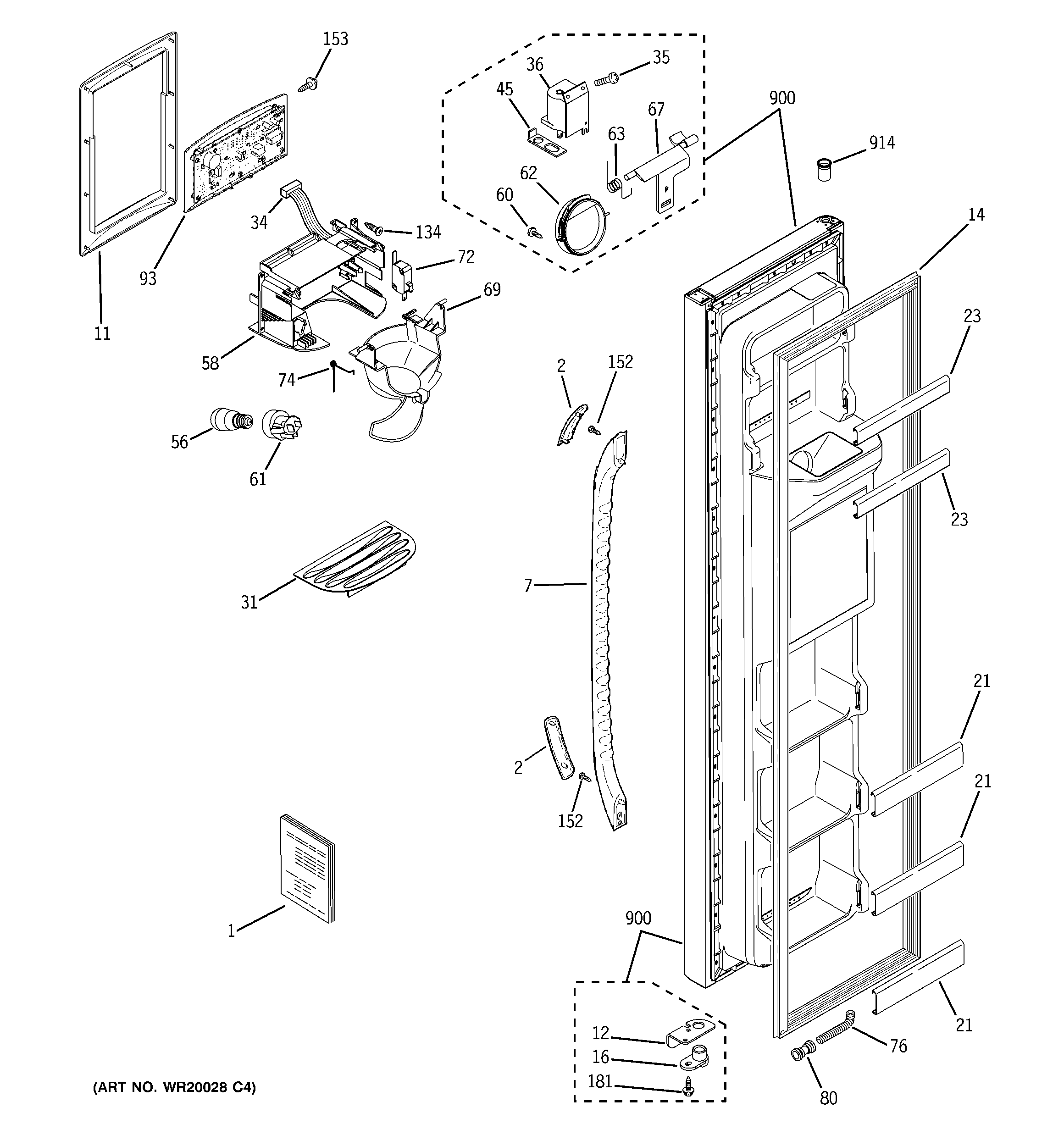

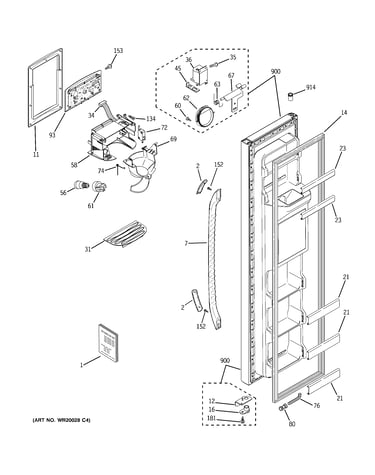

    Freezer door diagram

    Rca refrigerator dispenser ice chute door solenoid

    Part #WR62X10055

    BEST SELLER
    $55.99
    11% OFF Phone Price : $63.18
    In Stock
  • Refrigerator Dispenser Ice Chute Door Kit WR17X11653
    #62

    Freezer door diagram

    Refrigerator dispenser ice chute door kit

    Part #WR17X11653

    BEST SELLER
    $15.42
    11% OFF Phone Price : $17.42
