Craftsman
Gas Snowblower

Model #536885180 Official Craftsman snow thrower

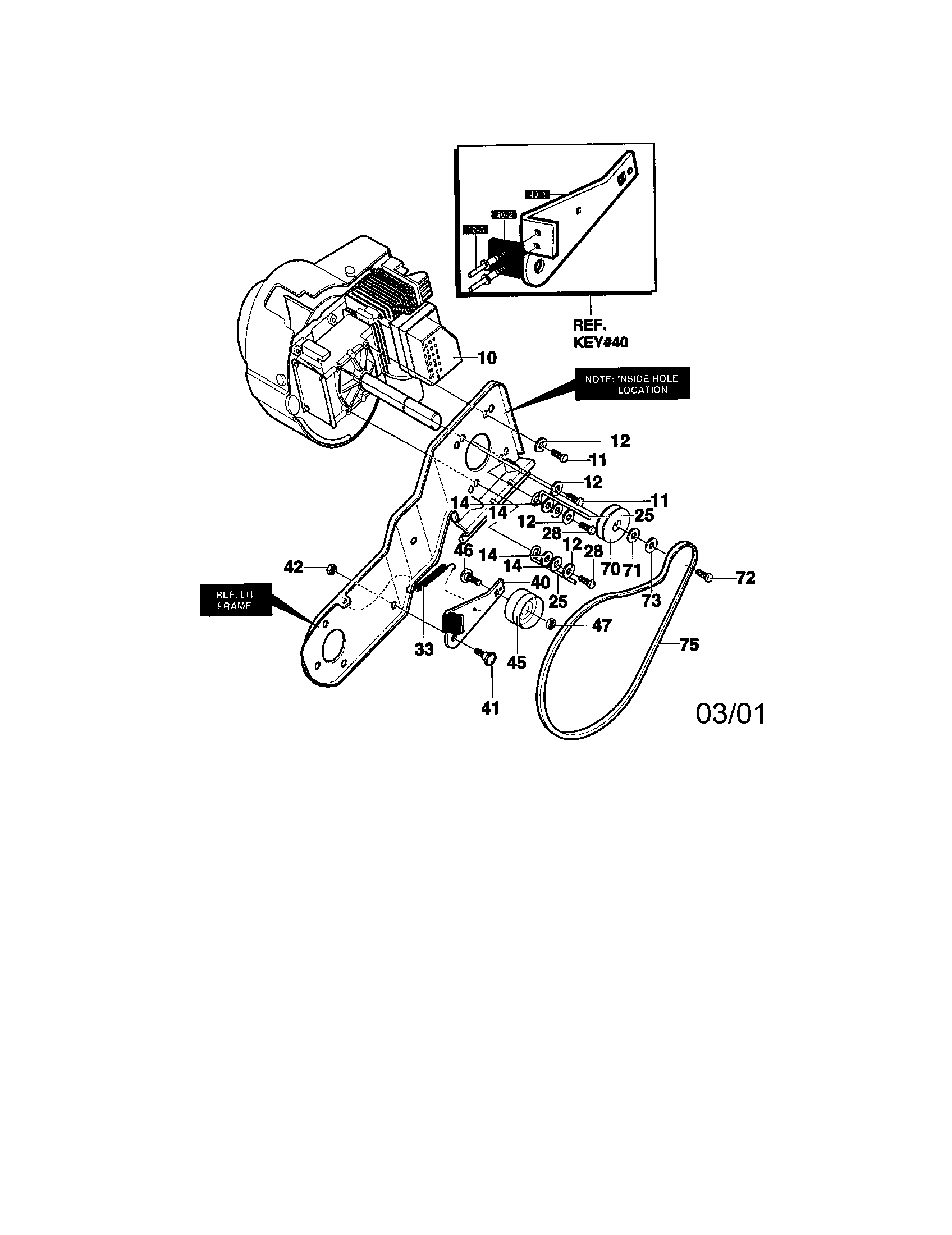

Here are the diagrams and repair parts for Craftsman 536885180 snow thrower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Showing 10 of 116 parts

Snowblower Chute and Deflector (replaces 325847MA, 334234MA, 762221MA, 762222)#590

Discharge chute Diagram

Chute

Part #334234
Replaced by #762222MA
?
Manufacturer substitution
This part replaces 334234. Substitute parts can look different from the original.
BEST SELLER
In Stock
$51.87 |
18% OFF
MSRP: $63.00
Snowblower Chute and Deflector (replaces 325847MA, 334234MA, 762221MA, 762222)#600

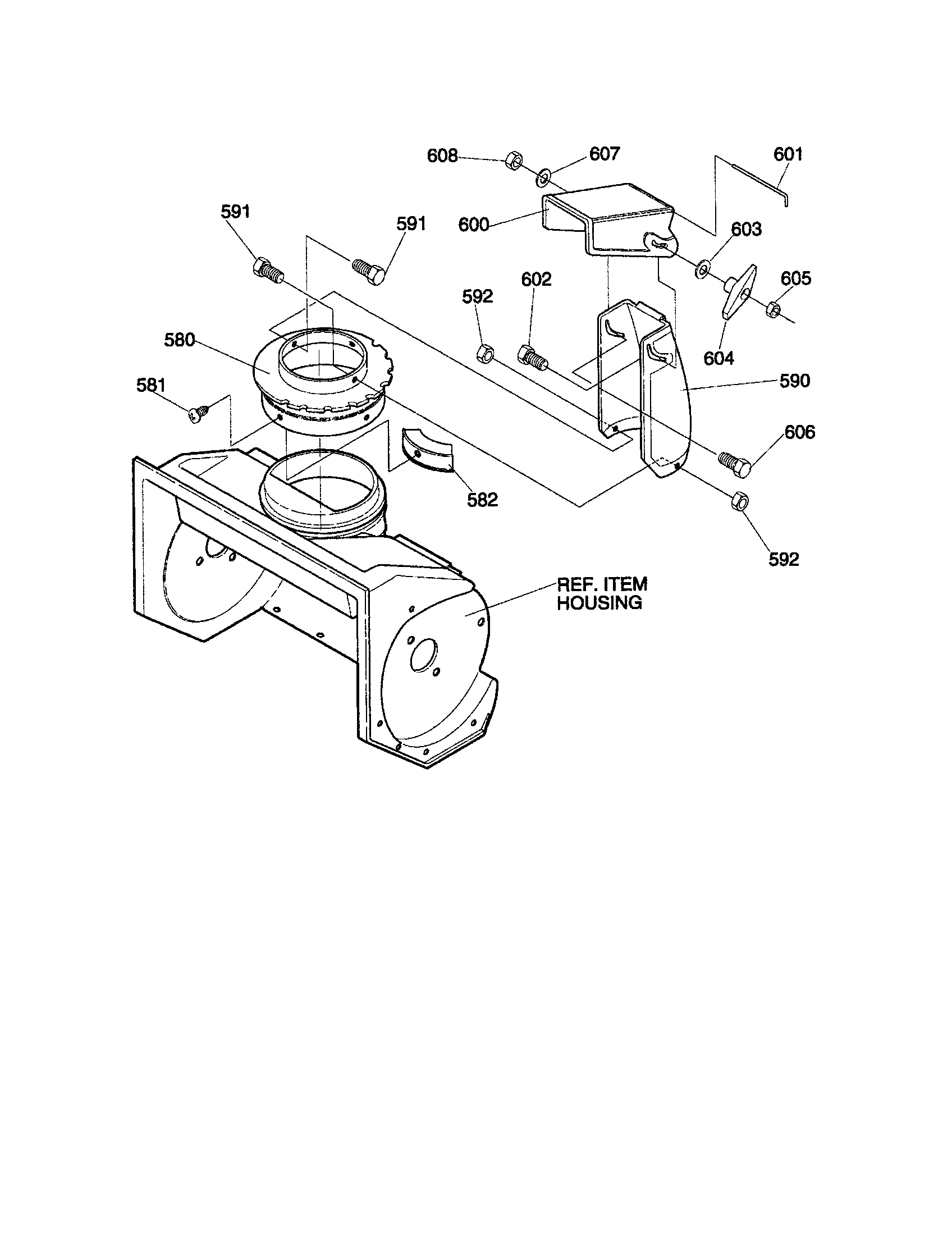

Discharge chute Diagram

Deflector

Part #325847
Replaced by #762222MA
?
Manufacturer substitution
This part replaces 325847. Substitute parts can look different from the original.
BEST SELLER
In Stock
$51.87 |
18% OFF
MSRP: $63.00
Snowblower Nut

See All Related Diagrams

Nut, 1/4-20

Part #782585
Replaced by #703251
?
Manufacturer substitution
This part replaces 782585. Substitute parts can look different from the original.
BEST SELLER
In Stock
$8.07 |
11% OFF
Phone Price: $9.07
Snowblower Nut#489

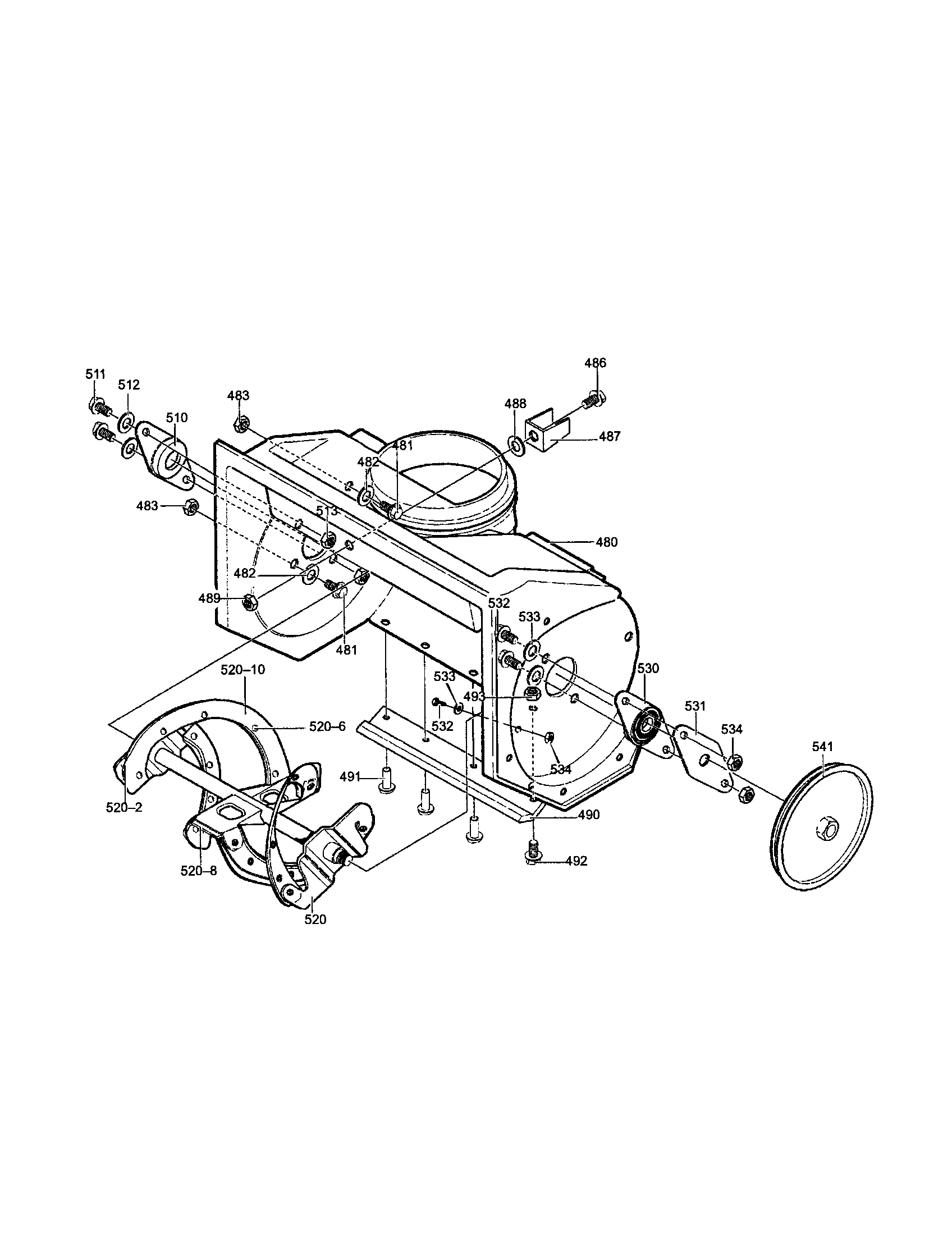

Auger housing Diagram

1/4-20 hex n

Part #780029
Replaced by #703232
?
Manufacturer substitution
This part replaces 780029. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$5.38 |
28% OFF
MSRP: $7.50
Snowblower Nut#483

Auger housing Diagram

Lock nut

Part #73826
Replaced by #703251
?
Manufacturer substitution
This part replaces 73826. Substitute parts can look different from the original.
BEST SELLER
In Stock
$8.07 |
11% OFF
Phone Price: $9.07
Snowblower Drive Cable Spring Boot#743

Handle assembly Diagram

Boot spring

Part #308146
Replaced by #308146MA
?
Manufacturer substitution
This part replaces 308146. Substitute parts can look different from the original.
BEST SELLER
In Stock
$10.97 |
15% OFF
Phone Price: $12.97
Snowblower Bolt#602

Discharge chute Diagram

Bolt

Part #302843
Replaced by #704210
?
Manufacturer substitution
This part replaces 302843. Substitute parts can look different from the original.
BEST SELLER
In Stock
$7.69 |
12% OFF
Phone Price: $8.69
Lawn & Garden Equipment Lock Washer#873

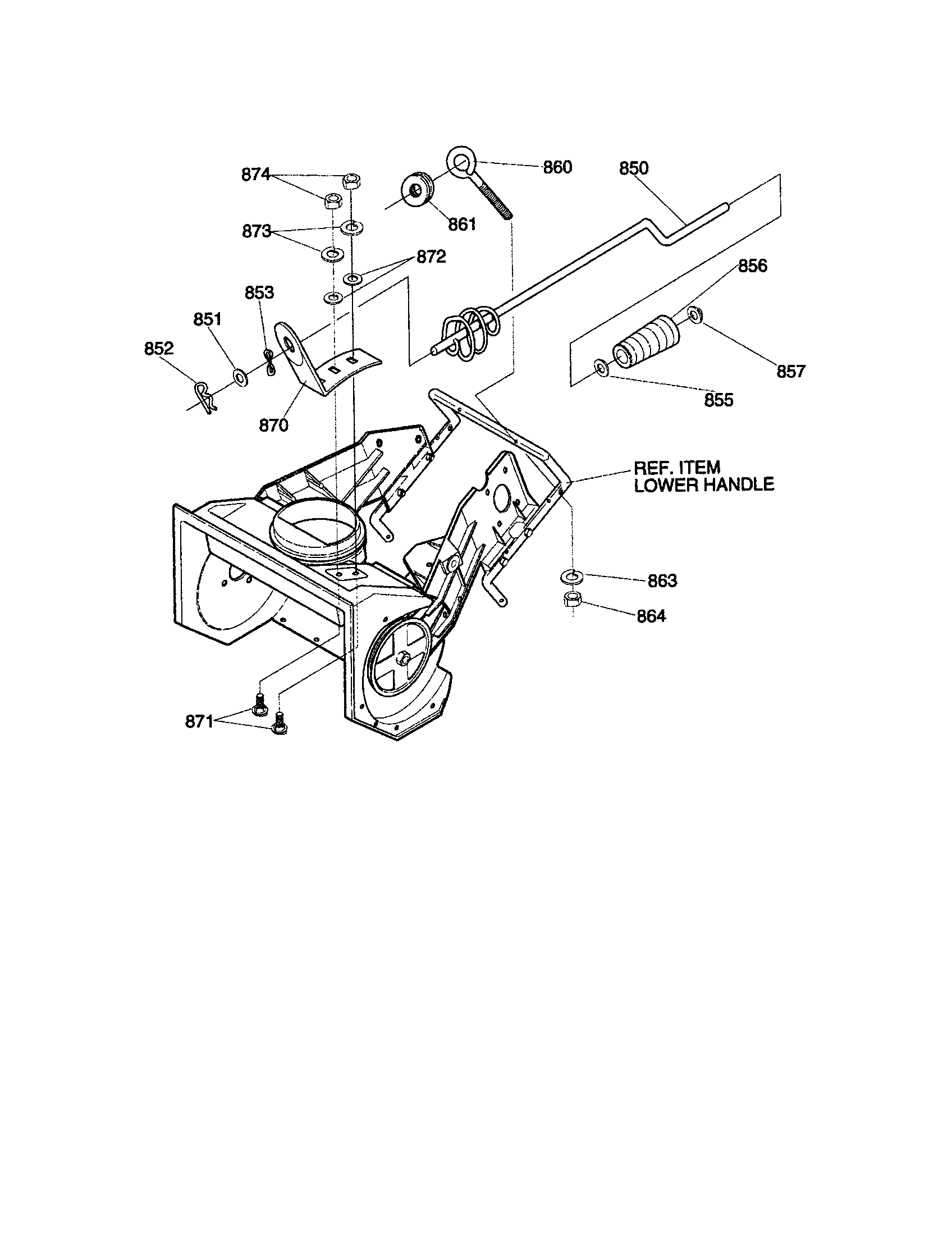

Chute rod assembly Diagram

Lock washer

Part #71060
Replaced by #703116
?
Manufacturer substitution
This part replaces 71060. Substitute parts can look different from the original.
This item is not returnable
In Stock
$5.79 |
15% OFF
Phone Price: $6.79
Snowblower Auger#520-02

Auger housing Diagram

Blade

Part #302565
Replaced by #302565MA
?
Manufacturer substitution
This part replaces 302565. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

In Stock
$26.94 |
16% OFF
MSRP: $32.00
Snowblower Flange Bearing#510

Auger housing Diagram

Bearing

Part #577023
Replaced by #577023MA
?
Manufacturer substitution
This part replaces 577023. Substitute parts can look different from the original.
In Stock
$9.59 |
9% OFF
Phone Price: $10.59
