Whirlpool SM988PESW2 gas range Parts
Here are the diagrams and repair parts for Whirlpool SM988PESW2 gas range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

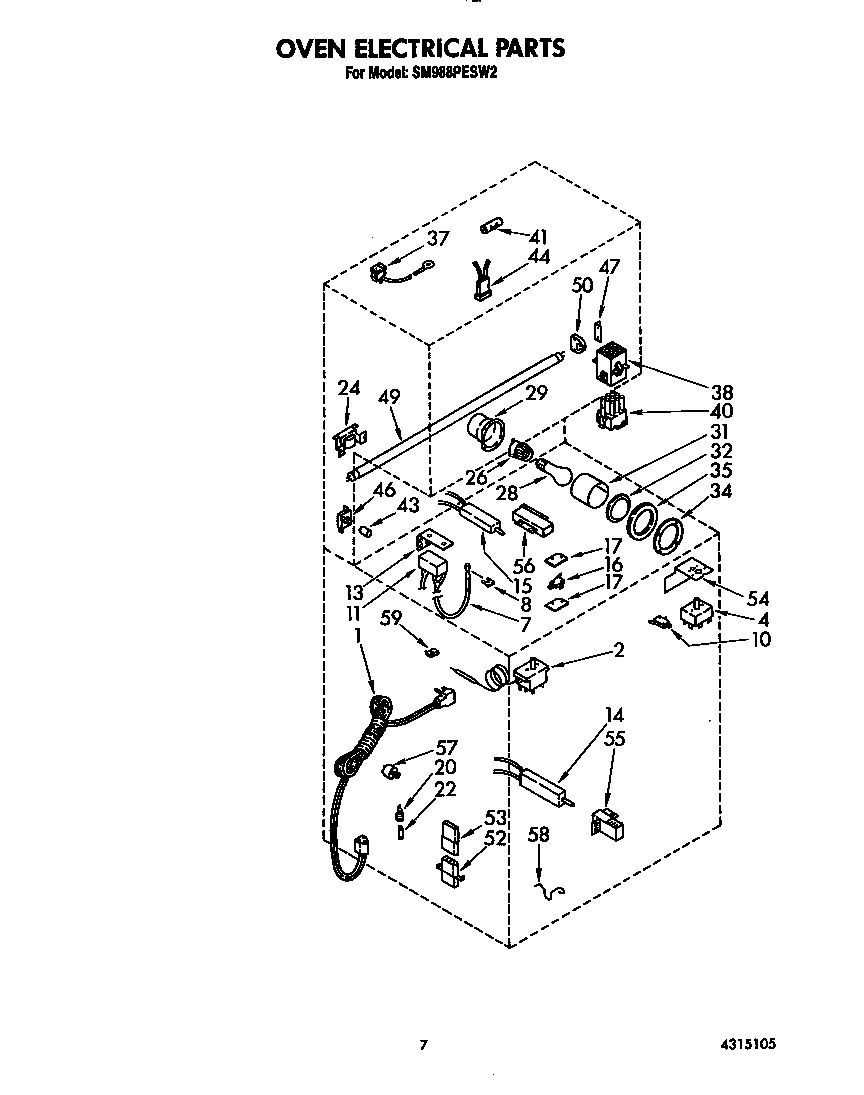

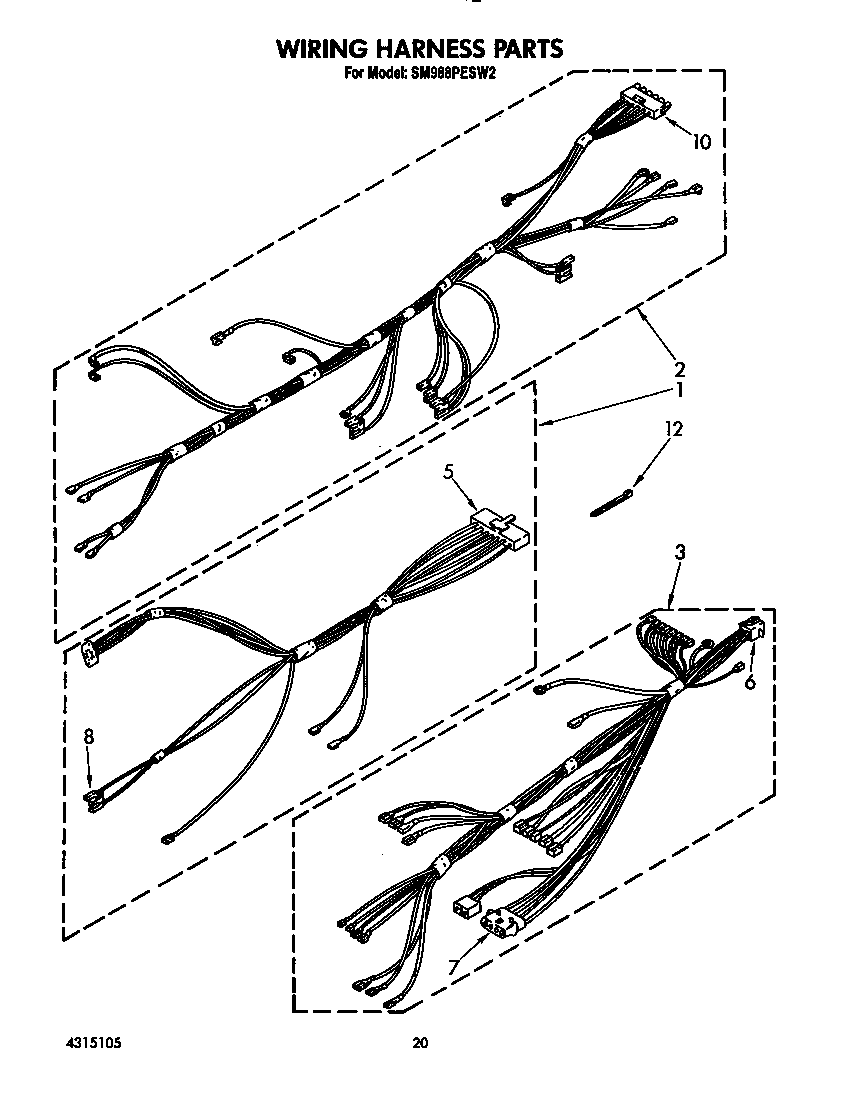

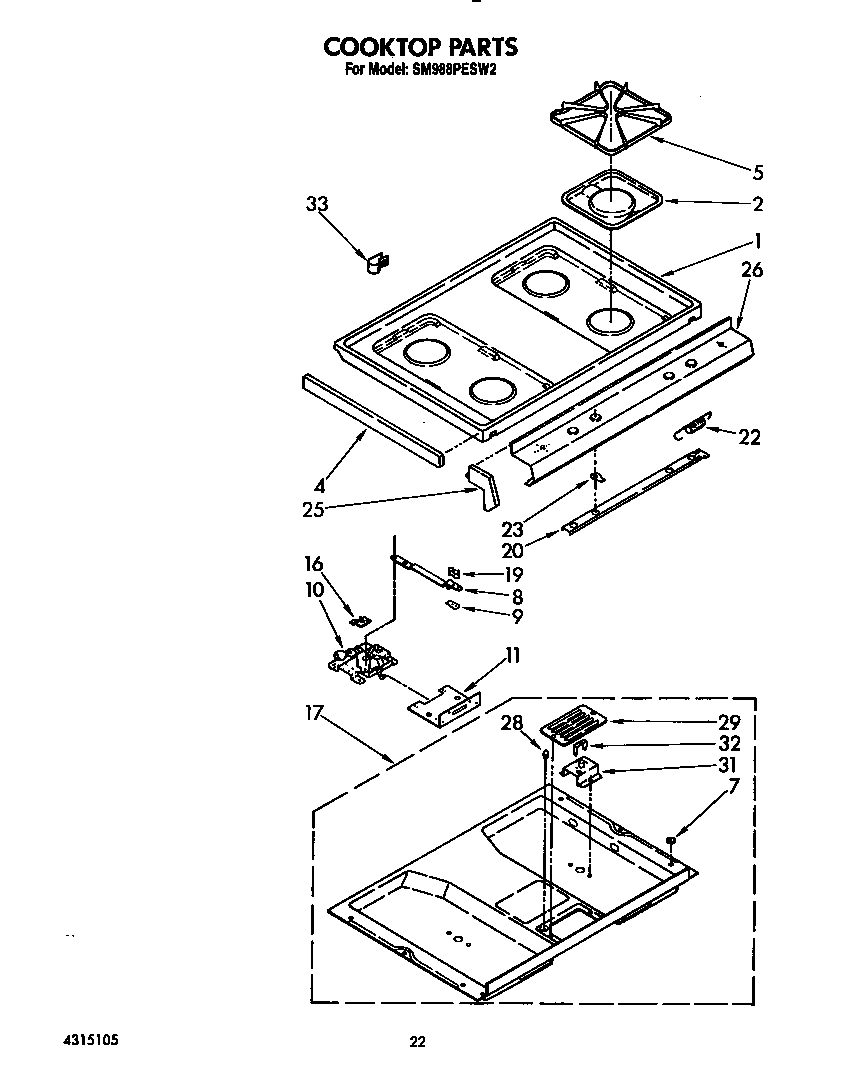

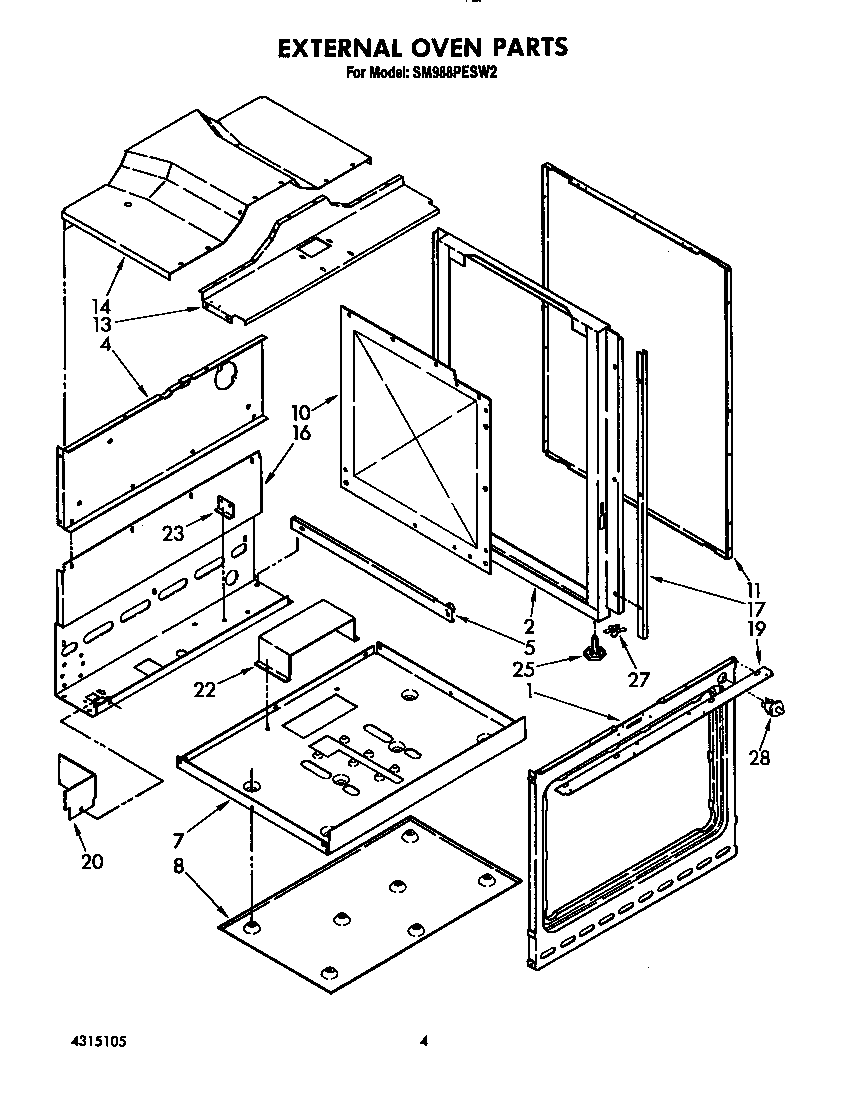

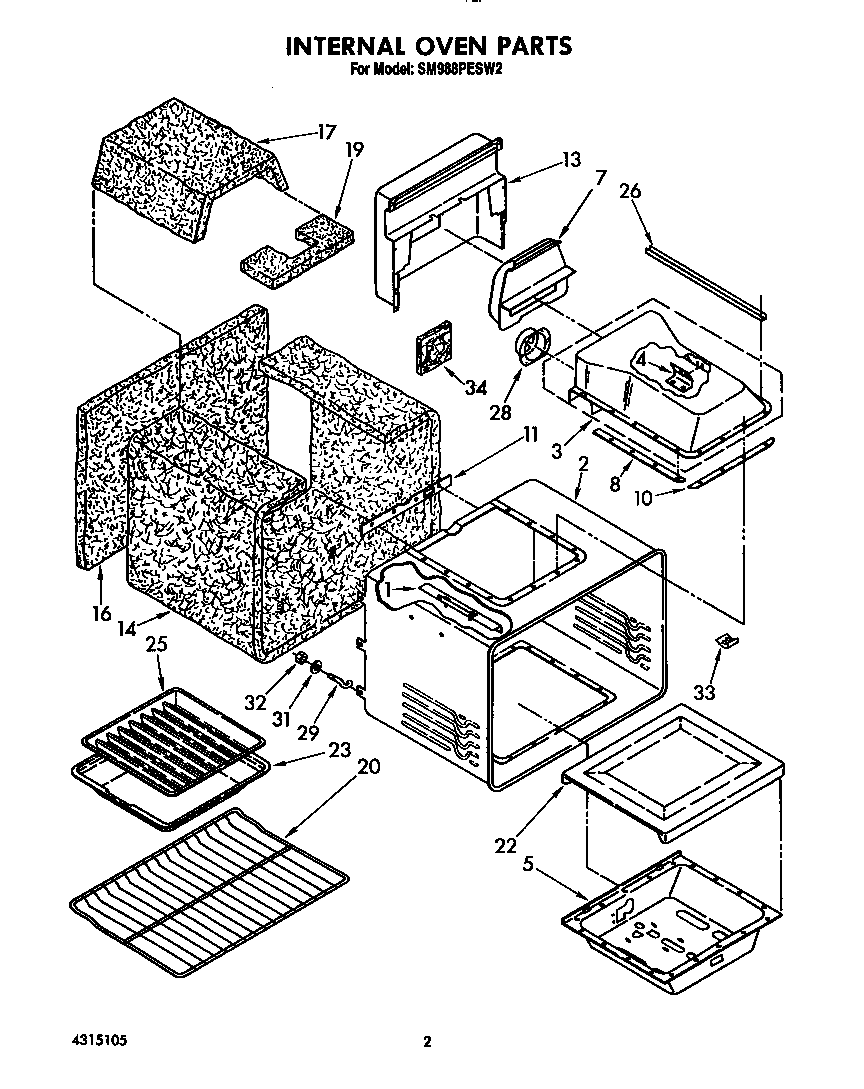

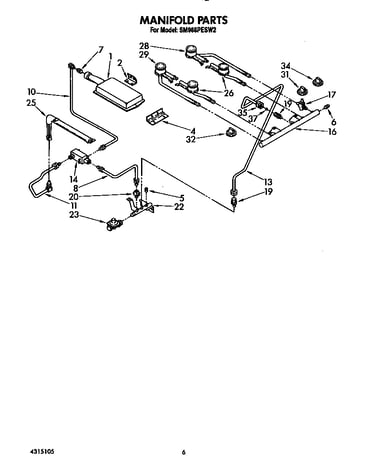

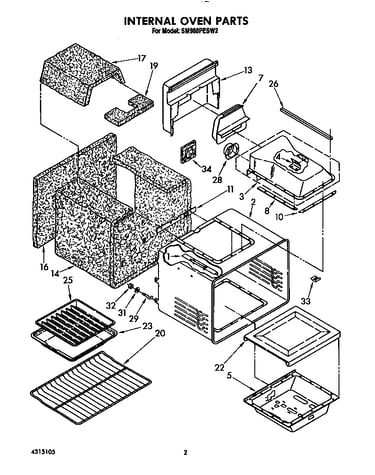

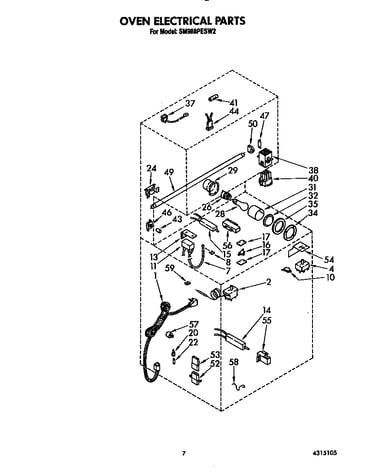

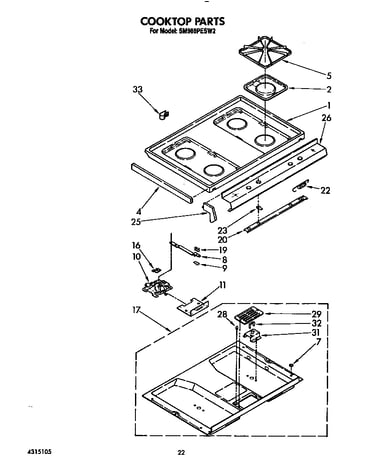

SELECT DIAGRAM
Browse Parts for SM988PESW2 Ranges
#NI
All parts diagram
Adhesive
Part #482338Replaced by #WP482338
Manufacturer substitutionThis part replaces 482338. Substitute parts can look different from the original.In Stock$24.4627% OFF Was : $33.32
Qty
Screw
Part #313638Replaced by #WP488729

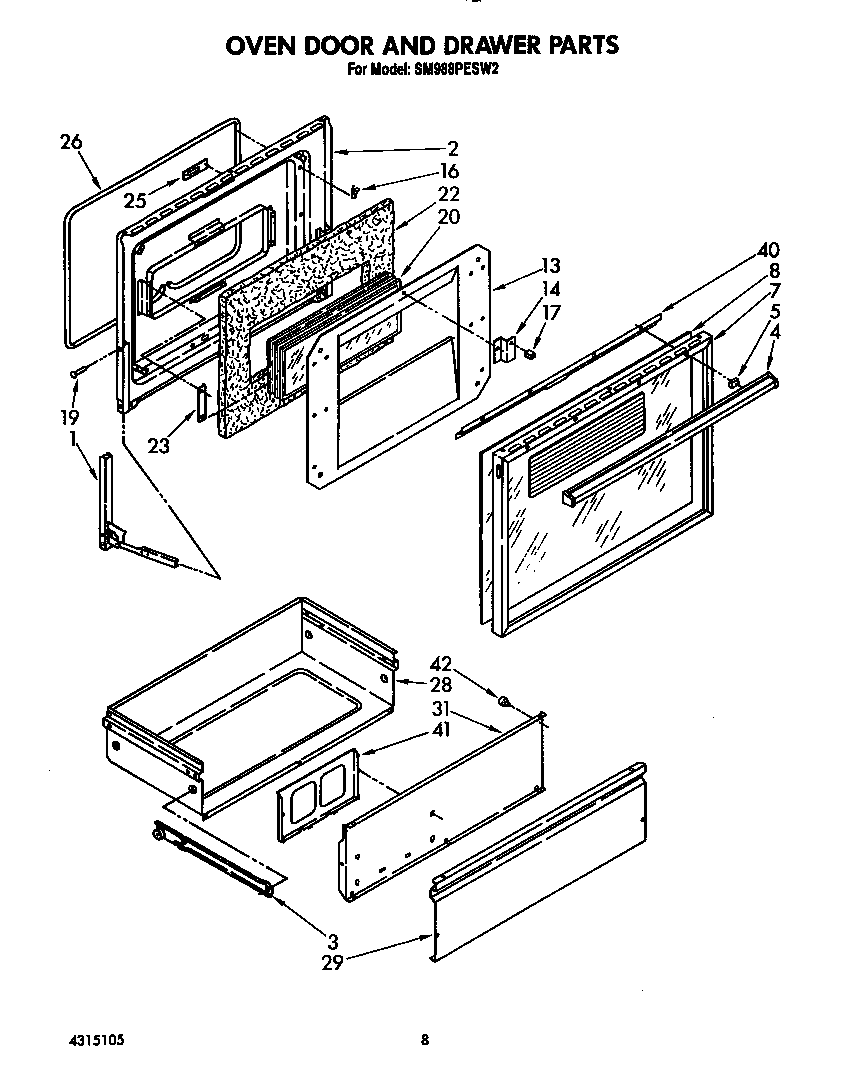

Manufacturer substitutionThis part replaces 313638. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9317% OFF Phone Price : $5.93QtyOven door and drawer diagram
Screw
Part #786757Replaced by #WP308685

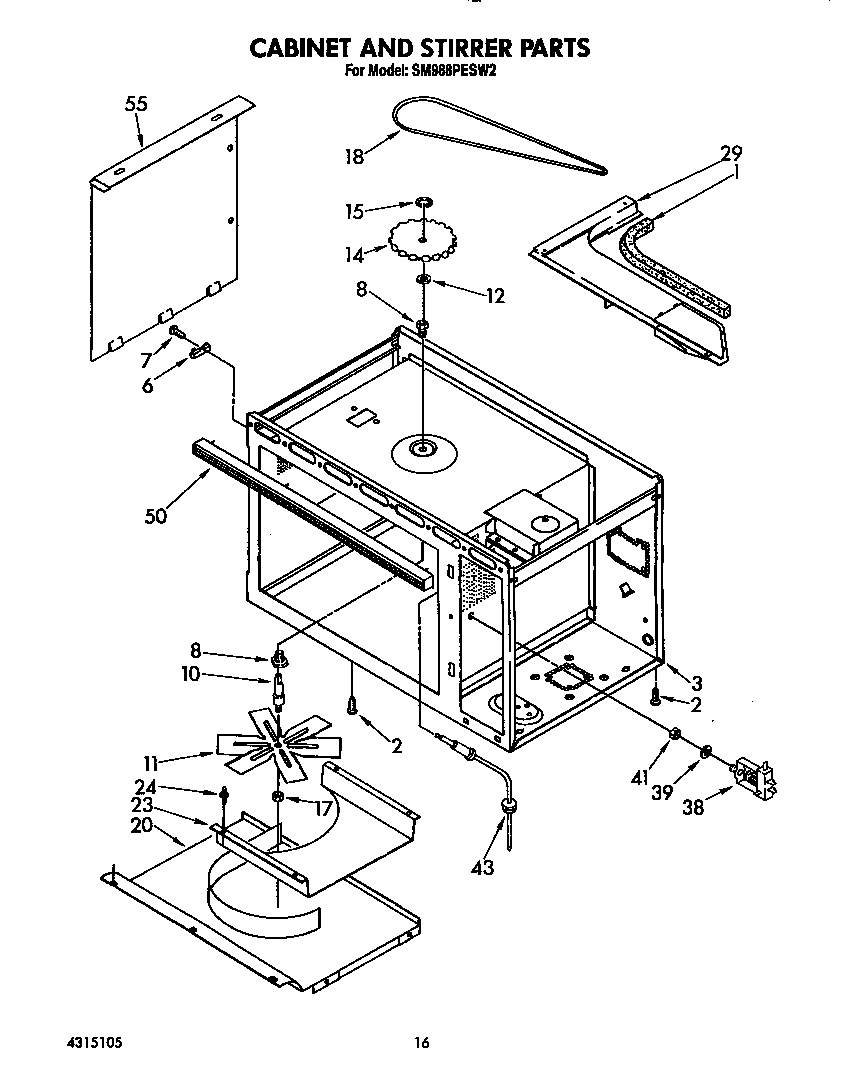

Manufacturer substitutionThis part replaces 786757. Substitute parts can look different from the original.This item is not returnableIn Stock$5.0916% OFF Phone Price : $6.09QtyCabinet and stirrer diagram
Screw
Part #253549Replaced by #WP308685
Manufacturer substitutionThis part replaces 253549. Substitute parts can look different from the original.This item is not returnableIn Stock$5.0916% OFF Phone Price : $6.09QtyScrew
Part #343641Replaced by #WP681414

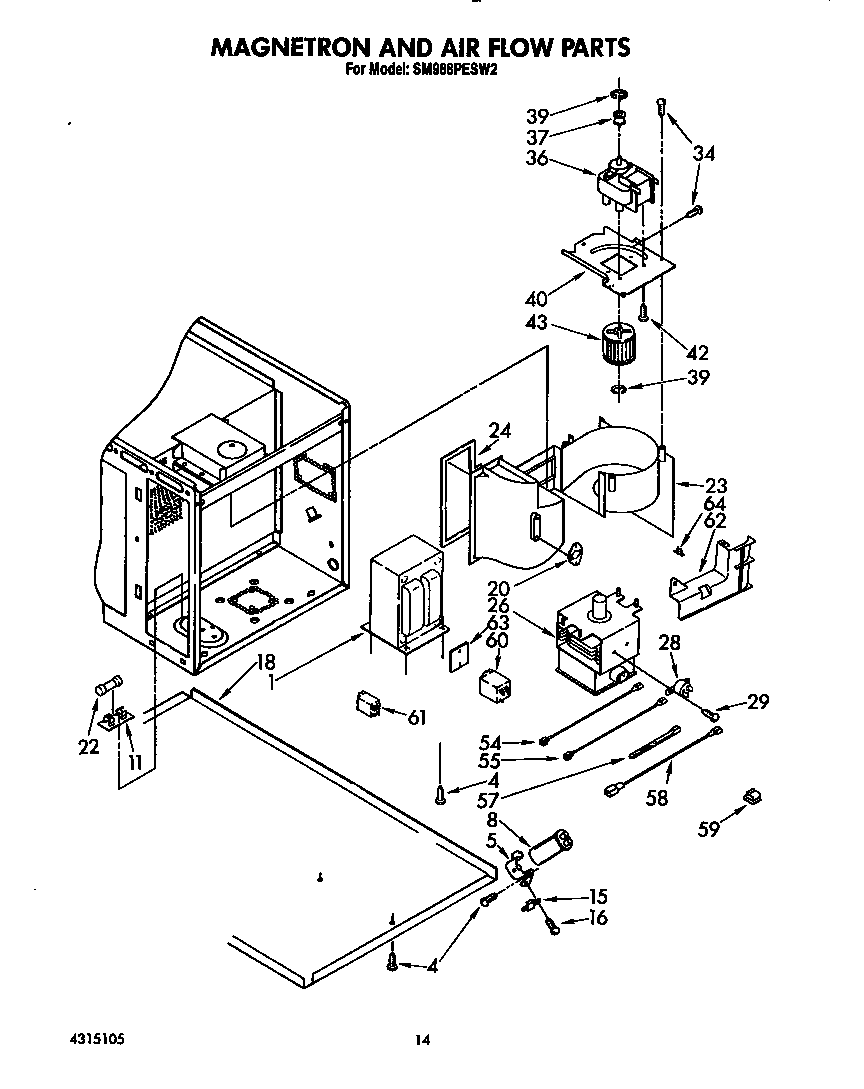

Manufacturer substitutionThis part replaces 343641. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyMagnetron and air flow diagram
Fuse
Part #309796Replaced by #WPW10017410

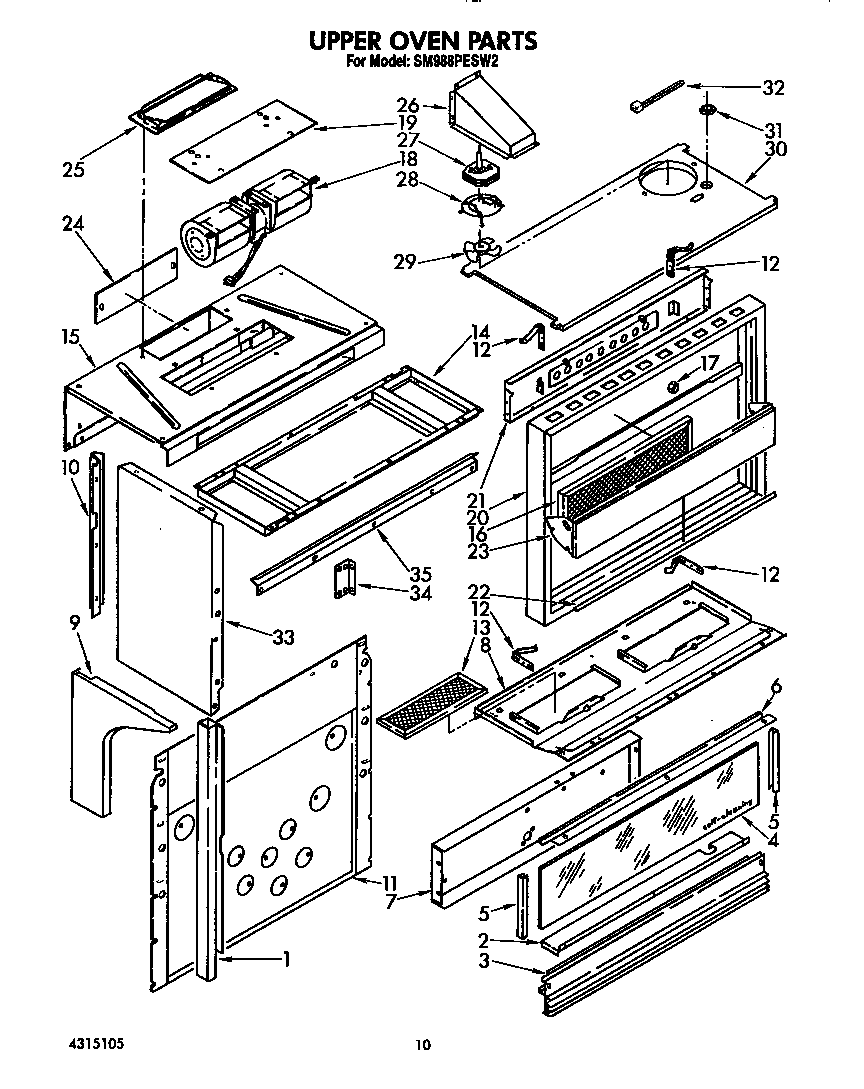

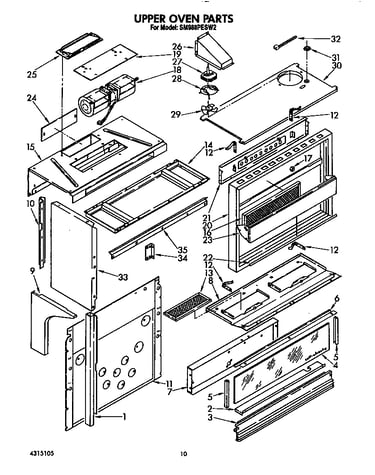

Manufacturer substitutionThis part replaces 309796. Substitute parts can look different from the original.This item is not returnableIn Stock$13.1913% OFF Phone Price : $15.19QtyUpper oven diagram
Screw
Part #338156Replaced by #WP488627

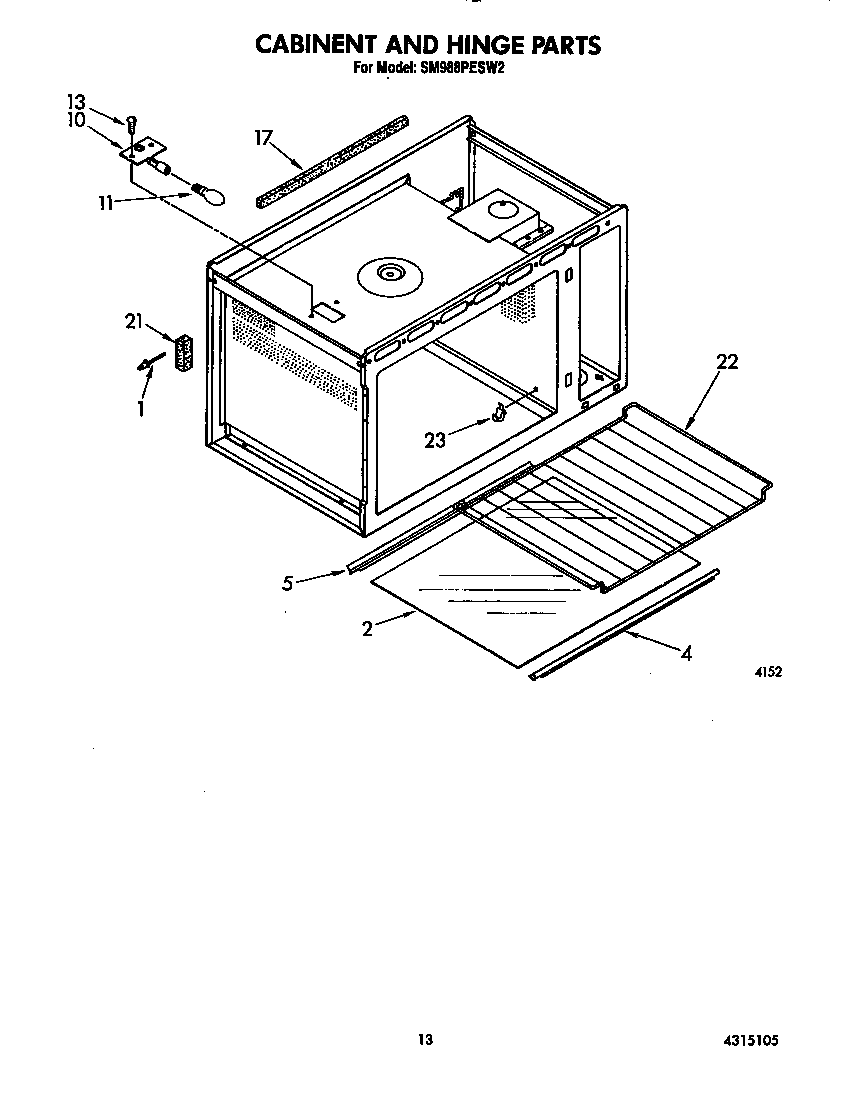

Manufacturer substitutionThis part replaces 338156. Substitute parts can look different from the original.This item is not returnableIn Stock$8.3111% OFF Phone Price : $9.31QtyCabinet and hinge diagram
Light Bulb
Part #313969Replaced by #WP3395618

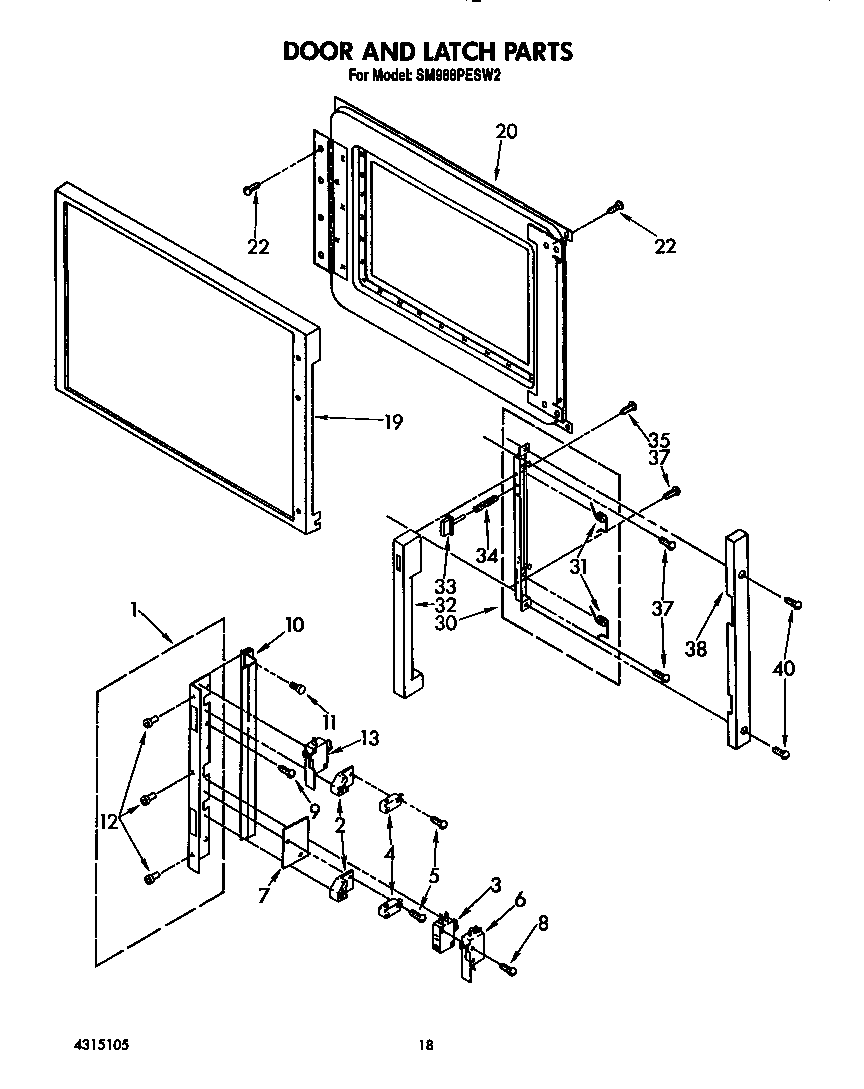

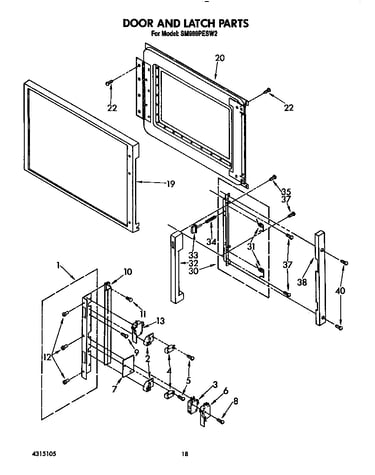

Manufacturer substitutionThis part replaces 313969. Substitute parts can look different from the original.In Stock$24.0039% OFF Was : $39.14QtyDoor and latch diagram
Screw
Part #311722Replaced by #WP489128
Manufacturer substitutionThis part replaces 311722. Substitute parts can look different from the original.This item is not returnableIn Stock$9.4510% OFF Phone Price : $10.45Qty#NI
All parts diagram
Appliance Touch-up Paint, 6-oz (citrine White)
In Stock$34.3615% OFF Phone Price : $40.36Qty
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
Appliance Touch-up Paint, 6-oz (citrine White)
In Stock
$34.36
15% OFF Phone Price : $40.36
Qty
Most common symptoms to help you fix your ranges
