Model # RSG307AABP/XAA-03 Official Samsung refrigerator

Here are the diagrams and repair parts for Official Samsung RSG307AABP-XAA-03 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 242 parts  |
Refrigerator Dryer DA62-04309A
#9

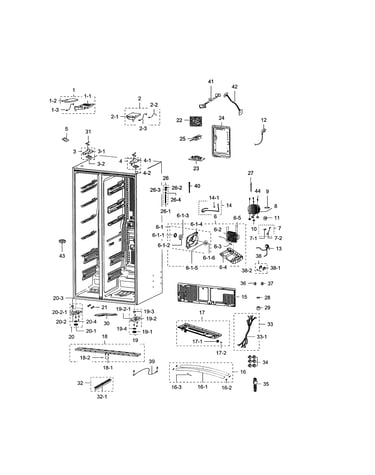

Cabinet diagram

Refrigerator dryer

Part #DA62-04309A

BEST SELLER
$42.27
In Stock
Refrigerator Compressor (replaces Mkv190cl2b/e0i) MKV190CL2B/E01
#8

Cabinet diagram

Refrigerator compressor (replaces mkv190cl2b/e0i)

Part #MKV190CL2B/E01

BEST SELLER
$222.66 |
5% OFF Phone Price : $234.66
In Stock
Refrigerator Ice Maker DA97-11092B
#8-1

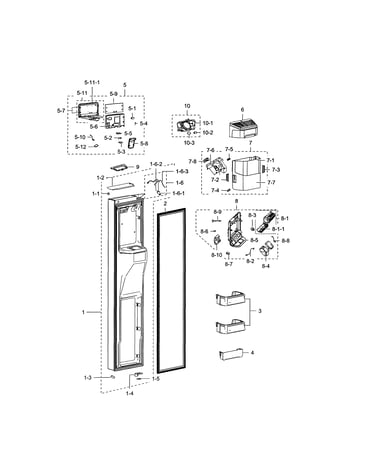

Freezer door diagram

Refrigerator ice maker

Part #DA97-11092B

BEST SELLER
$165.63 |
7% OFF Phone Price : $177.63
In Stock
Refrigerator Door Bin DA97-11500A
#3

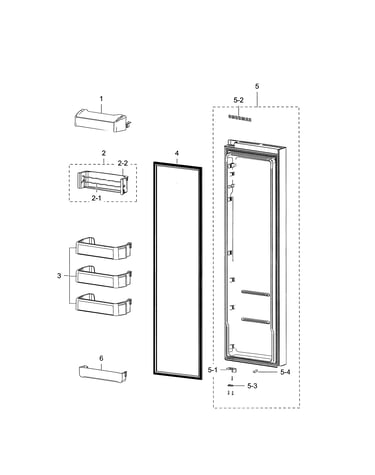

Fridge door diagram

Refrigerator door bin

Part #DA97-11500A

BEST SELLER
$54.97 |
10% OFF Phone Price : $60.97
In Stock
Refrigerator Drain Cap DA67-01301A
#26-4

Cabinet diagram

Refrigerator drain cap

Part #DA67-01301A

Replaced by #DA97-04049D

?
Manufacturer substitution
This part replaces DA67-01301A. Substitute parts can look different from the original.
BEST SELLER
$28.75 |
17% OFF Phone Price : $34.75
In Stock
Refrigerator Evaporator Fan Motor (replaces Da31-00305a, Da96-00968a) DA31-00287B
Refrigerator evaporator fan motor (replaces da31-00305a, da96-00968a)

Part #DA31-00287B

BEST SELLER
$114.20 |
10% OFF Phone Price : $126.20
In Stock
Kenmore Pro Refrigerator Compressor Overload And Start Relay Cover DA63-01866A
#11

Cabinet diagram

Kenmore pro refrigerator compressor overload and start relay cover

Part #DA63-01866A

This item is not returnable
$14.78 |
12% OFF Phone Price : $16.78
In Stock
Refrigerator Dispenser Ice Chute Door And Funnel Assembly DA97-08680C
#10

Freezer door diagram

Refrigerator dispenser ice chute door and funnel assembly

Part #DA97-08680C

$93.14 |
10% OFF Was : $103.49
Back Order
Refrigerator Micro-switch DA34-00011A
#10-2

Freezer door diagram

Refrigerator micro-switch

Part #DA34-00011A

Replaced by #3405-001117

?
Manufacturer substitution
This part replaces DA34-00011A. Substitute parts can look different from the original.
This item is not returnable
$10.82 |
16% OFF Phone Price : $12.82
In Stock
Refrigerator Roller Wheel Axle Pin DA61-01920A
#18-2

Cabinet diagram

Refrigerator roller wheel axle pin

Part #DA61-01920A

This item is not returnable
$4.38 |
19% OFF Phone Price : $5.38
In Stock
