Modern Maid
Electric Cooktop

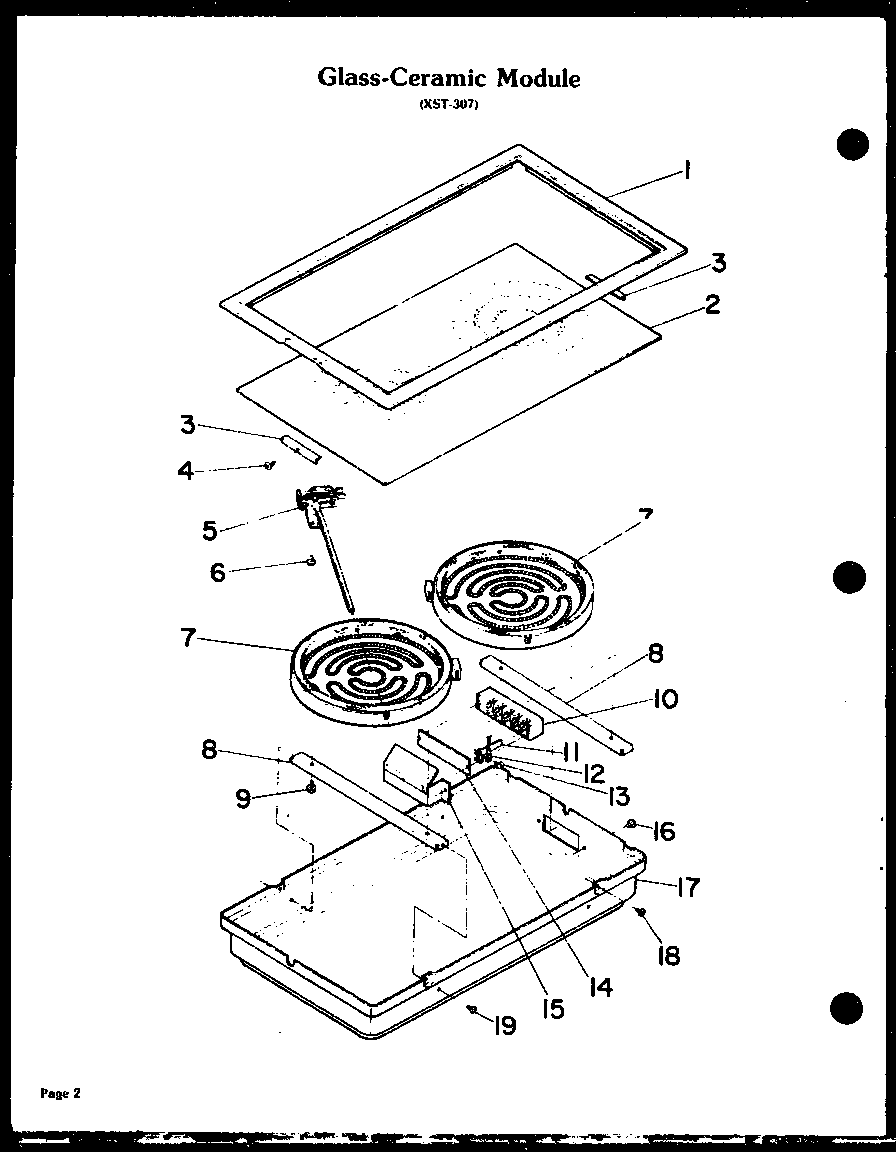

Model #XST-307 Modern Maid cooktop

Here are the diagrams and repair parts for Modern Maid XST-307 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

    Showing 10 of 87 parts

    Range Drip Pan

    #2

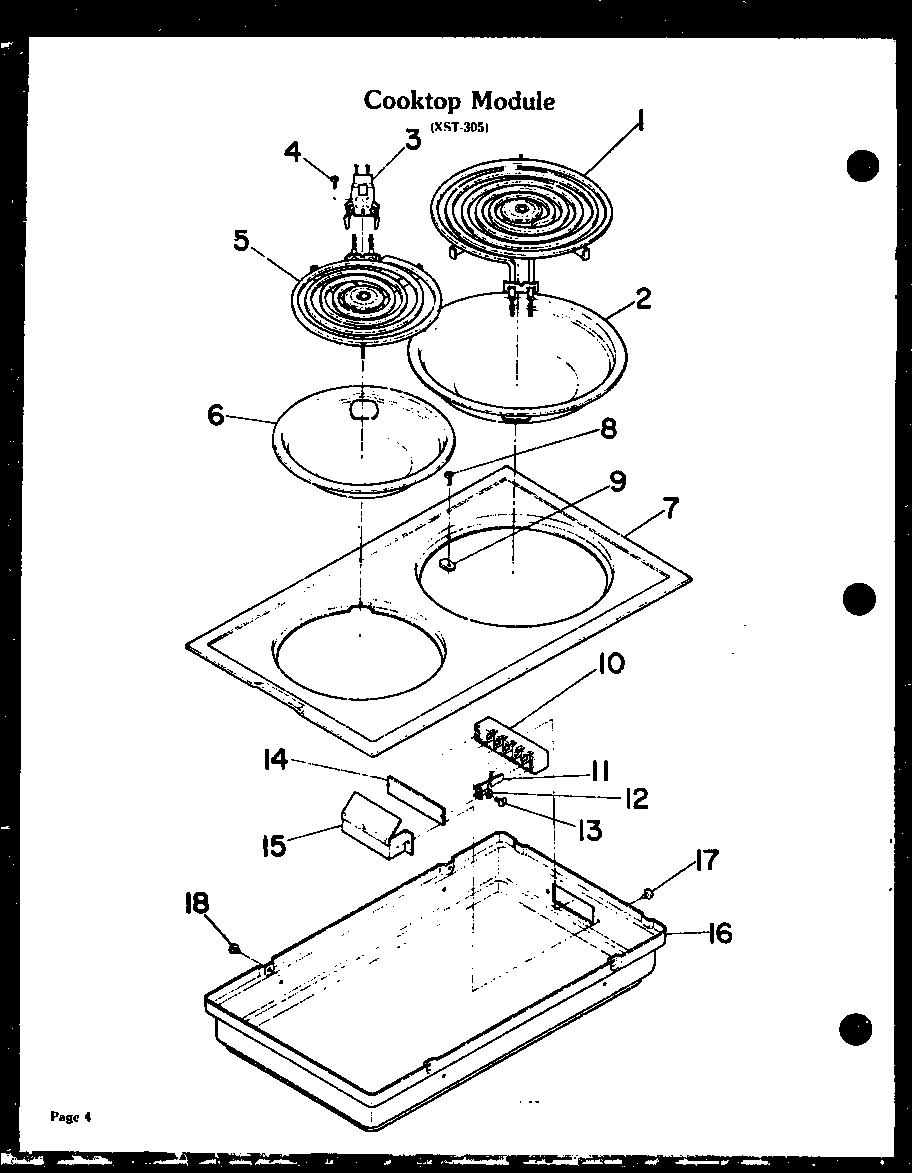

    (xst-305) Diagram

    Range drip pan

    Part #WPW10196405
    ?
    Manufacturer substitution
    This part replaces 42144. Substitute parts can look different from the original.
    This part replaces 42144
    $7.59 |
    24% OFF
    MSRP: $10.00

    In Stock

    Unit

    #17

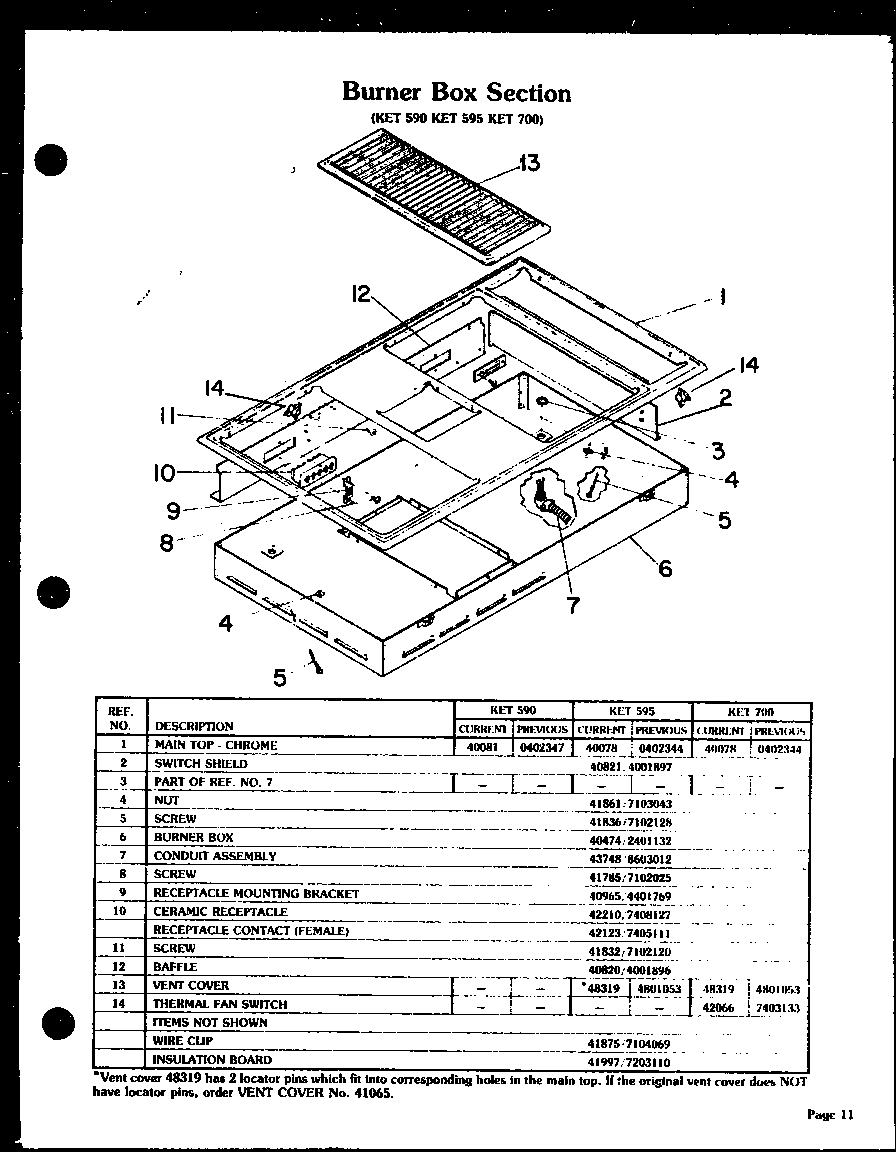

    Burner box section (ket570) Diagram

    Unit

    Part #51575

    The manufacturer no longer makes this part, and there's no substitute part

    Range Drip Pan

    #18

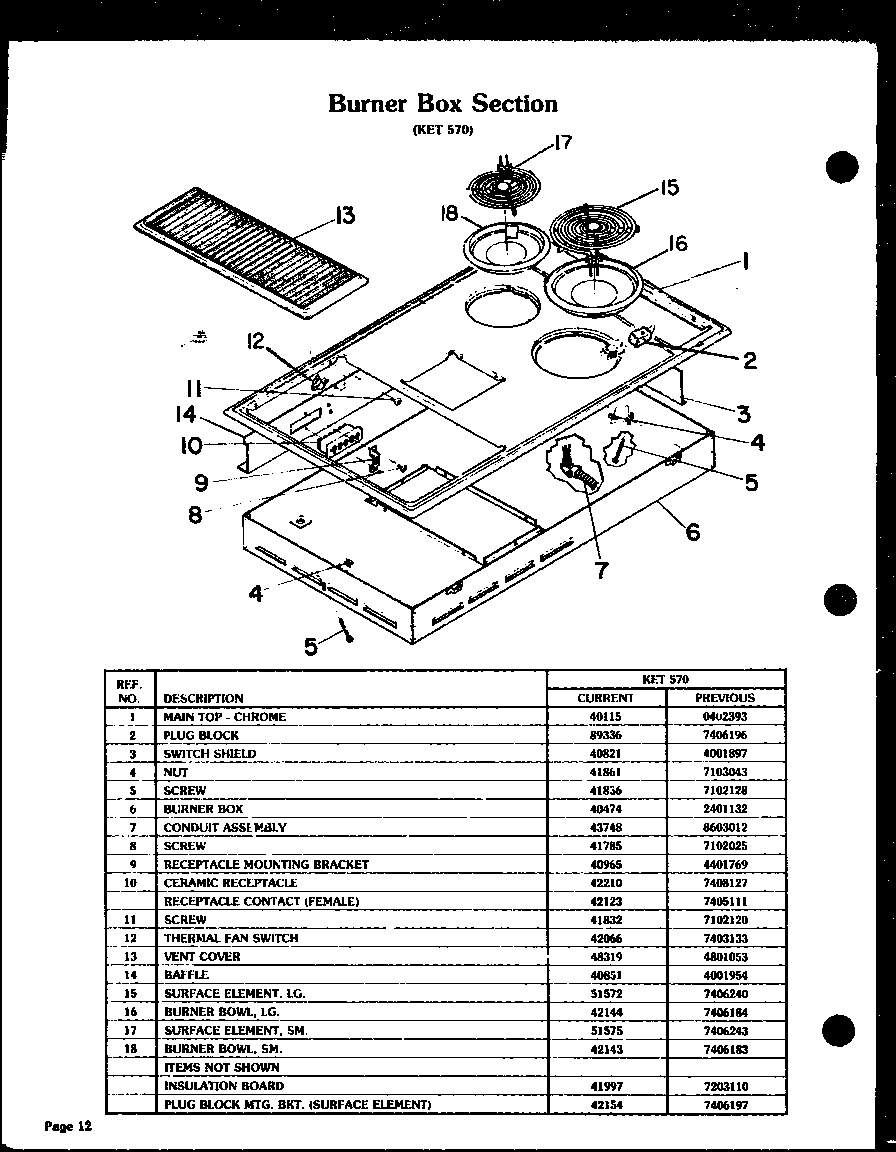

    Burner box section (ket570) Diagram

    Range drip pan

    Part #W10196406RW
    ?
    Manufacturer substitution
    This part replaces 42143. Substitute parts can look different from the original.
    This part replaces 42143
    $11.99

    In Stock

    Glass Control Panel

    #3B

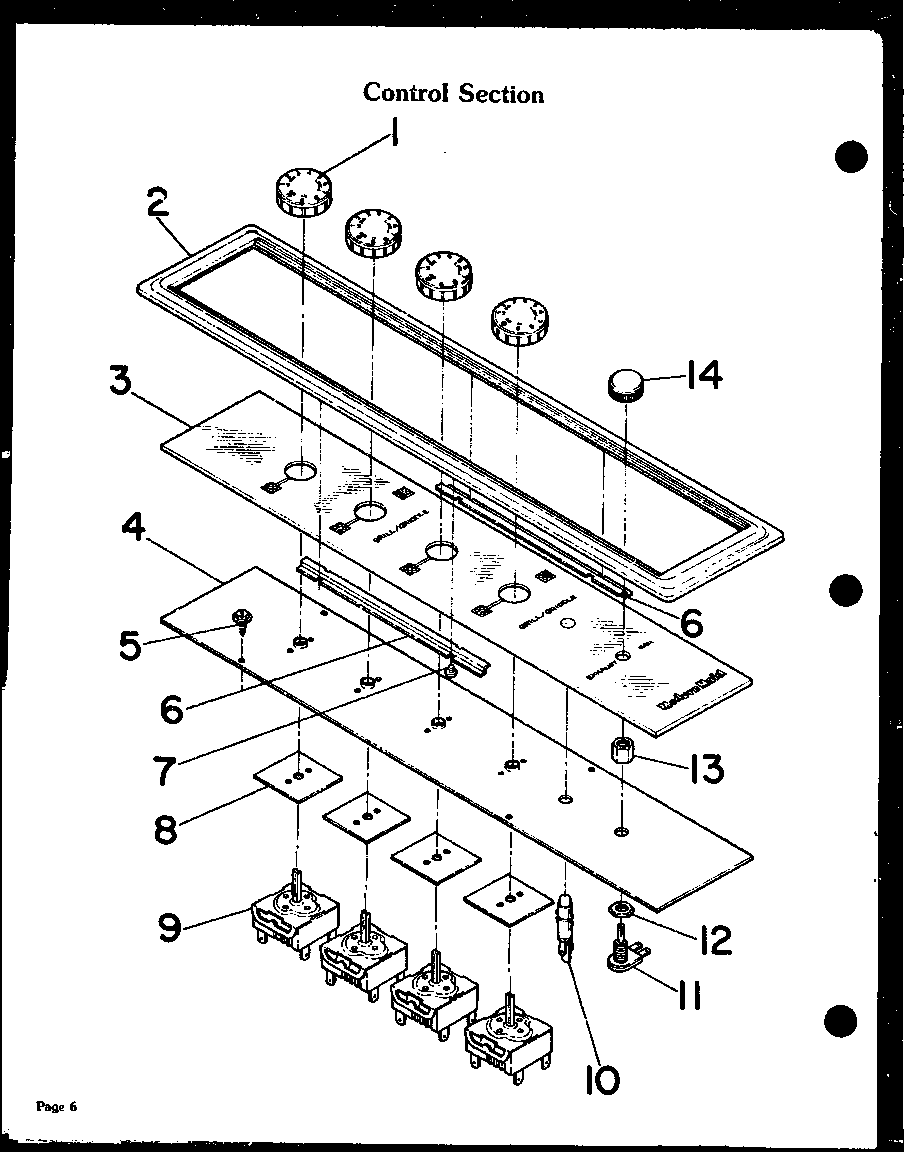

    Control section (ket590) (ket595) (ket570) (ket700) Diagram

    Glass control panel

    Part #42786

    The manufacturer no longer makes this part, and there's no substitute part

    90 DEGREES X 3/8 CONDUIT CONNECTOR

    #NI

    All parts Diagram

    90 degrees x 3/8 conduit connector

    Part #42079

    The manufacturer no longer makes this part, and there's no substitute part

    Indicator Light

    #10

    Control section (ket590) (ket595) (ket570) (ket700) Diagram

    Indicator light

    Part #42183

    The manufacturer no longer makes this part, and there's no substitute part

    MAIN TOP - CHROME

    #1

    Burner box section (ket570) Diagram

    Main top - chrome

    Part #40115

    The manufacturer no longer makes this part, and there's no substitute part

    GRILLE PAN INSERT

    #2

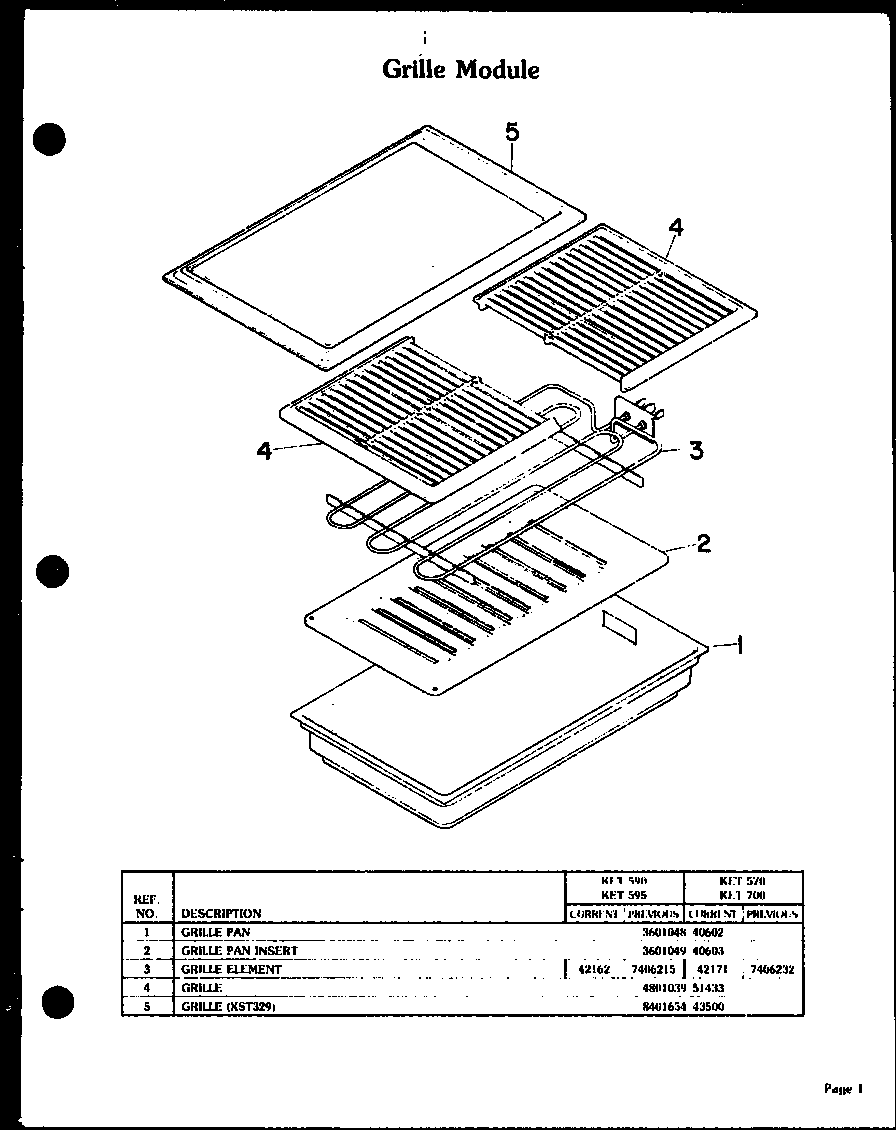

    (ket590) (ket595) (ket570) (ket700) Diagram

    Grille pan insert

    Part #40603

    The manufacturer no longer makes this part, and there's no substitute part

    SCREW, FAN SW. MTG.

    #NI

    All parts Diagram

    Screw, fan sw. mtg.

    Part #41778

    The manufacturer no longer makes this part, and there's no substitute part

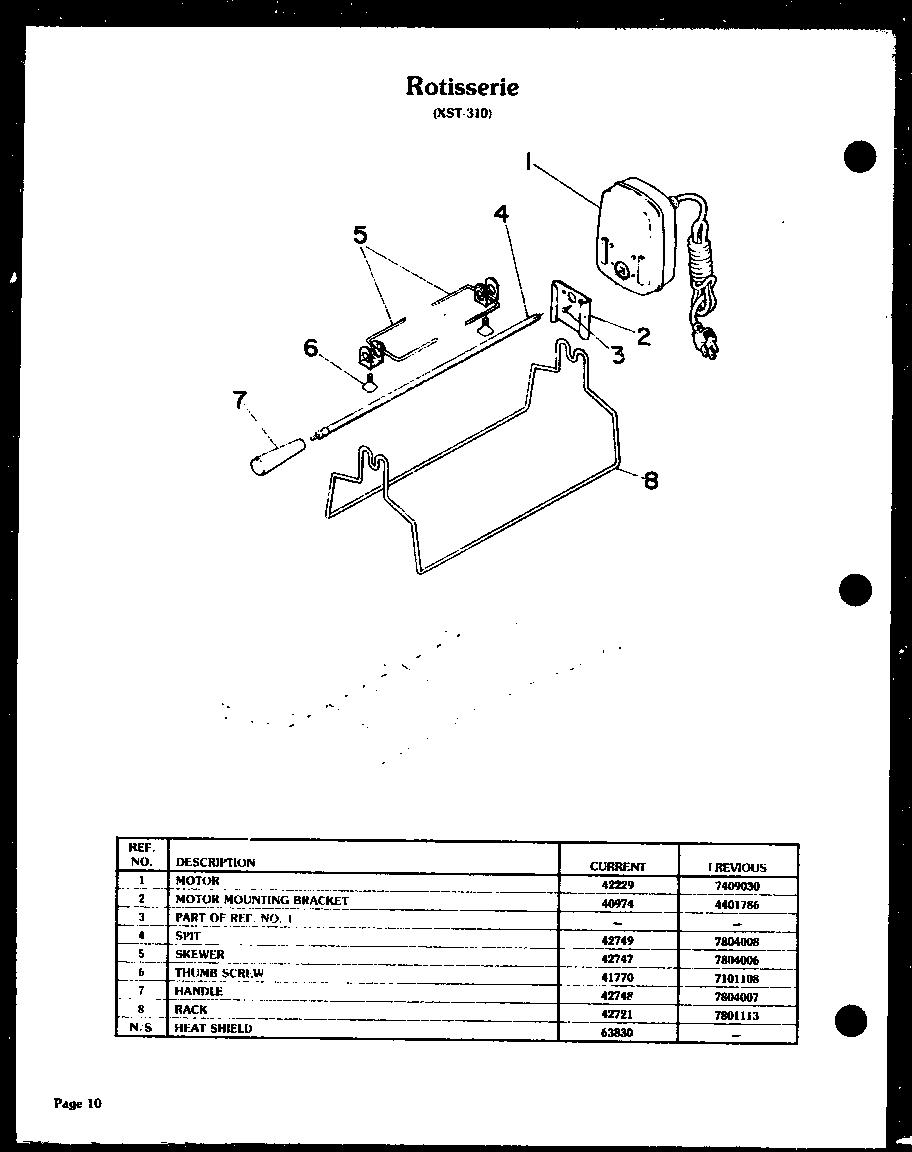

    Motor Mounting Plate

    #8

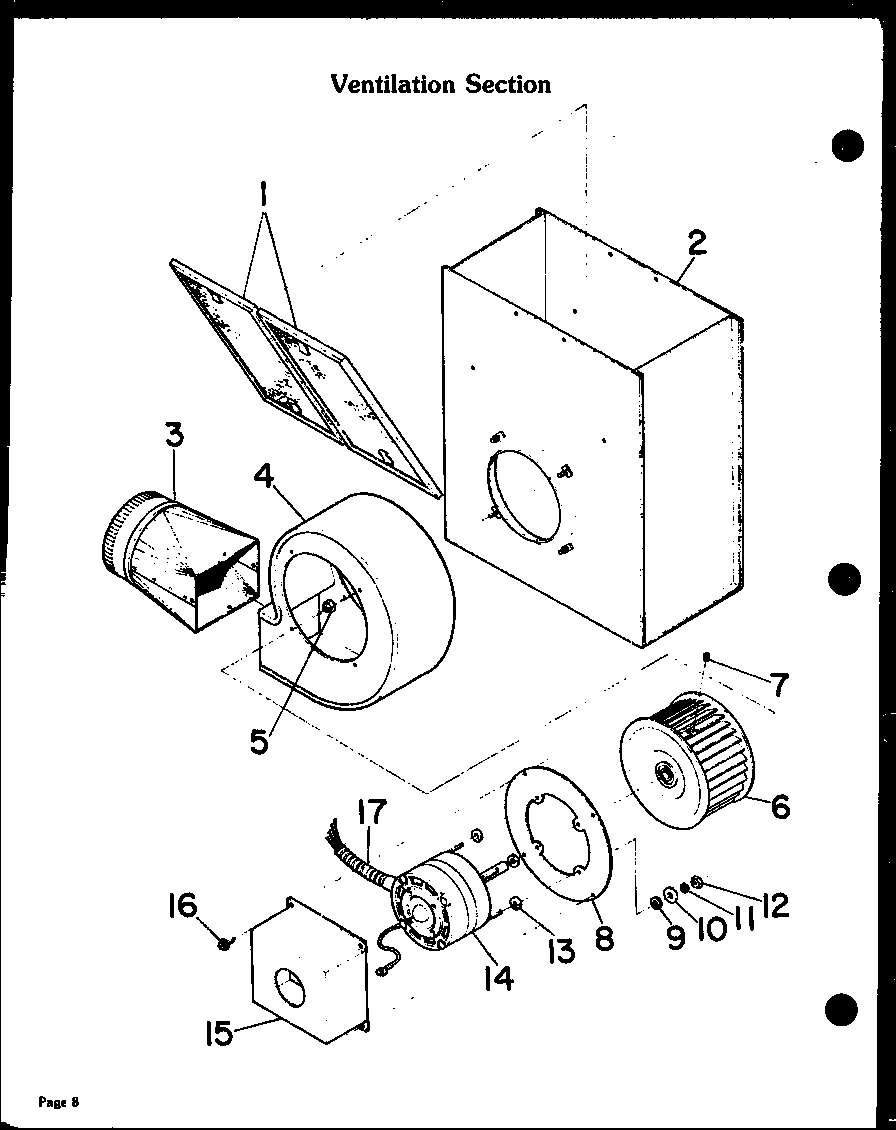

    Ventilation (ket595) (ket570) (ket700) Diagram

    Motor mounting plate

    Part #40972

    The manufacturer no longer makes this part, and there's no substitute part
