Whirlpool RS3025XBN1 30" electric slide-in range Parts
Here are the diagrams and repair parts for Whirlpool RS3025XBN1 30" electric slide-in range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for RS3025XBN1 Ranges

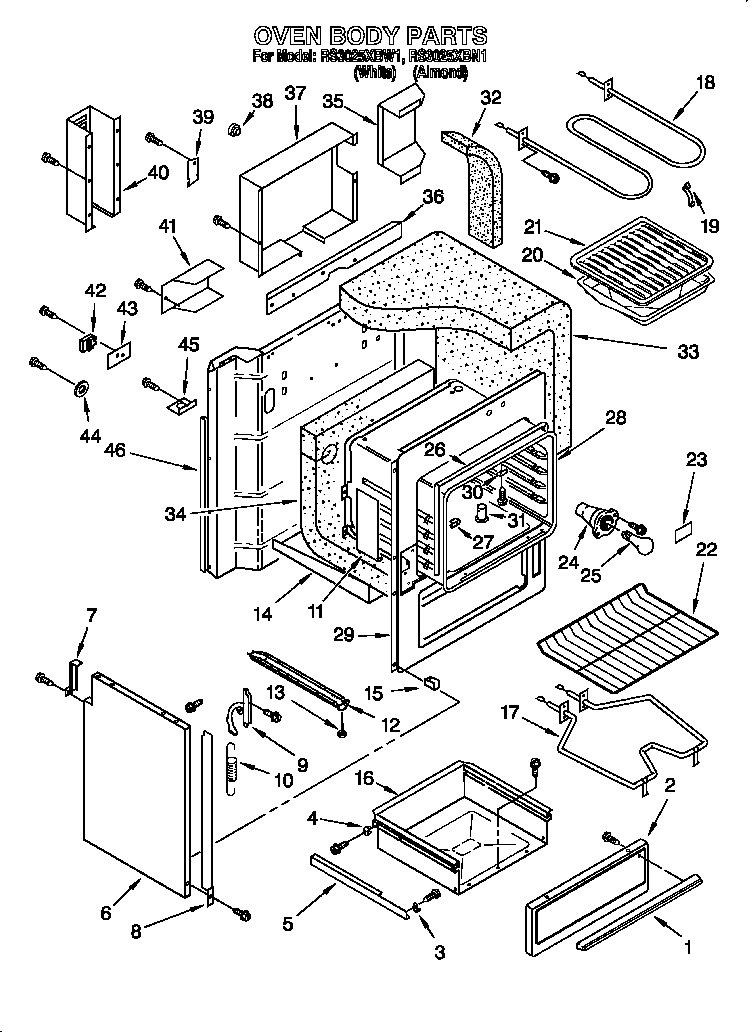

Oven body diagram
Screw
Part #4389535Replaced by #WP308685
Manufacturer substitutionThis part replaces 4389535. Substitute parts can look different from the original.This item is not returnableIn Stock$5.0916% OFF Phone Price : $6.09
Qty
Screw
Part #4389529Replaced by #WP308685
Manufacturer substitutionThis part replaces 4389529. Substitute parts can look different from the original.This item is not returnableIn Stock$5.0916% OFF Phone Price : $6.09QtyDoor diagram
Screw
Part #4389530Replaced by #WP308685
Manufacturer substitutionThis part replaces 4389530. Substitute parts can look different from the original.This item is not returnableIn Stock$5.0916% OFF Phone Price : $6.09QtyMaintop diagram

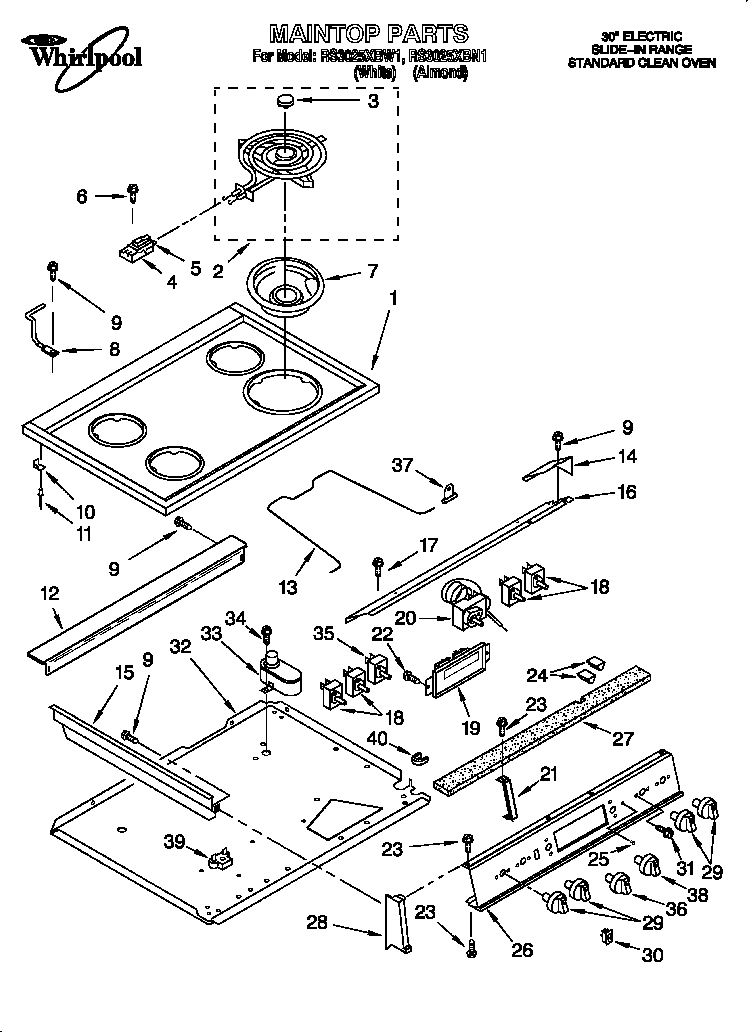

Surface Element
Part #4389732Replaced by #WP660533
Manufacturer substitutionThis part replaces 4389732. Substitute parts can look different from the original.In Stock$17.2343% OFF Was : $30.01QtyMaintop diagram
Infinite Switch
Part #4389572Replaced by #W10900107
Manufacturer substitutionThis part replaces 4389572. Substitute parts can look different from the original.In Stock$44.1312% OFF Phone Price : $50.13QtyMaintop diagram
Infinite Switch
Part #4389571Replaced by #W10900107
Manufacturer substitutionThis part replaces 4389571. Substitute parts can look different from the original.In Stock$44.1312% OFF Phone Price : $50.13QtyMaintop diagram
Screw
Part #4389647Replaced by #W11233072
Manufacturer substitutionThis part replaces 4389647. Substitute parts can look different from the original.In Stock$17.63QtyMaintop diagram
Light Lens
Part #4389578Replaced by #WP9750343
Manufacturer substitutionThis part replaces 4389578. Substitute parts can look different from the original.In Stock$28.59QtyOven body diagram
Light Bulb
Part #4389460Replaced by #8009
Manufacturer substitutionThis part replaces 4389460. Substitute parts can look different from the original.This item is not returnableIn Stock$14.6812% OFF Phone Price : $16.68QtyMaintop diagram
Clip
Part #4389597Replaced by #WP4332752
Manufacturer substitutionThis part replaces 4389597. Substitute parts can look different from the original.This item is not returnableIn Stock$7.2112% OFF Phone Price : $8.21Qty
