Whirlpool WOD51EC0HS20 electric double wall oven Parts

To clear an error code on your Whirlpool WOD51EC0HS20 electric double wall oven, we recommend pressing Cancel/Off first; if the code returns, reset power at the breaker for 1 minute and restore power. If the code keeps coming back, a failed control or temperature-related part is usually involved.

Quick reset steps (most common fixes)

• Press Cancel/Off once and wait 30 seconds.
• If the display does not clear, turn both oven breakers OFF (or the range breaker, if applicable).
• Leave power off for 60 seconds.
• Turn the breaker(s) back ON.
• Set Bake at 350°F and confirm the oven heats normally.

If the code returns right away

Recurring codes typically point to a real fault, not a “glitch”. These are the most common causes on electric wall ovens:

• Stuck or shorted keypad (touch panel) or a failing control board
• Loose or damaged wiring harness connections
• Overheating condition (cooling airflow issue)
• Temperature sensing or heating circuit problem

Parts that are commonly involved

Symptom you notice	What it often points to	Example part for this model
Oven overheats, shuts down, or trips errors during high heat	High-limit protection opening	Range high-limit thermostat WP4449751

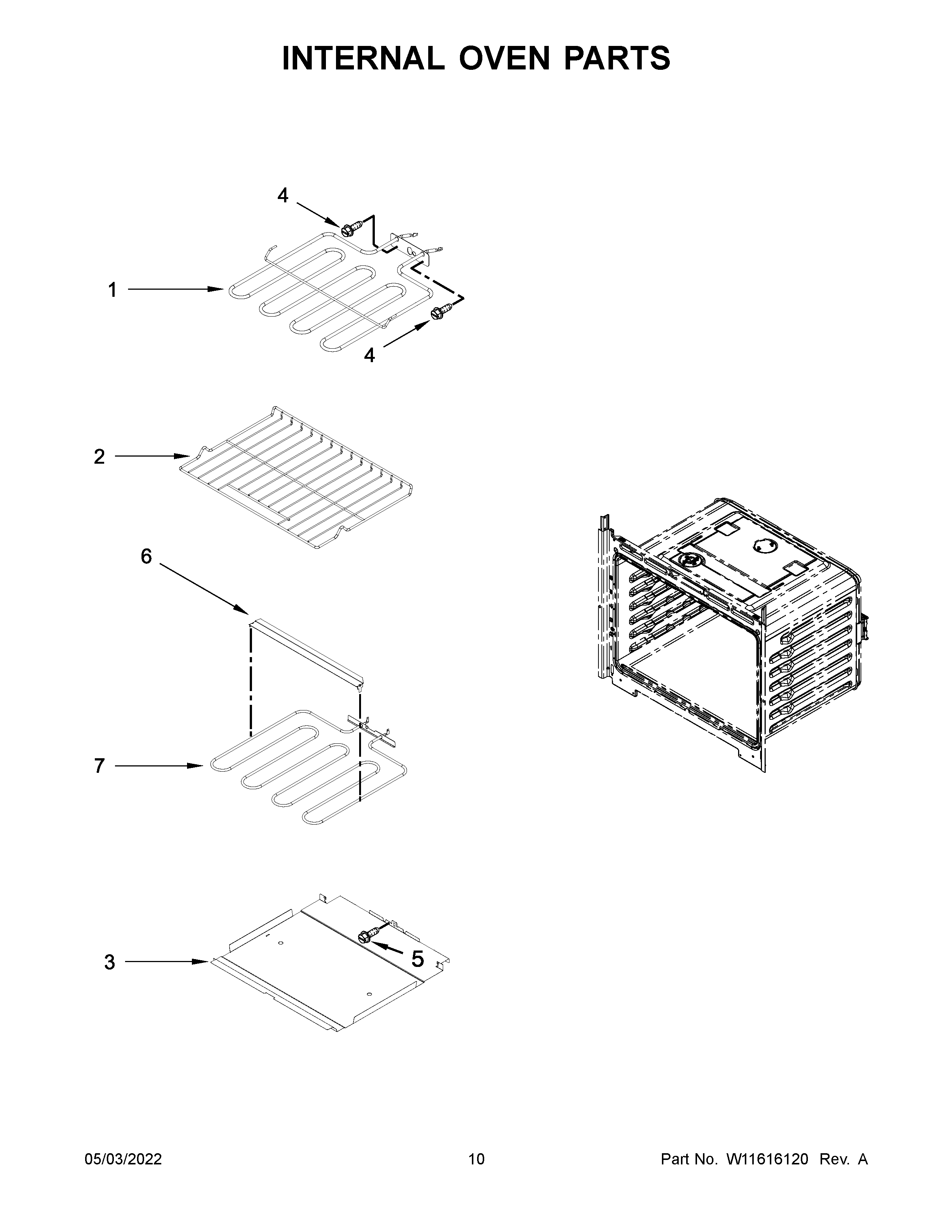

Oven will not heat properly, long preheat, uneven baking	Heating circuit issue	Range bake element W11545804
Error appears during or after self-clean, door will not unlock	Door lock system issue	Latch, motorized W11686858

Why it matters

Clearing the code gets you cooking again, but a repeating error code protects the oven from unsafe temperatures and prevents damage to the control panel, wiring, and heating components. A quick reset is fine; repeated resets without fixing the cause usually leads to more frequent failures.

Helpful DIY checks before replacing parts

• Verify the oven has a solid 240V supply (a half-tripped breaker can cause odd errors).
• If the code appears when you press keys, try wiping the control area dry and retrying.
• If the code appears only when heating, listen for the cooling fan and confirm vents are not blocked.
• If you plan to test circuits, use a meter and follow safe practices in how to use a multimeter to test electrical parts video.

Last updated: February 2026

On a Whirlpool WOD51EC0HS20 electric double wall oven, the F3-E2 (often shown as F3 and E2) error points to a temperature sensing problem. In most cases, the oven control is seeing an out-of-range signal from the oven temperature sensor circuit, so it stops heating to prevent overheating or inaccurate baking.

What to check first (safe, quick steps)

• Power reset: Turn the breaker off for 1 minute, then back on; recheck the display.
• Which oven is affected: Note whether the upper or lower oven shows the code.
• Cancel the cycle: Press Cancel/Off and let the oven cool completely.
• Look for obvious heat damage: Check for melted insulation or a pinched harness near the oven cavity.
• Avoid repeated preheats until the issue is corrected; it can worsen wiring damage.

Common causes and the most likely fixes

What triggers F3-E2	What it usually means	Typical fix
Sensor signal out of range	Sensor circuit reads too hot, too cold, open, or shorted	Test sensor resistance; replace sensor if failed
Loose connection	Vibration or heat loosens a plug at the sensor or control	Reseat connectors; repair terminals
Damaged wiring	Harness insulation breaks down from heat	Repair or replace damaged wiring
Control not interpreting sensor correctly	Less common than sensor or wiring	Replace control if sensor and wiring test good

How we recommend diagnosing it (with a meter)

1. Shut off power at the breaker (240V). Confirm the oven is dead before touching wiring.
2. Access the sensor connector and check resistance at room temperature.
3. Most Whirlpool wall-oven sensors read about 1,080 ohms at 70°F (normal range is typically close to that). If it is far off, open (infinite), or near 0 ohms, the sensor circuit is bad.
4. If resistance is normal, inspect the harness for heat damage and check continuity back to the control.

For help using test equipment, follow how to use a multimeter to test electrical parts video.

Parts that can be involved

If testing shows the oven is overheating or shutting down on high temperature, a safety device can be part of the diagnosis. For this model’s parts list, one example is the range high-limit thermostat WP4449751.

Why it matters

A bad temperature sensor circuit causes wrong bake temperatures, long preheat times, or no heat, and it can also trigger shutdowns during self-clean. Fixing the sensor circuit restores accurate temperature control and protects the oven from overheating.

Last updated: February 2026

The model number is printed on the oven’s rating label, not on the control panel. On Whirlpool electric double wall ovens like model WOD51EC0HS20, the label is typically found around the oven door frame area, so you can confirm the exact model before ordering parts.

Where to look on a Whirlpool double wall oven

Check these common rating-label locations (start with the upper oven):

• Along the left or right side of the oven door frame when the door is open
• On the front frame behind the upper oven door (near the hinge area)
• On the frame behind the lower oven door
• On the side trim area just inside the opening (visible with the door open)
• Occasionally on the lower oven frame lip near the bottom vent area

What the label looks like and what to copy

The rating label is usually a small sticker or metal plate with multiple lines of text.

• Copy the full model number exactly (WOD51EC0HS20)
• Also copy the serial number (helps match production changes)
• If you see “MOD” or “MODEL,” use the value next to it
• Take a clear photo so you can zoom in later

Why it matters for parts fit

Whirlpool wall ovens can use different versions of the same part across close model numbers or production runs. Using the exact model number helps ensure the correct match for items like a control panel, door glass, or heating element.

What you’re doing	What to use	Example from this model’s parts
Confirming the appliance identity	Model number from the rating label	WOD51EC0HS20
Matching a replacement part	Part ID from the parts list	Wall oven door inner glass WPW10618107
Fixing a no-heat or weak-heat symptom	Heating component part ID	Range bake element W11545804

Quick tip if the label is hard to read

• Wipe gently with a damp cloth and mild dish soap, then dry
• Avoid abrasive pads or stainless cleaners on the label
• Use your phone’s flashlight and take a photo at an angle

Last updated: March 2026
