Electric Wall Oven

Model # LWS3081ST Official LG wall oven

Here are the diagrams and repair parts for Official LG LWS3081ST wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

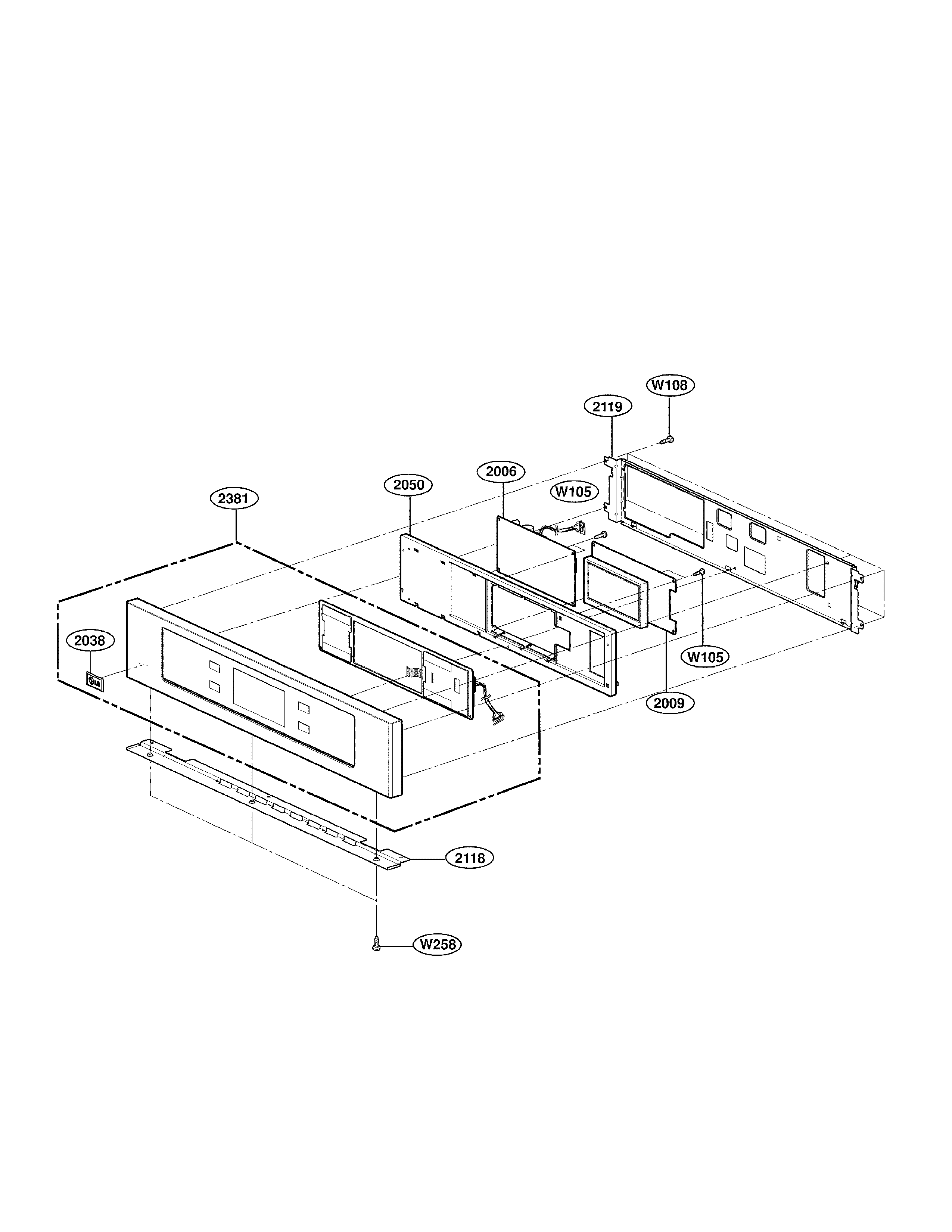

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |

Range Safety Thermostat 6930W1A003X
#5116

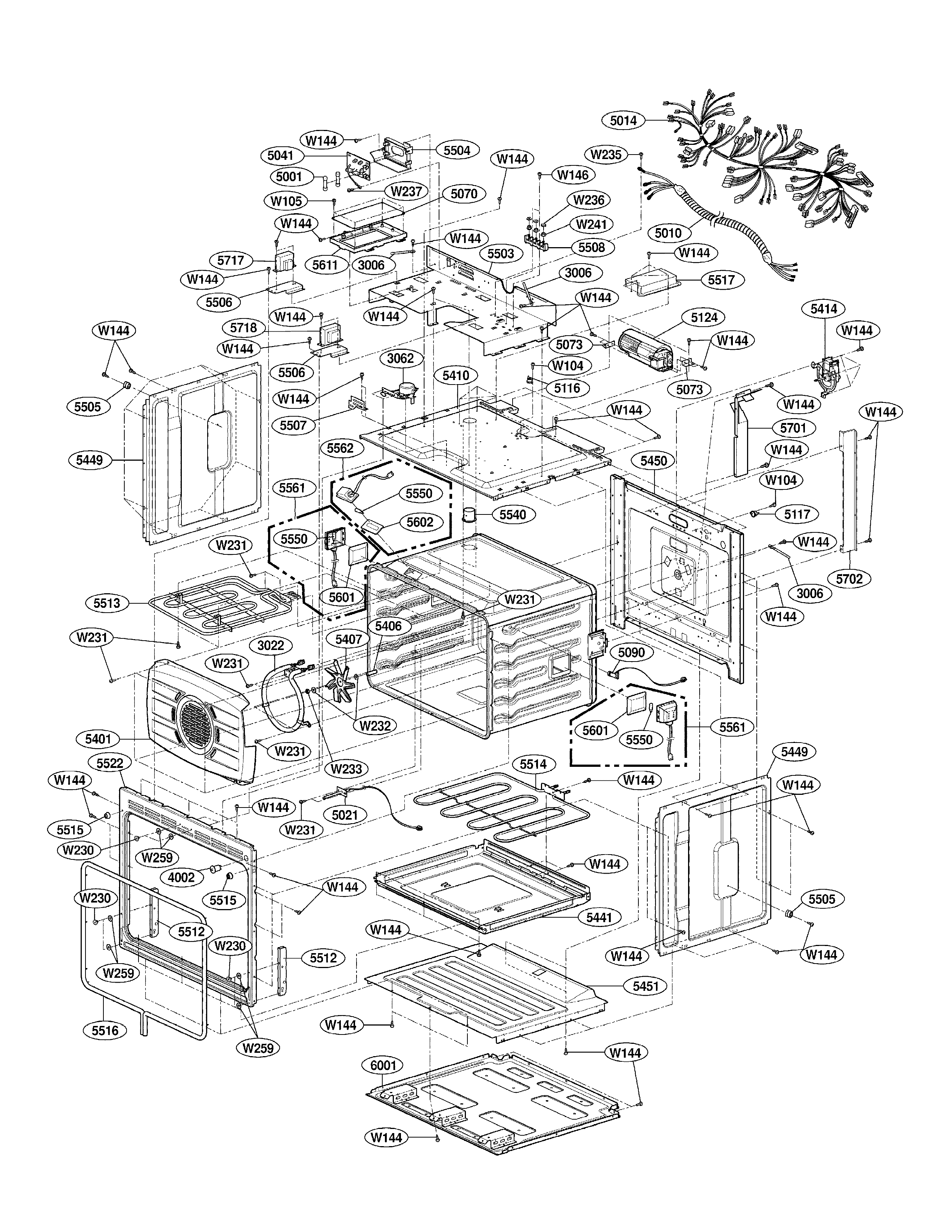

Cavity parts diagram

Range safety thermostat

Part #6930W1A003X

BEST SELLER
$11.97
14% OFF Phone Price : $13.97
In Stock
Range Oven Door Inner Glass 4890W1N005A
#1008

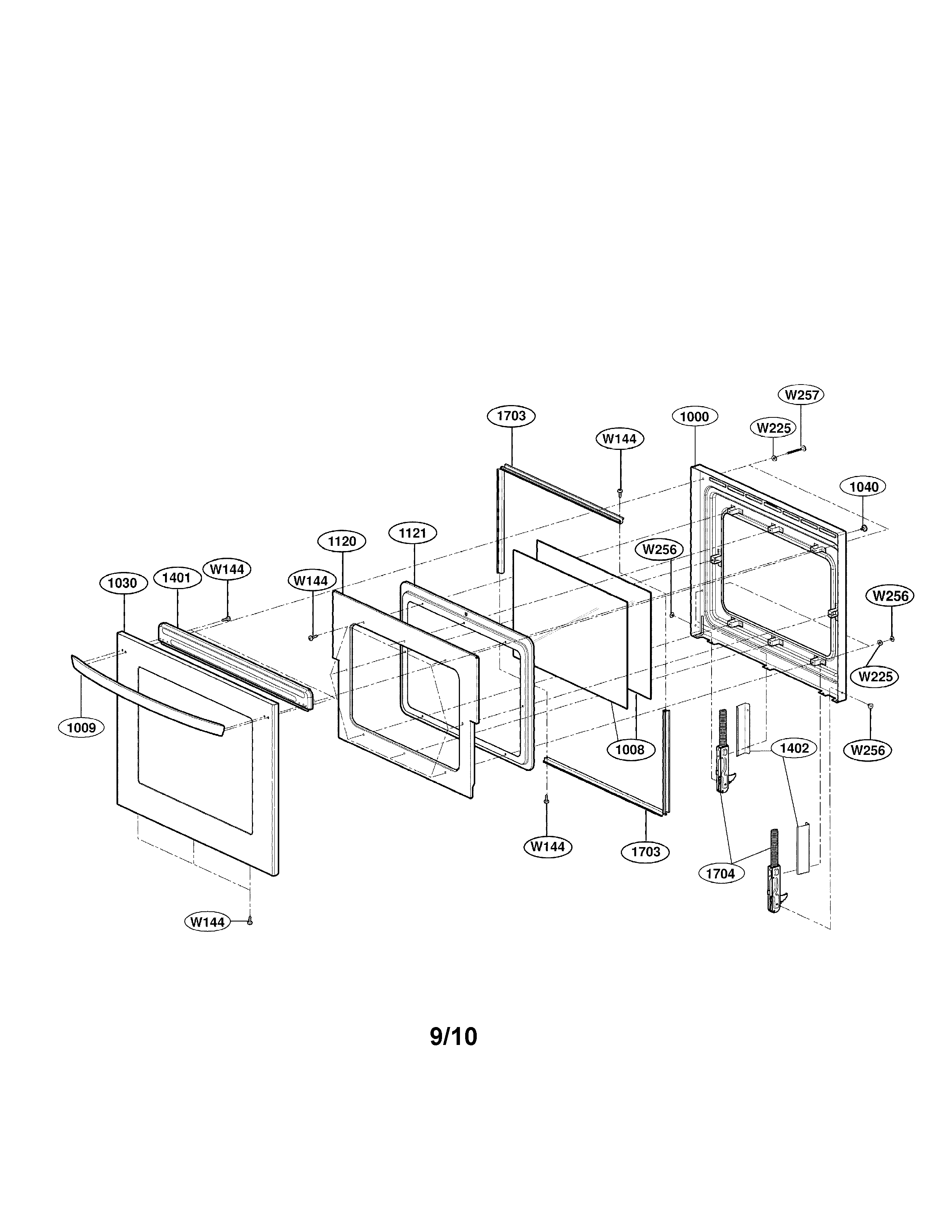

Door parts diagram

Range oven door inner glass

Part #4890W1N005A

BEST SELLER
$108.52
8% OFF Phone Price : $118.52
In Stock
Wall Oven Safety Thermostat EBG51439301
#5117

Cavity parts diagram

Wall oven safety thermostat

Part #EBG51439301

Replaced by #EBG51439303

?
Manufacturer substitution
This part replaces EBG51439301. Substitute parts can look different from the original.
This item is not returnable
$27.35
15% OFF Phone Price : $32.35
In Stock
Wall Oven Vent Trim MJZ41753801
#5527

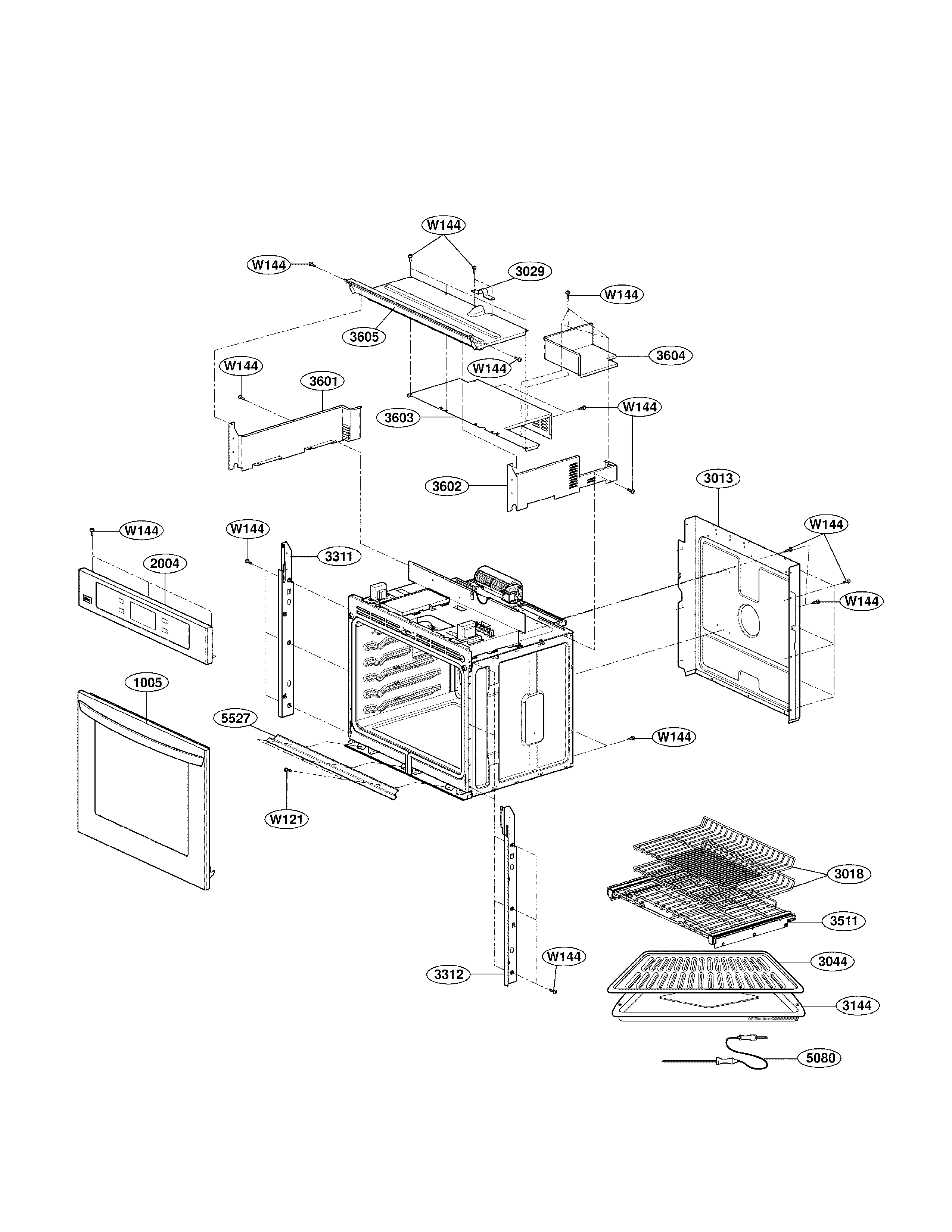

Assembly diagram

Wall oven vent trim

Part #MJZ41753801

Replaced by #MJZ41753802

?
Manufacturer substitution
This part replaces MJZ41753801. Substitute parts can look different from the original.
$50.09
9% OFF Phone Price : $55.09
In Stock
Range Oven Meat Probe Sensor EBD51431001
#5080

Assembly diagram

Range oven meat probe sensor

Part #EBD51431001

$50.28
9% OFF Phone Price : $55.28
In Stock
Tactile Switch 6600R000082
#4002

Cavity parts diagram

Tactile switch

Part #6600R000082

Replaced by #EBF60663403

?
Manufacturer substitution
This part replaces 6600R000082. Substitute parts can look different from the original.
This item is not returnable
$23.37
18% OFF Phone Price : $28.37
In Stock
Packing Gasket MFZ54382601
#5515

Cavity parts diagram

Packing gasket

Part #MFZ54382601

In Stock
Range Washer, 5.3 X 1-mm 1WZZ81N001A
#W232

Cavity parts diagram

Range washer, 5.3 x 1-mm

Part #1WZZ81N001A

This item is not returnable
$6.28
14% OFF Phone Price : $7.28
In Stock
Wall Oven Rack (replaces Mhl49207702) MHL49207701
#3018

Assembly diagram

Wall oven rack (replaces mhl49207702)

Part #MHL49207701

$84.59
6% OFF Phone Price : $89.59
In Stock
Range Oven Door Handle MEB42058901
#1009

Door parts diagram

Range oven door handle

Part #MEB42058901

Replaced by #MEB62494913

?
Manufacturer substitution
This part replaces MEB42058901. Substitute parts can look different from the original.
$86.10
5% OFF Phone Price : $91.10
In Stock
