Model # AKCQ12ACA Official GE room a/c

Here are the diagrams and repair parts for Official GE AKCQ12ACA room a/c, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

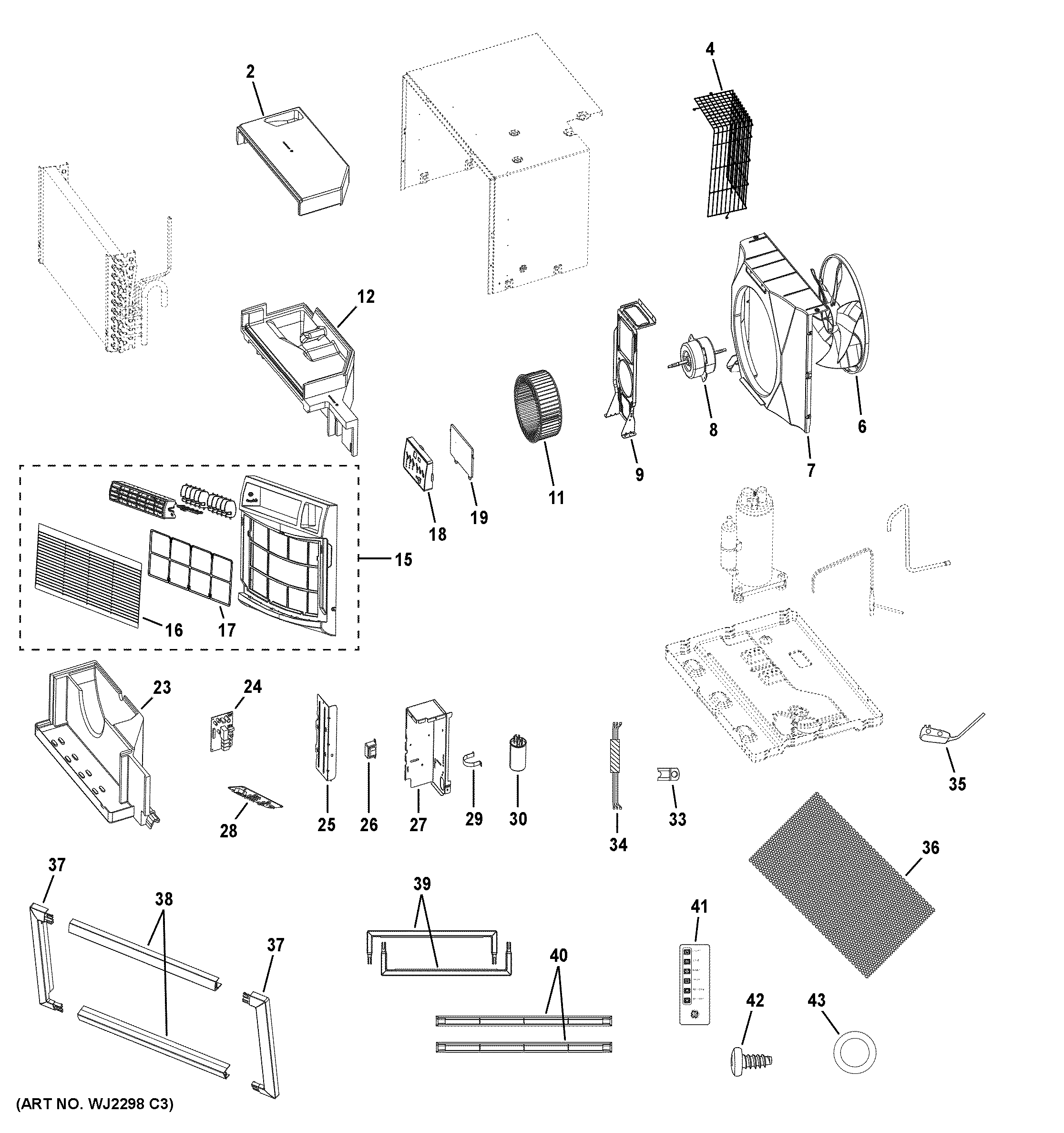

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Axial Fan WJ73X20065
#6

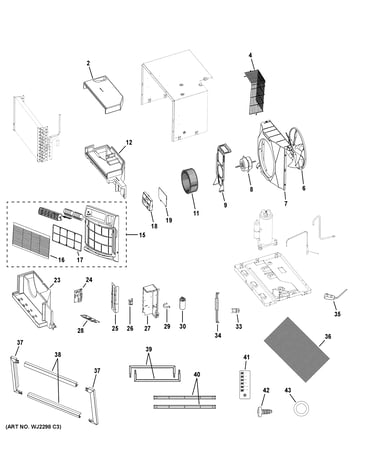

Room air conditioner diagram

Axial fan

Part #WJ73X20065

$40.84
In Stock
Room Air Conditioner Electronic Control Board WJ29X20075
#28

Room air conditioner diagram

Room air conditioner electronic control board

Part #WJ29X20075

$96.20 |
9% OFF Phone Price : $106.20
In Stock
Room Air Conditioner Remote Control (replaces Wj26x25653) WJ26X23777
#41

Room air conditioner diagram

Room air conditioner remote control (replaces wj26x25653)

Part #WJ26X23777

$31.54 |
14% OFF Phone Price : $36.54
In Stock
Transformer WJ27X21772
#26

Room air conditioner diagram

Transformer

Part #WJ27X21772

$48.67
In Stock
Filter WJ85X22380
#17

Room air conditioner diagram

Filter

Part #WJ85X22380

$9.62 |
9% OFF Phone Price : $10.62
In Stock
Frame WJ68X22863
#37

Room air conditioner diagram

Frame

Part #WJ68X22863

$14.71
In Stock
Fan Motor WJ94X21770
#8

Room air conditioner diagram

Fan motor

Part #WJ94X21770

$112.60
In Stock
Rear Partiti WJ76X20093
#7

Room air conditioner diagram

Rear partiti

Part #WJ76X20093

$38.89
In Stock
Centrifugal WJ73X21768
#11

Room air conditioner diagram

Centrifugal

Part #WJ73X21768

$13.33
In Stock
Top Scroll C WJ76X21764
#2

Room air conditioner diagram

Top scroll c

Part #WJ76X21764

$23.47
In Stock
