Frigidaire
Gas Cooktop

Model # E46GC67ESS Official Frigidaire cooktop

Here are the diagrams and repair parts for Official Frigidaire E46GC67ESS cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

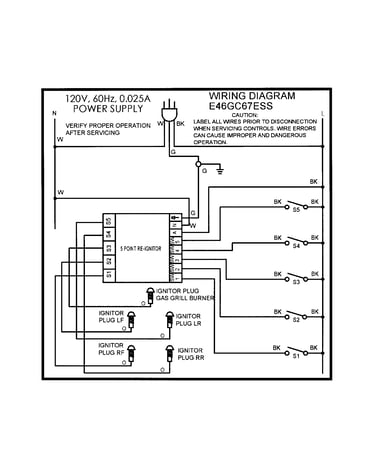

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Washer 5304446027
#9A

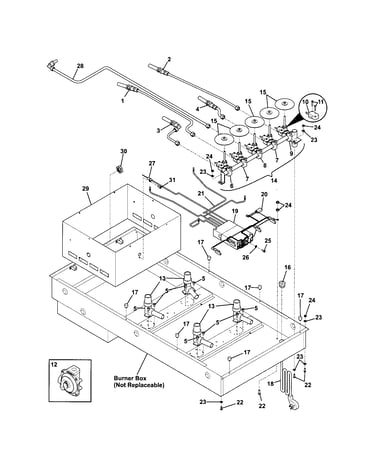

Burner diagram

Washer

Part #5304446027

This item is not returnable
$6.99
In Stock
Cooktop Burner Head Brass Nut 5304446028
#8

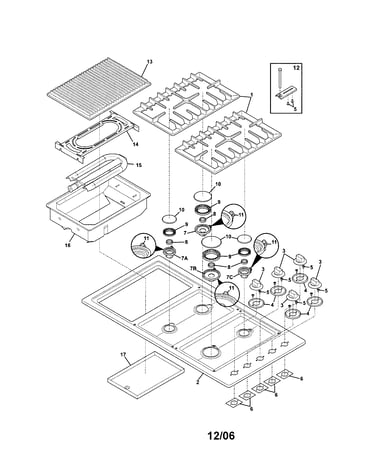

Cooktop diagram

Cooktop burner head brass nut

Part #5304446028

$40.47
In Stock
Cooktop Burner Head 5304446034
#7C

Cooktop diagram

Cooktop burner head

Part #5304446034

$93.61
In Stock
Cleaner 5304446032

#NI01

All parts diagram

Cleaner

Part #5304446032

This item is not returnable
$3.17
In Stock
Tubing 5304446123
#2

Burner diagram

Tubing

Part #5304446123

The manufacturer no longer makes this part, and there's no substitute part

Installation Instructions 5995426250

#NI05

All parts diagram

Installation instructions

Part #5995426250

The manufacturer no longer makes this part, and there's no substitute part

Nut 5304446133
#30

Burner diagram

Nut

Part #5304446133

The manufacturer no longer makes this part, and there's no substitute part

Tubing 5304446121
#1

Burner diagram

Tubing

Part #5304446121

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Burner Head 5304446011
#7

Cooktop diagram

Cooktop burner head

Part #5304446011

The manufacturer no longer makes this part, and there's no substitute part

Regulator 5304446036
#12

Burner diagram

Regulator

Part #5304446036

The manufacturer no longer makes this part, and there's no substitute part
