Kenmore
Wall Heater

Model # 34458223 Official Kenmore fan-forced in-wall heater

Here are the diagrams and repair parts for Official Kenmore 34458223 fan-forced in-wall heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Wall Bracket 28782

#NI

All parts diagram

Wall bracket

Part #28782

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 114603

#NI

All parts diagram

Lock washer

Part #114603

The manufacturer no longer makes this part, and there's no substitute part

Element Hook 28400

#NI

All parts diagram

Element hook

Part #28400

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 29475
#11

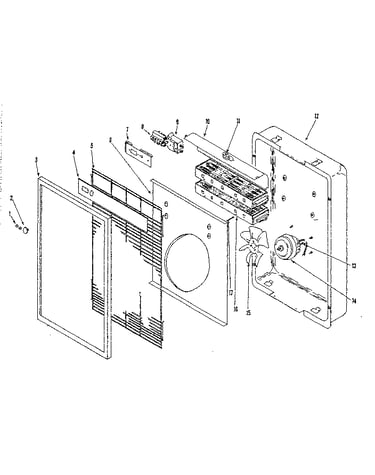

Replacement parts diagram

Thermostat

Part #29475

The manufacturer no longer makes this part, and there's no substitute part

Grommet 2492024

#NI

All parts diagram

Grommet

Part #2492024

The manufacturer no longer makes this part, and there's no substitute part

Fan Shroud 28801
#6

Replacement parts diagram

Fan shroud

Part #28801

The manufacturer no longer makes this part, and there's no substitute part

Screw 2490230

#NI

All parts diagram

Screw

Part #2490230

The manufacturer no longer makes this part, and there's no substitute part

Bezel 92810-31
#3

Replacement parts diagram

Bezel

Part #92810-31

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 28922
#15

Replacement parts diagram

Fan blade

Part #28922

The manufacturer no longer makes this part, and there's no substitute part

Nut 2491048

#NI

All parts diagram

Nut

Part #2491048

The manufacturer no longer makes this part, and there's no substitute part
