Jenn-Air JMW9530CAW electric wall oven Parts

Here are the diagrams and repair parts for Jenn-Air JMW9530CAW electric wall oven, as well as links to manuals and error code tables, if available.

Jenn-Air JMW9530CAW electric wall oven
By Schematic
By Part

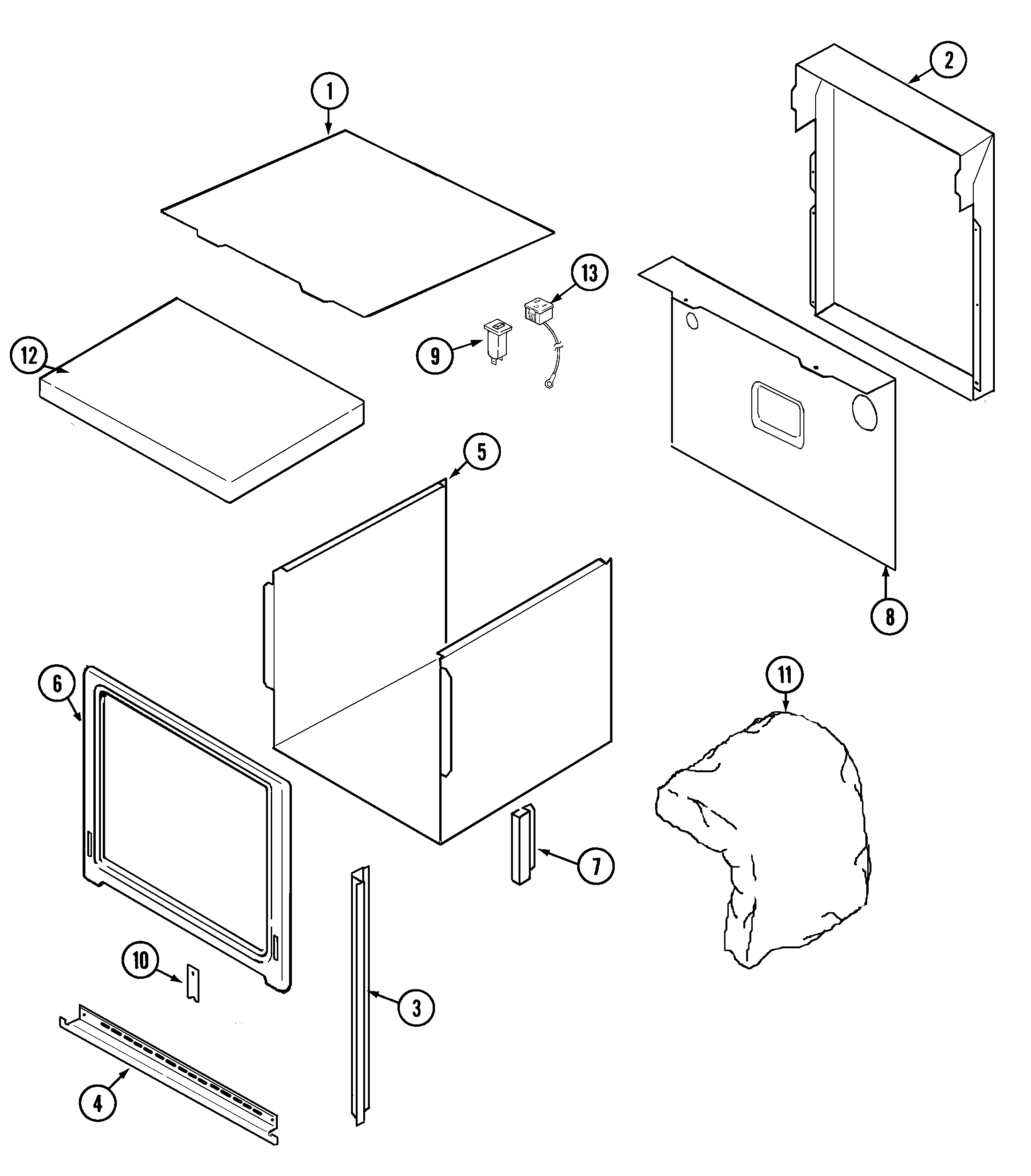

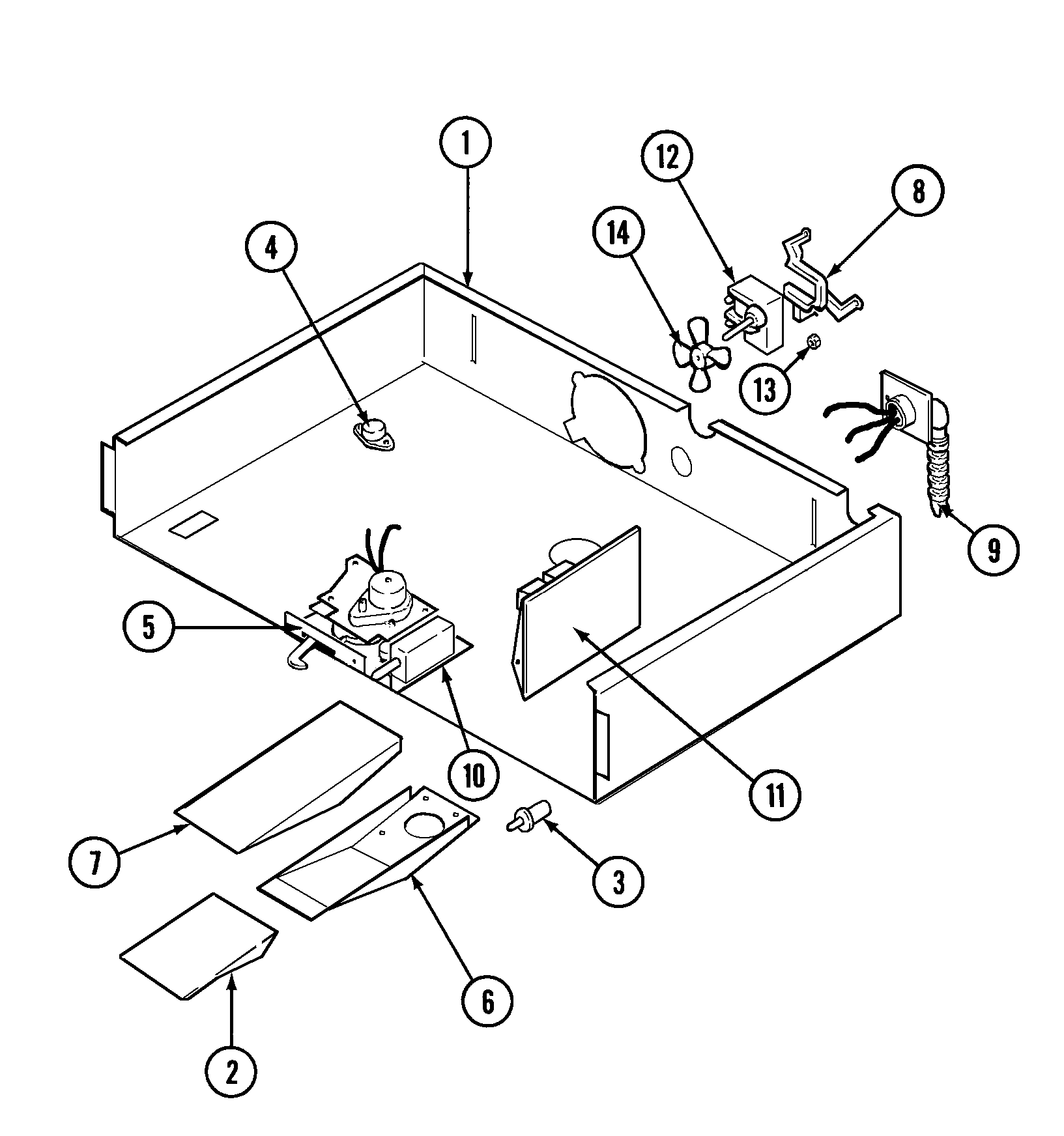

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JMW9530CAW Wall Ovens

  • Breaker for Jenn-Air JMW9530CAW - Part WP71002286

    Circuit Breaker

    Part #71002286

    Replaced by #WP71002286

    Info Icon
    Manufacturer substitution
    This part replaces 71002286. Substitute parts can look different from the original.
    In Stock
    $94.99
    Minus Item
    Qty
    Plus Item
  • Whirlpool Wall Oven Door Hinge for Jenn-Air JMW9530CAW - Part WP74008014

    Door diagram

    Door Hinge

    Part #71003350

    Replaced by #WP74008014

    Info Icon
    Manufacturer substitution
    This part replaces 71003350. Substitute parts can look different from the original.
    In Stock
    $99.20
    11% OFF Phone Price : $111.20Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Broil Pan for Jenn-Air JMW9530CAW - Part 4396923

    Oven diagram

    Broiler Insert

    Part #3413F016-19

    Replaced by #4396923

    Info Icon
    Manufacturer substitution
    This part replaces 3413F016-19. Substitute parts can look different from the original.
    In Stock
    $45.56
    12% OFF Phone Price : $51.56Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for Jenn-Air JMW9530CAW - Part W10759523

    Range Screw

    Part #71002263

    Replaced by #W10759523

    Info Icon
    Manufacturer substitution
    This part replaces 71002263. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.33
    Minus Item
    Qty
    Plus Item
  • Range Bake Element for Jenn-Air JMW9530CAW - Part WPW10310258

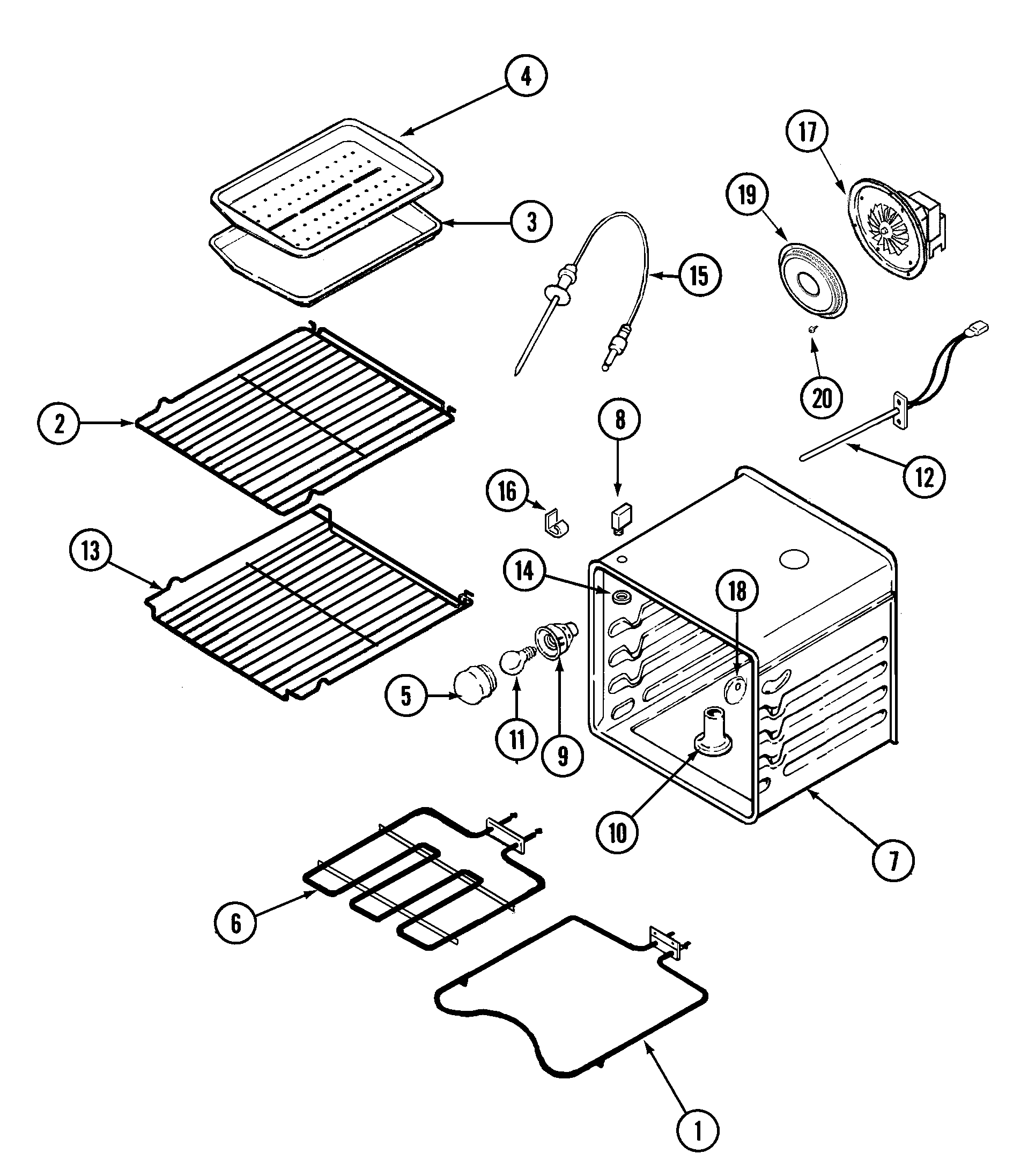

    Oven diagram

    Bake Element

    Part #71001638

    Replaced by #WPW10310258

    Info Icon
    Manufacturer substitution
    This part replaces 71001638. Substitute parts can look different from the original.
    In Stock
    $104.84
    10% OFF Phone Price : $116.84Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Screw for Jenn-Air JMW9530CAW - Part WP355214

    Screw

    Part #700725

    Replaced by #WP355214

    Info Icon
    Manufacturer substitution
    This part replaces 700725. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.91
    17% OFF Phone Price : $5.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Bulb for Jenn-Air JMW9530CAW - Part 8009

    Oven diagram

    Oven Bulb

    Part #7407P103-60

    Replaced by #8009

    Info Icon
    Manufacturer substitution
    This part replaces 7407P103-60. Substitute parts can look different from the original.
    In Stock
    $35.61
    Minus Item
    Qty
    Plus Item
  • Range Screw for Jenn-Air JMW9530CAW - Part WP7101P434-60

    Screw

    Part #71001394

    Replaced by #WP7101P434-60

    Info Icon
    Manufacturer substitution
    This part replaces 71001394. Substitute parts can look different from the original.
    In Stock
    $28.50
    Minus Item
    Qty
    Plus Item
  • Range Screw for Jenn-Air JMW9530CAW - Part W10759523

    Screw (blk)

    Part #71002264

    Replaced by #W10759523

    Info Icon
    Manufacturer substitution
    This part replaces 71002264. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.33
    Minus Item
    Qty
    Plus Item
  • Door Glass for Jenn-Air JMW9530CAW - Part 74005660

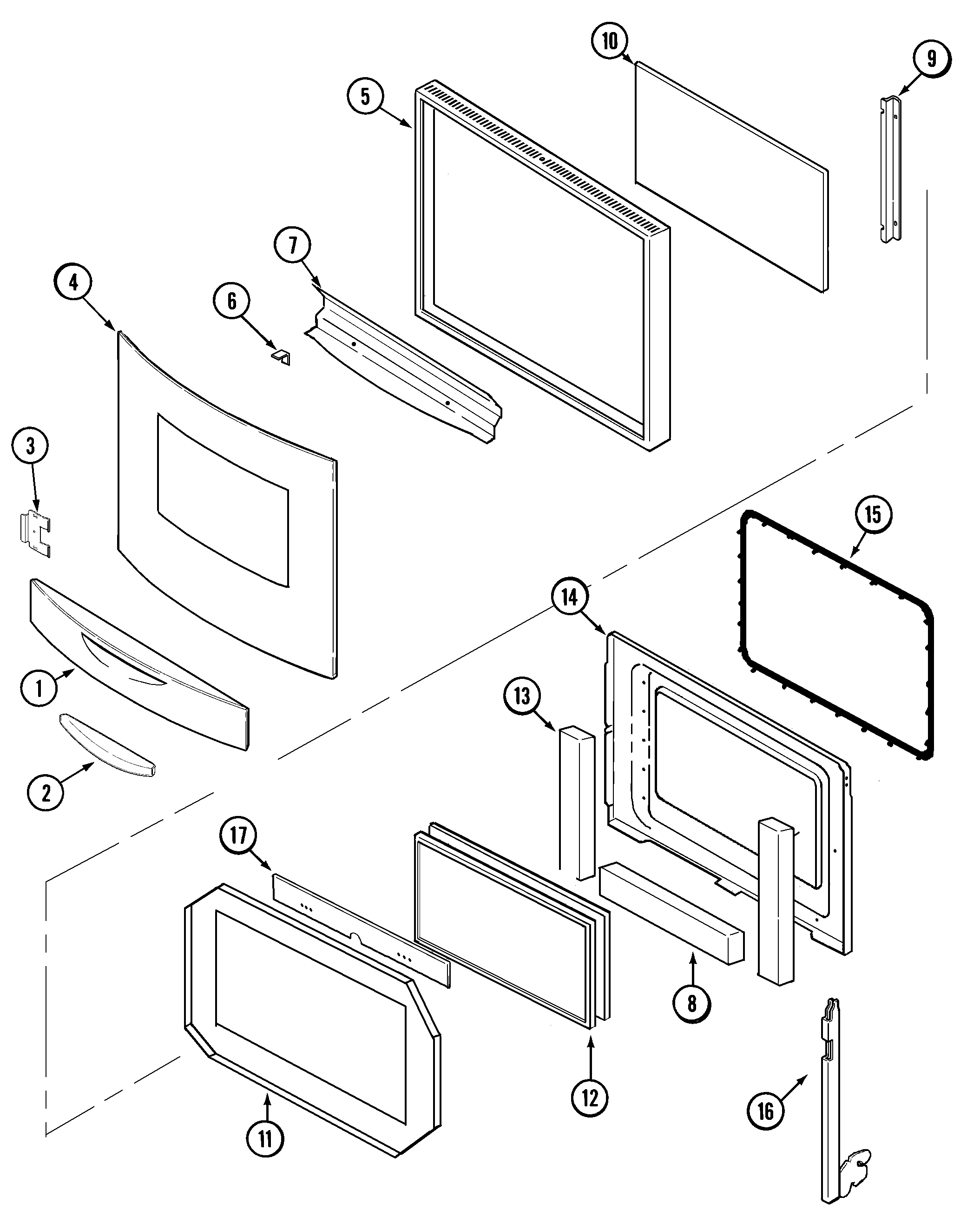

    Door diagram

    Door Glass

    Part #74005660

    The manufacturer no longer makes this part, and there's no substitute part
