Whirlpool RBS270PDB4 27" electric oven Parts
Here are the diagrams and repair parts for Whirlpool RBS270PDB4 27" electric oven, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM

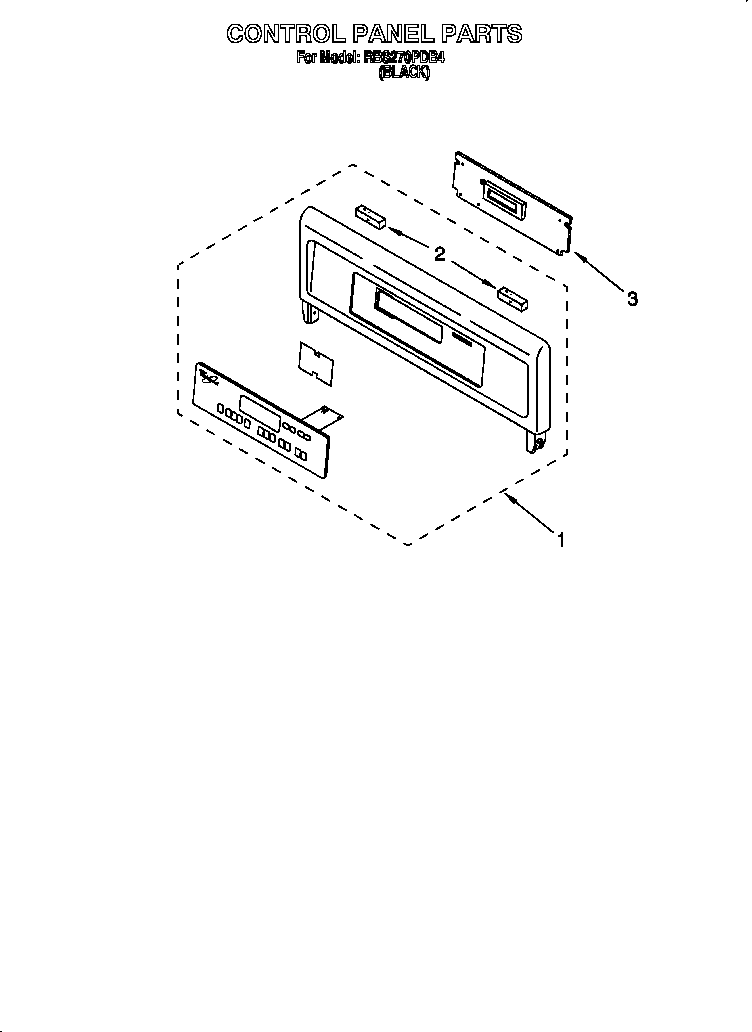

Browse Parts for RBS270PDB4 Wall Ovens

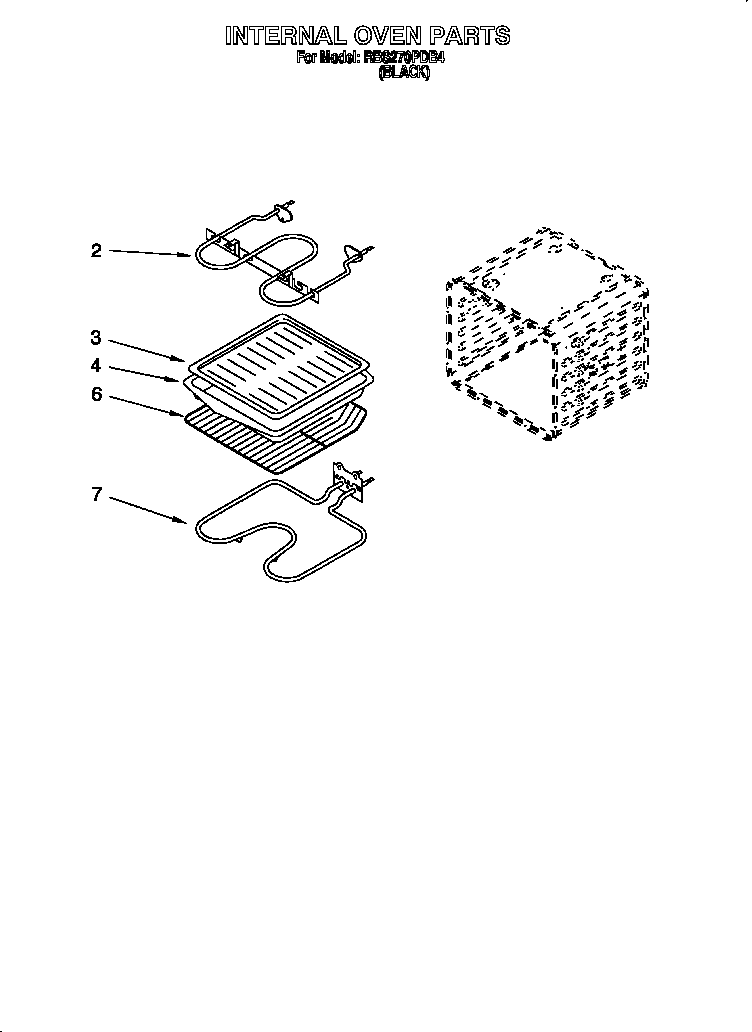

Internal oven diagram
Broiler Pan
Part #3147845Replaced by #4396923
Manufacturer substitutionThis part replaces 3147845. Substitute parts can look different from the original.In Stock$45.5612% OFF Phone Price : $51.56
Qty

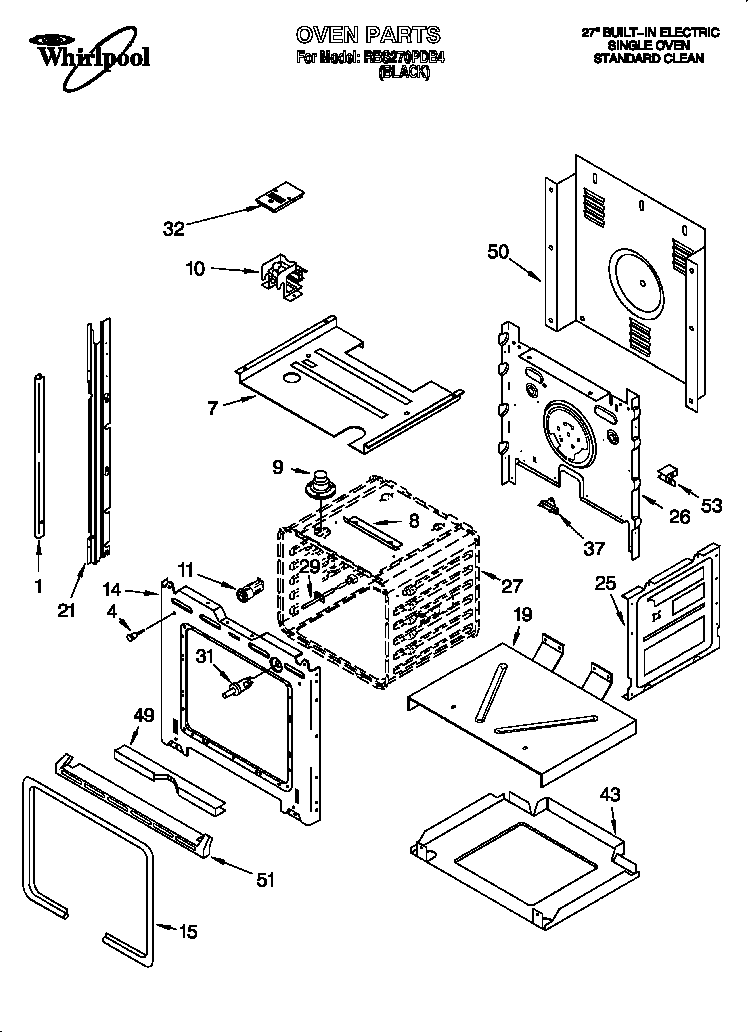

Oven diagram
Oven Safety Thermostat
Part #4451354Replaced by #WP4451354
Manufacturer substitutionThis part replaces 4451354. Substitute parts can look different from the original.In Stock$28.7517% OFF Phone Price : $34.75Qty#NI
All parts diagram
Spray Bl
Part #830864Replaced by #285006
Manufacturer substitutionThis part replaces 830864. Substitute parts can look different from the original.This item is not returnableIn Stock$45.0912% OFF Phone Price : $51.09Qty#NI
All parts diagram
Touch-up Paint (black)
Part #72032Replaced by #72032
Manufacturer substitutionThis part replaces 72032. Substitute parts can look different from the original.This item is not returnableIn Stock$11.0815% OFF Phone Price : $13.08Qty#NI
All parts diagram
Conduit
Part #4450952Replaced by #WP4450952

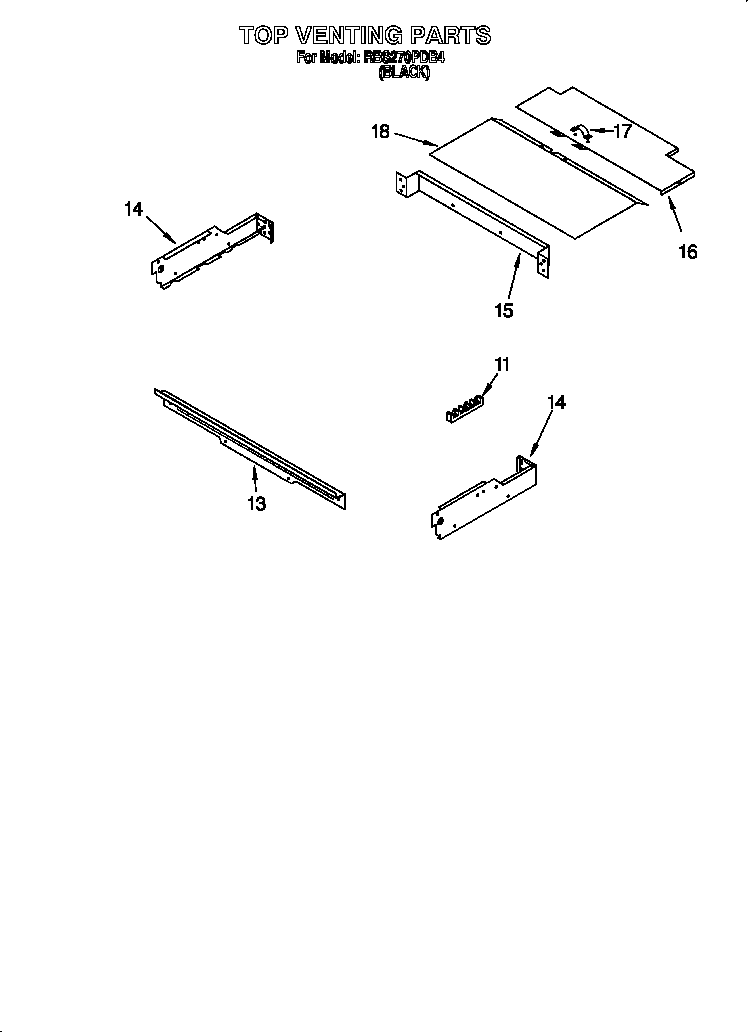

Manufacturer substitutionThis part replaces 4450952. Substitute parts can look different from the original.In Stock$185.72QtyTop venting diagram
Side
Part #4448372Replaced by #W10790240
Manufacturer substitutionThis part replaces 4448372. Substitute parts can look different from the original.In Stock$94.97QtyInternal oven diagram
Bake Element
Part #4448696Replaced by #WPW10207397

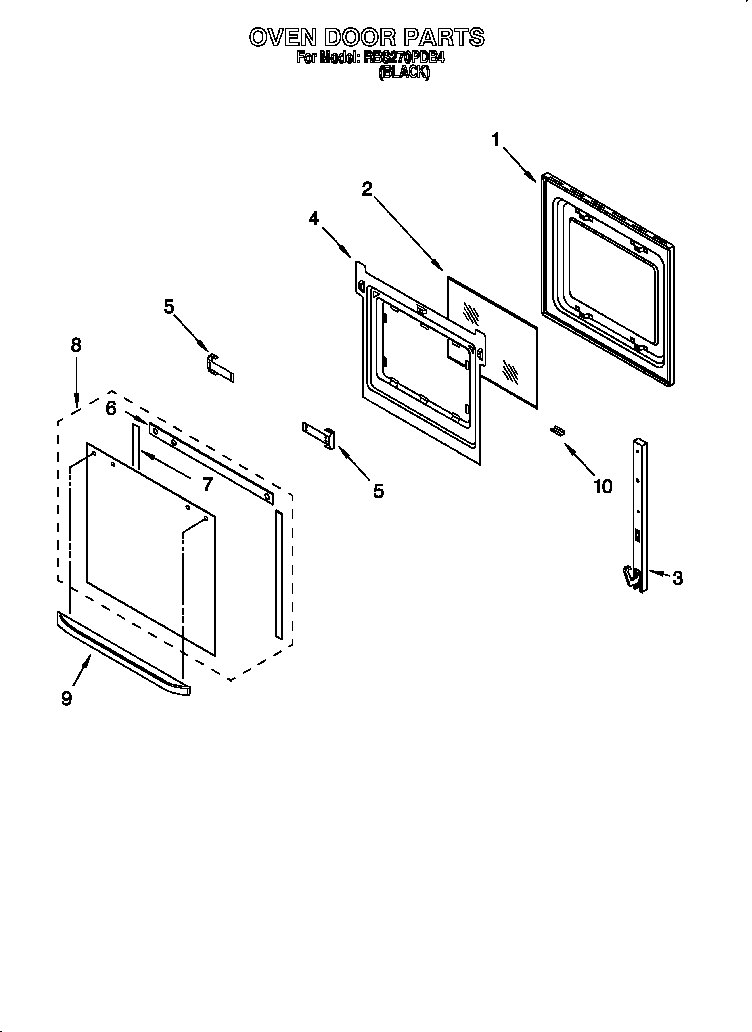

Manufacturer substitutionThis part replaces 4448696. Substitute parts can look different from the original.In Stock$51.9010% OFF Phone Price : $57.90QtyOven door diagram
Door Hinge
Part #4451171
The manufacturer no longer makes this part, and there's no substitute part
Top venting diagram
Screw
Part #3196181
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Installation Instructions
Part #LIT4450410
The manufacturer no longer makes this part, and there's no substitute part
