Whirlpool
Wall Oven/Microwave Combo

Model # WOCA7EC0HZ01 Official Whirlpool electric oven with microwave

Here are the diagrams and repair parts for Official Whirlpool WOCA7EC0HZ01 electric oven with microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

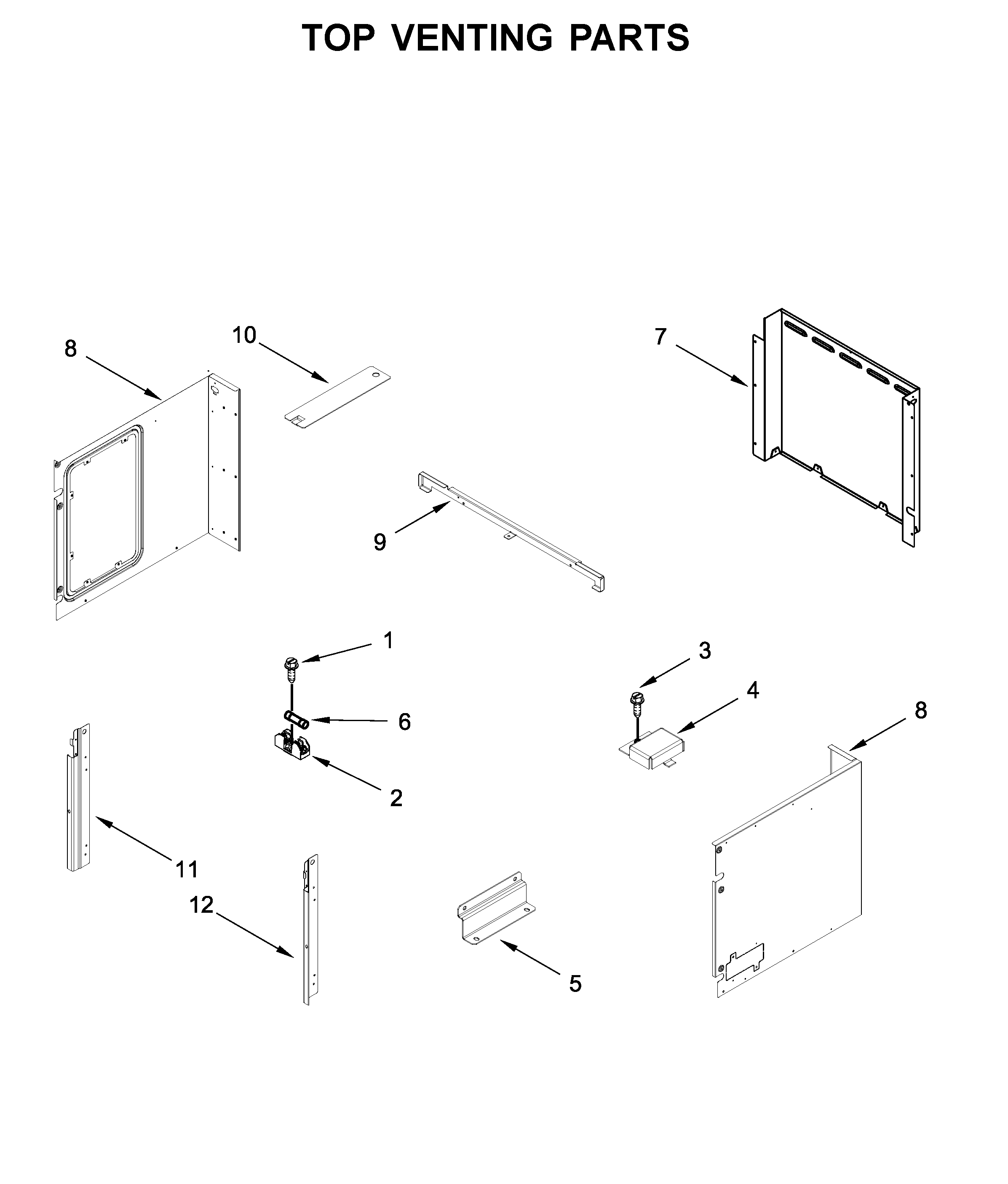

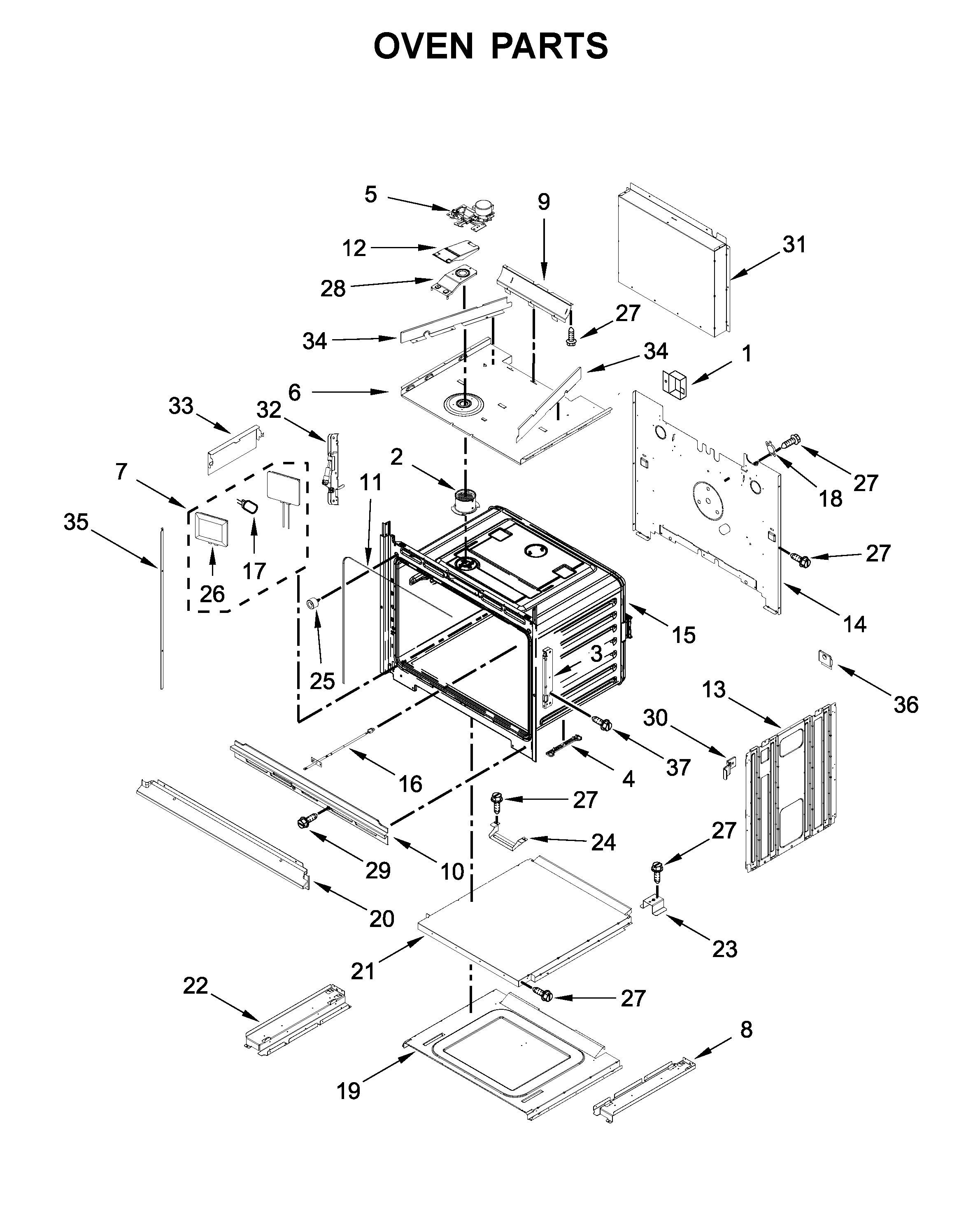

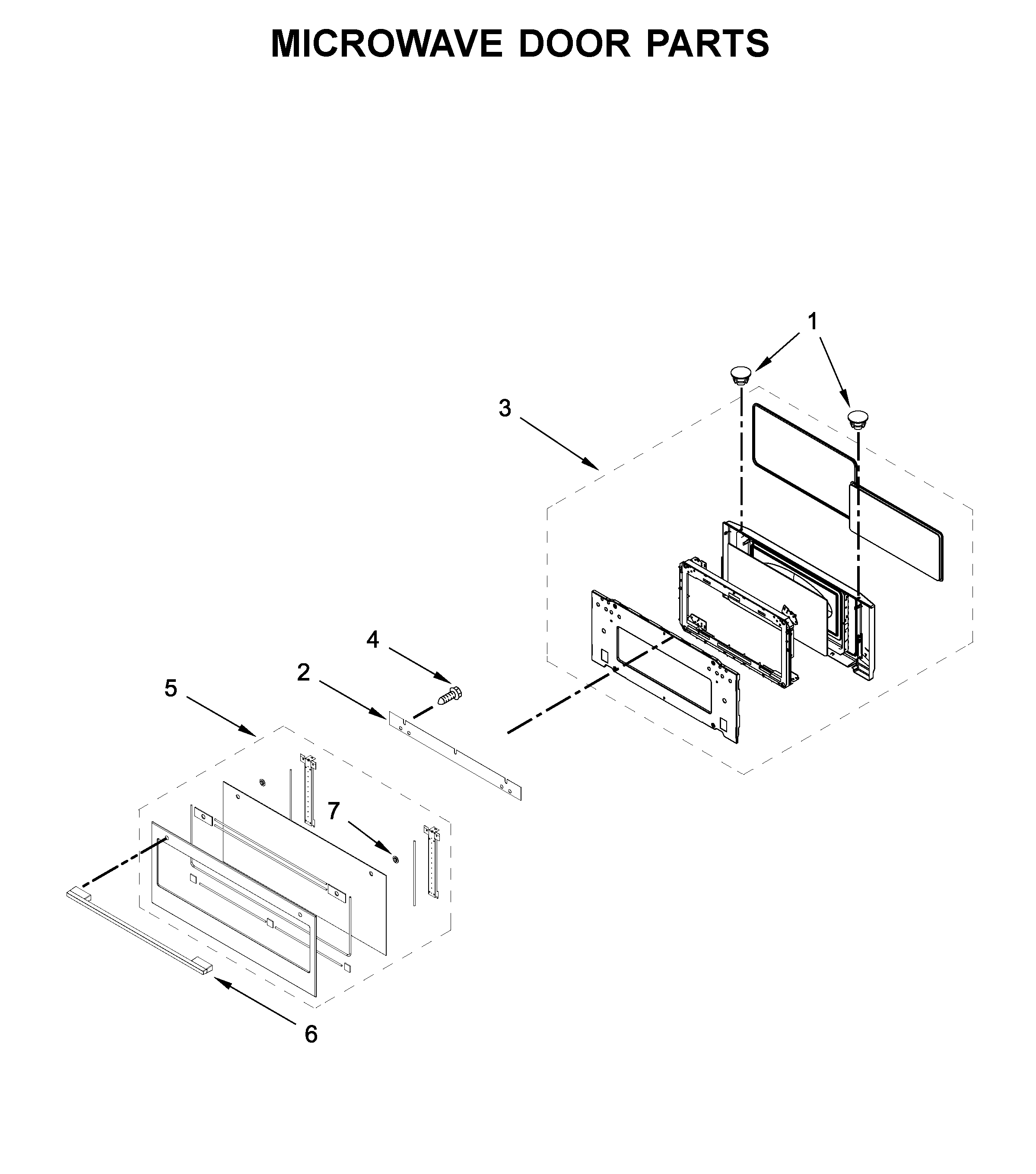

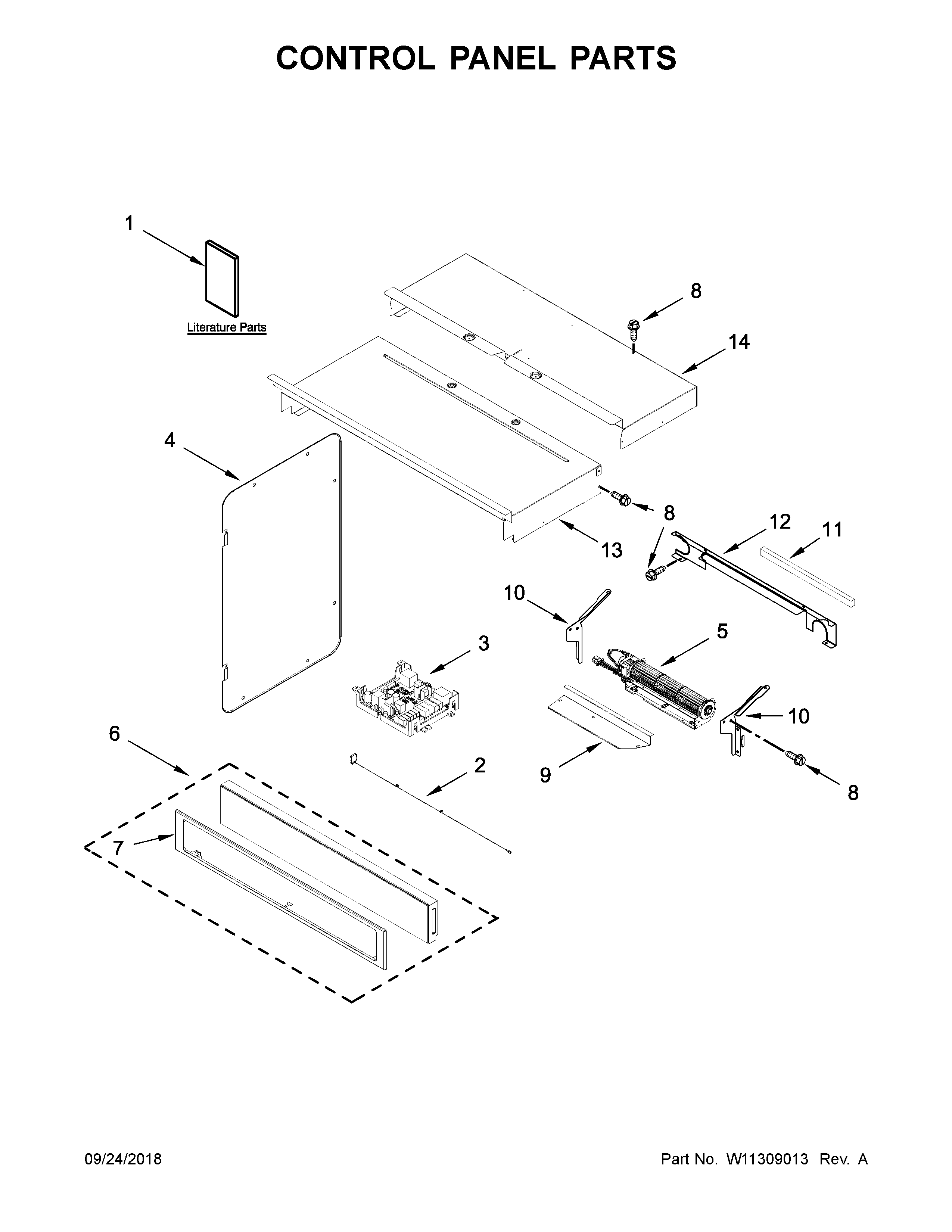

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 193 parts  |

Spray W 350930
#NI

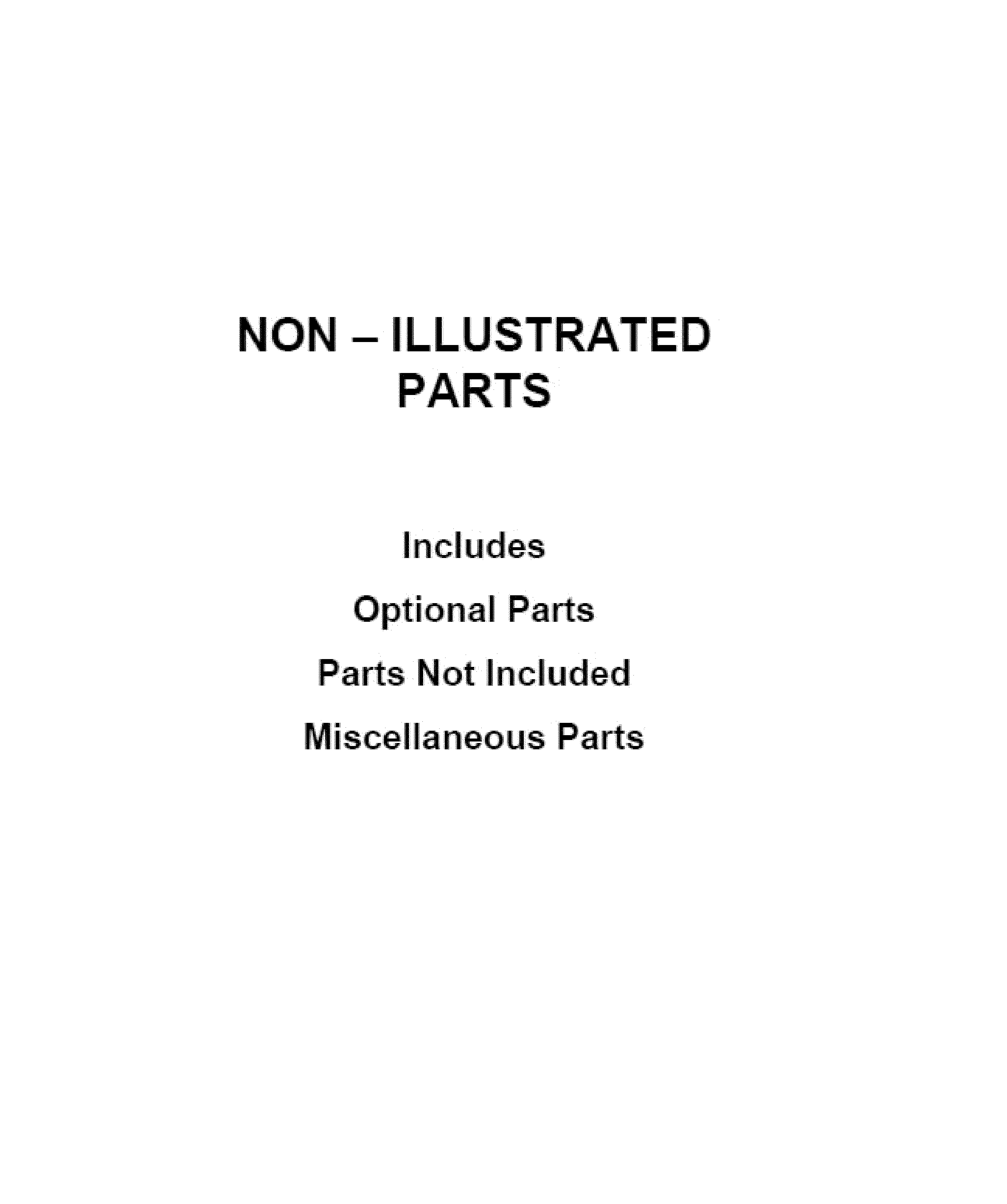

Optional parts (not included) diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69
11% OFF Phone Price : $17.69
In Stock
Touch-up Paint (black) 72032
#NI

Optional parts (not included) diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.18
49% OFF MSRP : $12.00
In Stock
Lock Spring 252262898008
#6

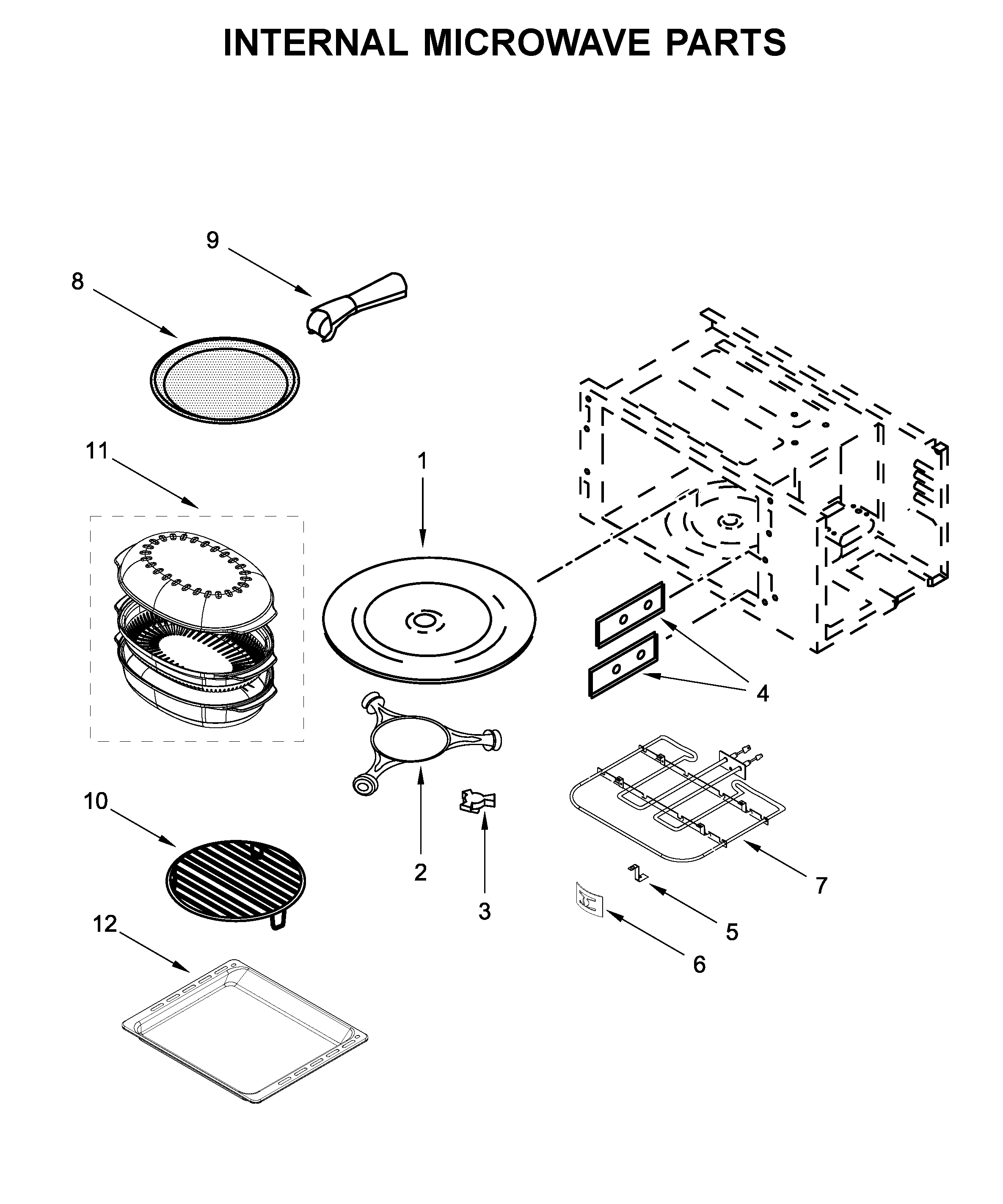

Internal microwave parts diagram

Lock spring

Part #252262898008

Replaced by #W10909479

?
Manufacturer substitution
This part replaces 252262898008. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$23.79
17% OFF Phone Price : $28.79
In Stock
Wall Oven Microwave Element Clip 461967753871
#5

Internal microwave parts diagram

Wall oven microwave element clip

Part #461967753871

BEST SELLER
In Stock
Inverter W10468206
#24

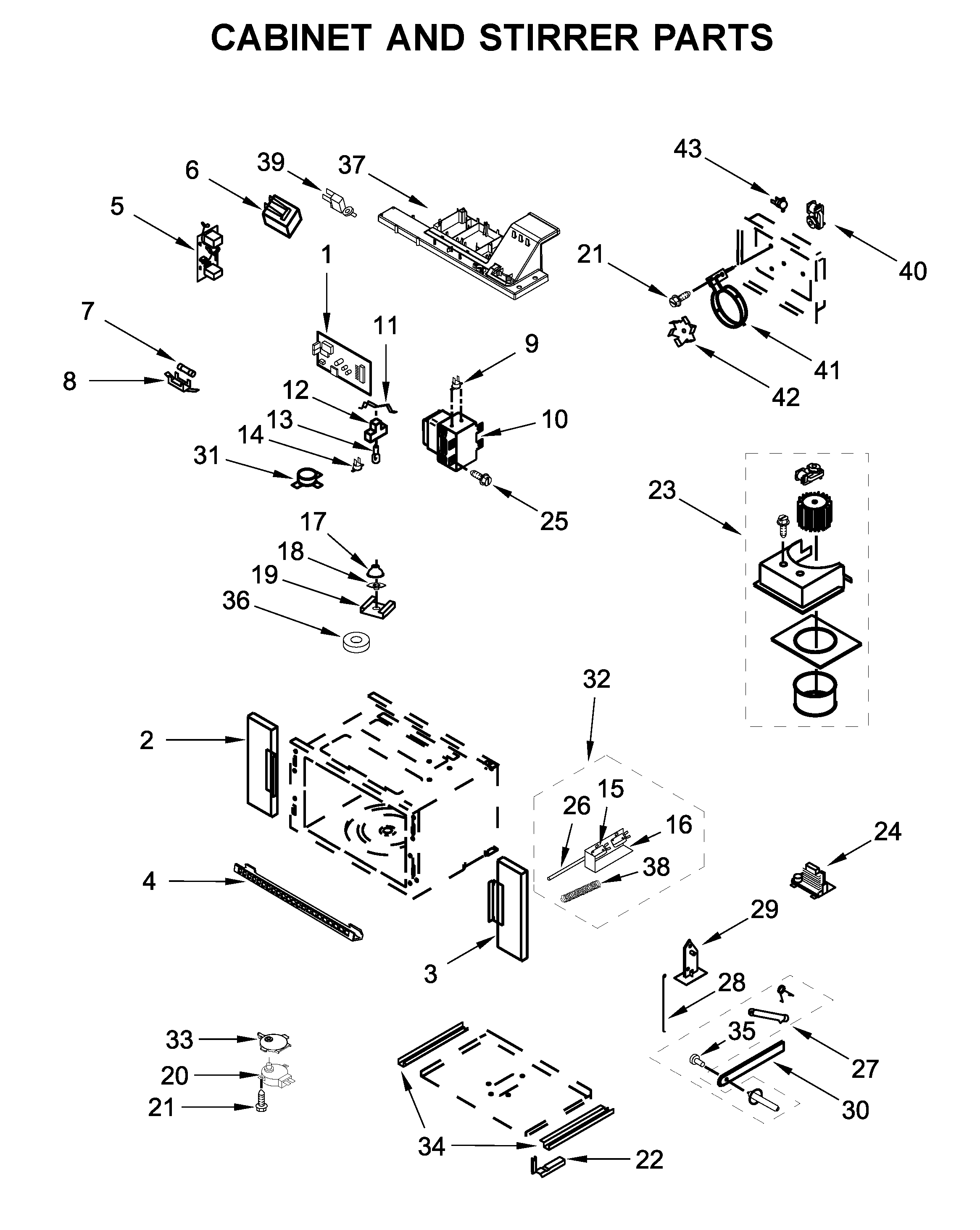

Cabinet and stirrer parts diagram

Inverter

Part #W10468206

Replaced by #W10217711

?
Manufacturer substitution
This part replaces W10468206. Substitute parts can look different from the original.
BEST SELLER
$202.82
19% OFF MSRP : $250.00
In Stock
O Mica Plate 461967451001
#4

Internal microwave parts diagram

O mica plate

Part #461967451001

Replaced by #W10915651

?
Manufacturer substitution
This part replaces 461967451001. Substitute parts can look different from the original.
BEST SELLER
$37.25
12% OFF Phone Price : $42.25
In Stock
Range Bake Element W10546517
#7

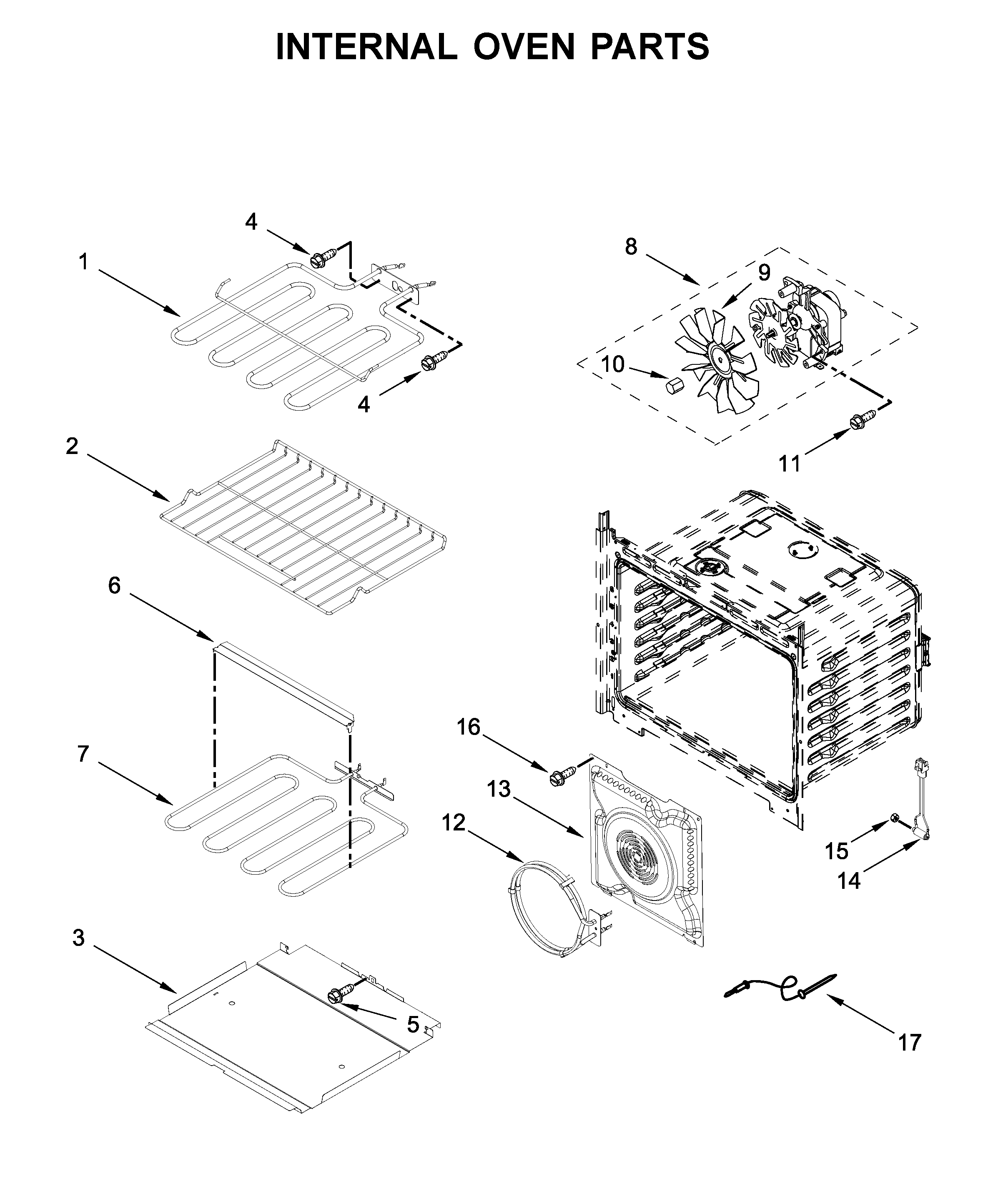

Internal oven parts diagram

Range bake element

Part #W10546517

Replaced by #W11545804

?
Manufacturer substitution
This part replaces W10546517. Substitute parts can look different from the original.
$60.68
8% OFF Phone Price : $65.68
In Stock
8-32 X .860 W10480830
8-32 x .860

Part #W10480830

Replaced by #W10831019

?
Manufacturer substitution
This part replaces W10480830. Substitute parts can look different from the original.
This item is not returnable
$4.76
17% OFF Phone Price : $5.76
In Stock
Range Broil Pan 4396923
#NI

Optional parts (not included) diagram

Range broil pan

Part #4396923

$25.33
35% OFF MSRP : $39.00
In Stock
Badge, Whirl W10884775
#4

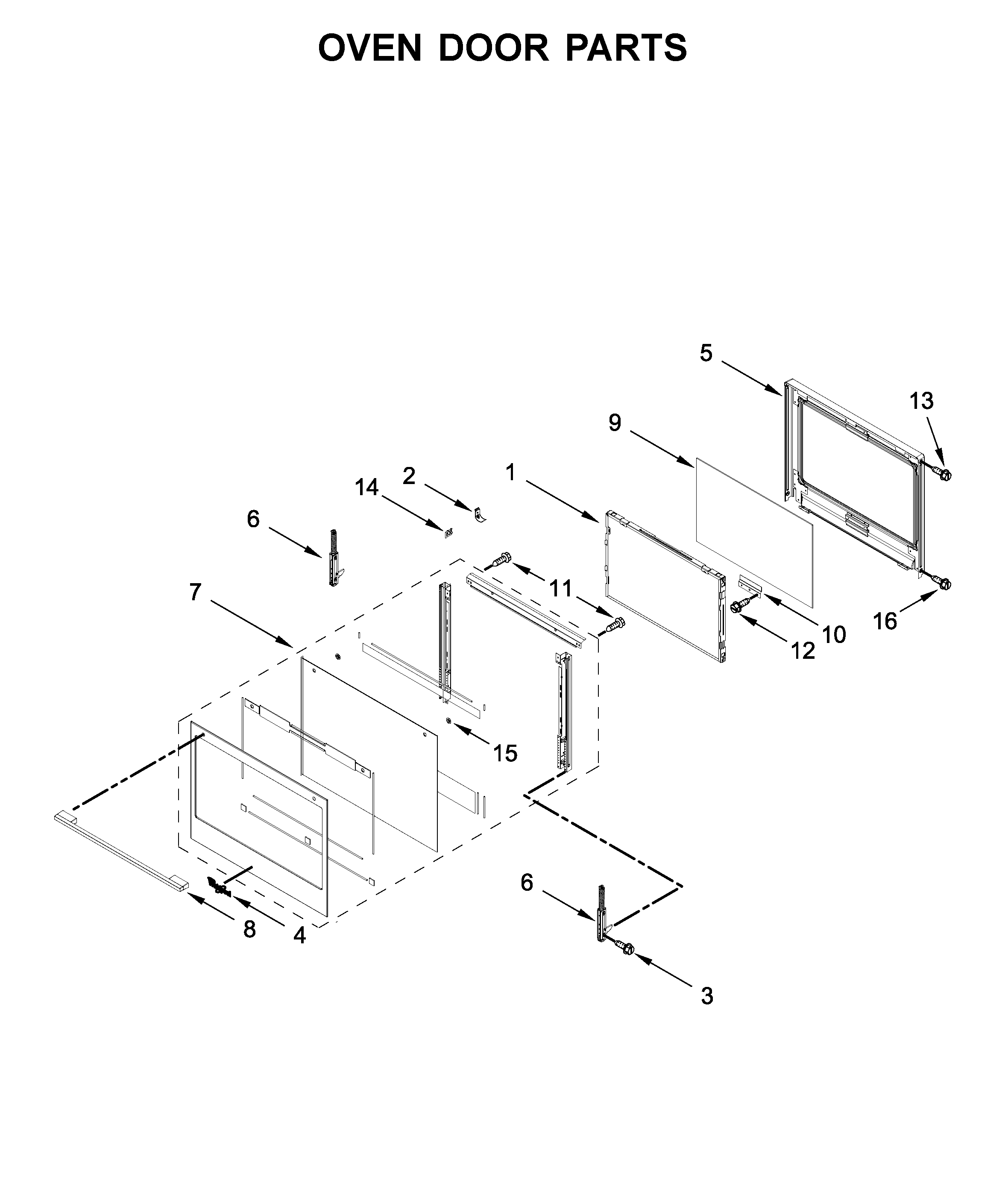

Oven door parts diagram

Badge, whirl

Part #W10884775

Replaced by #W11178521

?
Manufacturer substitution
This part replaces W10884775. Substitute parts can look different from the original.
$33.73
14% OFF MSRP : $39.00
In Stock
