Whirlpool
Bottom-Mount Refrigerator

Model # WRX735SDHV06 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool WRX735SDHV06 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

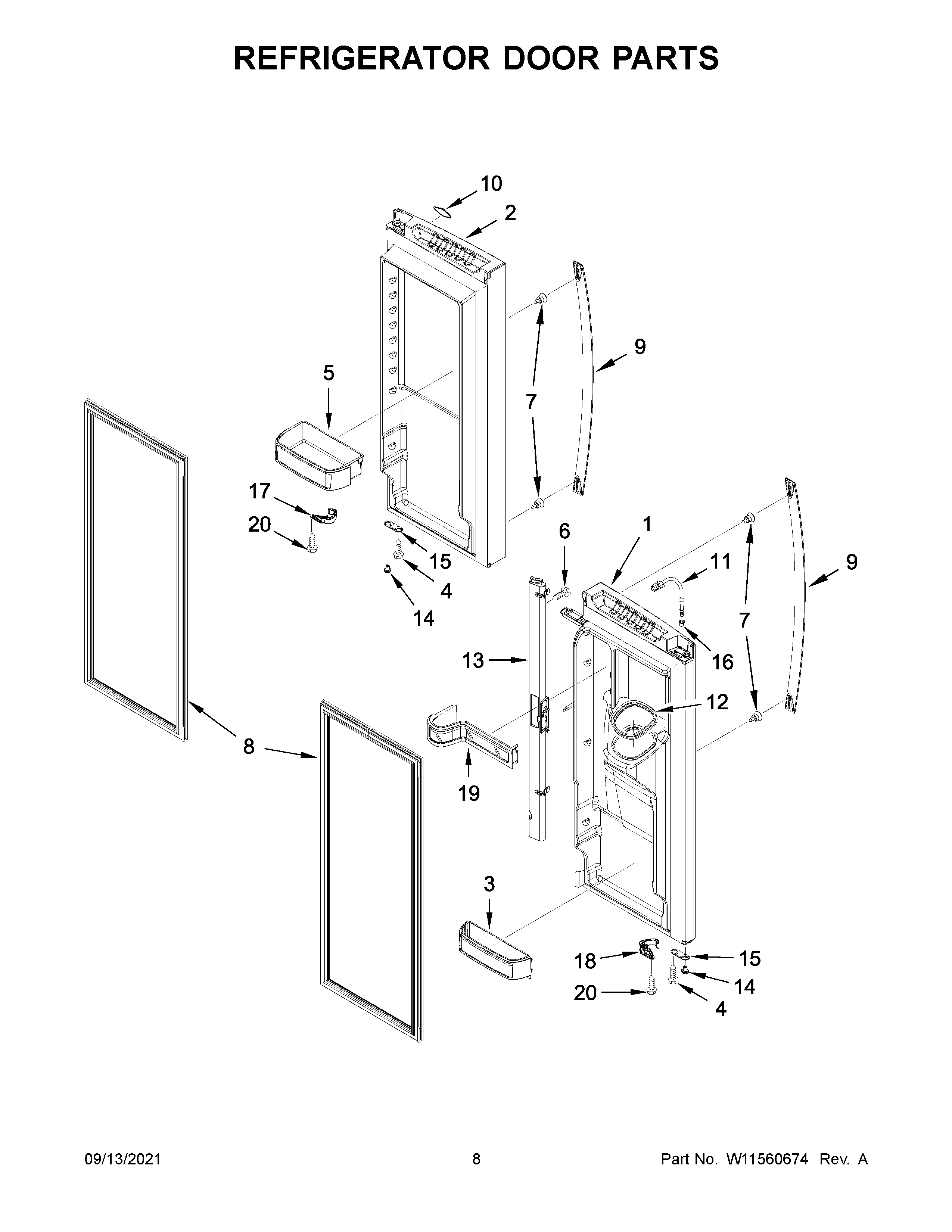

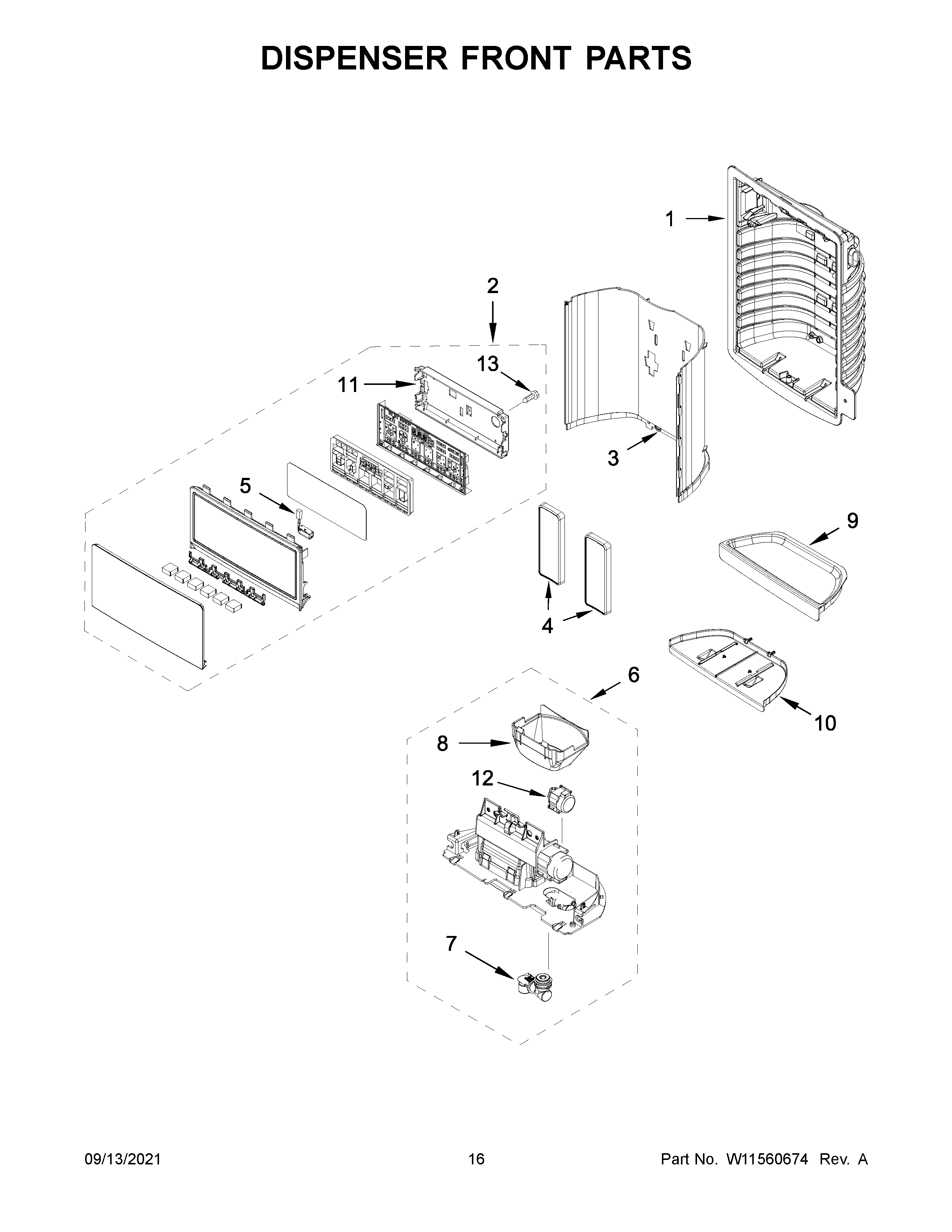

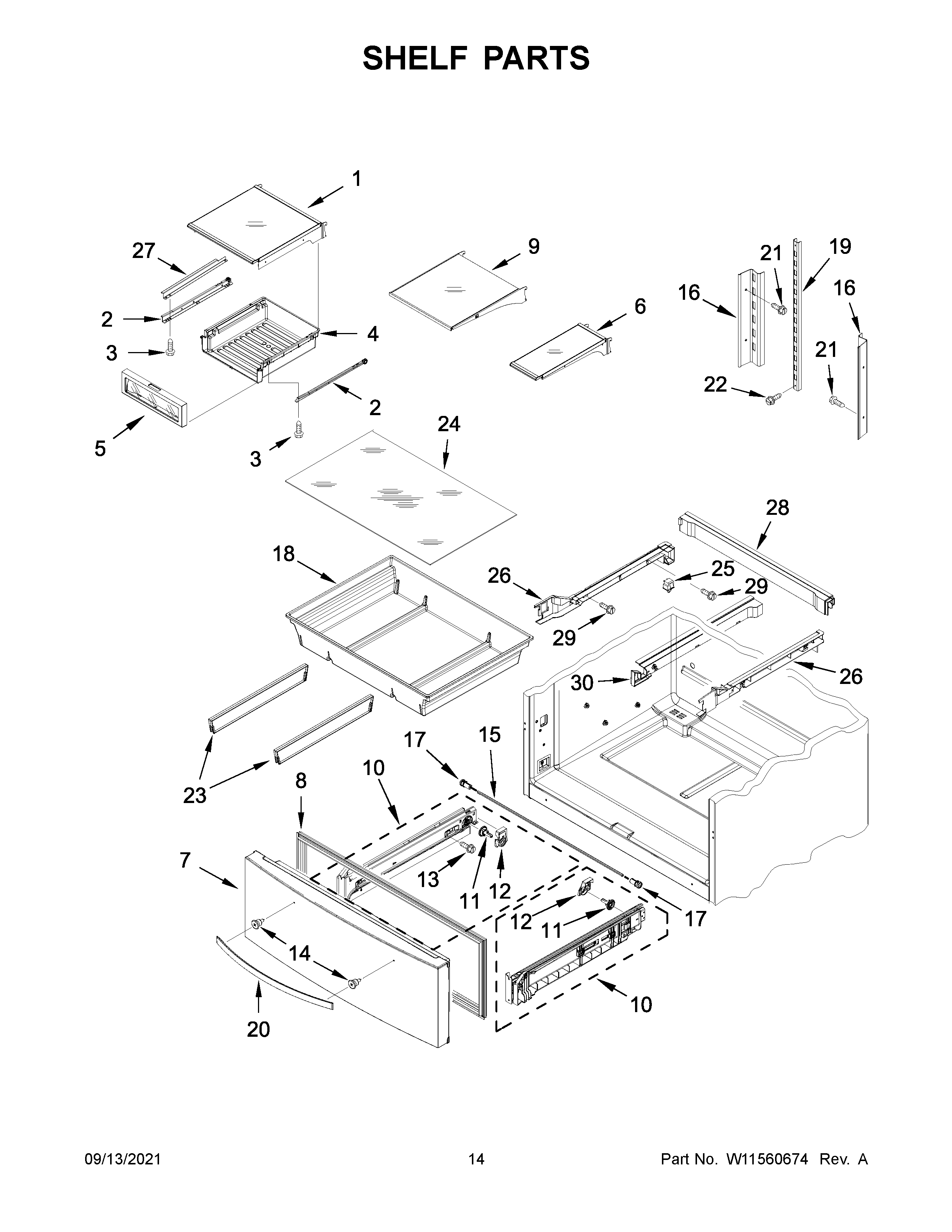

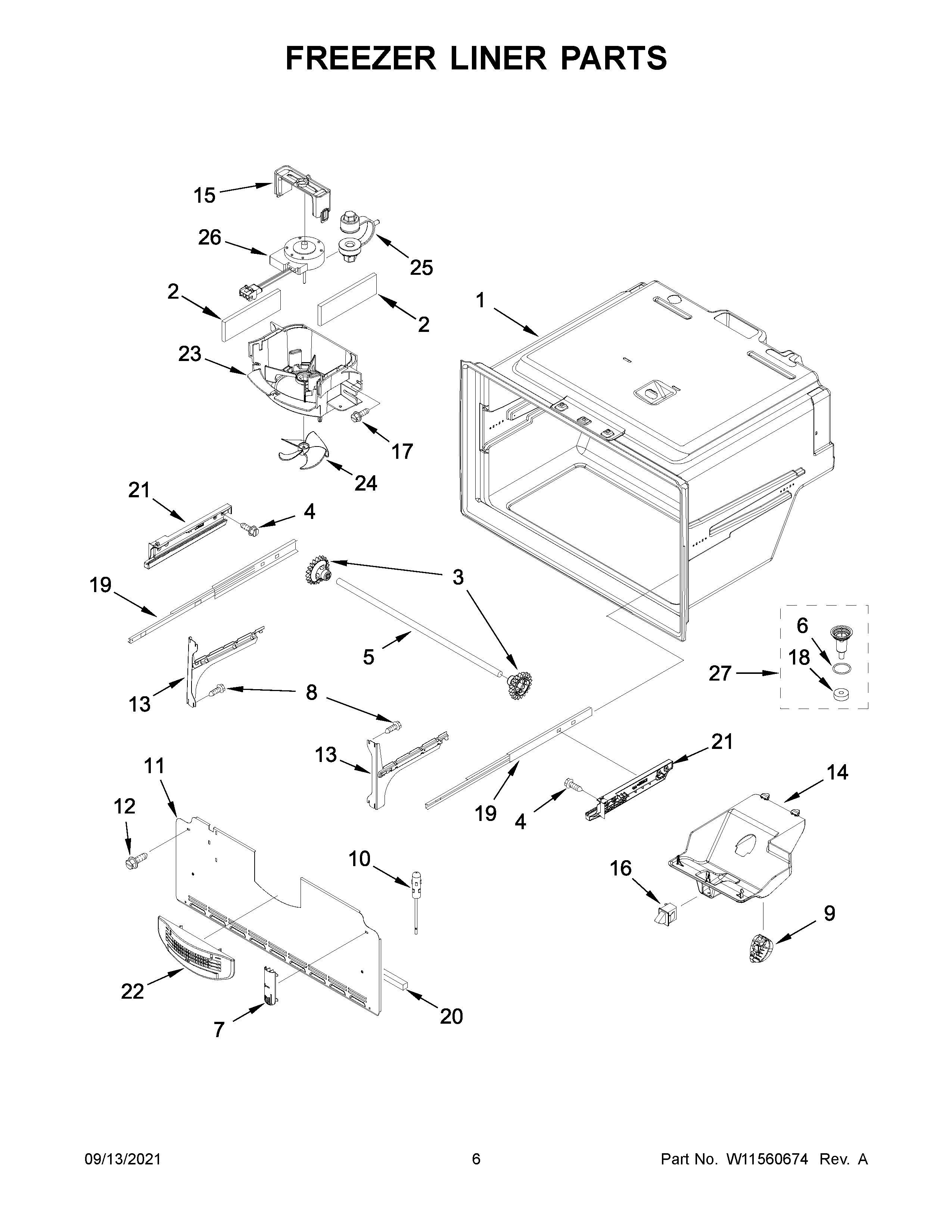

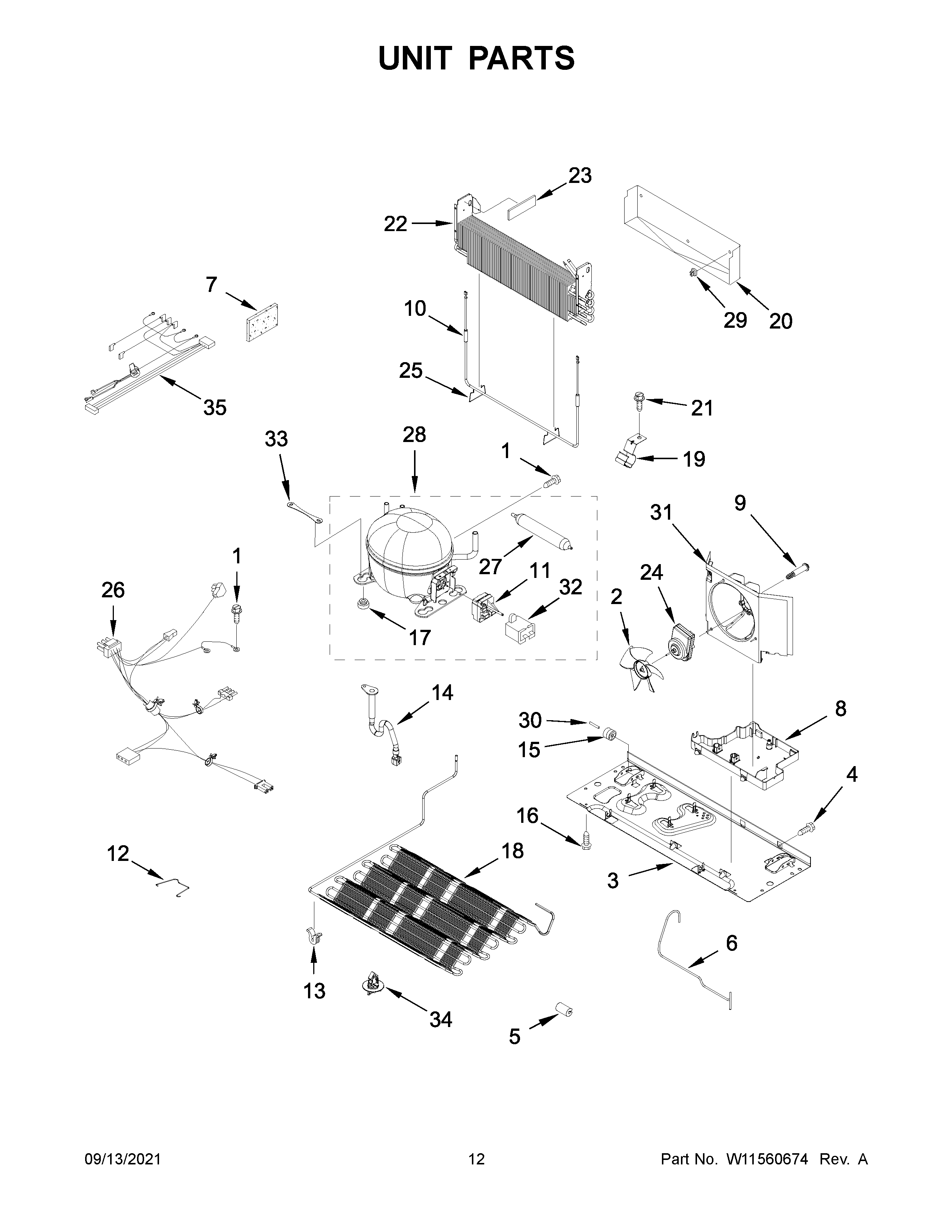

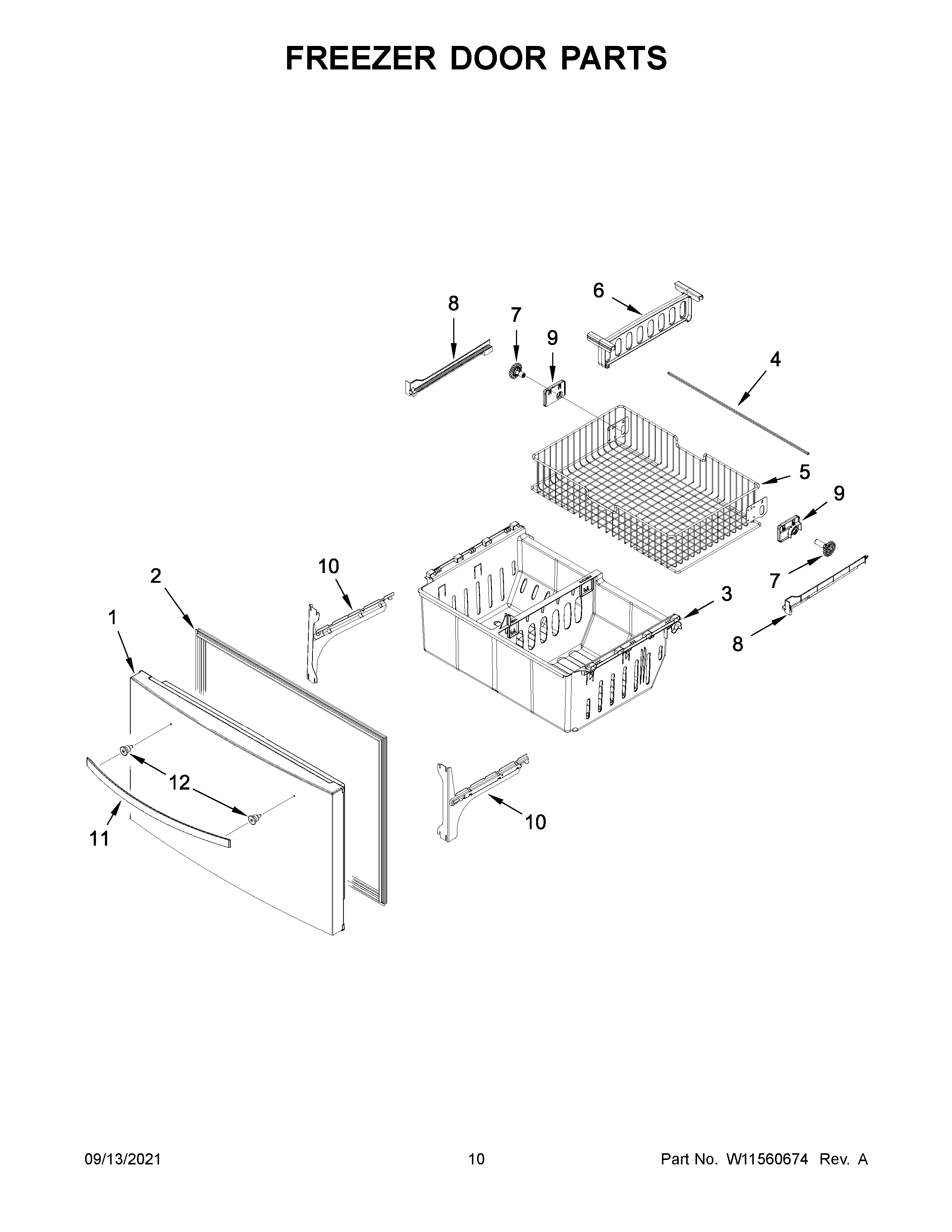

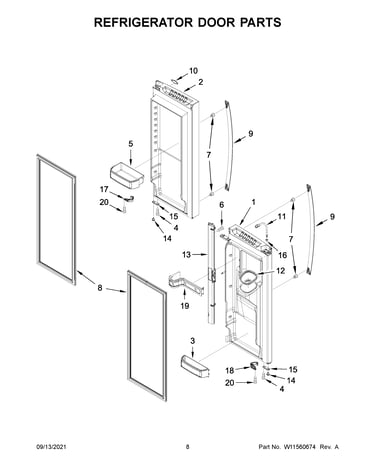

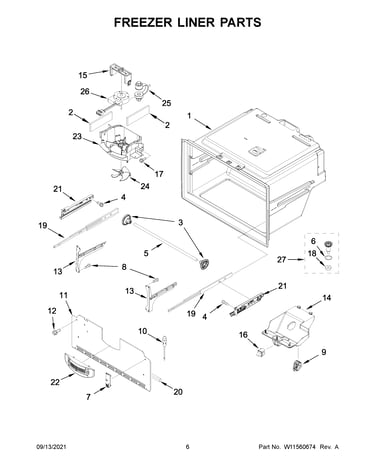

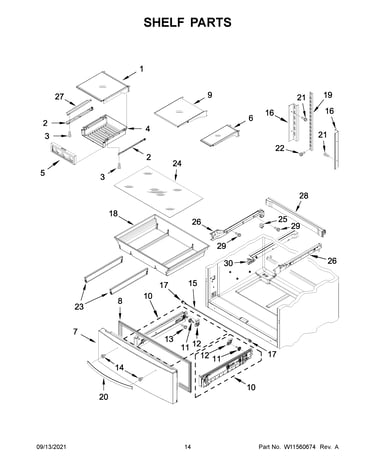

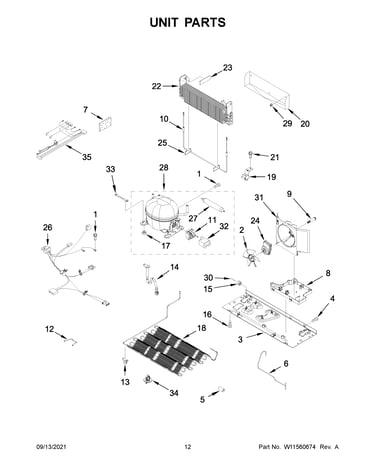

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 251 parts  |

Filter, Water W11256384
#14

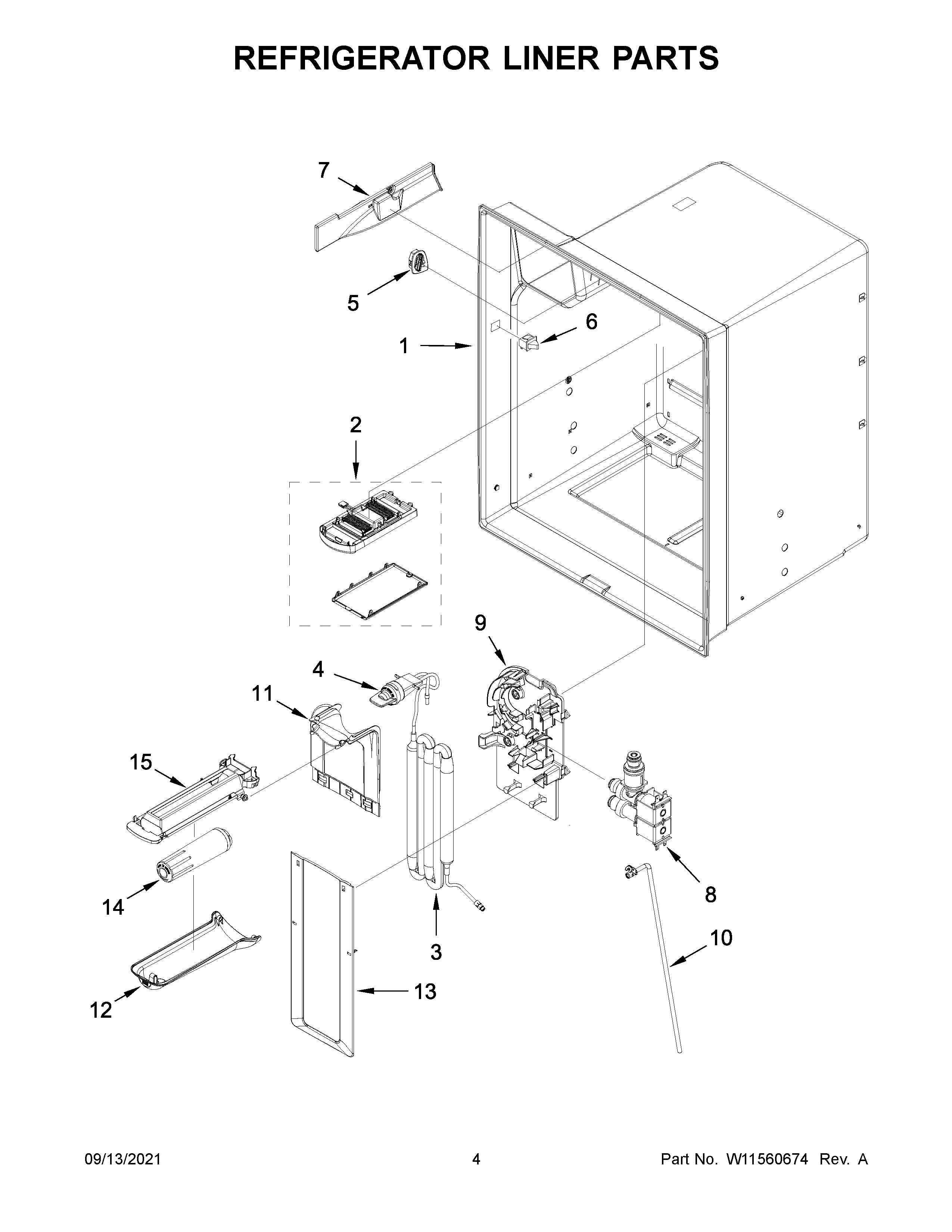

Refrigerator liner parts diagram

Filter, water

Part #W11256384

Replaced by #EDR4RXD1

?
Manufacturer substitution
This part replaces W11256384. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
25% OFF MSRP : $80.00
In Stock
Refrigerator Thermistor 12791417SP
Refrigerator thermistor

Part #12791417SP

Replaced by #W10316760

?
Manufacturer substitution
This part replaces 12791417SP. Substitute parts can look different from the original.
BEST SELLER
$55.51
8% OFF Phone Price : $60.51
In Stock
Light Assy-u W11387579
#2

Refrigerator liner parts diagram

Light assy-u

Part #W11387579

Replaced by #W11527432

?
Manufacturer substitution
This part replaces W11387579. Substitute parts can look different from the original.
BEST SELLER
$67.60
30% OFF MSRP : $96.00
In Stock
Refrigerator Led Light W10843353
#35

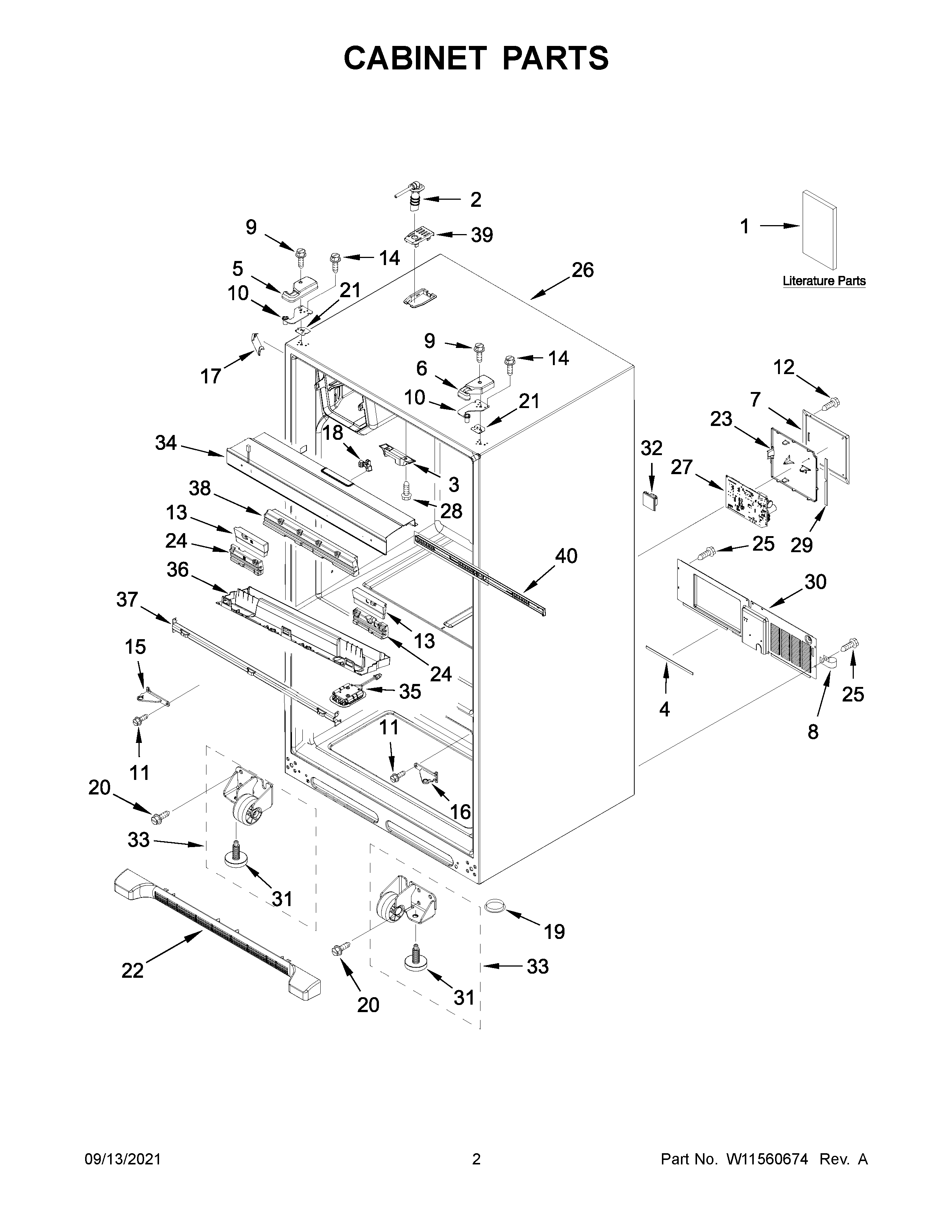

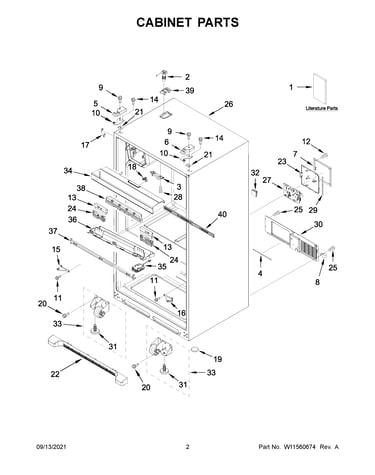

Cabinet parts diagram

Refrigerator led light

Part #W10843353

Replaced by #W10695459

?
Manufacturer substitution
This part replaces W10843353. Substitute parts can look different from the original.
BEST SELLER
$86.75
10% OFF MSRP : $96.00
In Stock
Refrigerator Ice Bin Assembly W11097357
#1

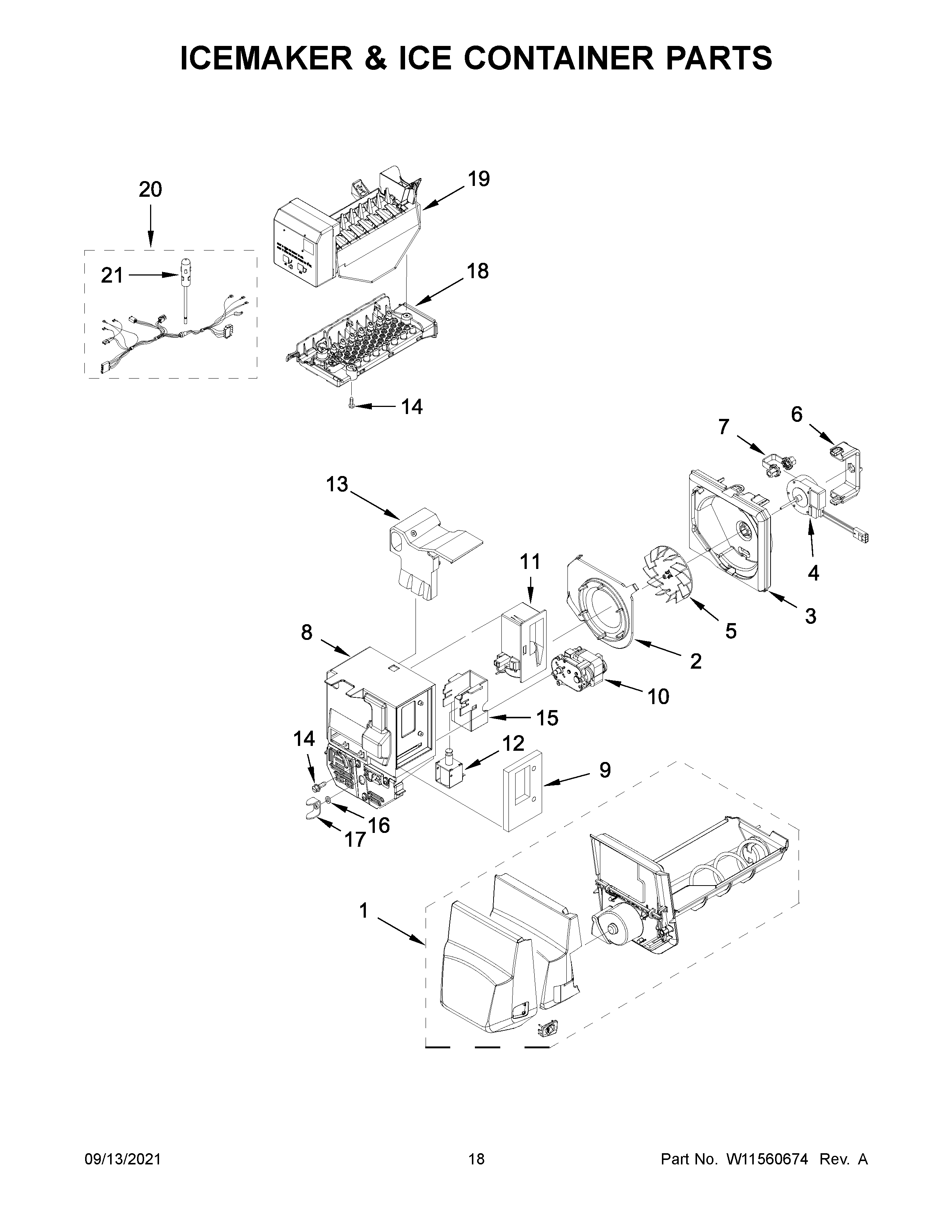

Icemaker & ice container parts diagram

Refrigerator ice bin assembly

Part #W11097357

Replaced by #W11185686

?
Manufacturer substitution
This part replaces W11097357. Substitute parts can look different from the original.
BEST SELLER
$166.06
28% OFF MSRP : $230.00
In Stock
Refrigerator Damper Control Assembly W10196393
#11

Icemaker & ice container parts diagram

Refrigerator damper control assembly

Part #W10196393

Replaced by #WPW10196393

?
Manufacturer substitution
This part replaces W10196393. Substitute parts can look different from the original.
BEST SELLER
$73.83
38% OFF MSRP : $120.00
In Stock
Refrigerator Touch-up Paint (white) 72017
#NI

Optional parts diagram

Refrigerator touch-up paint (white)

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29
11% OFF Phone Price : $9.29
In Stock
Refrigerator Water Filter Bypass 12664501SP
#4

Refrigerator liner parts diagram

Refrigerator water filter bypass

Part #12664501SP

Replaced by #W11395888

?
Manufacturer substitution
This part replaces 12664501SP. Substitute parts can look different from the original.
BEST SELLER
$19.74
52% OFF MSRP : $41.00
In Stock
Spray Paint (white) 350930
#NI

Optional parts diagram

Spray paint (white)

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69
11% OFF Phone Price : $17.69
In Stock
Refrigerator Water Tubing W11232485
#2

Cabinet parts diagram

Refrigerator water tubing

Part #W11232485

Replaced by #W11415785

?
Manufacturer substitution
This part replaces W11232485. Substitute parts can look different from the original.
BEST SELLER
$36.68
38% OFF MSRP : $59.00
In Stock
