Model #1163579090 Kenmore upright vacuum

Here are the repair parts and diagrams for your Kenmore 1163579090 upright vacuum.

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profile

Showing 10 of 67 parts

Vacuum Light Bulb

#11

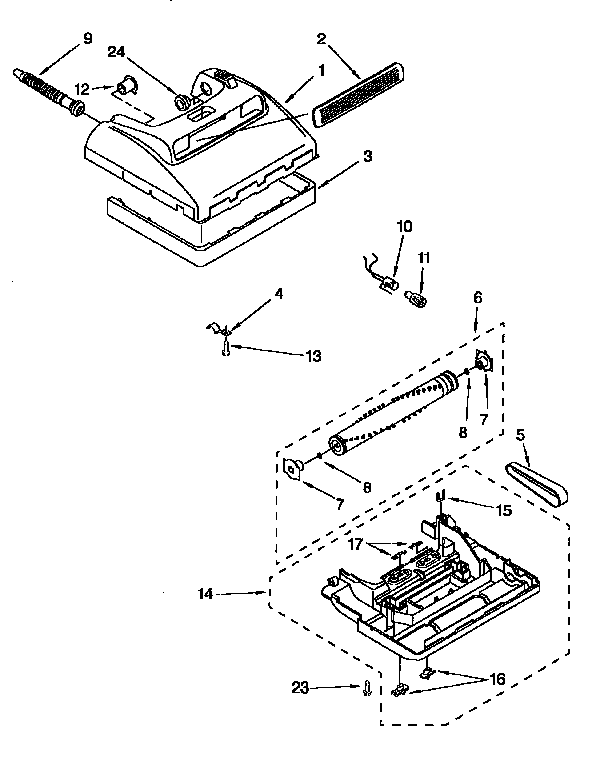

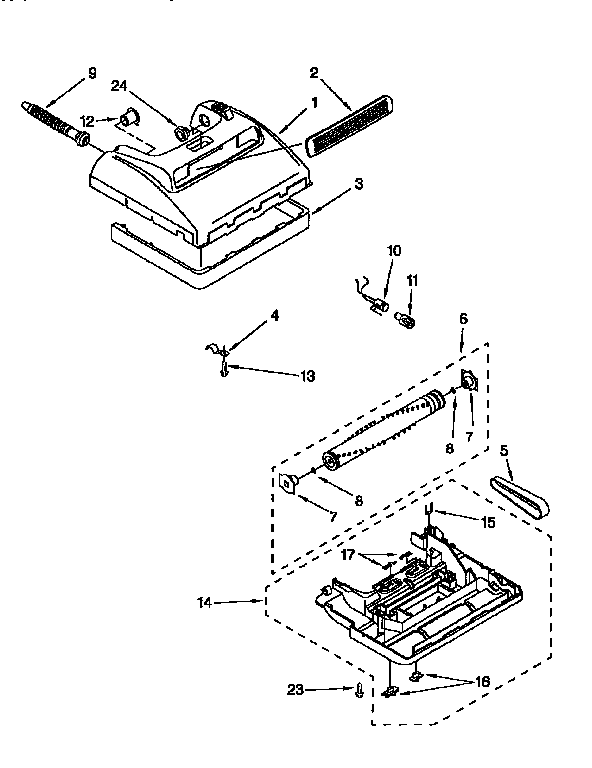

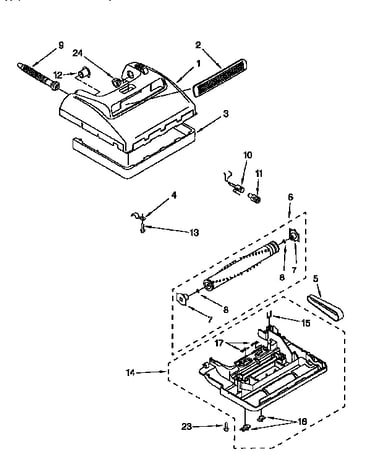

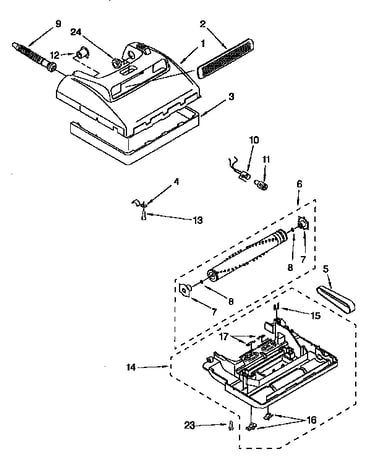

Nozzle and motor Diagram

Vacuum light bulb

Part #5240
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  4368834
This part replaces 4368834

$9.15

In Stock

Vacuum HEPA Bag, Type Q, 2-pack

#29A

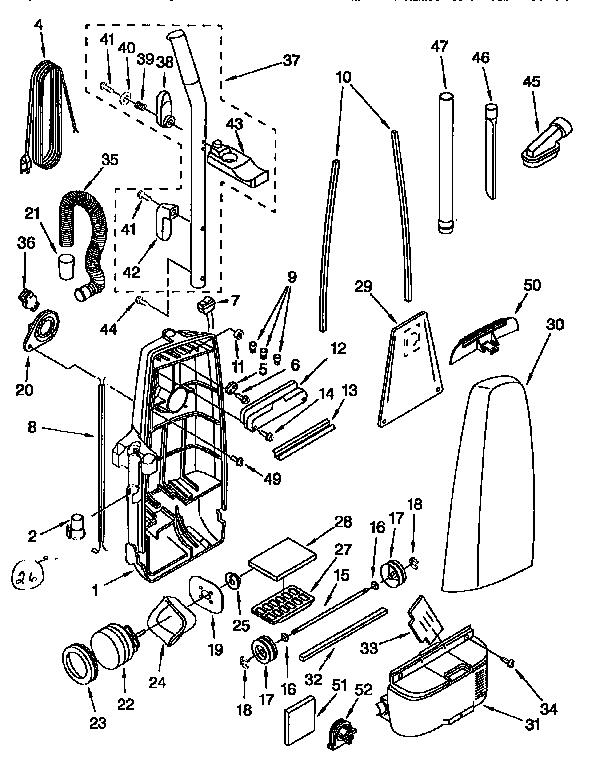

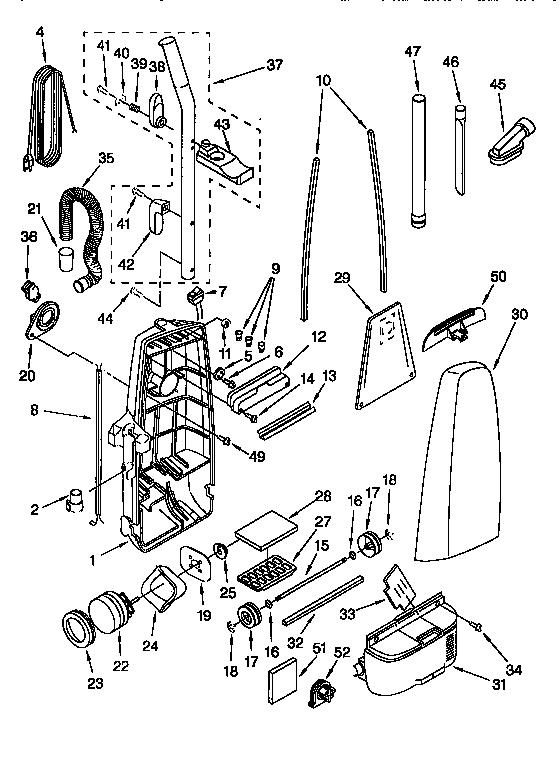

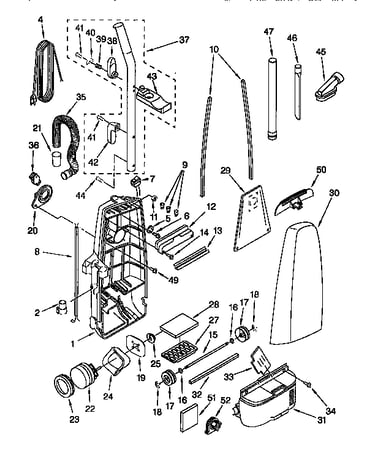

Dust compartment Diagram

Vacuum hepa bag, type q, 2-pack

Part #53291
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  50690
This part replaces 50690

$11.99

In Stock

Vacuum Crevice Tool

#46

Dust compartment Diagram

Vacuum crevice tool

Part #4368684
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  4368684
This part replaces 4368684

$11.09

In Stock

Vacuum Beater Bar Belt

#5

Nozzle and motor Diagram

Vacuum beater bar belt

Part #KC28SCZPZ000
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  4369591
This part replaces 4369591
This item is not returnable

$4.71

Back Order

Vacuum Screw

#14

Dust compartment Diagram

Vacuum screw

Part #4368563
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  4368563
This part replaces 4368563
This item is not returnable

$3.26

In Stock

Vacuum Secondary Filter

#28

Dust compartment Diagram

Vacuum secondary filter

Part #4369572
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  4369572
This part replaces 4369572

Get free shipping with Automatic Reorder

$11.58

In Stock

Housng-mtr

#31

Dust compartment Diagram

Housng-mtr

Part #4369721

The manufacturer no longer makes this part, and there's no substitute part

Nozzle

#1

Nozzle and motor Diagram

Nozzle

Part #4369715

The manufacturer no longer makes this part, and there's no substitute part

Adapter

#2

Dust compartment Diagram

Adapter

Part #4369539

The manufacturer no longer makes this part, and there's no substitute part

Motor Support

#25

Dust compartment Diagram

Motor support

Part #4369570

The manufacturer no longer makes this part, and there's no substitute part
