Maytag MVW7232HC1 washer

Maytag MVW7232HC1 washer Parts

Here are the diagrams and repair parts for Maytag MVW7232HC1 washer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for MVW7232HC1 WASHER

  • Whirlpool Washer Clutch Kit for Maytag MVW7232HC1 - Part W10734521

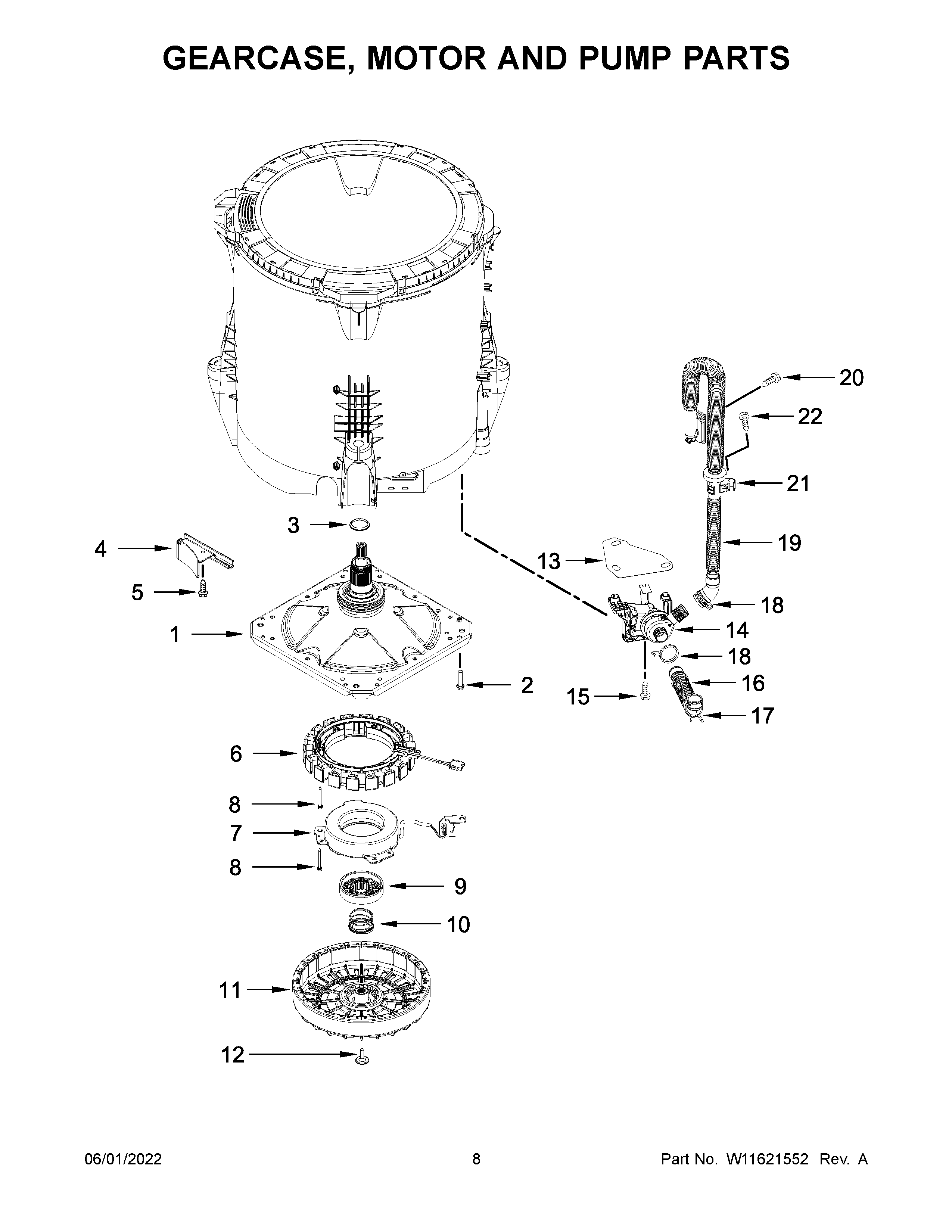

    Gearcase, motor and pump parts diagram

    Spring Support

    Part #W10006494

    Replaced by #W10734521

    Info Icon
    Manufacturer substitution
    This part replaces W10006494. Substitute parts can look different from the original.
    In Stock
    $42.53
    12% OFF Phone Price : $48.53Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Washer Clutch Kit for Maytag MVW7232HC1 - Part W10734521

    Gearcase, motor and pump parts diagram

    Slider

    Part #W10905025

    Replaced by #W10734521

    Info Icon
    Manufacturer substitution
    This part replaces W10905025. Substitute parts can look different from the original.
    In Stock
    $42.53
    12% OFF Phone Price : $48.53Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Washer Clutch for Maytag MVW7232HC1 - Part W10754448

    Gearcase, motor and pump parts diagram

    Clutch Coil

    Part #W10905022

    Replaced by #W10754448

    Info Icon
    Manufacturer substitution
    This part replaces W10905022. Substitute parts can look different from the original.
    In Stock
    $102.26
    11% OFF Phone Price : $114.26Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Suspension Rod And Spring Assembly for Maytag MVW7232HC1 - Part W11400156

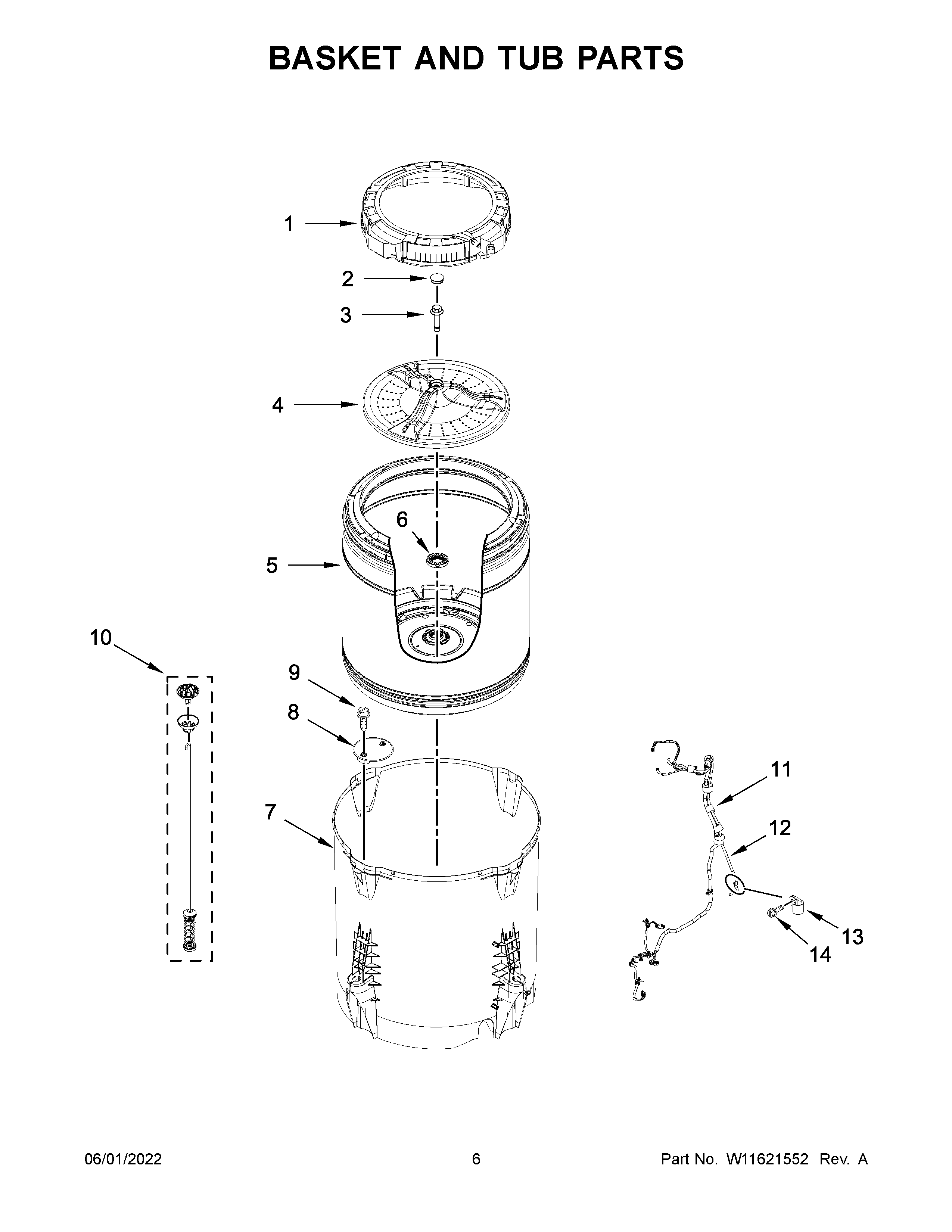

    Basket and tub parts diagram

    Damper Asm -

    Part #W11187091

    Replaced by #W11400156

    Info Icon
    Manufacturer substitution
    This part replaces W11187091. Substitute parts can look different from the original.
    In Stock
    $86.70
    6% OFF Phone Price : $92.70Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Washplate Screw for Maytag MVW7232HC1 - Part W10752187

    Basket and tub parts diagram

    Washer Washplate Screw

    Part #W10625252

    Replaced by #W10752187

    Info Icon
    Manufacturer substitution
    This part replaces W10625252. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.18
    19% OFF Phone Price : $5.18Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Washer Lid Strike for Maytag MVW7232HC1 - Part W11457841

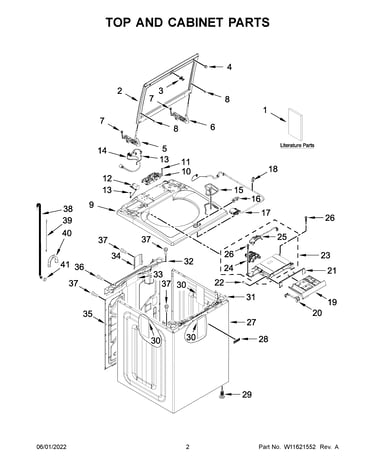

    Top and cabinet parts diagram

    Washer Lid Strike

    Part #W11091027

    Replaced by #W11457841

    Info Icon
    Manufacturer substitution
    This part replaces W11091027. Substitute parts can look different from the original.
    In Stock
    $16.12
    11% OFF Phone Price : $18.12Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Gear Case for Maytag MVW7232HC1 - Part W11449841

    Gearcase, motor and pump parts diagram

    Drive Asm -

    Part #W11185701

    Replaced by #W11449841

    Info Icon
    Manufacturer substitution
    This part replaces W11185701. Substitute parts can look different from the original.
    In Stock
    $225.51
    5% OFF Phone Price : $237.51Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Washer Drain Pump Assembly for Maytag MVW7232HC1 - Part W11396717

    Gearcase, motor and pump parts diagram

    Pump Asm, Dr

    Part #W11263349

    Replaced by #W11396717

    Info Icon
    Manufacturer substitution
    This part replaces W11263349. Substitute parts can look different from the original.
    In Stock
    $112.87
    10% OFF Phone Price : $124.87Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Basket Lock Nut for Maytag MVW7232HC1 - Part W11551646

    Basket and tub parts diagram

    Nut-lock,mac

    Part #W11183985

    Replaced by #W11551646

    Info Icon
    Manufacturer substitution
    This part replaces W11183985. Substitute parts can look different from the original.
    In Stock
    $9.31
    10% OFF Phone Price : $10.31Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Rotor Mounting Screw, M6-1 X 21-mm for Maytag MVW7232HC1 - Part W10752189

    Gearcase, motor and pump parts diagram

    M6-1 X 21 Wh

    Part #W10636382

    Replaced by #W10752189

    Info Icon
    Manufacturer substitution
    This part replaces W10636382. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.76
    17% OFF Phone Price : $5.76Info Icon
    Minus Item
    Qty
    Plus Item

Maytag WASHER MVW7232HC1 FAQs

A Maytag washing machine typically lasts about 10 to 14 years with normal household use and basic maintenance. For your Maytag MVW7232HC1 top-load washer, keeping the tub, drain system, and lid lock working correctly is what most often protects long-term reliability.

Typical lifespan (what to expect)

Most washers fall into a predictable range based on use and care:

Usage pattern Typical lifespan What shortens it most
Light (few loads/week) 12 to 14 years Long periods of non-use, moisture/odor buildup
Average (4 to 7 loads/week) 10 to 12 years Overloading, detergent overuse
Heavy (daily loads) 8 to 10 years Constant high-speed spin stress, wear on suspension

What makes a washer wear out faster

These are the most common lifespan killers we see on top-load washers like the MVW7232HC1:

  • Overloading the basket; it strains the drive system and suspension.
  • Too much HE detergent; it causes oversudsing, residue, and longer drain times.
  • Poor leveling; it increases vibration and can wear dampers and tub components.
  • Ignoring slow drains; it overworks the drain pump and can lead to standing water.
  • Hard water buildup; it can affect valves, hoses, and cleaning performance.

Maintenance that adds years

A few habits make a measurable difference:

  • Run a monthly cleaning cycle (or hot wash) to reduce residue and odor.
  • Use the correct amount of HE detergent; more is not better.
  • Keep the washer level and stable; recheck after moving or flooring changes.
  • Check for small leaks and replace worn hoses promptly.
  • If the washer will not start or stops mid-cycle, inspect the lid strike and lid lock system (for example, the washer lid strike W11457841).

Why it matters

Knowing the typical lifespan helps you decide whether to repair or replace. If your MVW7232HC1 is under about 8 years old, repairs like a lid lock, drain hose, or suspension-related fix often make sense; past 10 to 14 years, major drive or tub repairs are less cost-effective.

Last updated: January 2026

The most common Maytag washer problems are “won’t drain” and “won’t spin.” On the Maytag MVW7232HC1, those symptoms usually trace back to a drain restriction, a failing drain pump, or a lid lock issue that prevents the washer from entering spin.

Most common symptoms and what they usually mean

  • Washer won’t drain or drains slowly: kinked/blocked drain hose, clogged pump inlet, or a failing drain pump
  • Washer won’t spin: lid not locking, out-of-balance load, or a drive system issue
  • Stops mid-cycle: lid lock not engaging, intermittent control issue, or drain problem triggering a safety stop
  • Loud banging or excessive vibration: worn suspension/dampers or consistently unbalanced loads
  • Fills slowly or won’t fill: inlet valve or household water supply issue

Quick checks we recommend first (fast, no parts)

  1. Unplug the washer for 2 minutes, then restore power and try a Drain/Spin cycle.
  2. Confirm the drain hose is not kinked and the standpipe is not clogged.
  3. Redistribute the load (bulky items can prevent high-speed spin).
  4. Check the lid closes firmly and the strike is not cracked or loose.
  5. If an error code is showing, match it to symptoms using Maytag bravos vmw top load washer error codes.

Parts that commonly fix “won’t drain” or “won’t spin” on MVW7232HC1

Symptom Common cause Part to consider
Won’t drain / humming Drain pump jammed or failed Pump asm, dr W11396717
Won’t spin / lid won’t lock Lid lock not engaging Lid lock-sol W11700916
Won’t spin / lid closes but won’t sense Lid strike worn/broken Washer lid strike W11457841
Fills issues Inlet valve problem Valve, water inlet W11614515

Why it matters

Drain and spin problems are the most cycle-stopping failures because the washer will often refuse to advance or spin if it cannot drain properly or confirm the lid is locked. Fixing the root cause prevents repeat shutdowns and reduces strain on the drive system.

Last updated: January 2026

The Maytag MVW7232HC1 top-load washer is a strong choice if your priority is cleaning performance and handling bulky loads; the main tradeoff is that smart features (like WiFi/app connectivity) can be less reliable than the core wash functions.

Pros (what owners typically like)

  • Cleans well on everyday and heavy soil loads
  • Handles large loads and bulky items better than many smaller-capacity washers
  • Simple top-load access; easier loading than many front-load designs
  • Good option if you want performance-first features (cycles, options) over “smart” extras

Cons (common tradeoffs)

  • WiFi/app connectivity can be inconsistent; treat it as a bonus, not a must-have feature
  • Like many high-efficiency top-load washers, it may use less water than older models; some users prefer deeper fills
  • If the washer is overloaded or unbalanced, it can pause to redistribute the load (longer cycle time)

Quick comparison: performance vs. smart features

What you care about most MVW7232HC1 fit What to expect
Cleaning power High Strong wash results when loaded correctly
Large loads High Better for towels, bedding, mixed family loads
Quiet, stable spinning Medium to high Best when leveled and loads are balanced
WiFi/app features Medium Works best when signal is strong; not essential

Why it matters

If you buy the MVW7232HC1 for what a washer must do (wash, rinse, spin), it tends to satisfy. If you buy it mainly for smart connectivity, you may be disappointed, so it helps to set expectations up front.

If performance drops later, these parts often relate

If you notice issues like not spinning, stopping mid-cycle, or lid errors, these model-specific parts are common suspects:

Last updated: January 2026

A Maytag MVW7232HC1 washer’s price depends on whether you’re buying a new unit, an open-box unit, or a used unit; it also changes with delivery, installation, and promotions. For an accurate current price, compare listings from major appliance retailers and local sellers.

What drives the price

  • Condition: new, open-box, refurbished, or used
  • Delivery, haul-away, and installation charges
  • Warranty length and what it covers
  • Finish and feature set (capacity, smart features, cycle options)
  • Local availability and seasonal promotions

Typical price tiers (use these to compare listings)

These tiers help you sanity-check quotes without relying on a single fixed number.

Buying option What you’re usually paying for What to watch
New Full manufacturer warranty, latest features Added delivery and install fees
Open-box Discount for minor cosmetic wear or returns Missing hoses, dents, limited warranty
Used Lowest upfront cost No warranty, unknown wear on drive and suspension

If you’re deciding between repair vs. replace

If your MVW7232HC1 has a specific failure (won’t lock, won’t drain, won’t fill), repairing it often costs far less than replacing the washer.

Common parts that address frequent symptoms include:

Why it matters

Knowing what’s included in the price (delivery, installation, warranty) prevents surprises and helps you compare a replacement quote against the cost of a targeted repair.

Last updated: January 2026

Most common symptoms to help you fix your washers

Choose a symptom to see related washer repairs.

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…

Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…

Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…

Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…

Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…

Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…

Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…

Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…

Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…

Repair guides for top-mount refrigerators

How to replace the light switch in a top-freezer refrigerator

How to replace the light switch in a top-freezer refrigerator

The light switch turns the refrigerator light on and off and monitors door position. Replace the light switch if it does…

Repair time and Difficulty

 15 minutes or less
How to replace the water inlet valve in a top-freezer refrigerator

How to replace the water inlet valve in a top-freezer refrigerator

The water inlet valve controls water flow to the ice maker. Replace the water valve if it doesn't open or shut properly.…

Repair time and Difficulty

 15 minutes or less
How to replace the compressor run capacitor in a top-freezer refrigerator

How to replace the compressor run capacitor in a top-freezer refrigerator

The run capacitor sends electric current to the compressor motor to help the motor run efficiently. Replace the run capa…

Repair time and Difficulty

 15 minutes or less

Effective articles & videos to help repair your washers

Use the advice and tips in these articles and videos to get the most out of your washer.

How auto-load sensing washers work (and when they don't)

How auto-load sensing washers work (and when they don't)

Your washer barely fills or seems stuck in sensing mode? Find out how auto-load sensing and Precise Fill features work, …

How to remove the main control board and user interface from a Maytag Epic Z front-load washer

How to remove the main control board and user interface from a Maytag Epic Z front-load washer

Get step-by-step instructions for removing the main electronic control board and the control panel from a Maytage Epic Z…

Using a wiring schematic to trace a current video

Using a wiring schematic to trace a current video

Find out what’s wrong with your appliance by following a circuit.…
