GE JX65002 oven Parts
Here are the diagrams and repair parts for GE JX65002 oven, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for JX65002 Ranges

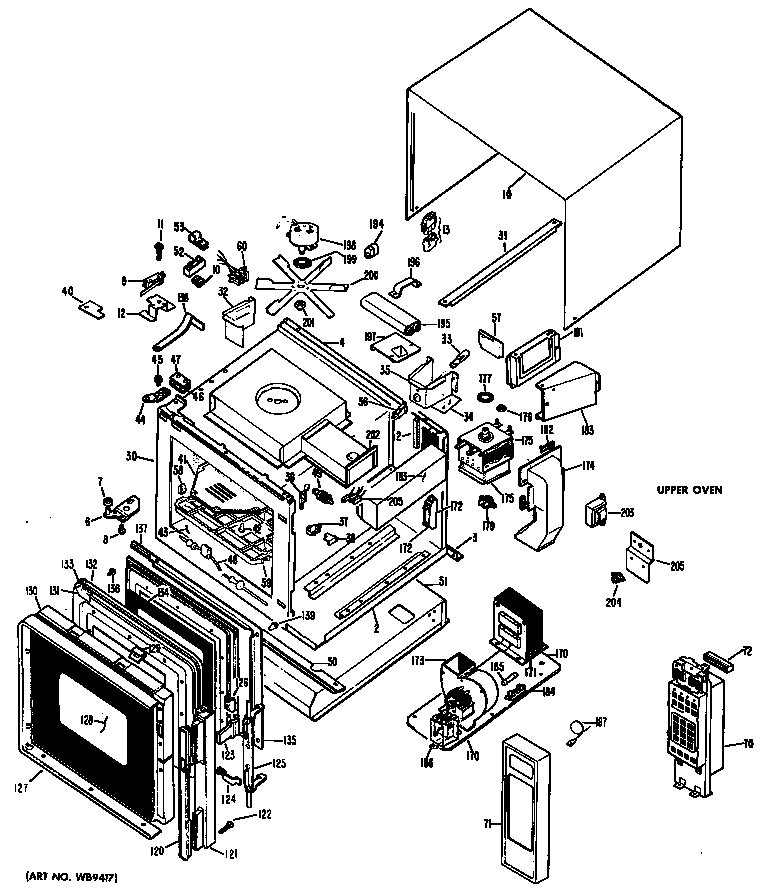

Oven assembly diagram
Cover
Part #WB2X6856
The manufacturer no longer makes this part, and there's no substitute part
Screw Tor
Part #WB1X5510
The manufacturer no longer makes this part, and there's no substitute part
Hous&lead As
Part #WB17X5063
The manufacturer no longer makes this part, and there's no substitute part
Oven assembly diagram
Plate Component
Part #WB2X6645
The manufacturer no longer makes this part, and there's no substitute part
Oven assembly diagram
Mode Stirrer
Part #WB2X6479
The manufacturer no longer makes this part, and there's no substitute part
Oven assembly diagram
Bracket Hing, Lower
Part #WB10X5113
The manufacturer no longer makes this part, and there's no substitute part
Oven assembly diagram
Screw Mtg. Handle & Trim
Part #WB1X5462
The manufacturer no longer makes this part, and there's no substitute part
Oven assembly diagram
Rail Stop
Part #WB2X6667
The manufacturer no longer makes this part, and there's no substitute part
Oven assembly diagram
Blower Motor
Part #WB26X5035
The manufacturer no longer makes this part, and there's no substitute part
Oven assembly diagram
Probe
Part #WB20X5041
The manufacturer no longer makes this part, and there's no substitute part
