KitchenAid KBFC42FTS03 bottom-mount refrigerator Parts

Most KitchenAid refrigerators last 10 to 17 years. For your KitchenAid KBFC42FTS03 bottom-mount refrigerator, good maintenance (cleaning coils, keeping door seals tight, and fixing cooling or ice maker issues early) helps you reach the upper end of that range; see the KBFC42FTS03 owner's manual for model-specific care and operating guidance.

Typical lifespan and what affects it

A refrigerator’s life depends most on compressor run time, airflow, and how well the doors seal.

• Maintenance habits: cleaning condenser area, keeping vents clear, replacing filters on schedule
• Usage: frequent door openings, warm kitchens, overloading shelves
• Water system care: clogged filters can reduce flow and strain the ice maker/dispenser
• Door seal condition: air leaks force longer run times and can cause frost or temperature swings
• Fan performance: weak evaporator airflow can lead to warm fresh food or uneven temps

Maintenance that helps you get the full lifespan

Use these as practical, high-impact steps for KBFC42FTS03:

• Replace the water filter regularly; a common replacement is the refrigerator water filter EDR3RXD1
• Keep the condenser area clean and ensure airflow around the cabinet
• Confirm doors close fully and gaskets seal all the way around
• Set stable temperatures (avoid frequent adjustments)
• Address unusual noises quickly (often tied to fan blades, fan motors, or ice maker components)

Quick guide: symptoms that shorten lifespan

Symptom	Common cause	What to do first
Warm refrigerator section	Restricted airflow or evaporator fan issue	Check vents, listen for fan operation
Frost buildup	Door not sealing or frequent openings	Inspect gasket contact and door alignment
Slow ice production	Water restriction or ice maker issue	Replace filter, verify water supply
Constant running	Dirty condenser area or air leak	Clean condenser area, check seals

Why it matters

A refrigerator that runs longer than necessary wears the sealed system faster and increases energy use. Simple upkeep, especially airflow and sealing, reduces compressor workload and helps your KitchenAid KBFC42FTS03 reach its normal service life.

For replacement parts and model-specific diagrams, order from the parts list for KBFC42FTS03 or search by model on Sears PartsDirect.

Last updated: February 2026

Bottom-freezer refrigerators like the KitchenAid KBFC42FTS03 keep fresh food at eye level, but the tradeoffs are mostly about freezer access and service complexity: you bend more for frozen items, deep drawers can hide food, and bottom-mounted components can make drain and airflow issues more noticeable.

Common disadvantages you may notice

• More bending and lifting: you reach down for frozen foods, ice bins, and heavy items.
• Deep drawer organization: items stack up, so older food can get buried.
• Slower “grab-and-go” freezer access: drawers take more space to open than a swing door.
• Potential for puddles or frost if drainage is restricted: bottom-freezer designs can be sensitive to defrost drain clogs.
• Airflow and odor transfer: if vents are blocked, temperatures and moisture control suffer, and odors can move between compartments.

What we recommend for day-to-day use (KBFC42FTS03)

Use these habits to reduce the downsides and keep temperatures stable:

• Keep air vents clear in both sections so cold air can circulate properly.
• Wait 24 hours after startup before loading food so the refrigerator can fully cool.
• If temps are off, check vents first, then adjust controls in small steps.
• Use the recommended set points as your baseline; the manual lists typical ranges.
• Wrap foods tightly to help prevent odor transfer between the refrigerator and freezer.

Quick comparison: bottom freezer vs top freezer

Feature	Bottom freezer	Top freezer
Fresh food access	Easier (eye level)	More bending
Freezer access	More bending	Easier
Organization	Deep drawers, can bury items	Shelves, easier to see
Common annoyance	Drawer clearance, drain issues	Fresh-food bending

Why it matters

Most “performance” complaints come from airflow restrictions or control settings, not the layout itself. On the KBFC42FTS03, blocked vents can lead to temperature swings and moisture problems, and odors can transfer between sections when circulation is disrupted.

For model-specific operating details and control ranges, follow the KBFC42FTS03 owner's manual. You can also search parts and diagrams by model on Sears PartsDirect.

Last updated: February 2026

The most common KitchenAid refrigerator problems are cooling issues, ice maker and water dispenser troubles, and water leaks. On a KitchenAid KBFC42FTS03 bottom-mount refrigerator, these symptoms are usually tied to airflow (evaporator fan), temperature sensing, or the water/ice system; our KBFC42FTS03 owner's manual helps pinpoint the right checks.

Most common issues we see (and what they look like)

• Fridge not cooling or freezer too warm: food softening, long run times, warm spots
• Ice maker not making ice: no ice, small cubes, slow production
• Water leaks or puddles: water under the unit or inside the fresh food section
• Noisy operation: buzzing, rattling, or a loud fan sound
• Water tastes or smells off: often improves after replacing the water filter

Quick checks you can do first

1. Confirm temperatures: set refrigerator to about 37°F and freezer to about 0°F.
2. Check door sealing: make sure doors close fully and gaskets are clean.
3. Clean airflow paths: avoid blocking vents with food packages.
4. Replace the water filter on schedule: a restricted filter can reduce water flow to the dispenser and ice maker.
5. Listen for the evaporator fan: if airflow is weak, cooling and ice production suffer.

Parts that commonly solve these symptoms on KBFC42FTS03

Symptom	Common part to check/replace	Example part for this model
Bad-tasting water, slow dispenser, slow ice fill	Water filter	Refrigerator water filter EDR3RXD1

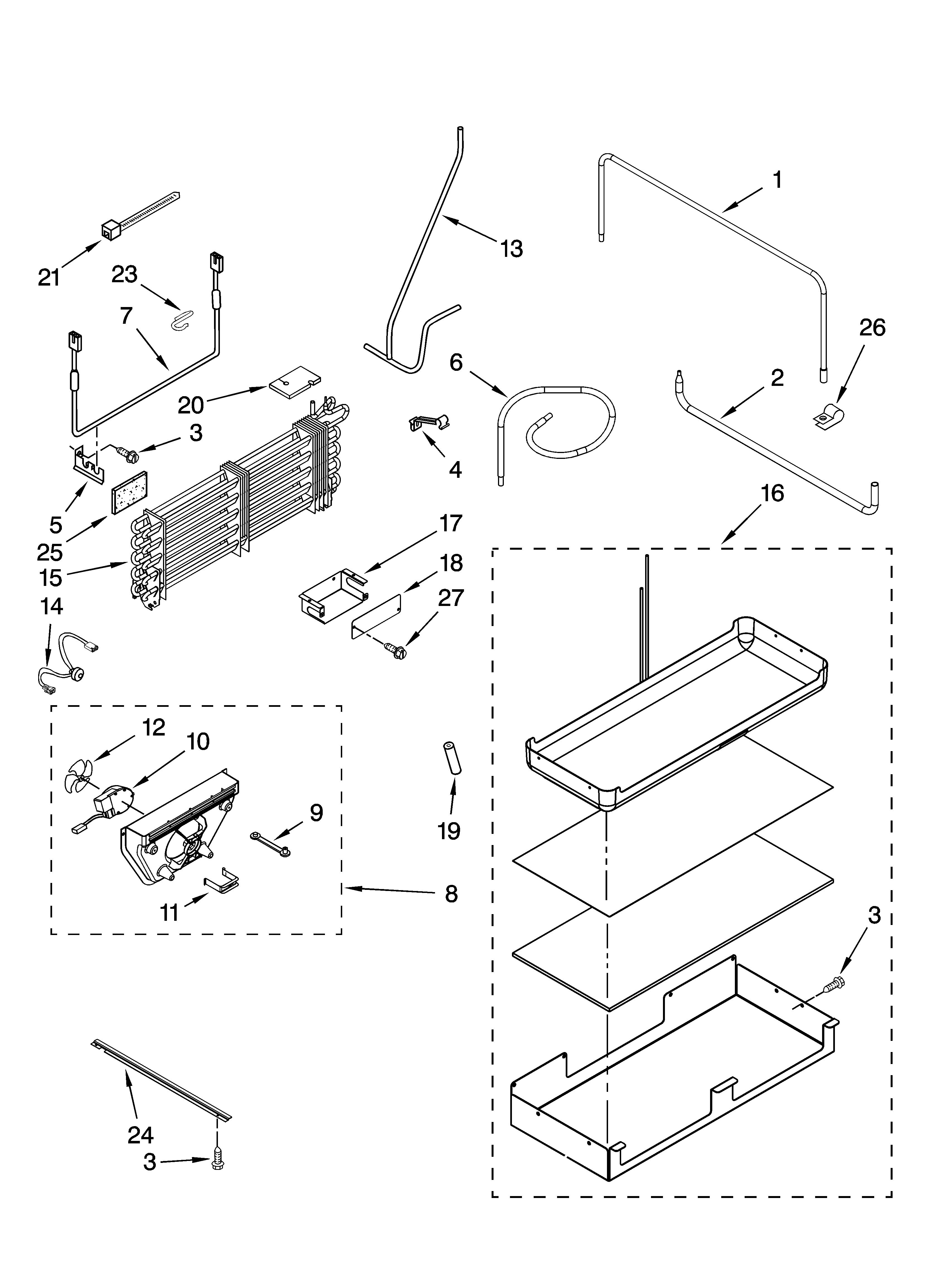

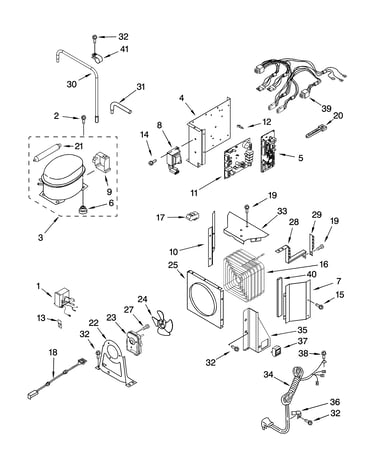

Warm fridge, uneven temps, fan noise	Evaporator fan motor or blade	Refrigerator evaporator fan motor W11671461, refrigerator evaporator fan blade WP2169142
Temps swing, unit runs too long/too short	Temperature sensor (thermistor)	Refrigerator temperature sensor WP2188820

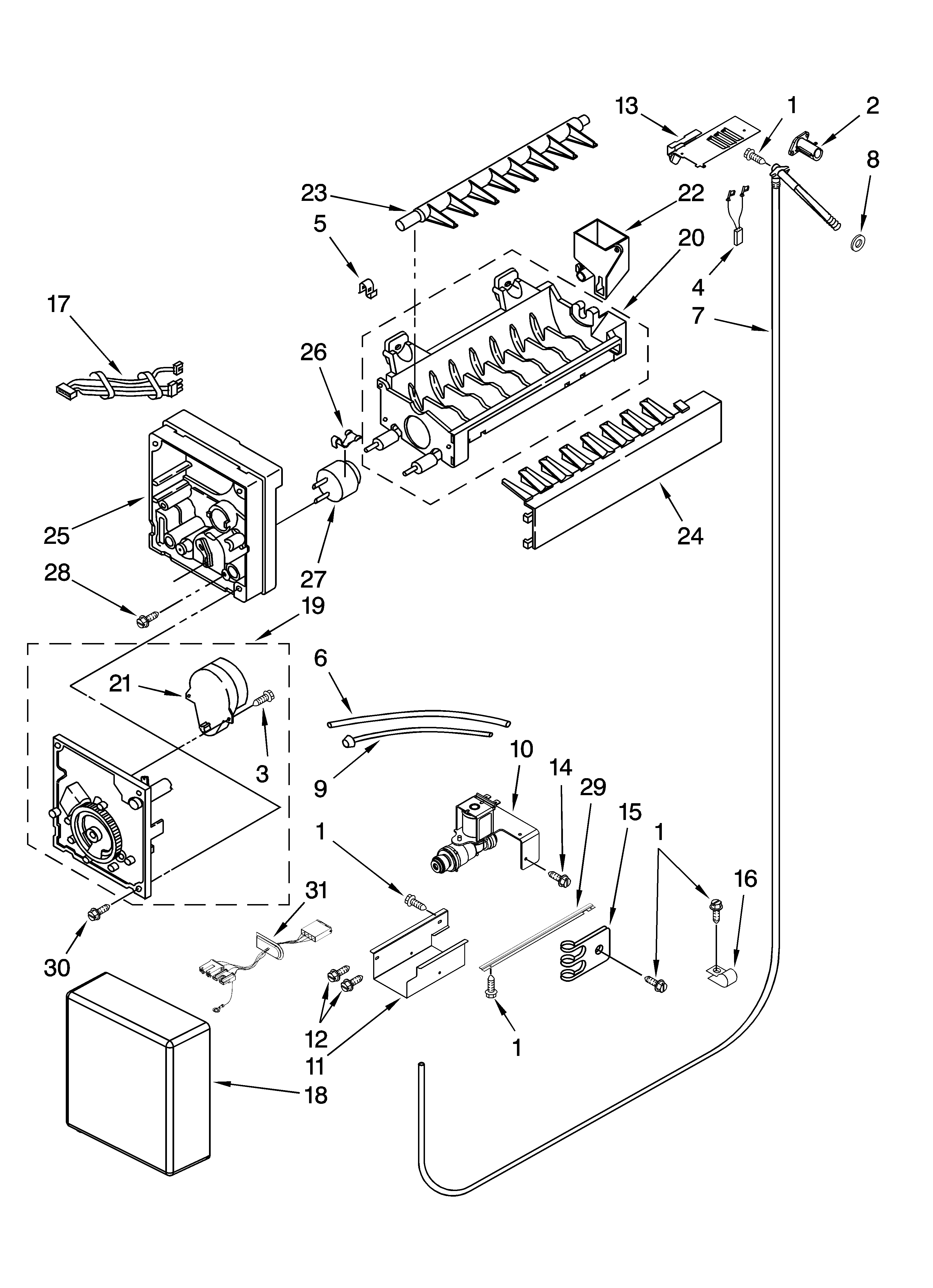

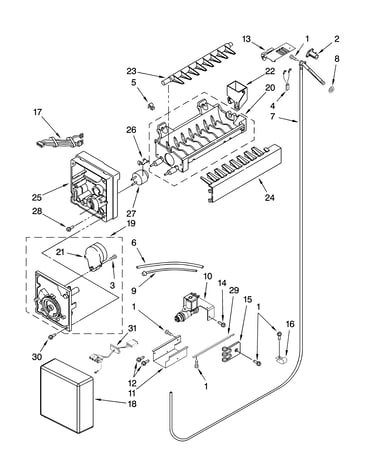

Ice maker stops or is inconsistent	Ice maker assembly	Refrigerator ice maker WPW10277450

Why it matters

Cooling, ice, and leak complaints often share the same root causes: restricted airflow, inaccurate temperature feedback, or limited water flow. Fixing the underlying cause protects food quality, reduces frost and puddles, and helps the compressor run more efficiently.

If you need to order parts for KBFC42FTS03, use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026
