Eureka
Upright Vacuum

Model # 1934AX Official Eureka vacuum cleaner

Here are the diagrams and repair parts for Official Eureka 1934AX vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

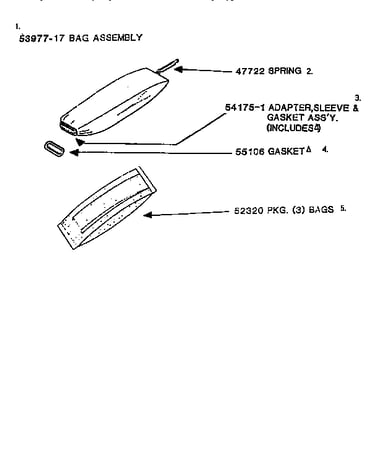

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |

Vacuum Screw, 10-pack 53238-13
Vacuum screw, 10-pack

Part #53238-13

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Bearing And Holder 38138
#12

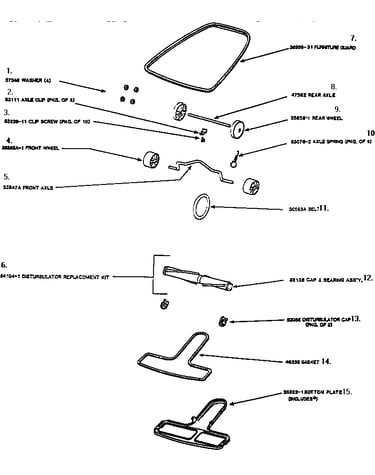

Agitator diagram

Vacuum beater bar bearing and holder

Part #38138

In Stock
Field 53901-2
#4

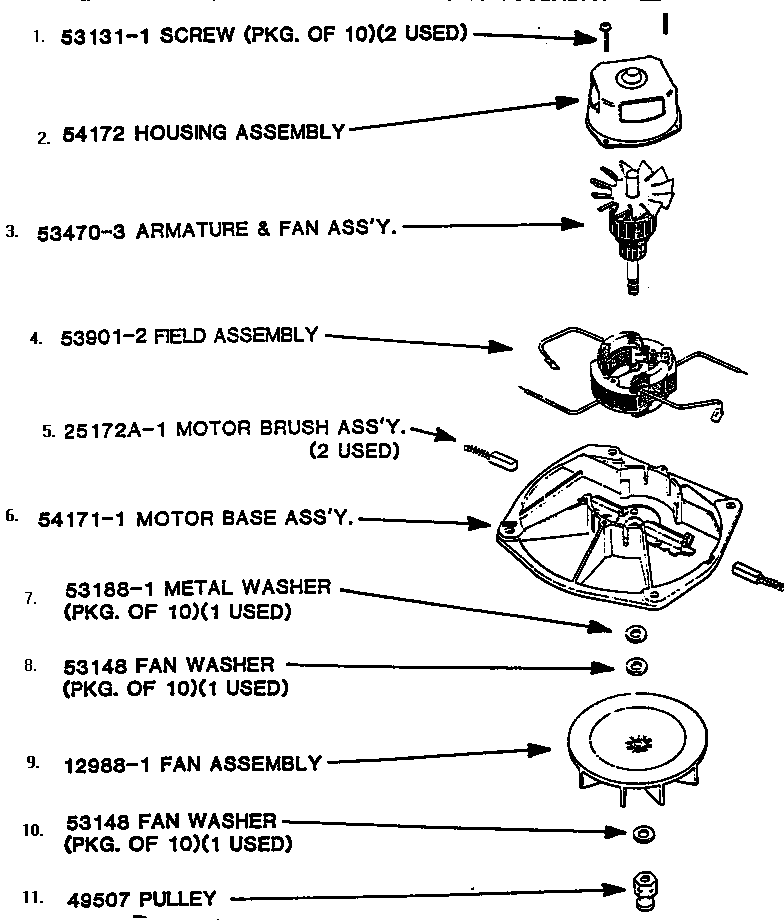

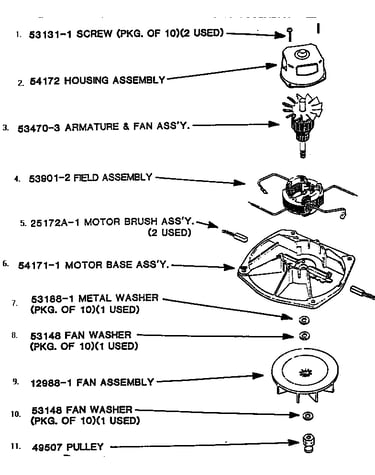

53349-7 motor assembly diagram

Field

Part #53901-2

The manufacturer no longer makes this part, and there's no substitute part

Fan Washer 53148
Fan washer

Part #53148

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw, 10-pack 53238-14
Vacuum screw, 10-pack

Part #53238-14

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw, 10-pack 53238-11
#3

Agitator diagram

Vacuum screw, 10-pack

Part #53238-11

The manufacturer no longer makes this part, and there's no substitute part

Bolt 10pk 53145
#5

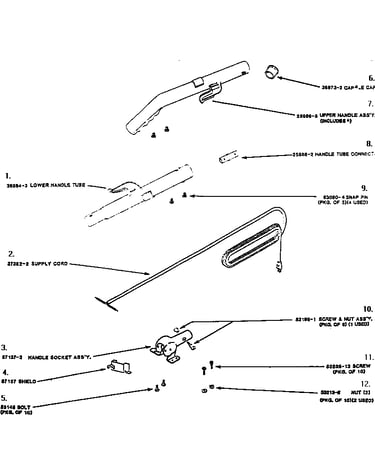

Handle diagram

Bolt 10pk

Part #53145

The manufacturer no longer makes this part, and there's no substitute part

Snap Pin 53080-4
#9

Handle diagram

Snap pin

Part #53080-4

The manufacturer no longer makes this part, and there's no substitute part

Washer 53133
#26

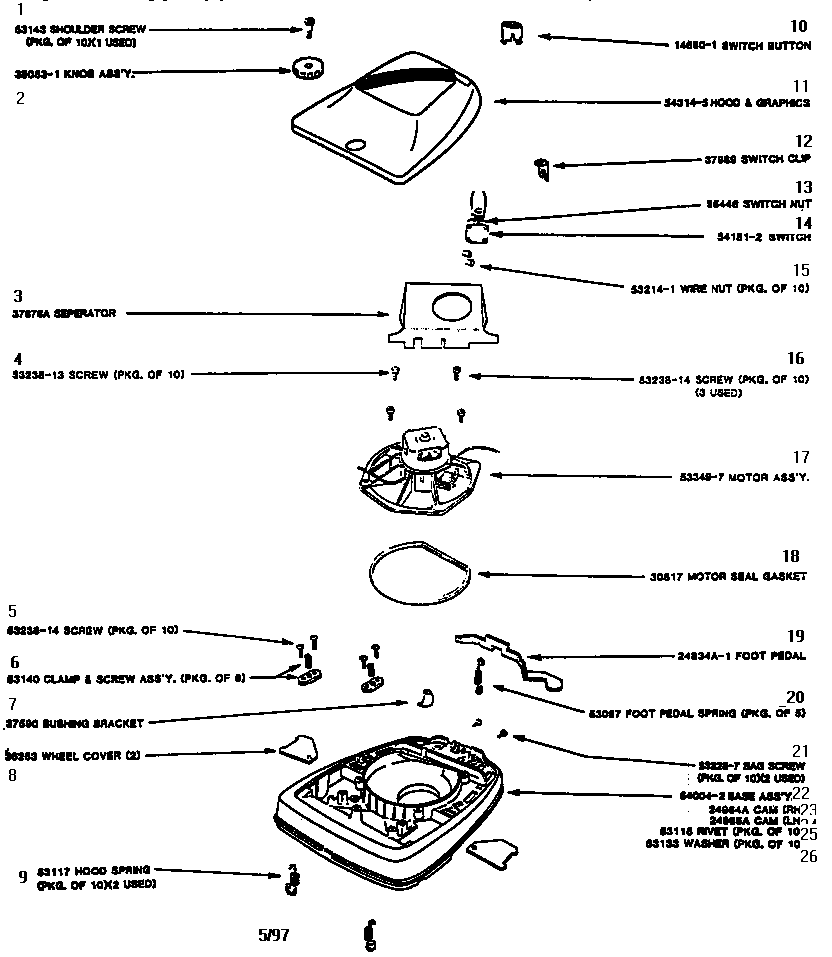

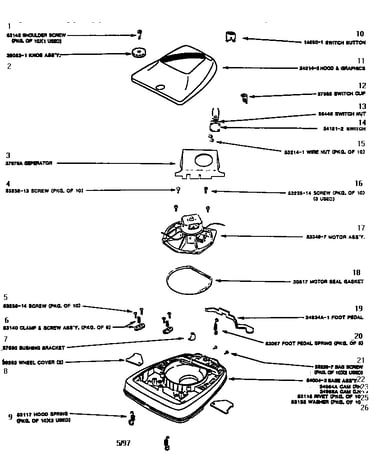

Nozzle and motor assembly diagram

Washer

Part #53133

The manufacturer no longer makes this part, and there's no substitute part

Garter Spring 48410

#NI

All parts diagram

Garter spring

Part #48410

The manufacturer no longer makes this part, and there's no substitute part
