Model # 28R707-1114-E1 Official Briggs & Stratton engine

Here are the diagrams and repair parts for Official Briggs & Stratton 28R707-1114-E1 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 191 parts  |
Lawn & Garden Equipment Engine Starter Drive Assembly 693699
#510

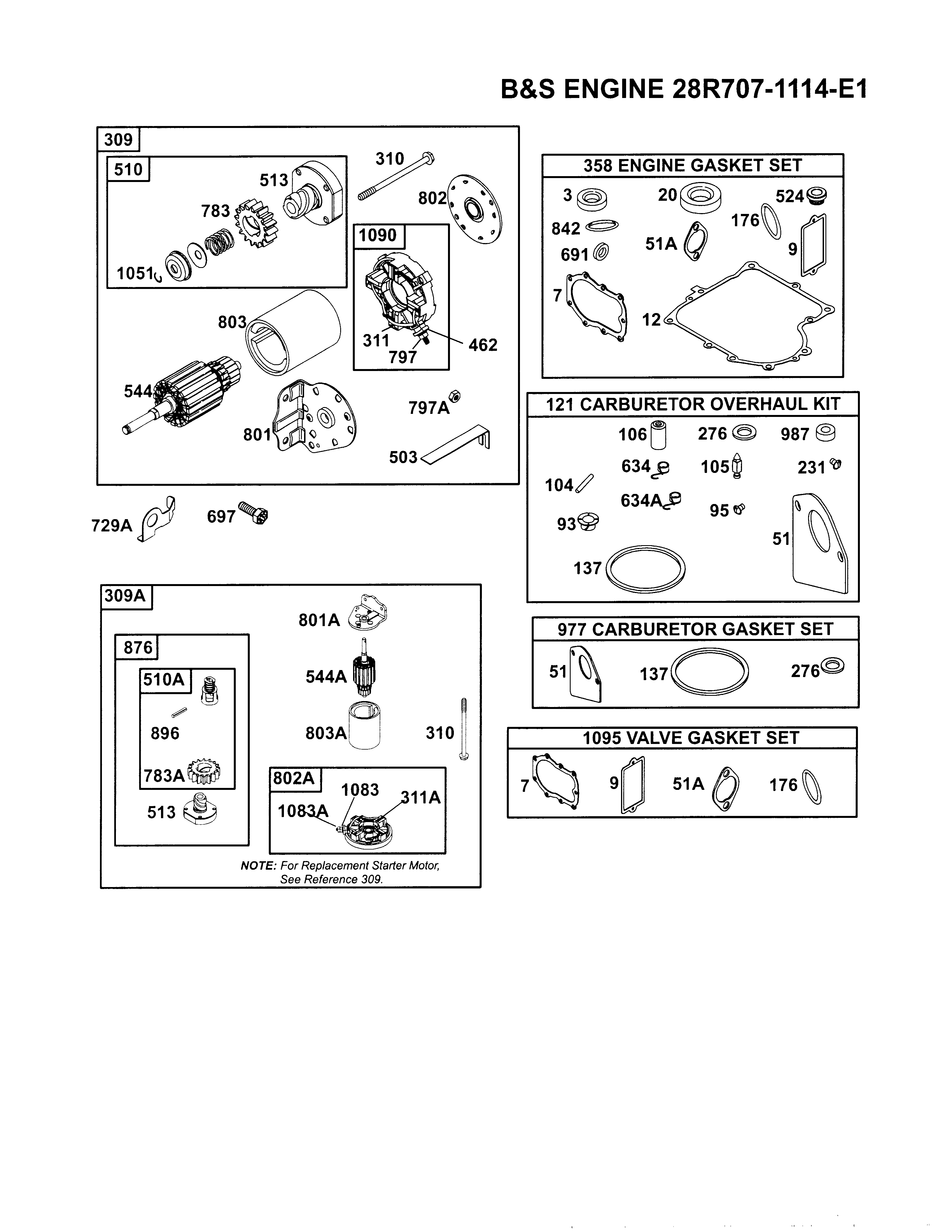

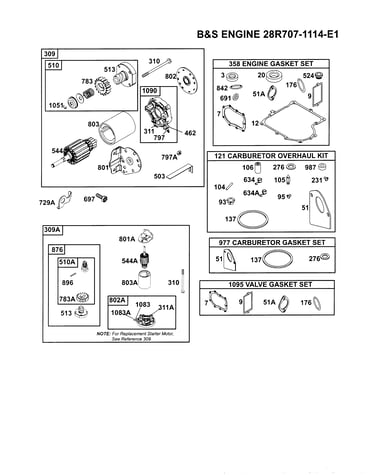

Starter motor & gasket kits (28r707-1114) diagram

Lawn & garden equipment engine starter drive assembly

Part #693699

Replaced by #593934

?
Manufacturer substitution
This part replaces 693699. Substitute parts can look different from the original.
BEST SELLER
$137.86 |
7% OFF Phone Price : $147.86
In Stock
Lawn & Garden Equipment Engine Starter Motor 693551
Lawn & garden equipment engine starter motor

Part #693551

Replaced by #593934

?
Manufacturer substitution
This part replaces 693551. Substitute parts can look different from the original.
BEST SELLER
$137.86 |
7% OFF Phone Price : $147.86
In Stock
Starter Gear 693059
#783A

Starter motor & gasket kits (28r707-1114) diagram

Starter gear

Part #693059

Replaced by #695708

?
Manufacturer substitution
This part replaces 693059. Substitute parts can look different from the original.
BEST SELLER
$8.45 |
11% OFF Phone Price : $9.45
In Stock
Magneto 492341
#333

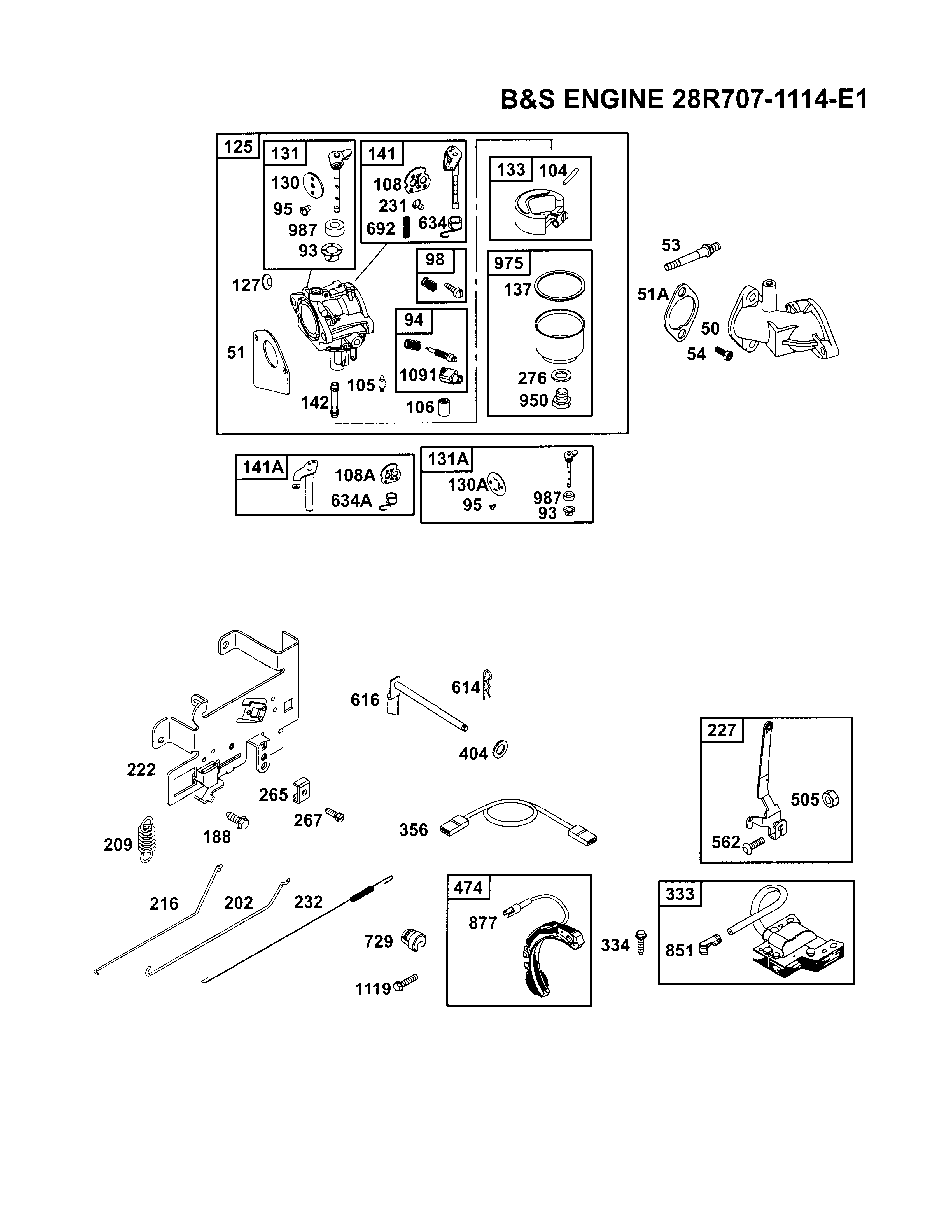

Carburetor (28r707-1114-e1) diagram

Magneto

Part #492341

Replaced by #591459

?
Manufacturer substitution
This part replaces 492341. Substitute parts can look different from the original.
BEST SELLER
$50.43 |
9% OFF Phone Price : $55.43
In Stock
Filter 272403
#967

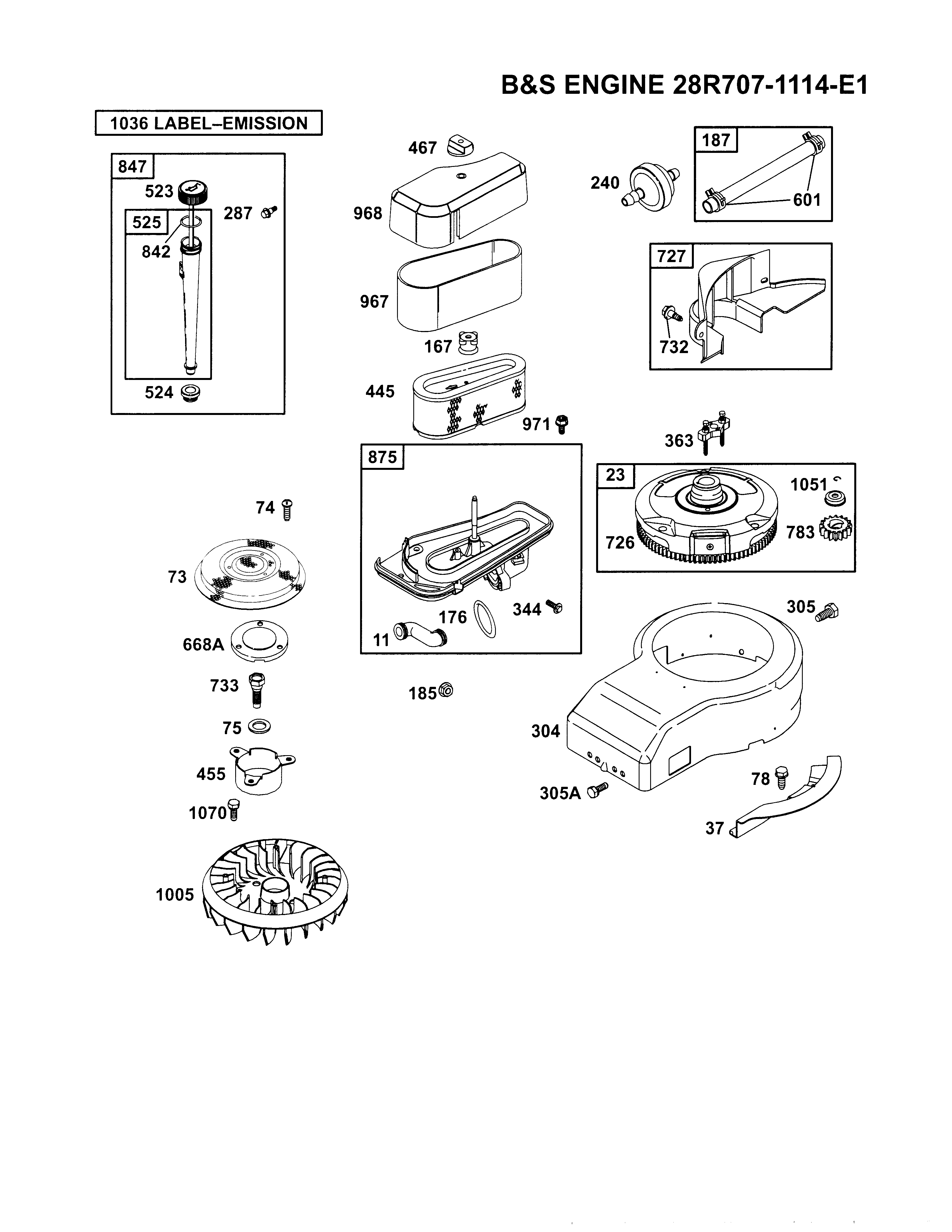

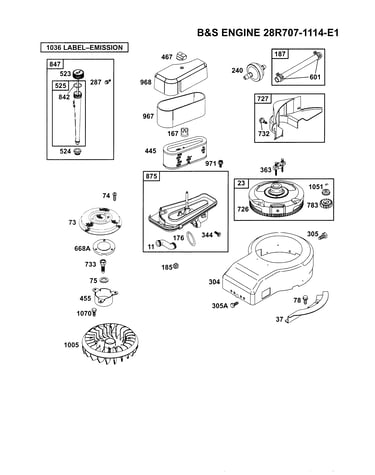

Flywheel assembly (28r707-1114-e1) diagram

Filter

Part #272403

Replaced by #272403S

?
Manufacturer substitution
This part replaces 272403. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.30 |
16% OFF Phone Price : $6.30
In Stock
Elbow Spacer Plug 66538
#635

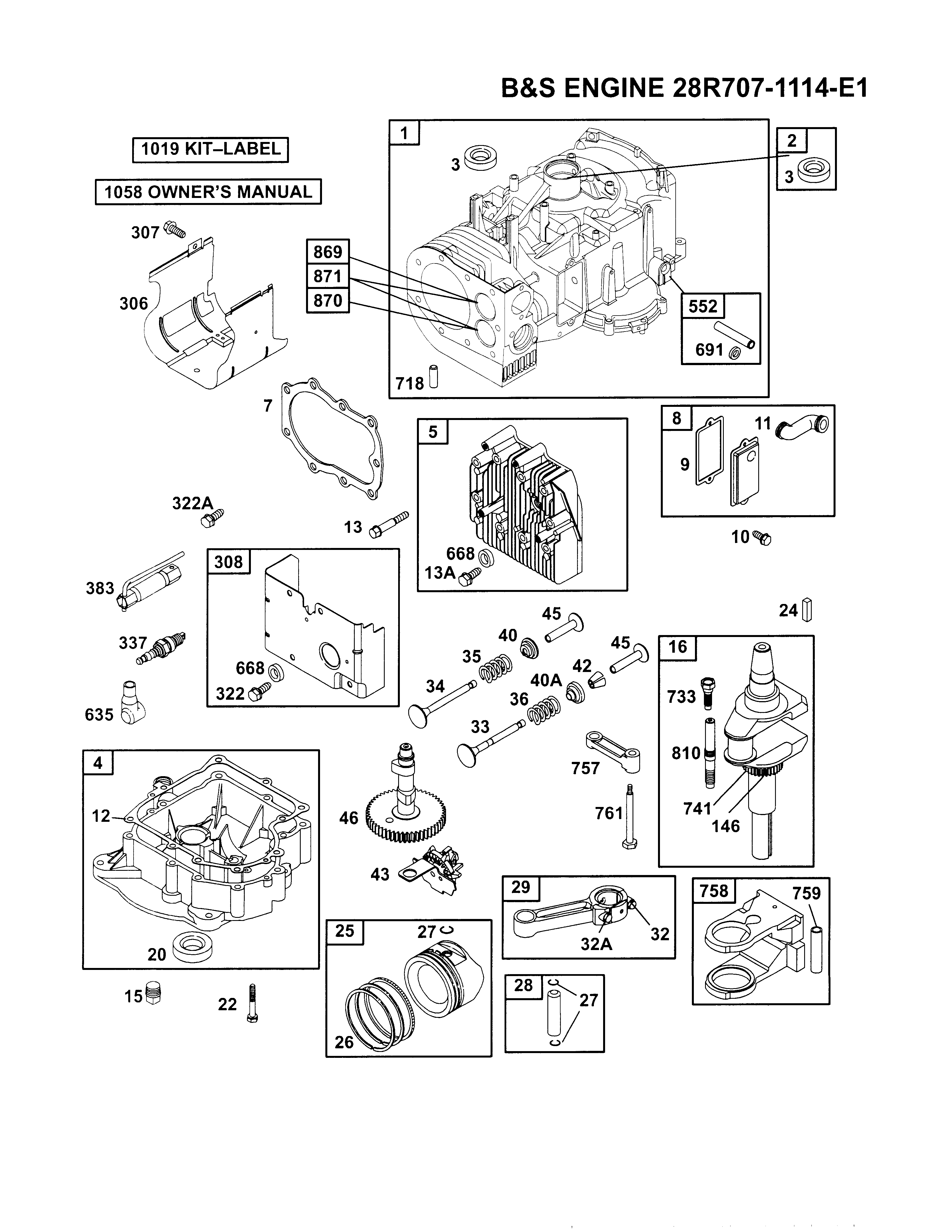

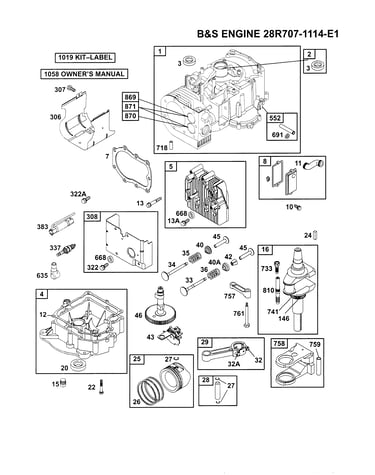

B&s engine assembly (28r707-1114-e1) diagram

Elbow spacer plug

Part #66538

Replaced by #66538S

?
Manufacturer substitution
This part replaces 66538. Substitute parts can look different from the original.
This item is not returnable
$5.11 |
16% OFF Phone Price : $6.11
In Stock
Lawn & Garden Equipment Engine Starter Pinion Gear Retainer Ring (replaces 263080) 691265
Lawn & garden equipment engine starter pinion gear retainer ring (replaces 263080)

Part #691265

This item is not returnable
$8.99 |
10% OFF Phone Price : $9.99
In Stock
Lawn & Garden Equipment Engine Governor Spring (replaces 262785) 691842
#232

Carburetor (28r707-1114-e1) diagram

Lawn & garden equipment engine governor spring (replaces 262785)

Part #691842

This item is not returnable
$19.09 |
9% OFF Phone Price : $21.09
In Stock
Terminal 493880
#851

Carburetor (28r707-1114-e1) diagram

Terminal

Part #493880

Replaced by #493880S

?
Manufacturer substitution
This part replaces 493880. Substitute parts can look different from the original.
This item is not returnable
$4.75 |
17% OFF Phone Price : $5.75
In Stock
Lawn & Garden Equipment Engine Hex Screw (replaces 555539, 94731, Bs-691061) 691061
#334

Carburetor (28r707-1114-e1) diagram

Lawn & garden equipment engine hex screw (replaces 555539, 94731, bs-691061)

Part #691061

This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
