Kenmore
Central Vacuum

Model #1758516180 Kenmore cleanmore home cleaning system

Here are the diagrams and repair parts for Kenmore 1758516180 cleanmore home cleaning system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 98 parts

    Retaining Ring#77

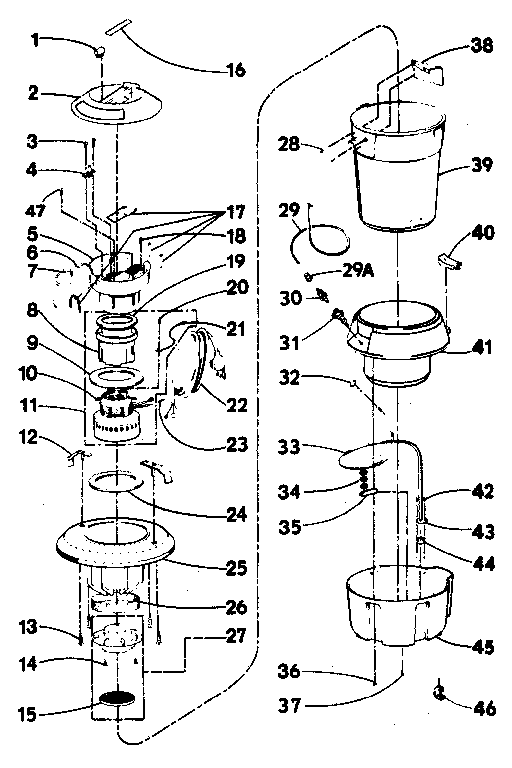

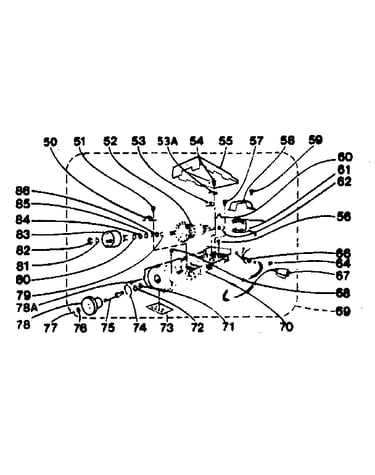

    Figure b Diagram

    Retaining ring

    Part #643863-001

    The manufacturer no longer makes this part, and there's no substitute part

    Tubing#33

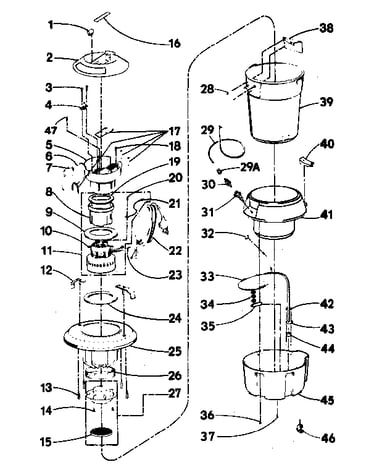

    Figure a Diagram

    Tubing

    Part #643562-003

    The manufacturer no longer makes this part, and there's no substitute part

    Seal#24

    Figure a Diagram

    Seal

    Part #642367-001

    The manufacturer no longer makes this part, and there's no substitute part

    Container#41

    Figure a Diagram

    Container

    Part #643565-010

    The manufacturer no longer makes this part, and there's no substitute part

    Terminal Pigtail

    See All Related Diagrams

    Terminal pigtail

    Part #643531-005

    The manufacturer no longer makes this part, and there's no substitute part

    Hos/wand Cmp#100

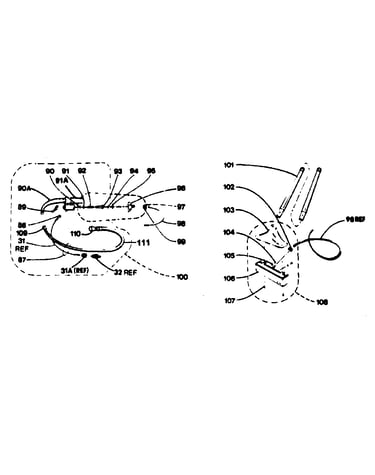

    Figure c Diagram

    Hos/wand cmp

    Part #643570-014

    The manufacturer no longer makes this part, and there's no substitute part

    Latch#12

    Figure a Diagram

    Latch

    Part #641857-008

    The manufacturer no longer makes this part, and there's no substitute part

    Owner's Manual

    #NI

    All parts Diagram

    Owner's manual

    Part #660850-016

    The manufacturer no longer makes this part, and there's no substitute part

    O-Ring

    See All Related Diagrams

    O-ring

    Part #643171-002

    The manufacturer no longer makes this part, and there's no substitute part

    Screw#18

    Figure a Diagram

    Screw

    Part #641798-002

    The manufacturer no longer makes this part, and there's no substitute part
